sescom SES-X-FA2 Setup Instructions

2-channel mic & line level audio over fiber extender ac adapters or battery operated

SES-X-FA2 2-Channel Mic & Line Level Audio over Fiber Extender

AC Adapters or Battery Operated

FEATURES



2-Channel Directional, Analog Audio to Fiber Transmission



24-Bit Digitally Encoded Analog Audio, 48KHz Sample Rate



Supports Multimode Fiber up to 984 feet



Supports Single Mode Fiber up to 12.4 miles



Switchable Balanced Mic or Line Level Inputs



Wide Dynamic Optical Range Requires No Optical Adjustments



Power: AC Adapter or Standard 9VDC Battery



Battery Runtime: Alkaline - Approximately 4 hours



1 Year Warranty



FCC & RoHS Certified

Table of Contents

Need help?

Do you have a question about the SES-X-FA2 and is the answer not in the manual?

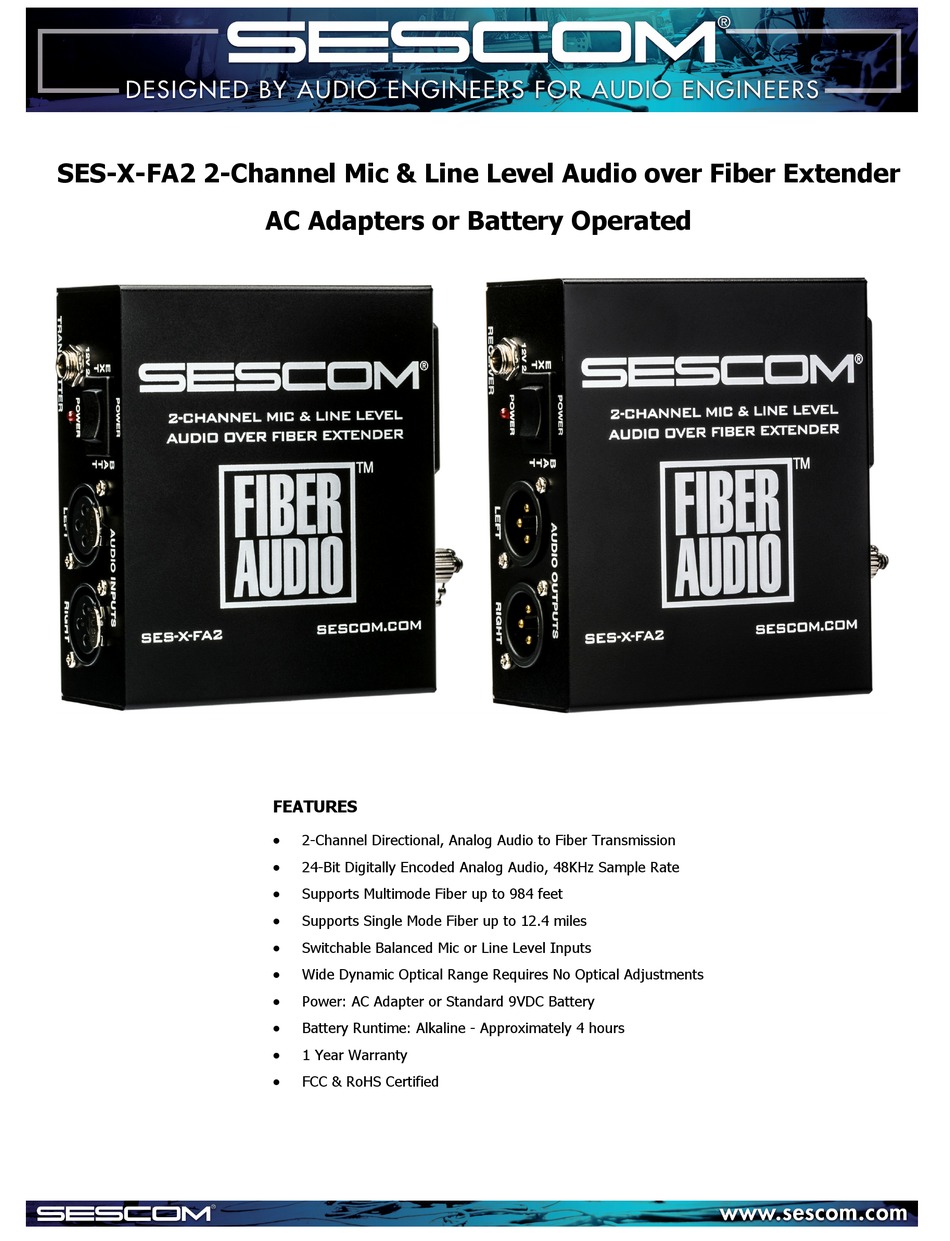

Page 1 SES-X-FA2 2-Channel Mic & Line Level Audio over Fiber Extender AC Adapters or Battery Operated FEATURES  2-Channel Directional, Analog Audio to Fiber Transmission  24-Bit Digitally Encoded Analog Audio, 48KHz Sample Rate  Supports Multimode Fiber up to 984 feet ...
Page 2 SES-X-FA2 AUDIO OVER SINGLE FIBER EXTENDER Set Up Instructions 1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that can severely affect the signal transfer.
Page 3 SES-X-FA2 AUDIO OVER SINGLE FIBER EXTENDER TRANSMITTER DC Power Jack 3 Position Rocker Switch Power LED Indicator Audio Input Left Audio Input Right Left Channel Mic/Line Switch Right Channel Mic/Line Switch ST Fiber I/O 9V Battery Cover RECEIVER DC Power Jack...
Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SESCOM PO Box 720 • Mt. Marion, NY 12456 • USA 845.246.1915 • sales@sescom.com ...
