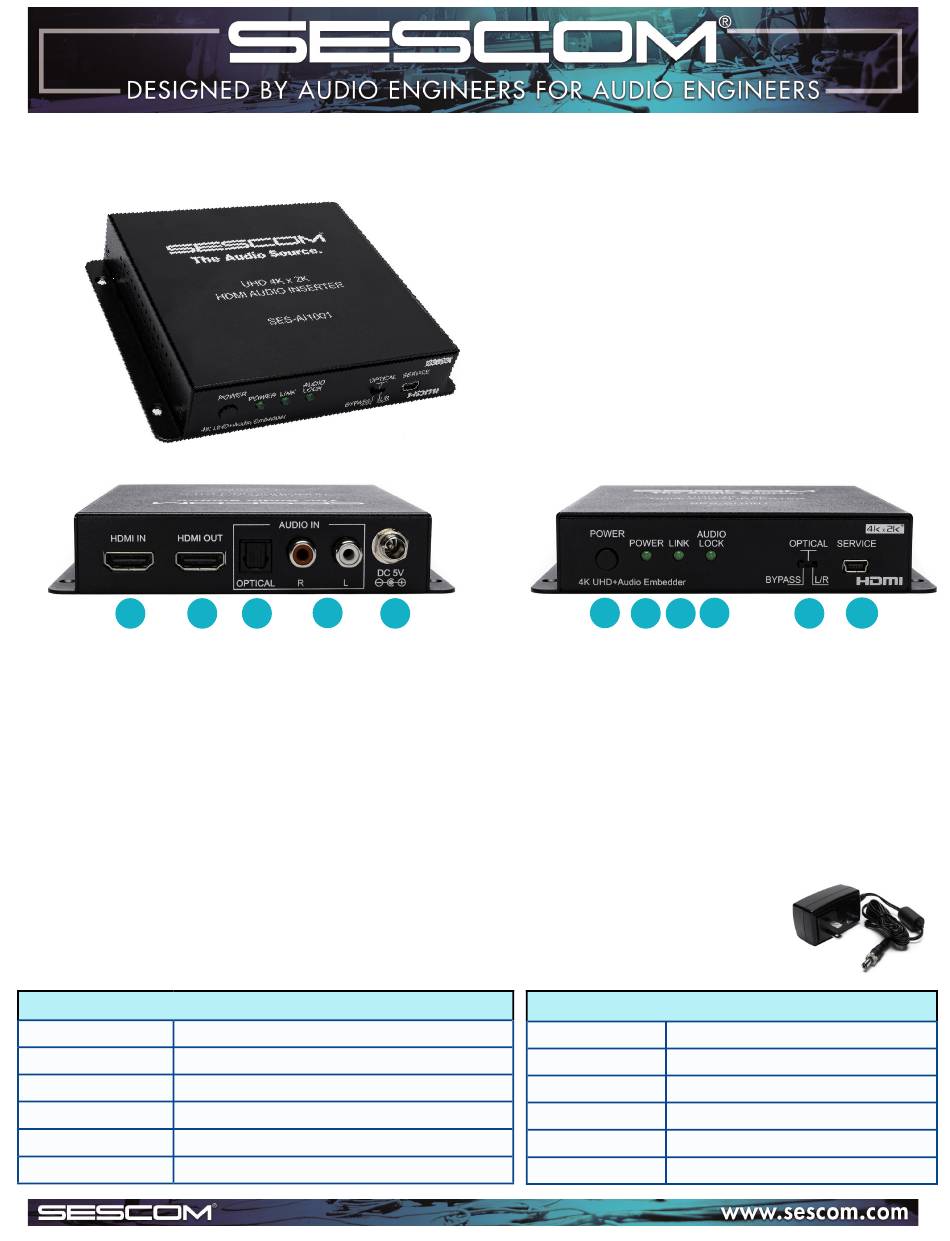

sescom SES-AI1001 Manual

SES-AI1001 4K UHD HDMI 2.0 Audio Inserter With Optical and Analog Audio Inputs
1 2
1 HDMI In
2 HDMI Out
3 Optical Audio Input
4 RCA R/L Audio Inputs
5 DC 5V

Connection

1. Connect the HDMI signal source to the HDMI input
2. Connect the HDMI output to the display
3. Connect a supported audio source to the optical audio or RCA
inputs
4. Connect the 5V DC power adapter to the audio inserter and
connect it to an AC wall outlet for power

SPECIFICATIONS

Operating Temperature 0°C - 40°C/32°F - 104°F
Input Ports 1 x HDMI, 1 x OPTICAL (S/PDIF), 2 x RCA (STEREO)
Output Ports 1 x HDMI
10m (1080p60Hz, 12-BIT) / 3m (4K@60Hz, 4:4:4, 8-BIT)
Max HDMI Cable Length
Video Resolutions up to 4K@60Hz YUV4:4:4
Video Color Format 48-bit Deep Color up to 1080p@60Hz
3 4 5

FEATURES

• HDMI Input and Output with 18Gbps (600MHz) 4K
UHD Support
• Supports HD Resolutions up to 3840x2160@60 Hz
(4:4:4, 8-bit) & 4096x2160@60 Hz (4:4:4, 8-bit)
•
Supports 48-bit Deep Color up to 1080p@60Hz
• HDMI 2.0, HDCP 1.4, 2.2 and DVI 1.0 Compliant
• HDMI Audio Sampling Rates: up to 192kHz
• Outputs a 720p60 Color Bar Pattern When No HDMI
Input is Connected
5 6 7
5 Power On / Off Button
6 Power Indicator LED
7 Link Indicator LED
8 Audio Lock Indicator LED
9 Audio Selection Switch
10 Factory Use Only

ITEM INCLUDES

• 5V / 2.6A DC Power Adapter
• International Power Adapters
SPECIFICATIONS
HDMI Bandwidth 600MHz / 18Gbps
HDMI Audio Formats LPCM 7.1, Bitstream and HD Bitstream Audio
Data Transfer Rate 18Gbps
Power Consumption 3.78W
Dimensions 5.04 x 0.98 x 4.25 Inches
Weight 12.1 oz
U S E R
GUIDE
10
8 9
