sescom SES-X-FA2LRT01 Quick Start Manual

2 ch unbalanced rca line level audio over fiber extender

SES-X-FA2LRT01 2 CH Unbalanced RCA Line Level

Audio over Fiber Extender

FEATURES



2-Channel RCA Audio over Fiber with Singlemode Simplex ST Fiber Connector



24-Bit Digitally Encoded Analog Audio



Transmission Distance up to 12.4 miles over Singlemode Fiber



Adjustment Free Plug & Play Operation



Enable Cascaded Audio Setups



1 Year Warranty



FCC & RoHS Compliant

Table of Contents

Do you have a question about the SES-X-FA2LRT01 and is the answer not in the manual?

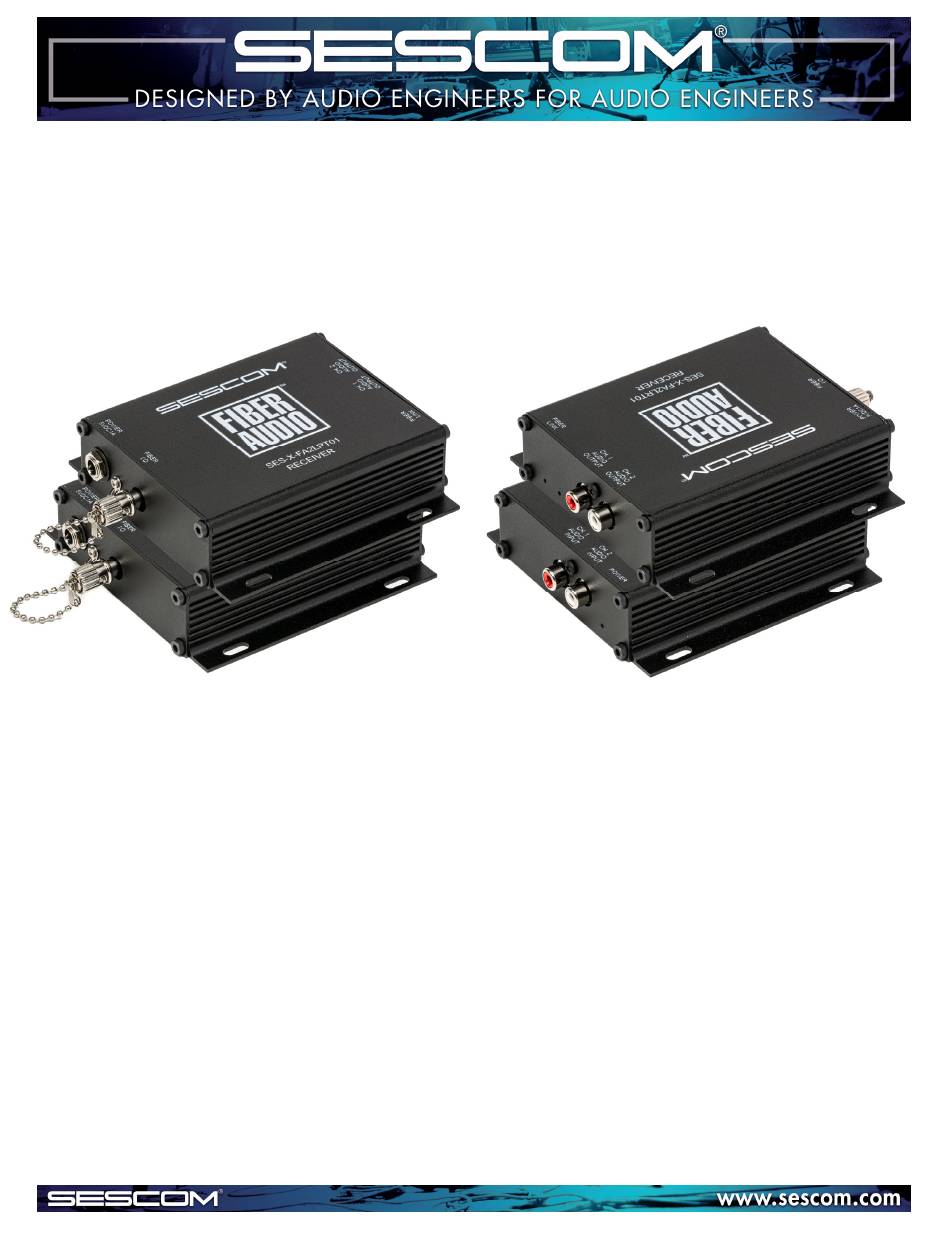

Page 1 SES-X-FA2LRT01 2 CH Unbalanced RCA Line Level Audio over Fiber Extender FEATURES  2-Channel RCA Audio over Fiber with Singlemode Simplex ST Fiber Connector  24-Bit Digitally Encoded Analog Audio  Transmission Distance up to 12.4 miles over Singlemode Fiber ...
Page 2 SES-X-FA2LRT01 AUDIO FIBER EXTENDER Set Up Instructions 1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that can severely affect the signal transfer.
Page 3 SES-X-FA2LRT01 AUDIO FIBER EXTENDER TRANSMITTER Channel 1 Right Audio Input Channel 2 Left Audio Input Fiber Link Indicator LED DC Power Input Jack ST Fiber I/O Port RECEIVER LED Fiber Link Indicator LED Power Indicator Channel 1 Right Audio Output...
Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SESCOM PO Box 720 • Mt. Marion, NY 12456 • USA 845.246.1915 • sales@sescom.com ...
