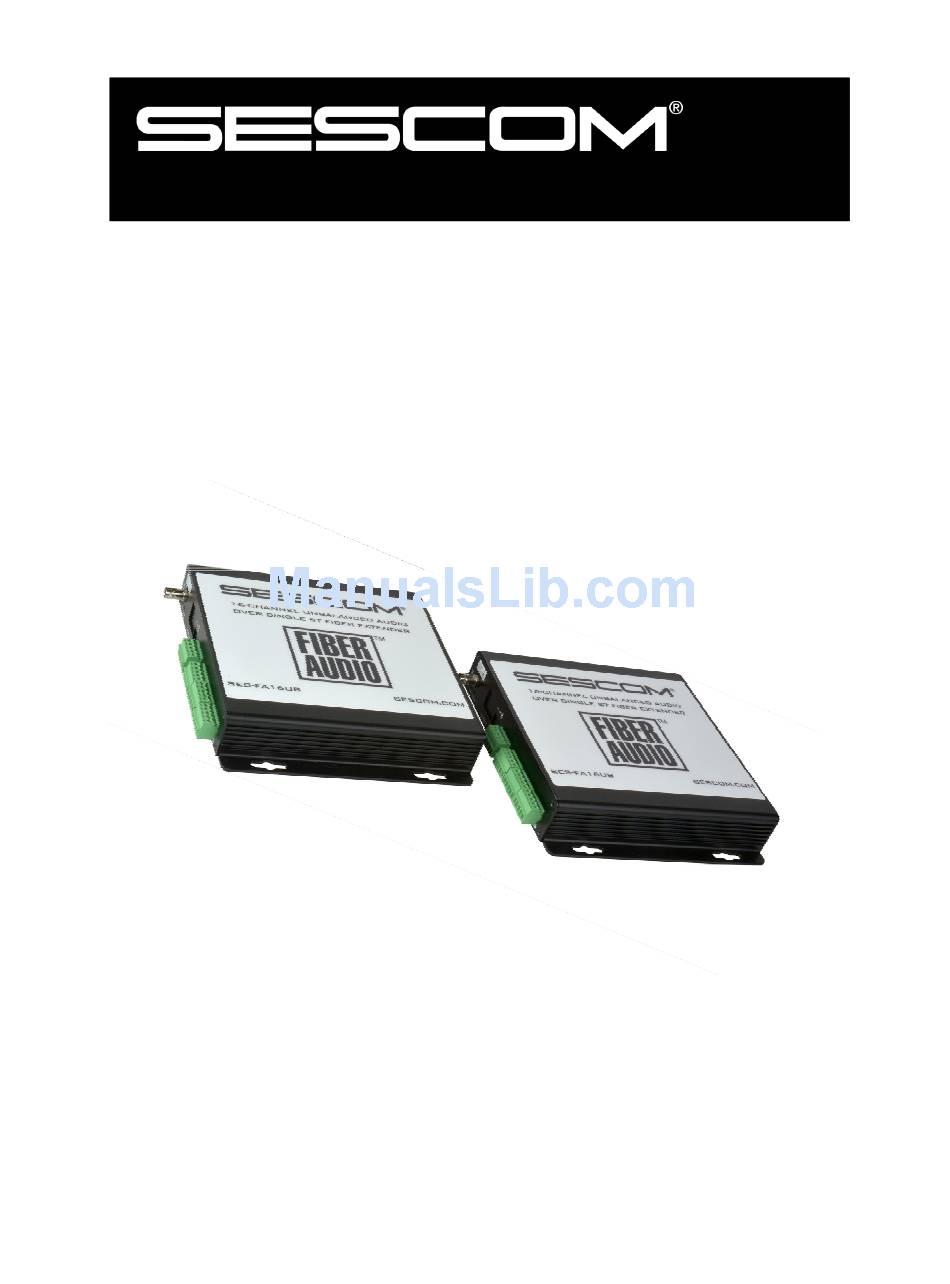

- Page 1 The Audio Source. USER MANUAL SES-FA16UB 16-Channel Unbalanced RCA Audio Over a Single ST Fiber Extender Kit SESCOM · PO Box 720 Mt. Marion, NY 12456 www.sescom.com...
- Page 2 SES-FA16UB Fiber Extender Kit The SES‐FA16UB fiber extender kit sends 16 channels of unbalanced audio over a single fiber cable. The system consists of a transmi er and receiver which send line level audio over long distances via mul mode or singlemode op cal fiber. This extender transmits a broadcast quality audio signal up to 984 feet on mul mode fiber and up to...
- Page 3 Op c fiber 50/125u mul mode, 62.5/125u mul mode, 9/125u singlemode Input Impedance 10KΩ Output Impedance 50Ω Max input/output voltage 3.0Vp‐p Frequency Response 10 Hz‐29kHz @±3dB Dimensions 7.2 x 6.1 x 1.8in/183mm × 154mm × 30mm Weight 1.65 lb / 0.75 kg SESCOM SES‐FA16UB Page 3...
- Page 4 SES-FA16UB Features Transmi er 2 3 4 5 1 6 7 1 Status Indicator LEDs 2 ST Fiber Output 3 NC (no connec on) 4 NC (no connec on) 5 Audio Inputs (#3 in each group is Common Audio Ground) 6 ...
- Page 5 Status Indicator LEDs 2 ST Fiber Input 3 NC (no connec on) 4 NC (no connec on) 5 Audio Outputs (#3 in each group is Common Audio Ground) 6 DC Power Jack 7 Chassis Ground Screw SESCOM SES‐FA16UB Page 5...
- Page 6 SES-FA16UB Set Up Instructions 1. Secure the units in a safe loca on, where they will not be subject to im‐ pact and where there is room around the unit so nothing will interfere with the fiber op c cabling causing it to bend sharply in a ght radius in any way that can severely affect the signal transfer.
- Page 7 10. There are no user‐serviceable parts inside the unit. If the unit re‐ quires service contact your authorized dealer, or an authorized repair service company. SESCOM SES‐FA16UB Page 7...
- Page 8 SESCOM PO Box 720 Mt. Marion, NY 12456 The Audio Source. SESCOM SES‐FA4UB Page 8...
