sescom X-FA2LRL01 Quick Start Manual

2 ch unbalanced rca line level audio over fiber extender

SES-X-FA2LRL01 2 CH Unbalanced RCA Line Level

Audio over Fiber Extender

FEATURES



2-Channel RCA Audio over Single Fiber Transmission



Simplex LC Fiber Connectors



24-Bit Digitally Encoded Analog Audio



Transmission Distance: up to 12.4 miles over Singlemode Fiber and

up to 984ft. via Multimode Fiber



No Loss in Signal Quality



Adjustment Free Plug & Play Operation



Enable Cascaded Audio Setups



Line Level Unbalanced Audio Operation



Indicator LEDs Monitor Fiber Link and Power



Housed in Rugged Aluminum Enclosures



FCC & RoHS Compliant

Table of Contents

Do you have a question about the X-FA2LRL01 and is the answer not in the manual?

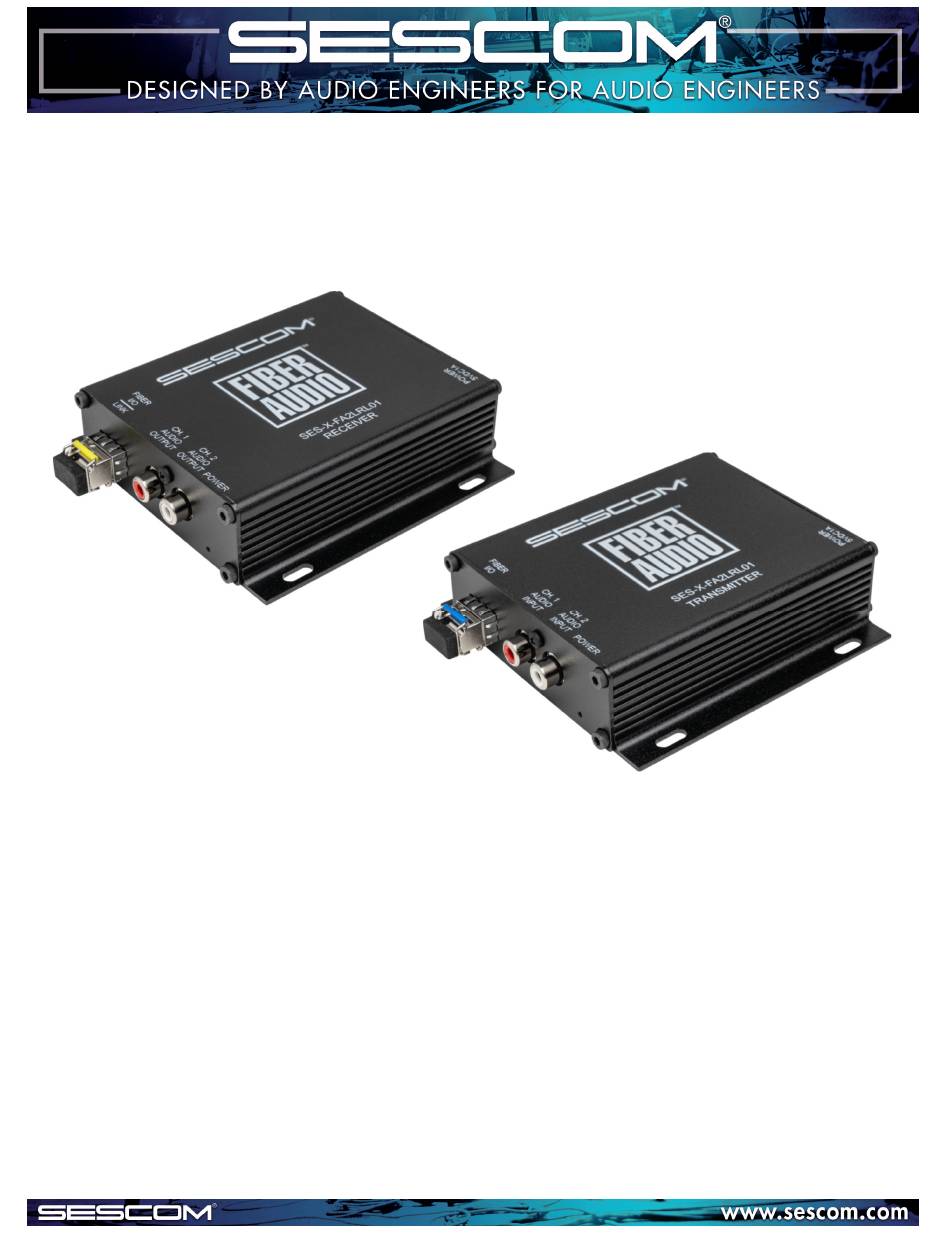

Page 1 SES-X-FA2LRL01 2 CH Unbalanced RCA Line Level Audio over Fiber Extender FEATURES  2-Channel RCA Audio over Single Fiber Transmission  Simplex LC Fiber Connectors  24-Bit Digitally Encoded Analog Audio  Transmission Distance: up to 12.4 miles over Singlemode Fiber and up to 984ft.
Page 2 SES-X-FA2LRT01 AUDIO FIBER EXTENDER Set Up Instructions 1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that can severely affect the signal transfer.
Page 3 SES-X-FA2LRT01 AUDIO FIBER EXTENDER TRANSMITTER LC Simplex Fiber Output Right Analog Unbalanced Audio RCA Input Left Analog Unbalanced Audio RCA input 5VDC / 1A 2.5mm DC Power Input Jack RECEIVER LC Simplex Fiber Input Right Analog Unbalanced Audio RCA Output Left Analog Unbalanced Audio RCA Output 5VDC / 1A 2.5mm DC Power...
Page 4 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SESCOM PO Box 720 • Mt. Marion, NY 12456 • USA 845.246.1915 • sales@sescom.com ...
