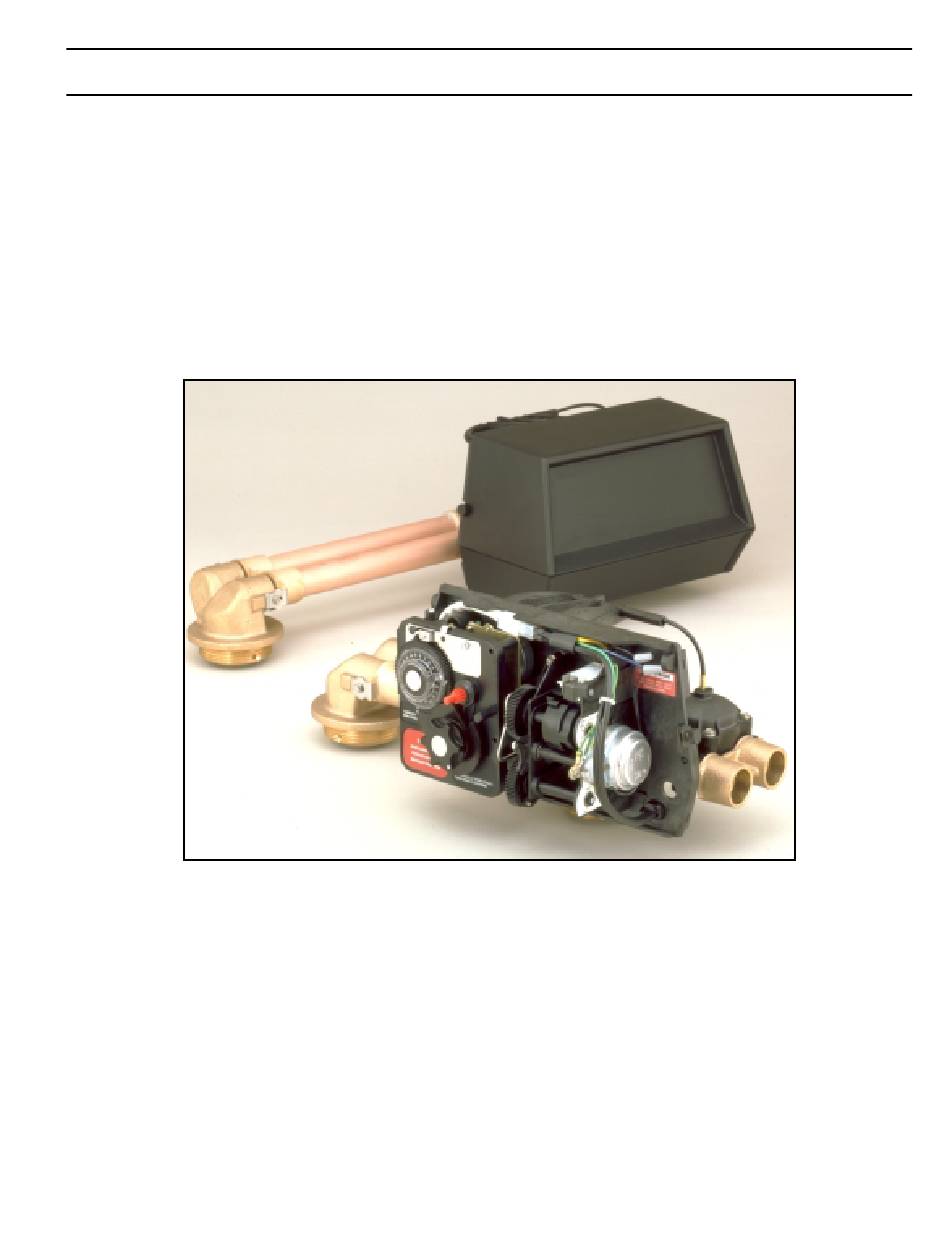

- Page 1 MODEL 9000 Service Manual IMPORTANT: Fill in pertinent information on page 2 for future reference.
-
Page 2: Job Specification Sheet
* MINERAL TANK SIZE DIA.________ HEIGHT_________ * BRINE TANK SIZE & SALT SETTING PER REGENERATION _________________________________ * 9000 CONTROL VALVE SPECIFICATIONS 1. Type of Timer A) 82 minute available regeneration time, 1/15 RPM B) 164 minute available regeneration time, 1/30 RPM 2. - Page 3 MODEL 9000 ECONOMINDER General, Residential & Commercial Installation Check List WATER PRESSURE: A minimum of 25 pounds of water pressure is required for regeneration valve to operate effectively. ELECTRICAL FACILITIES: A continuous 110 volt, 60 Hertz current supply is required. Make certain the current supply is always hot and cannot be turned off with another switch.
- Page 4 MODEL 9000 ECONOMINDER General, Residential & Commercial Installation Check List (Cont’d.) 13. Tank #1 has control valve. 14. Cycle timer into backwash position. Turn manual knob (figure 1) so that the micro switch is riding on the 1st Tank #2 has the adapter.
- Page 5 MODEL 9000 ECONOMINDER Regeneration Cycle Program Setting Procedure (Brine Tank Refill Separate From Rapid Rinse) How To Set The Regeneration Cycle Program: The regeneration cycle program on your water conditioner PROGRAM has been factory preset, however, portions of the cycle or BRINE &...
- Page 6 (each pin or hole = 2 min.). 2. The 9000 Control has a separate brine tank fill cycle. Your desired salt setting must be calculated, using the blue (.25 gpm) or black (.5 gpm) or red (1.0 gpm) rate of refill (in gpm) times your timer setting. Then using one gallon of fresh water dissolving approximately 3 lbs.
- Page 7 MODEL 9000 ECONOMINDER Time Brine Refill & Meter Setting Procedure (Cont’d.) If we have 1000 gallons available from Step 3, we want to subtract the regeneration water used from the total water available. 1000 gallons available - 55. gallons used = 945 gallons setting (in regeneration) 4.
- Page 8 MODEL 9000 ECONOMINDER BRINE VALVE FLOW CONTROL DRAIN 1 - SERVICE POSITION Hard water enters the unit at the valve inlet, flows around the lower piston, and down through the mineral in the first tank. Conditioned water enters the center tube through the bottom distributor, flows up through the center tube,...
- Page 9 MODEL 9000 ECONOMINDER BRINE VALVE FLOW CONTROL DRAIN 3 - BACKWASH Conditioned water from the second mineral tank flows around the lower piston, around the upper piston, through the center of the lower piston, down the center tube, up through the mineral, around the upper piston, and out the drain line.
- Page 10 MODEL 9000 ECONOMINDER BRINE VALVE FLOW CONTROL DRAIN 5 - SLOW RINSE Conditioned water from the second mineral tank flows around the lower piston, around the upper piston, into the injector housing, down through the nozzle and throat, around the upper piston, down through the mineral, into...
- Page 11 MODEL 9000 ECONOMINDER BRINE VALVE FLOW CONTROL DRAIN 7 - BRINE TANK FILL POSITION Conditioned water from the second mineral tank flows around the lower piston, around the upper piston, into the injector housing, through the brine line flow control, through the brine valve, and into to brine tank.
-
Page 12: Drive Assembly
MODEL 9000 ECONOMINDER Drive Assembly (See opposite page for parts list) Page 12 Printed in U.S.A. - Page 13 MODEL 9000 ECONOMINDER Drive Assembly Parts List Item No. Quantity Part No. Description 1 ... 2 ... 11335 ....Screw, #4-40 2 .
-
Page 14: Control Valve Assembly
MODEL 9000 ECONOMINDER Control Valve Assembly (See opposite page for parts list) Page 14 Printed in U.S.A. - Page 15 MODEL 9000 ECONOMINDER Control Valve Assembly Parts List Item No. Quantity Part No. Description 1 ..1 ... 14861-01 ... . Valve Body 2 .
- Page 16 MODEL 9000 ECONOMINDER Second Tank Adapter Assembly PARTS LIST Item No. Quantity Part No. Description 1 ... 1... . 14864-01 ... . . 2nd Tank Adapter 2 .
- Page 17 MODEL 9000 ECONOMINDER Air Check PARTS LIST Item No. Quantity Part No. Description 1 ... 1 ... 10332 ....Tube Insert 3/8″...
- Page 18 MODEL 9000 ECONOMINDER 1″ Meter Assembly PARTS LIST Item No. Quantity Part No. Description 1 ... 4 ... 12112....Screw, Hex Hd #10-24 2 .
- Page 19 MODEL 9000 ECONOMINDER 3/4″ Meter Assembly PARTS LIST Item No. Quantity Part No. Description 1 ... 4 ... 12473 ....Screw, Hex Washer #10-24 2 .
-
Page 20: Timer Assembly
MODEL 9000 ECONOMINDER Timer Assembly (See opposite page for parts list) Page 20 Printed in U.S.A. - Page 21 MODEL 9000 ECONOMINDER Timer Assembly Parts List Item No. Quantity Part No. Description 1 ... .1 ... . 13870-03....Timer Housing Assy.
- Page 22 MODEL 9000 ECONOMINDER Service Instructions PROBLEM CAUSE CORRECTION Softener Fails To Regenerate. A. Electrical Service To Unit Has A. Assure Permanent Electrical Been Interrupted. Service (Check Fuse, Plug, Pull Chain or Switch). B. Timer Is Defective. B. Replace Timer.
- Page 23 MODEL 9000 ECONOMINDER Service Instructions (Cont’d.) PROBLEM CAUSE CORRECTION D. Foreign Material In Brine Valve. D. Replace Brine Valve Seat And Clean Valve. E. Foreign Material In Brine Line E. Clean Brine Line Flow Control. Flow Control. Power Loss During Brine Fill.
- Page 24 MODEL 9000 ECONOMINDER 2 Tank Wiring & Control Information 9000 WIRING DIAGRAM CONTROL INFORMATION Slow Rinse Tank Size Dia. Injector Timer Motor B.L.F.C. D.L.F.C. Timer Setting Rate (gpm) 6″ #0 Red .26 gpm .5 gpm 1.2 gpm 1/15 rpm 8-54-6-6 7″...
- Page 25 MODEL 9000 ECONOMINDER Controlled Dimensions Page 25 Printed in U.S.A.
-
Page 26: Service Assemblies
1 ..16595 ..Spacer, 9000 1 ..14925 ..Brine Valve Stem, 9000 60412 ..9000 Powerhead Assembly 60385-XXXX. - Page 27 1 ..16590 ..Retainer, Piston Rod, HW 1 ..14905 ..Piston, Lower 9000 1 .
- Page 28 P/N 15547 Rev. 2 1/99 Printed 7/99...
