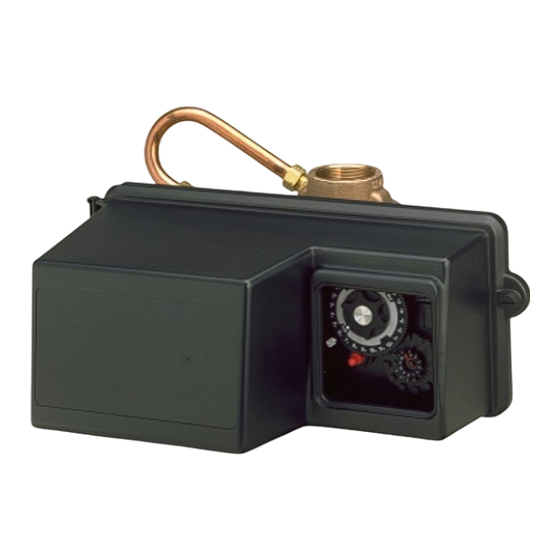

Fleck 3150 Service Manual
  1. Manuals
  2. Brands
  3. Fleck Manuals
  4. Control Unit
  5. 3150
  6. Service manual

Fleck 3150 Service Manual

Up-flow brine
Hide thumbs Also See for 3150:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
MODEL 3150
Up-flow Brine
Service Manual
IMPORTANT: Fill in pertinent information on page 2 for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fleck 3150

Summary of Contents for Fleck 3150

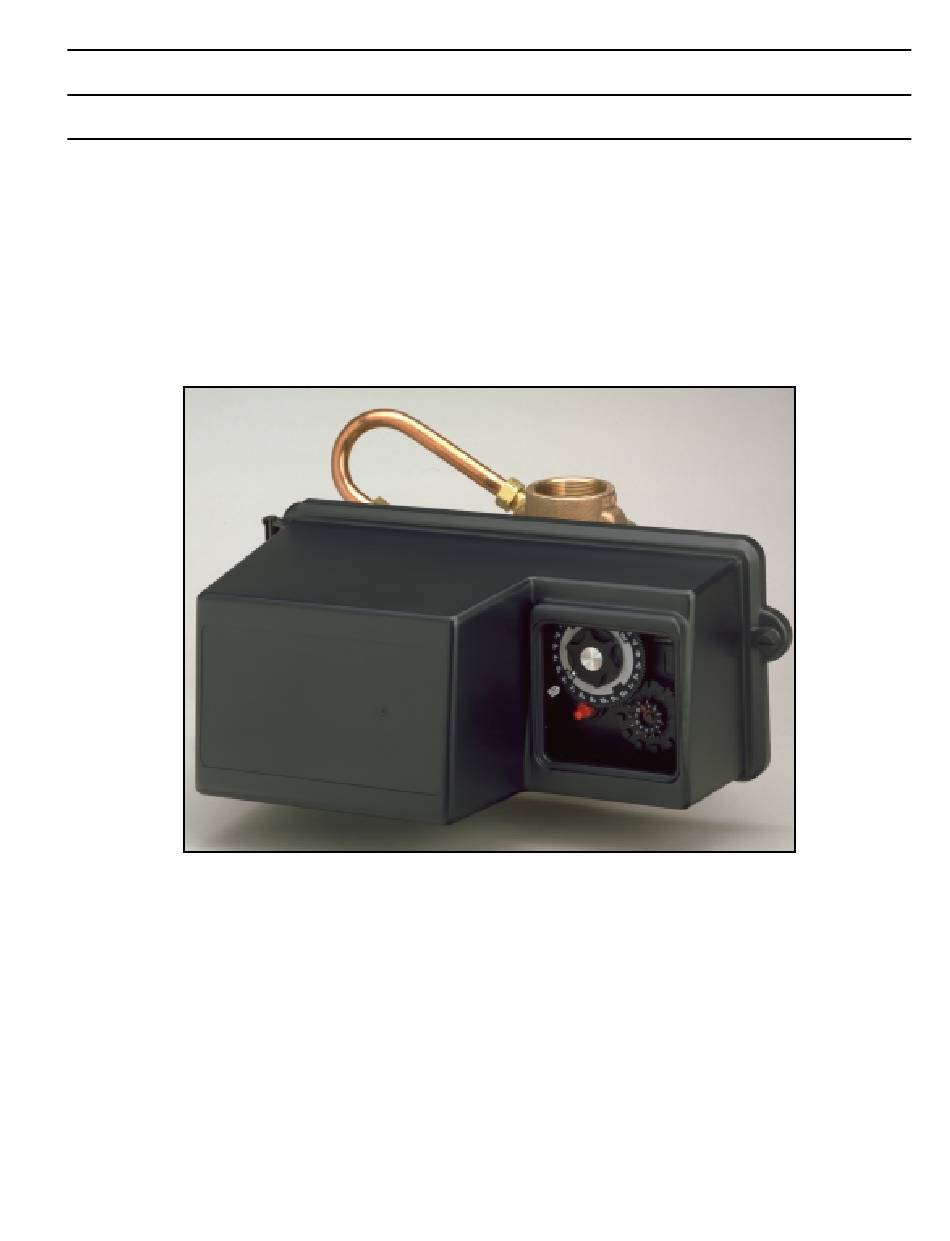

  • Page 1 MODEL 3150 Up-flow Brine Service Manual IMPORTANT: Fill in pertinent information on page 2 for future reference.

  • Page 2: Job Specification Sheet

    MODEL 3150 UP-FLOW Job Specification Sheet * JOB NO. __________________________________________________________ * MODEL NO. _______________________________________________________ * WATER TEST ______________________________________________________ * CAPACITY PER UNIT _______________________________________________ * MINERAL TANK SIZE DIA.________ HEIGHT_________ * BRINE TANK SIZE & SALT SETTING PER REGENERATION: ______________________________________ * CONTROL VALVE SPECIFICATIONS 1) Type of Timer (see pages 19, 20, &...

  • Page 3: General Commercial Pre-Installation Check List

    MODEL 3150 UP-FLOW General Commercial Pre-Installation Check List WATER PRESSURE: A minimum of 25 pounds of water pressure is required for regeneration valve to operate effectively. ELECTRICAL FACILITIES: A continuous 115 volt, 60 Hertz current supply is required. (Other voltages available.) Make certain the current supply is always hot and cannot be turned off with another switch.

  • Page 4: Water Conditioner Flow Diagrams

    MODEL 3150 UP-FLOW Water Conditioner Flow Diagrams OUTLET SERVICE POSITION INLET DRAIN INLET TOP OF TANK TO BRINE TANK BOTTOM OF TANK Hard water enters at valve inlet  flows thru valve to the top of tank  down thru mineral to the bottom distributor.
  • Page 5 MODEL 3150 UP-FLOW Water Conditioner Flow Diagrams (Cont’d.) RAPID RINSE POSITION OUTLET INLET DRAIN INLET TOP OF TANK TO BRINE TANK BOTTOM OF TANK Hard water enters at valve inlet  flows thru valve to the top bottom of tank  down thru mineral to bottom distributor ...

  • Page 6: Control Valve

    MODEL 3150 UP-FLOW Control Valve (see opposite page for parts list) Page 6 Printed in U.S.A.
  • Page 7 MODEL 3150 UP-FLOW Control Valve Parts List Item No. Quantity Part No. Description 1 ... 1 ... 15114 ....Valve Body 15114-30NP .

  • Page 8: Control Drive Assembly

    MODEL 3150 UP-FLOW Control Drive Assembly (see opposite page for parts list) Page 8 Printed in U.S.A.
  • Page 9 MODEL 3150 UP-FLOW Control Drive Assembly Parts List Item No. Quantity Part No. Description 1 ... 1 ....19304-00 ....Back Plate -01, -02 2 .
  • Page 10 MODEL 3150 UP-FLOW 1800 Series Brine System Assembly (see opposite page for parts list) Page 10 Printed in U.S.A.
  • Page 11 MODEL 3150 UP-FLOW 1800 Series Brine System Assembly (see opposite page for parts list) Item No. Quantity Part No. Description 11 ......16340-01 ....Injector Body 2 .

  • Page 12: Parts List

    MODEL 3150 UP-FLOW Service Valve Operator PARTS LIST Item No. Quantity Part No. Description 1 ... 1... . 15074....Valve Body 2 .
  • Page 13  MODEL 3150 ECONOMINDER 2″ Meter Assembly PARTS LIST Item No. Quantity Part No. Description 1 ... 1 ... 14456 ....Meter Body 2 .
  • Page 14  MODEL 3210 ECONOMINDER Timer Assembly (see opposite page for parts list) Page 14 Printed in U.S.A.
  • Page 15 MODEL 3150 UP-FLOW Timer Assembly Parts List Item No. Quantity Part No. Description 1 ... 1 ... 14447 ....Timer Housing Assembly 2 .
  • Page 16  MODEL 3210 ECONOMINDER Commercial Demand Regeneration Control Timer Settings Typical Programming Procedure Release the red button to again engage the 24 hour gear Calculate the gallon capacity of the system, subtract the How To Manually Regenerate Your Water Conditioner necessary reserve requirement and set the gallons At Any Time: required by lifting the gallon dial and rotating it so that the...

  • Page 17: Timer Setting Procedure

    MODEL 3200 TIMER Timer Setting Procedure How To Set Days On Which Water Conditioner Is To Regenerate: Rotate the skipper wheel until the number “1” is at the red SERVICE 24 HR. GEAR POSITION pointer. Set the days that regeneration is to occur by sliding MANUAL REGENERATION KNOB INDICATOR tabs on the skipper wheel outward to expose trip fingers.
  • Page 18 MODEL 3200 & 3210 TIMER SERIES Regeneration Cycle Program Setting Procedure How to Set Regeneration Cycle Program: PROGRAM The regeneration cycle program on your water conditioner BRINE & RINSE WHEEL FOR has been factory preset, however, portions of the cycle or SECTION CONTROL OF program may be lengthened or shortened in time to suit...
  • Page 19 MODEL 3150 UP-FLOW Service Instructions PROBLEM CAUSE CORRECTION Softener fails to regenerate. A. Electrical service to unit has A. Assure permanent electrical been interrupted. service (check fuse, plug, pull chain or switch). B. Timer is defective. B. Replace timer. C. Power Failure.
  • Page 20 MODEL 3150 UP-FLOW Service Instructions PROBLEM CAUSE CORRECTION A. Plugged drain line flow control. A. Check flow control. Excessive water in brine tank. B. Plugged injector system. B. Clean injector and screen. C. Timer not cycling. C. Replace timer. D. Foreign material in brine valve.
  • Page 21 3150 System #4 Valve Wiring Page 21 Printed in U.S.A.
  • Page 22 3150 System #4 With Remote Meter Valve Wiring Page 22 Printed in U.S.A.
  • Page 23 3150 System #5 Valve Wiring Page 23 Printed in U.S.A.
  • Page 24 3150 System #6 Valve Wiring Page 24 Printed in U.S.A.
  • Page 25 3150 24V/120V System #7 Valve Wiring Page 25 Printed in U.S.A.
  • Page 26 3150 230V System #7 Valve Wiring Page 26 Printed in U.S.A.
  • Page 27 MODEL 3150 UP-FLOW System #4 - Typical Single Tank Installation wiht Optional Meter MANUAL SHUT-OFF OPTIONAL 3100 METER DRAIN 3 WIRE POWER CORD BRINE LINE BRINE TANK RESIN TANK Page 27 Printed in U.S.A.
  • Page 28 MODEL 3150 UP-FLOW System #5 Interlock - Typical Twin Tank Installation with Optional Meter Interlock and No Hard Water Bypass DIAPHRAGM OPERATED VALVE MANUAL SHUT-OFF PRESSURE SUPPLY TO S.V.O. 3 WIRE POWER CORD DRAIN RESIN TANK ELECTRICAL UNIT 1 INTERLOCK...
  • Page 29 MODEL 3150 UP-FLOW System #6 - Twin Series Regeneration Installation with a Remote Meter DIAPHRAGM OPERATED VALVE METER MANUAL SHUT-OFF PRESSURE SUPPLY 3 WIRE TO S.V.O. POWER CORD DRAIN ELECTRICAL INTERLOCK CORD BRINE LINE RESIN TANK UNIT 1 BRINE TANK...
  • Page 30 MODEL 3150 UP-FLOW System #7 - Twin Alternator Installation with a Remote Meter MANUAL SHUT-OFF 4-WAY SOLENOID BRINE DIAPHRAGM RANK OPERATED VALVE RESIN TANK LAG UNIT DRAIN 3 WIRE POWER CORD ELECTRICAL INTERLOCK CORD METER BRINE RESIN TANK TANK LEAD UNIT Page 30 Printed in U.S.A.
  • Page 31 MODEL 3150 UP-FLOW Flow Data & Injector Draw Rates Page 31 Printed in U.S.A.
  • Page 32 MODEL 3150 UP-FLOW *Typical Timer Settings Page 32 Printed in U.S.A.

  • Page 33: Service Assemblies

    1 ..16341-01 ..Injector Cover 60394..2 Meter Assembly - Ext. Range 60106-10 ..3150 Piston Assembly 60036-02 ..1800 Brine Valve See Illustration Page 6 See Illustration Page 12 1 .
  • Page 34 Notes Page 34 Printed in U.S.A.
  • Page 35 Notes...
  • Page 36 P/N 17803 Rev. 2 3/00 Printed XX/00...
