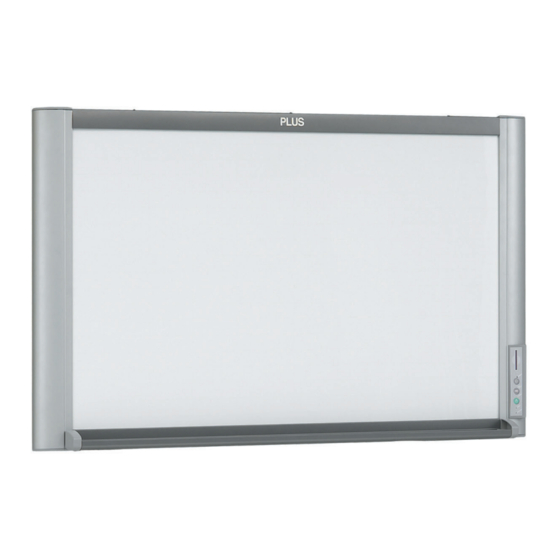

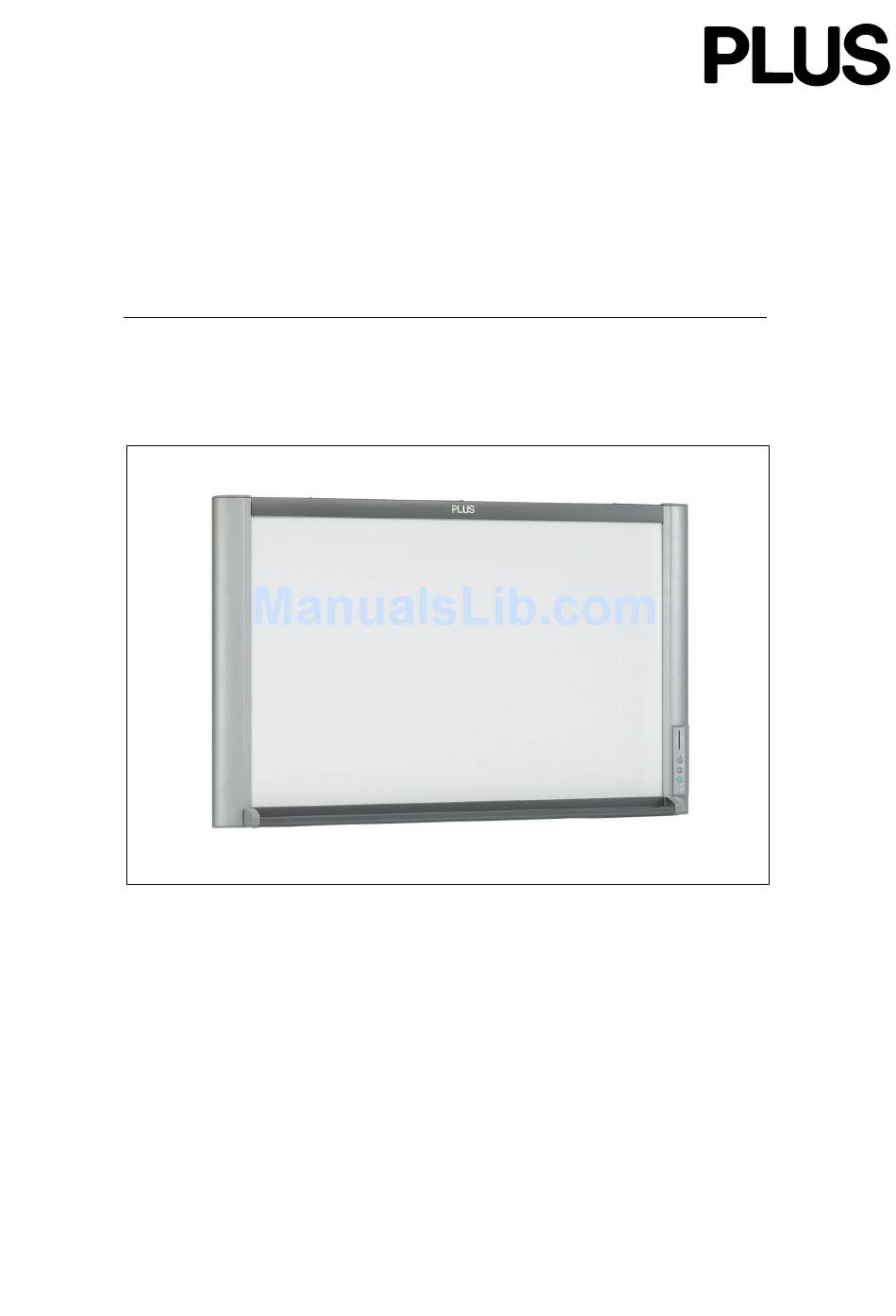

M- 5 Copyboard User’s Manual ( CD-ROM Edition ) Thank you for your purchase of the PLUS Copyboard. Please read this User’s Manual (CD-ROM Edition) carefully before use to take full advantage of the functions of this product. After you have finished reading the manual, please keep it for future reference.
Page 2
Trademarks • Microsoft and Windows are registered trademarks or trademarks in the United States and other countries of the Microsoft Corporation. • IBM and PC/AT are registered trademarks of International Business Machines Corporation of the United States. • Adobe and Adobe Acrobat Reader are trademarks of Adobe Systems Incorporated. •...
IMPORTANT SAFETY INFORMATION WARNING The unit’s rear panel should never be opened by anyone other than a qualified serviceperson. There are many high voltage parts inside the unit, and touching them is dangerous. For replacement of the light source, internal inspections, adjustments, repairs or internal cleaning, please contact your store of pur- chase.
Do not use the included CD-ROM in a player designed for audio CDs. • Never use the included CD-ROM in a player designed for audio CDs. Doing so could produce loud noises that could impair your hearing. These noises can also damage your speakers. Installation •...
Packaged Contents The contents included in the package are described below. Make sure that all items are included before starting. Copyboard (main unit) … 1 Accessories included with copyboard • Set of markers … 2 (black and red) Use these special markers to draw or write on the sheet. •...
Names of Parts Front and top Back and bottom This diagram shows the copyboard set with the front side facing down. . Copyboard . Sheet . Control panel . DC input jack . USB connector (type B) . Screw holes for mounting the marker tray .
Installation and Assembly Instructions To the Customer Specialized techniques are required in the wall mounting of the Copyboard. Please do not attempt any installation work unless you have the techniques. To the Dealer or Installation Tradesman In the interest of the safety of the customer, please perform instal- lation work paying due attention to the strength of the installation location to ensure that it can bear the load of the Copyboard and installation parts.
(Stand Kit : Model M-5-T, order code: 44-562) b On a partition-Panel Use an optional partition mount kit to hang the copyboard onto a par- tition panel. (Partition hanger Kit : Model M-5-P, order code: 44-552)
Installing on a Wall Parts included in the copyboard package: Wall mount bar (1 pc), upper brackets (2 pcs), Marker tray (1 pc, with 2 side covers) and M4 x 8 marker tray installation screws (3 pcs, screws removed when unpacking), lower brackets (2 pcs), M4 x 12 bracket mounting screws (8 pcs) Parts not included in the copyboard package: Bolts and nuts for fastening to wall (use commercially available parts –...
Page 11
[Reference] Method of installation for different wall materials Select the type of installation best suited for the wall material. If the wall is not strong enough, mount the copyboard to columns or studs. Material of wall Wood Wood screws: Open holes using a drill, then using wood screws.
Page 12
(4) Mount the 2 upper and 2 lower brackets included with the copyboard using M4 x 12 screws. • Both of the left and right upper brackets are installed in the same orientation. M4 12 screws Upper bracket (5) Hang the copyboard to the wall mount bar and fasten the lower brackets.
Installing on a Stand The optional stand kit for both vertical and horizontal installation (Model M-5-T, order code 44-562) is required to install the copyboard on a stand. Assembling the stand and mounting the copyboard horizontally Parts included in the copyboard package: Marker tray (1 pc), side covers (2 pcs), M4 x 8 marker tray installation...
Page 14
(3) Attach the marker tray to the Copyboard. Insert the side covers into both ends of the marker tray. • Note that there are left and right type side covers. Temporarily fasten the three M4 x 8 screws into the Copyboard (leaving about 3 mm) •...
Assembling the stand and mounting the copyboard vertically Parts included in the copyboard package: 6 copyboard mount screws (M4 x 12) List of parts included in the stand kit (parts used for vertical installation) Feet (with casters) : 2, Frames : 2, Foot washers : 2, Foot fixing screws (M8 x 50) : 4, Spring washers : 4, Caps : 6, Fixing knobs (with hexagon cap nuts) : 2, Crossbars : 2, Hexagonal socket head screws : 4, Flat washers : 4, Upper brackets (left and right) : 2, Lower brackets : 2, Hexagonal wrench (M8) : 1, Hexagonal wrench (M5) : 1, Short marker tray:1, Side covers: 2...
Page 16
(3) Mount the upper and lower brackets using M4 x 12 screws. • The left and right upper brackets are different. Be sure to mount them on the proper side. (4) Hook the left and right upper brack- ets of the Copyboard onto the up- per crossbar and fasten the lower brack-ets using the fixing knobs and hexagon cap nuts.
Installing on a Partition-Panel The optional partition hanger kit (Model M-5-P, order code 44-552) is required to install the copyboard on a partition- panel. Assembly and installation Parts included in the copyboard package : Marker tray (1 pc), side covers (2 pcs), M4 x 8 marker tray installation...
Page 18
(3) Mount the hanger brackets to the screw holes at the middle of the partition hangers (left and right). • Use the M4 flat head screws. • The partition hangers have screw holes for mounting hanger brackets at both the top and middle. Use the top holes when mounting the copyboard on a tall panel.
Operation Instruc- tions This manual contains information pertaining to the copyboard. For instructions on the included software, please refer to the software’s help file. Usage Guide bSaving and Transferring images If you need to save a copy of what you have written on the copyboard, you can store it in the built-in memory.
Names of Main Unit Controls and Connectors The connectors are located on the bottom side of the copyboard. When set vertically The connectors are located on the left side of the copyboard. POWER button Use this to turn the power on and off. POWER indicator (Green) This lights when the power is turned on and turns off when the power is turned off.
Handling CF Memory Cards • We recommend backing up data stored in the built-in memory or on CF memory cards onto other recording media periodically to secure the data in case of damage or loss. • Note that PLUS will accept no responsibility whatsoever for loss or damage of stored data. •...
Operating the Copyboard These operations are required when storing the drawings on the copyboard’s sheet in the memory and when moving the sheet surface using the buttons. Connecting the AC power adapter and turning the power on and off Connect the AC power adapter. Connect the AC power adapter to the copyboard’s DC power jack.
• To move the sheet surface, press the FEED/STOP button after scrolling has stopped. • The date of file property is fixed at January 1, 2004. This can be changed using the “M-5 setup utility” software. The diagrams used in the explanations below show the...
• To move the sheet surface, press the FEED/STOP button after scrolling has stopped. • The date of file property is fixed at January 1, 2004. This can be changed using the “M-5 setup utility” function. Removing the CF memory card Check that the MEMORY indicator has stopped blinking and turned off, then pull the CF memory card out.
Clearing the built-in Memory Use this procedure to clear all the image files in the built-in memory. Note: The procedure described below clears all the image files in the built-in memory. Be sure to store important images on a CF memory card or computer before the operation. Press the CLEAR button and hold it in for more 3 seconds.
Formatting of the built-in memory of the copyboard from the personal computer is not possible. Also note that formatting the CF memory in the NTFS format is not supported. • When TIFF files made with the M-5 are opened with the Image Viewer of Windows 98SE and Me, horizontal lines might appear.
Page 27
To store image files from a CF memory card, insert the CF memory card into the copyboard’s card slot. There is no need to do this to store image files from the built-in memory. Open “My Computer” of the computer. Right-click the “My Computer”...
Deleting files If the built-in memory or CF memory card gets full, some im- age files must be deleted. (The built-in memory can be cleared completely using the CLEAR button on the copyboard’s control panel.) (1)Select the drive for the built-in memory or the CF memory card (steps to above).
Page 29
Windows Me/2000/XP Check that the MEMORY indicator has stopped blinking and turned off. Click the “Remove hardware” icon on the task bar, then click the USB drive you want to remove (for example, “USB Mass Storage Device (E:)”. Once the message "The ‘USB Mass storage Device’ device can now safely removed from the System"...
Using a PC Card Adapter or Memory Card Reader/Writer (USB type) Prepare the optional or commercially available memory card reader/writer or PC card adapter (for CF memory cards). Using a PC card adapter Insert the CF memory card into the PC card adapter. Insert the PC card adapter into the computer’s card slot.
Using a memory card reader/writer (USB type) Insert the CF memory card into the CF memory card slot on the memory card reader/writer. Connect the memory card reader/writer to the computer’s USB port. Open “My Computer” of the computer. “My Computer” can also be opened by clicking on its icon. From among the removable memory devices shown in “My Computer”, select the drive corresponding to the CF memory card.
* If an error occurs, it is stored in the built-in memory’s error log. The error log file (“M5.err”) may be needed if the error cannot be resolved. Please save this file. * If the problem persists after all the above has been checked, contact your nearby PLUS Vision sales office, dealer, or store.
Quick Calibration The procedure described below is used to adjust (calibrate) for optimum scanning condition of the sheet surface. Perform this quick calibration procedure after replacing the fluorescent lamp or if dark lines appear in the horizontal direction when the copyboard is mounted on the wall. Clean the sheet surface.
Software Guide This guide covers the installation and starting procedure for the software contained on the CD-ROM supplied with the Copyboard. See the software Help information for details about using the software.
This diver is for use with Windows 98SE only. No driver is required if the computer has Windows ME/2000/XP. M-5 Setup Utility This is a utility for customizing the M-5’s environmental settings. PLUS Image Viewer This utility is used to display on a personal computer or print the image data that is stored in the built-in memory or the CF memory.
The menu screen will appear automatically. • If the menu screen does not appear automatically, open the CD-ROM and double click on "autorun.exe". Click the [M-5 USB Driver] The installer will start up. Follow the messages of the screen and perform the installation.
Clicking on the [Add/Remove Programs] icon will open the Software Addition and Deletion screen. Uninstall the M-5 driver. Click [M-5 USB Storage Driver] and click [Addition and Deletion] to display the Addition and Deletion wizard screen. Select the [Remove] button of the wizard and click [Next].
Windows Me / 2000/ XP Personal Computer and USB Connections Setup of the driver is not required when USB connections are made between Windows Me / 2000 / XP personal computers and the Copyboard. When the Copyboard is first connected to the personal computer, the driver is installed automatically.
Disconnecting of the Copyboard Please perform the following procedure when disconnecting the Copyboard during Windows operation. Note: The removal icon or displayed message will differ depending on the version of Windows. Should this be the case, please perform the removal operation using the same procedure. Windows 98SE The personal computer will be disconnected.
M-5 Setup Utility The M-5’s operating configuration can be changed using the M-5 setup utility. Contents: Image file format, image file time stamp, auto power off time, fluorescent lamp warming up time, brightness adjustment, vertical/horizontal setting, secure clear Installation Installation preparation Please close application software that is running on the personal computer.
Load the supplied CD-ROM into the CD-ROM drive of the personal computer. The menu screen will appear automatically. • If the menu screen does not appear automatically, open the CD-ROM and double click on "autorun.exe". A click of [M-5 User's Manual] will open the User's Manual.
PLUS Image Viewer Please install the PLUS Image Viewer to display on a personal computer, print or file the image data that is stored in the built-in memory or the CF memory. Installation Installation preparation Please close application software that is running on the personal computer. Failure to close the applications may result in installation problems.
Deleting the Software If the installed software is no longer needed, please perform the uninstall operation. Select [Start] → [Setting]→ [Control Panel]. The Control Panel screen will be displayed. Double click "Add/Remove Programs or Applica- tions" (which will differ depending on the OS). The "Add/Remove Properties"...
