3. Browse and select the firmware binary file (.txt file) and click "Upgrade Firmware"
NOTE: The default firmware will be available at C:\Program Files\Texas
Instruments\ADS1x9xevm\Firmware.
4. Device will reset and come up with new firmware with itself.
8
Connector Interface
The following connectors used for external interface to ADS1x9x ECG recorder board.
•
DB9
•
USB mini connector
38
ADS1x9xECG-FE Demonstration Kit

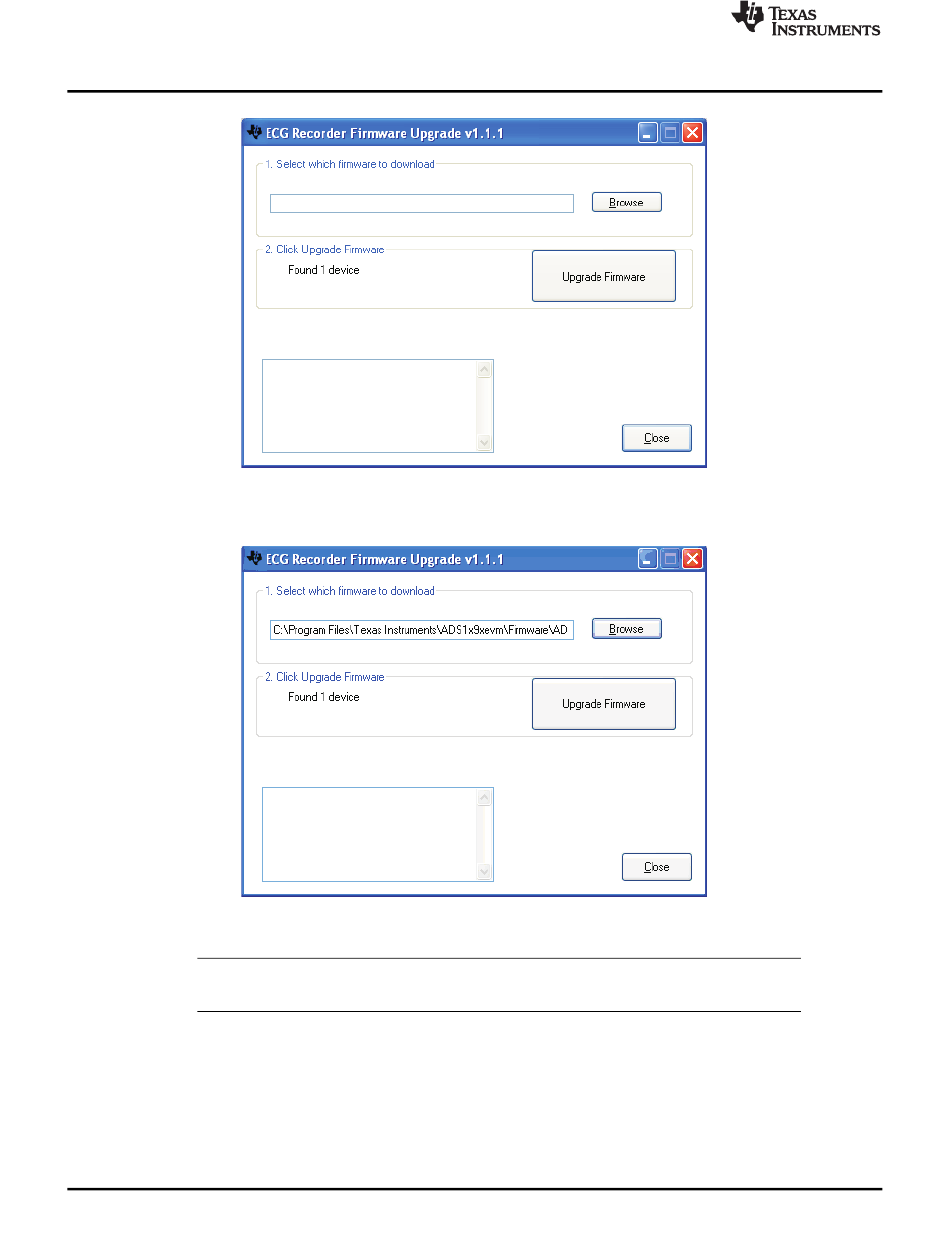

Figure 44. PC Application Firmware Upgrade - 2
Figure 45. PC Application Firmware Upgrade - 3
