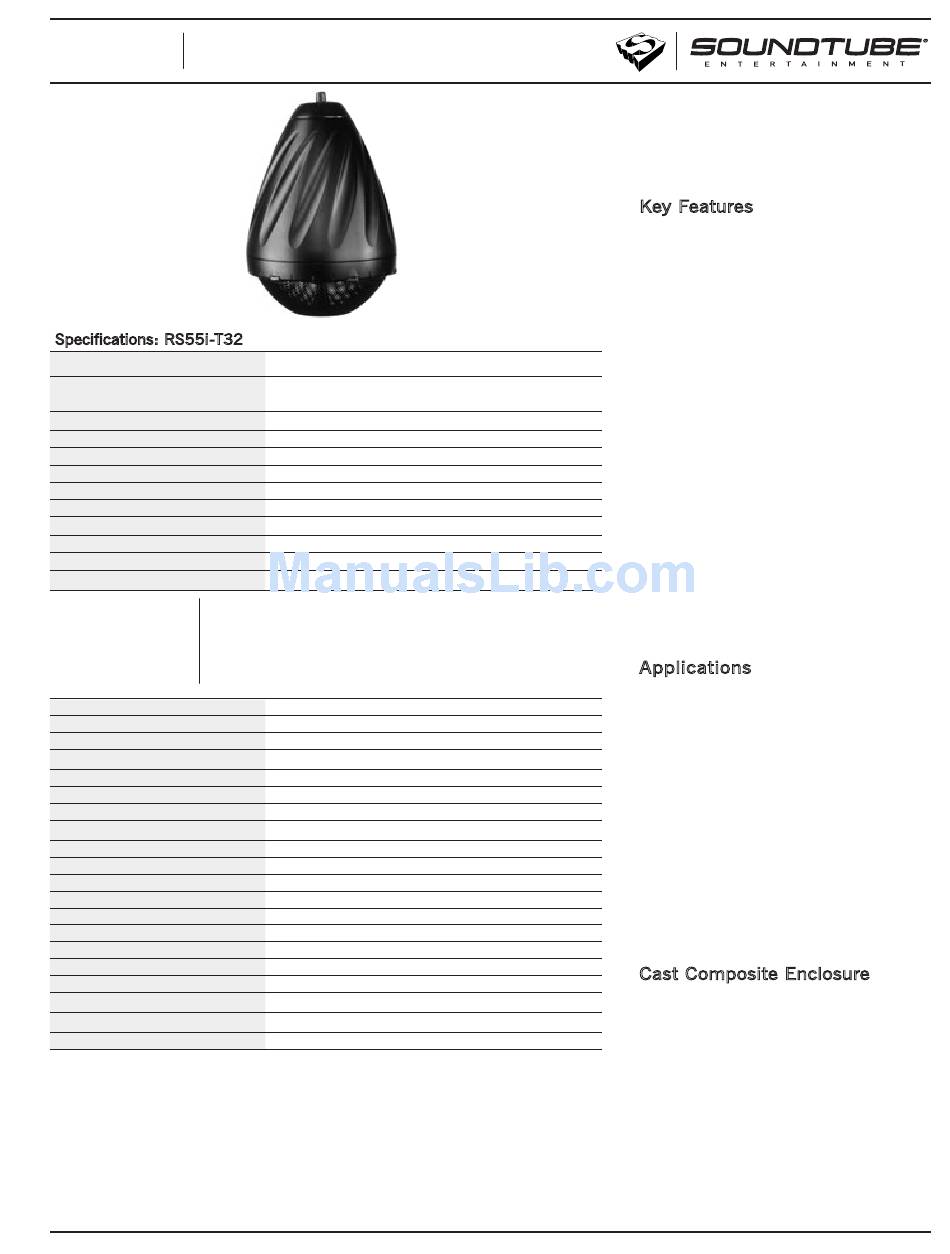

SoundTube RS55i Technical Information

RS55i RS55i
Open-Ceiling Speaker
Technical Information for System Engineers
Specifications: RS55i-T32
System Type
1
Frequency Response (-3 dB)
Frequency Response (-6dB)
2
Low Frequency (-10 dB)
Max Program Power
Max Continuous Power RMS
Max SPL dB @ 1M
3
Sensitivity @ 1W/1M
Impedance
Transformer Taps
Transformer Taps
70.7 V Output 100 V
32 W 102 dB
16 W 99 dB 32 W
8 W 96 dB 16 W
4 W 93 dB 8 W
Coverage Angle
Directivity Factor (Q)
Directivity Index (DI)
Transducers
Low Frequency Driver
High Frequency Driver
Crossover Frequency
Network Type
Low Pass
High Pass
Inputs
Enclosure Material
Colors
Diameter
Length
Net Weight
Shipping Weight
Accessories
Included
Optional
1 Frequency response is measured in half & full space.
2 Continuous power rating, EIA-426-B test.
3 2.83 Volts at a distance of 1 meter.
SoundTube continually develops new product innovations and improvements. Updates to existing
products without prior notice are an example of SoundTube's drive for constant improvement.
© 2004 SoundTube Entertainment, Inc. All rights reserved. REV 07.20.04
5.25" 2-way sealed (32 Watt transformer
for 70.7/100 Volt applications)
104 Hz - 20 kHz
80 Hz - 20 kHz
65 Hz
150 W
75 W
106 dB
87 dB
8 Ohm (nominal value)
Selectable via rotary switch.
Output
n/a n/a
102 dB
99 dB
96 dB
100˚
7.33 (100 Hz to 10 kHz averaged) 7.03 @ 2 kHz
7.82 dB (100 Hz to 10 kHz averaged) 8.50 dB @ 2 kHz
1 x 130 mm (5.25 in) polypropylene cone, rubber surround
1 x 25 mm (1.0 in) polypropylene balanced-dome
3.1 kHz
12 dB per octave, 2nd order
12 dB per octave, 2nd order
Spring terminals
Engineered glass-fiber reinforced composite
Black or white
203 mm (8.0 in)
270 mm (10.62 in)
3.4 kG. (7.5 lbs)
5 kG. (9.0 lbs)
Hanging and Safety Cables w/ SpeedClamps™
Beam Clamp, Snap Link, Forged Eye Bolt

Key Features

™
• BroadBeam wide dispersion pattern
provides smooth off-axis coverage and
reduces overall system costs.
• One 130 mm (5.25 in) polypropylene
woofer and one 25 mm (1.0 in)
polypropylene FerroFluid
balanced-dome tweeter.
• Cast composite enclosure for enhanced
sonic presentation and bass performance.
• Sealed enclosure and weather-
resistant transducers for indoor/
outdoor performance.
• Transformer-equipped models for
70.7 Volt and 100 Volt applications.
• Installation hardware options for over
head applications.
• Integrated hanging and safety cables
for easier and cleaner-looking installs.
• Fine black or white paint finish, custom
color enclosure available.
Applications
The SoundTube RS55i is a compact,
premium 2-way loudspeaker solution for
general background or satellite/subwoofer
applications. The RS55i is specifically
designed for applications requiring full-
range background music plus clear,
intelligible paging. The wide coverage
pattern makes the RS55i an ideal choice
for use in museums, retail establishments,
restaurants, outdoor applications and
open-ceiling environments.
For applications where additional bass
is required, an RS801i SoundTube
subwoofer may be added.
Cast Composite Enclosure
SoundTube's RSi Series cast composite
enclosure provides a low-resonance plat-
form with effective self-damping properties
for a clean, tight sound. Compression
cast glass-fiber composite material coupled
with SoundTube's patented ZeroReflec-
™
tion internal shaping provide extreme
stiffness, eliminating internal standing
waves and external diffraction distortions.
The result is accurate sound and tight bass
in a commercial speaker.
®
