Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY
PARTS DESCRIPTION
24
3/8" X 1 ¼" HEX BOLTS
42
3/8" FLAT W ASHERS
30
3/8" LOCK W ASHERS
18
3/8" HEX NUTS
READ THE INSTRUCTIONS COMPLETELY BEFORE YOU BEGIN THE INSTALLATION
STEP 1. THIS INSTALLATION USES (3) MOUNTING BRACKETS PER SIDE. BEGIN BY INSTALLING THE
PASSENGER SIDE FRONT BRACKET. LOCATE THE (2) HEXAGON SHAPED HOLES IN THE UNDERSIDE OF
THE BODY PANEL AT THE FRONT OF THE CAB AND REMOVE THE TAPE COVERING THE OBLONG HOLE.
INSTALLATION INSTRUCTIONS
PART NO. D24105 (B-PS)
2009-14 DODGE RAM 1500 CREW CAB P/U 4DR 2/4WD
2010-15 2500, 3500 CREW CAB P/U 4DR 2/4WD
PACKING LIST
INSTALLATION INSTRUCTIONS
OBLONG HOLE
HEXAGON SHAPED HOLES
QTY
PARTS DESCRIPTION
4105TP T-PLATE
6
6
D06 SIDE STEP MOUNTING BRACKETS
1
D24105P PASSENGER SIDE STEP
1
D24105D DRIVER
BODY PANEL
SIDE STEP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Go Rhino DOMINATOR D2 SERIES
Summary of Contents for Go Rhino DOMINATOR D2 SERIES

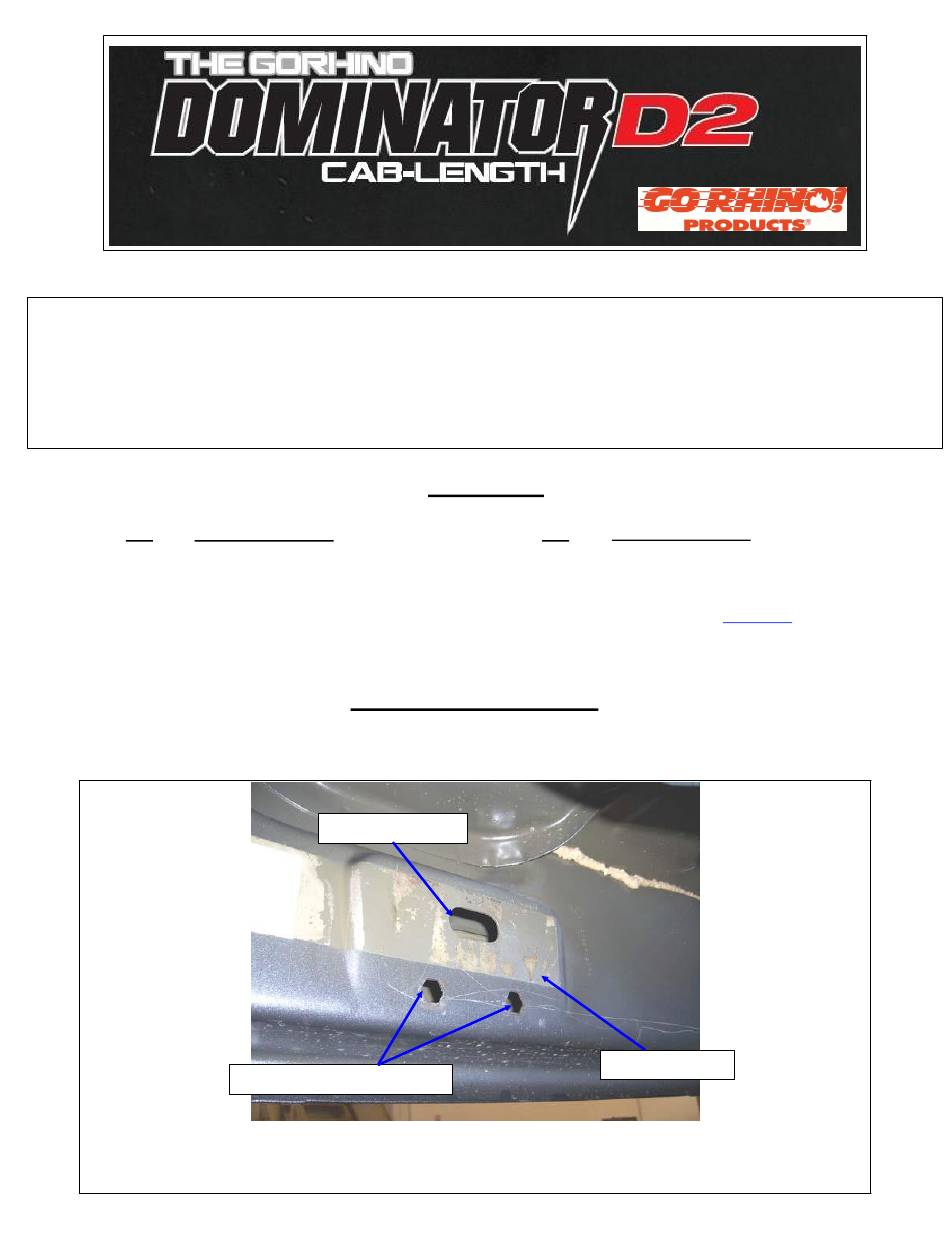

- Page 1 INSTALLATION INSTRUCTIONS PART NO. D24105 (B-PS) 2009-14 DODGE RAM 1500 CREW CAB P/U 4DR 2/4WD 2010-15 2500, 3500 CREW CAB P/U 4DR 2/4WD Do not attempt to install this product on any vehicle other than the one it is designed for and listed above! PACKING LIST PARTS DESCRIPTION PARTS DESCRIPTION...
