2011-12 Chevrolet Silverado / GMC Sierra 2500HD , 3500HD Extended Cab P/U 2/4WD (Diesel only)
Do not attempt to install this product on any vehicle ot her than the one it is designed for and listed above!
REV/03-12
Qty
Part Description
11
5/16" U-Nut
11
5/16" x 1" Hex Bolt
11
5/16" Flat Washer
11
5/16" Lock Washer
1
3/8" T-Bolt
12
3/8" x 1 ¼" Hex Bolt
13
3/8" Lock Washer
1
Vinyl Gasket
Tool Required:
½" & 9/16" Sockets
½" & 9/16" Wrenches
Ratchet & Extension
Read the installation instructions completely and verify that all of the parts listed are accounted for.

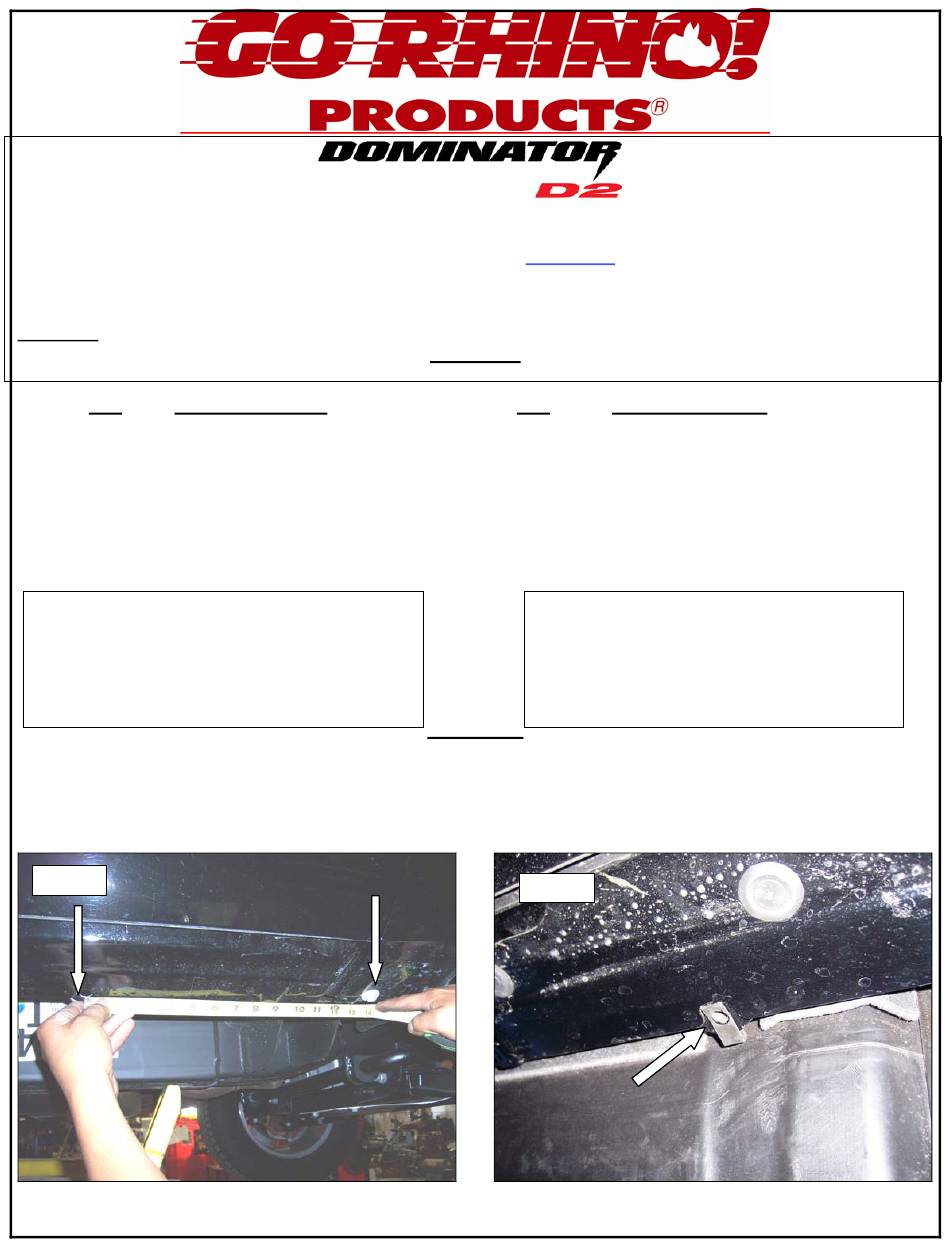

Step-1 This installation uses three mounting brackets per side. Begin by installing the passenger side front
bracket. Measure from the front fender bolt rearward approximately 14", locate the hole in the body pinch mold
and install (1) 5/16" U-Nut as shown. Photo #1 & #2
#1
INSTALLATION INSTRUCTIONS
DOMINATOR II S eries
Part Number D 24042 (B-PS)
Parts List
Installation
SideSteps
Qty
Part Description
25
3/8" Flat Washer
13
3/8" Hex Nut
1
C0912 Passenger Front Bracket
2
C0922 Passenger Center & Rear Bracket
3
C0921 Driver Front, Center & Rear Bracket
1
D24042P Passenger Side Step
1
D24042D Driver Side Step
Approximate installation time:
45min
#2
