Go Rhino DOMINATOR 2 SERIES Assembly/Installation Instructions

97-04 ford f-150 heritage super cab 97-98 ford f-150 3dr super cab p/u 2/4wd 99-03 ford f-150, f-250 ld 4dr super cab p/u 2/4wd

Advertisement

Quick Links

ASSEMBLY & INSTALLATION INSTRUCTIONS for PART NO. D24125
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
QTY
PARTS DESCRIPTION
48
3/8" FLAT WASHERS
24
3/8" HEX NUTS
24
3/8" x 1 " HEX BOLTS
24
3/8" LOCK WASHERS
STEP 1. Read the instructions completely before you begin the installation.
If the vehicle is equipped with factory running boards, remove boards and fasteners.

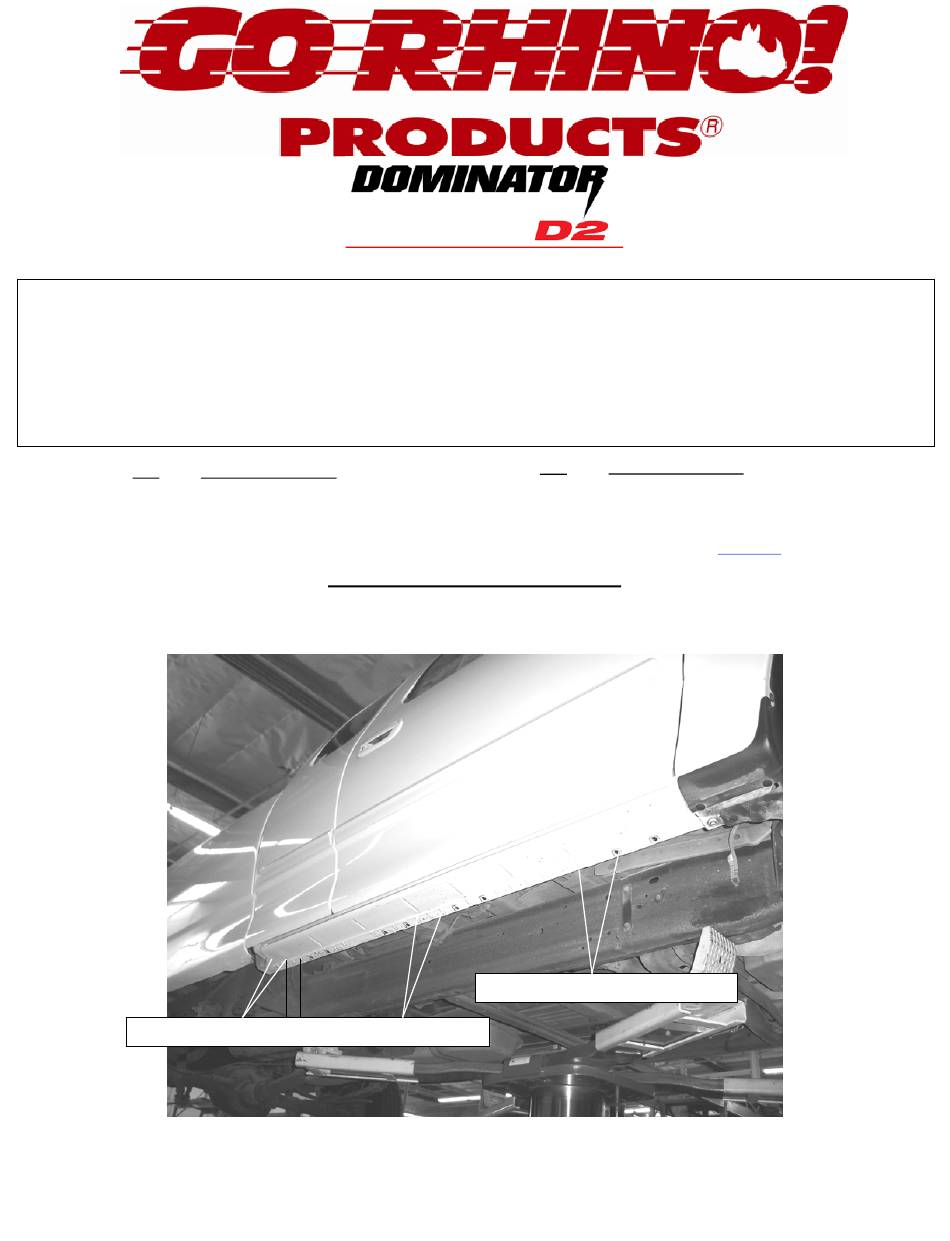

CENTER AND REAR BRACKET MOUNTING HOLES
DOMINATOR 2 SERIES SIDESTEPS
97-04 FORD F-150 HERITAGE SUPER Cab
97-98 FORD F-150 3DR SUPER CAB P/U 2/4WD
99-03 FORD F-150, F-250 LD 4DR SUPER CAB P/U 2/4WD

INSTALLATION INSTRUCTIONS

QTY
PARTS DESCRIPTION
2
F05 FRONT MOUNTING BRACKETS
4
F06 CENTER AND REAR MOUNTING BRACKETS
1
D24125P PASSENGER SIDESTEP
1
D24125D DRIVER
FRONT BRACKET MOUNTING HOLES
SIDESTEP
