DOMINATOR 2 SERIES SIDESTEPS
07-12 CHEVY/GMC 1500 EXTENDED CAB PICKUP 2/4WD
07-10 CHVEY/GMC 2500HD, 3500 4DR EXTENDED CAB 2/4WD
11-12 CHEVY/GMC 2500HD, 3500HD 4DR EXTENDED CAB P/U 2/4WD (Gasoline only)
QTY
PARTS DESCRIPTION
6
5/16" U-NUTS
6
5/16" X1" HEX BOLTS
6
5/16" LOCK WASHERS
6
5/16" FLAT WASHERS
18
3/8" x 1 " HEX BOLTS
18
3/8" LOCK WASHERS
STEP 1. Read the instructions completely before you begin the installation.
If the vehicle is equipped with factory running boards, remove the fasteners and
ASSEMBLY & INSTALLATION INSTRUCTIONS FOR
PART NO. D24041
INSTALLATION INSTRUCTIONS
QTY
PARTS DESCRIPTION
18
3/8" FLAT WASHERS
18
3/8" HEX NUTS
3
C07P PASSENGER MOUNTING BRACKETS
3
C07D DRIVER MOUNTING BRACKETS
1
D24041P PASSENGER SIDESTEP
1
D24041D DRIVER SIDESTEP
running
boards.
Advertisement
Table of Contents
Related Manuals for Go Rhino dominator d2 series
Summary of Contents for Go Rhino dominator d2 series
- Page 1 DOMINATOR 2 SERIES SIDESTEPS ASSEMBLY & INSTALLATION INSTRUCTIONS FOR PART NO. D24041 07-12 CHEVY/GMC 1500 EXTENDED CAB PICKUP 2/4WD 07-10 CHVEY/GMC 2500HD, 3500 4DR EXTENDED CAB 2/4WD 11-12 CHEVY/GMC 2500HD, 3500HD 4DR EXTENDED CAB P/U 2/4WD (Gasoline only) PARTS DESCRIPTION PARTS DESCRIPTION 5/16”...

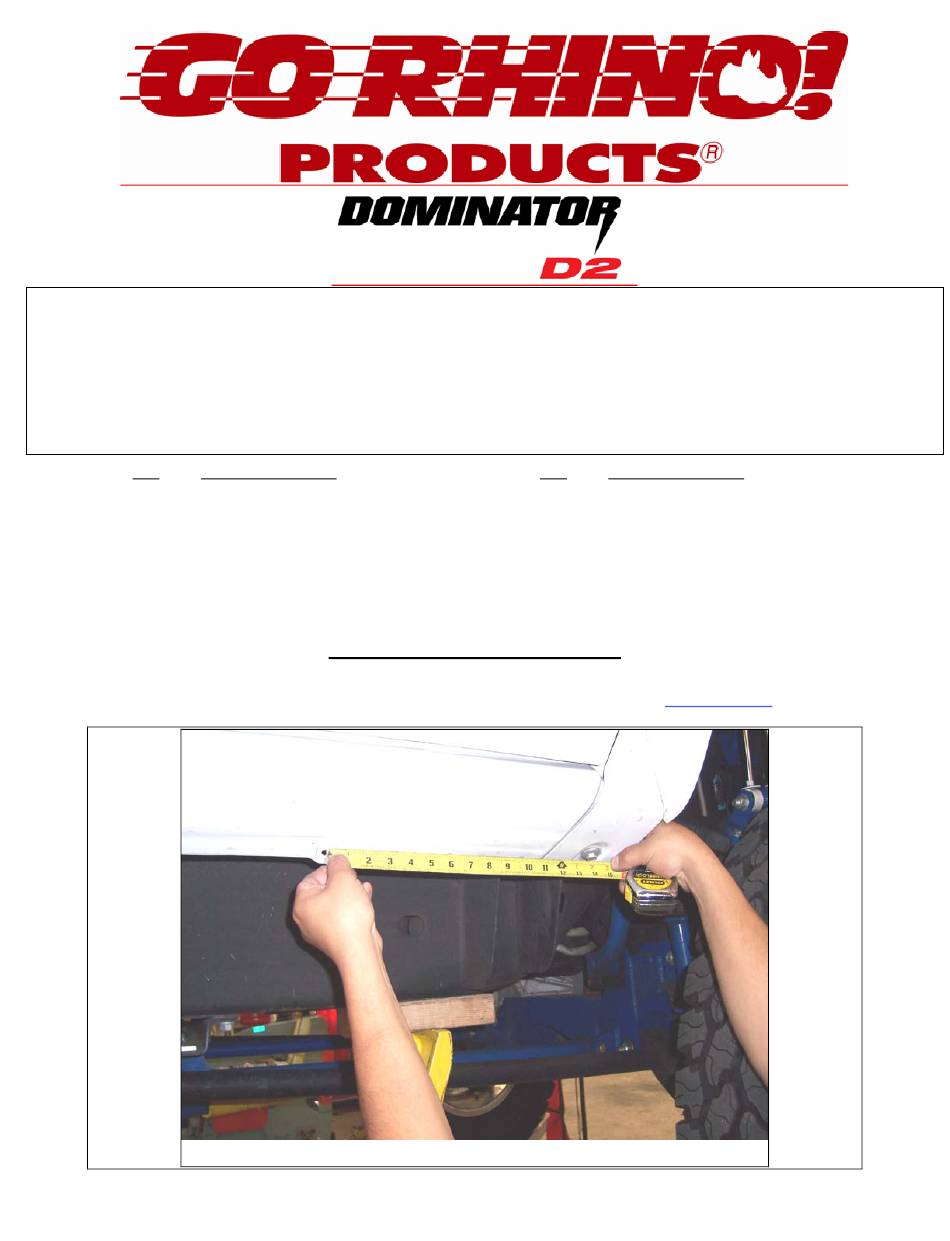

- Page 2 STEP 2. This installation uses three mounting brackets per side. Begin by installing the passenger side front mounting bracket. Measure reward from the front fender bolt approximately 14” and Locate the single hole in the body pinch mold and the two holes in the rocker panel. PLASTIC PLUG PINCH MOLD BRACKET MOUNTING POINTS...
- Page 3 STEP 4. Loosely attach one of the C07P mounting brackets to the rocker panel and pinch mold using the 5/16” and 3/8” fasteners as shown. PASSENGER SIDE FRONT C07P MOUNTING BRACKETS STEP 5. Locate the holes in the body for the center and rear mounting brackets. Measure rearward from the front fender bolt 37 ¾”...
- Page 4 STEP 7. Tighten all mounting bracket and sidestep nuts and bolts. STEP 8. Repeat the above steps to install the driver side mounting brackets and sidestep.
