2015 Chevrolet Silverado / GMC Sierra 2500HD, 3500HD Double Cab (Diesel)
Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
Qty
Part Description
11
5/16" U-Nut
11
5/16" x 1" Hex Bolt
11
5/16" Flat Washer
11
5/16" Lock Washer
1
3/8" T-Bolt
12
3/8" x 1 ¼" Hex Bolt
13
3/8" Lock Washer
1
Vinyl Gasket
Tool Required:
½" & 9/16" Sockets
½" & 9/16" Wrenches
Ratchet & Extension

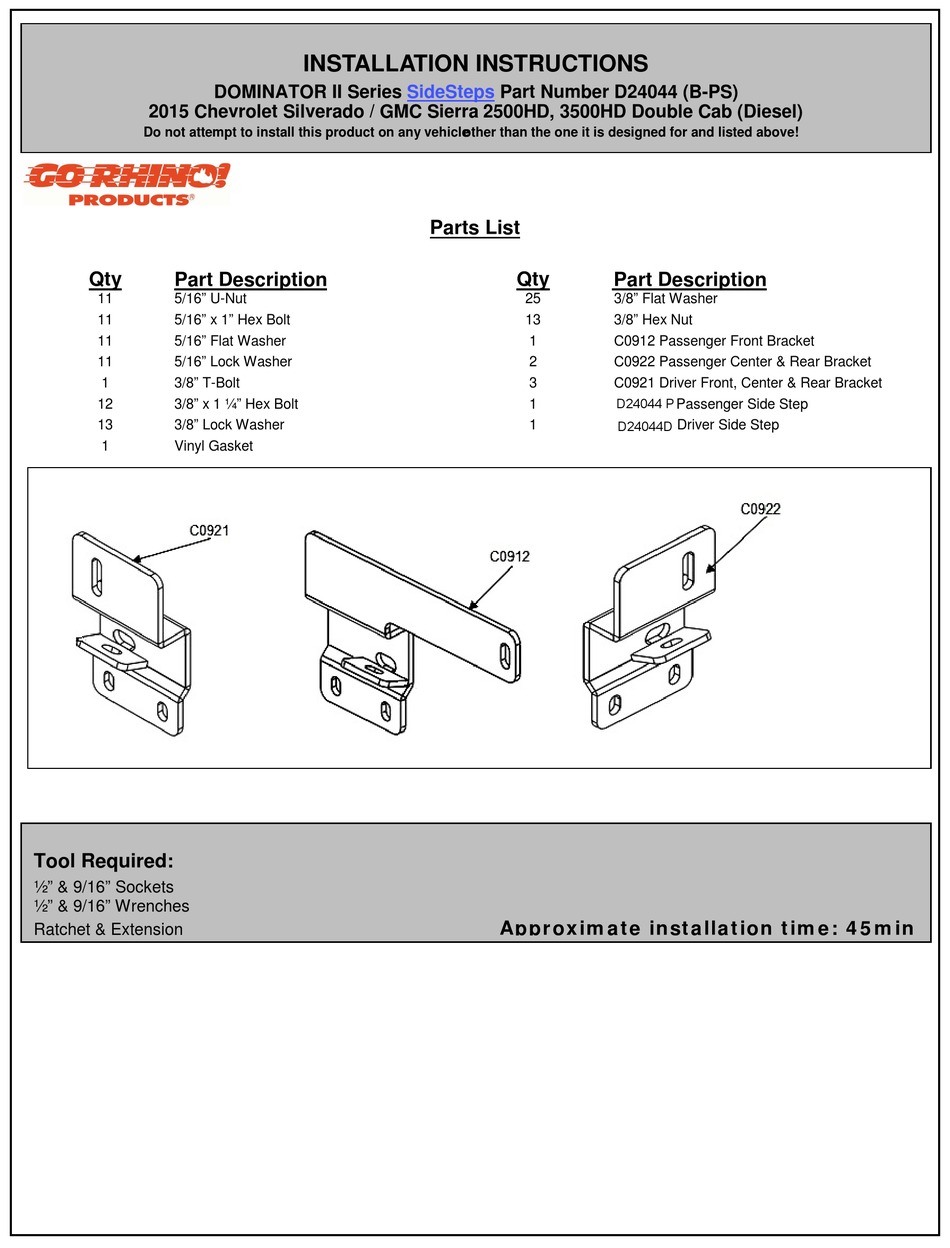

INSTALLATION INSTRUCTIONS
DOMINATOR II Series
SideSt eps
Part Number D24044 (B-PS)
Parts List
Qty
25
13
1
2
3
1
1
Approximate installation time: 45min
Part Description
3/8" Flat Washer
3/8" Hex Nut
C0912 Passenger Front Bracket
C0922 Passenger Center & Rear Bracket
C0921 Driver Front, Center & Rear Bracket
D24044 P
D24043P Passenger Side Step
D24044D
D24043D Driver Side Step
Advertisement
Table of Contents
Related Manuals for Go Rhino DOMINATOR II Series
Summary of Contents for Go Rhino DOMINATOR II Series
- Page 1 INSTALLATION INSTRUCTIONS DOMINATOR II Series SideSt eps Part Number D24044 (B-PS) 2015 Chevrolet Silverado / GMC Sierra 2500HD, 3500HD Double Cab (Diesel) Do not attempt to install this product on any vehicle other than the one it is designed for and listed above!
- Page 2 Installation Step-1 This installation uses three mounting brackets per side. Begin by installing the passenger side front bracket. Measure from the front fender bolt rearward approximately 14”, locate the hole in the body pinch mold and install (1) 5/16” U-Nut as shown.
- Page 3 Step-4 Position the hole in the front of the bracket over the T-Bolt and install (1) 3/8” flat washer, (1) 3/8” lock washer and (1) 3/8” hex nut. Align the hole in the flange of the bracket with the U-Nut and install (1) 5/16” flat washer, (1) 5/16” lock washer and (1) 5/16”...
- Page 4 Step-8 Align the side step with the vehicle and tighten all nuts and bolts. Step-9 Driver side bracket installation. Measure from the front fender bolt rearward approximately 14” and locate the hole in the body pinch mold and the plastic plug in the rocker panel.
