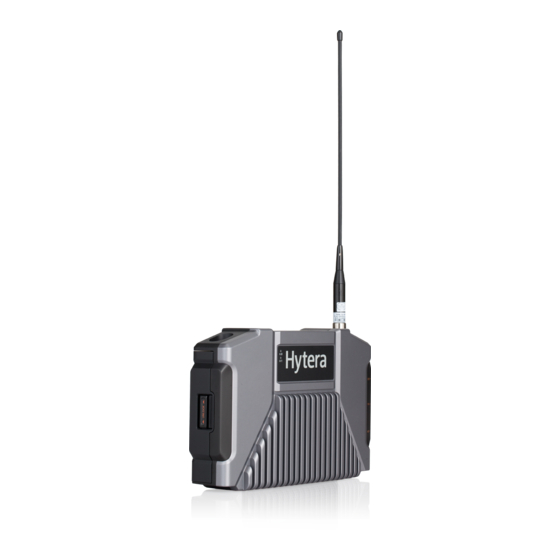

- Page 1 To Costumers Thank you very much for your favor of our products! This manual aims to enable you quickly grasp the use of the product. This manual applies to the following model: E-pack100 Digital WANET Repeater...
- Page 2 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names.
- Page 3 If you have any suggestions or would like to receive more information, please visit our website at: http://www.hytera.com, or call our service hotline 400-830-7020. Federal Communications Commission (FCC) Regulatory...
- Page 4 U.S market. Besides, the manufacture shall be asked to post a label on products informing costumers of considerations and improving the costumers’ awareness of radiation protection. Radiofrequency Radiation Control and Operation Instructions In order to ensure the best performance of products and ensure that the radiation restrictions related to occupations or environments are met, the delivery time shall not exceed 50% of the rated factor.
- Page 5 particular installation. Verification of harmful interference by this equipment to radio or television reception can be determined by turning it off and then on. The user is encouraged to try to correct the interference by one or more of the following measures: ...
- Page 6 50cm away from human body. Compliance with RF Exposure Standards Hytera's radio complies with the following RF energy exposure standards and guidelines: United States Federal Communications Commission, Code of Federal Regulations;...
- Page 7 subi, même si le brouillage est susceptible d'en compromettre le fonctionnement ISEDC Radiation Exposure Statement: This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment. This equipment should be installed and operated with minimum distance 50cm between the radiator &...
- Page 8 2012/19/EU Please note that the above information is applicable to EU countries only. The maximum antenna gain is 3.5dBi, which is caculated in the EIRP. The distance from observation point to the antenna is 50cm. Restrict use warning:...
-
Page 9: Table Of Contents
Content 1. Packing List ..................1 2. Product Component ................2 2.1 Host ....................2 2.2 Palm Microphone ................4 3. Installation .................... 6 3.1 Installation Requirements ..............6 3.2 Host Installation ................6 3.3 Check after Installation ..............8 4. -
Page 10: Packing List
1. Packing List The packing case contains the following items. If there is any loss or damage, please contact the dealer or our company. Number Items Number Items Host Palm Mircophone Antenna Mannual Battery Comment The pictures in this manual are for reference only. Please refer to the actual products. -
Page 11: Product Component
2. Product Component 2.1 Host Num. Item Description Toggle buckle in the direction of the arrow of Battery Buckle battery buckle and pull out or insert the battery. Operation status indication and the operation indicator turns to flickering (the frequency is 1s) Operation Indicator and green if the host is operating properly. - Page 12 Num. Item Description Used connect antenna signal RF Antenna transmission and reception. Interface The interface type is the UHF interface. Used for the host debugging and interconnection Data Interface with center through IP network. Palm Microphone Connect palm microphone. Interface Used to control power on and off.
-
Page 13: Palm Microphone
2.2 Palm Microphone Num. Item Description PTT Button Press the button to send a voice message. Alarm Button Press the button to initiate an emergency alarm. Power Button Press the button to power on and off. Indicator Operation status indication palm microphone. - Page 14 Num. Item Description Keyboard Function keys. Speaker The sound can be played through the speaker. Aviation Plug Connect with the host. Aviation Knob Fix the aviation.
-
Page 15: Installation
3. Installation 3.1 Installation Requirements Installation Position The host can be installed inside the backpack, and on the operation platform as well. 3.2 Host Installation The installation steps are as follows: 1. （Optional）SIM card Installation If voice business through GSM link is in need, a SIM card can be installed in the position as the figure below. - Page 16 3. Install the host as needed, such in a backpack or on a platform. When the host is installed in a backpack, the backpack hole should be fixed with the backpack using a screw. 4. The threaded end of sucker antenna should be inserted in the RF interface at the top of the host, and then screw it in clockwise direction.
-
Page 17: Check After Installation
meters. Our company shall not take any responsibility if there were any consequece caused by operations now following the above rules. 3.3 Check after Installation After the whole installation process, the host can be powered on. The proper functioning of the host can be checked by watching the status of the LED light on the front panel. -
Page 18: Basic Operation
4. Basic Operation 4.1 Power on Long press Power Button for 1s, and then the power indicator will be constantly green. Comment The palm microphone can power on the host if the two are connected. 4.2 Power off extinguish Long press Power Button for 3s, and then the power indicator will 4.3 GSM Link Building Voice business through GSM link can be realized by using an external palm microphone connecting with the host. - Page 19 Operation Operation Method Wireless Link Enter the main interface of palm microphone, as shown in Signal Strength the figure below. Check GSM Signal Strength Check GSM Link Status Check Power Level Check Battery Level Check the higher battery level...
-
Page 20: Fault Handling
Check whether the The sending and receiving frequency is consistent, frequency are not consistent and please contact Communication between E-pack100. dealer to reset the device failure between if necessary. E-pack100 The work frequency point is Find the interference... - Page 21 Description Cause Analysis Solution another channel frequency. Other E-pack100 have left the Confirm and return to the communication coverage of communication this E-pack100. coverage. Check whether the E-pack100 antenna is in antenna is normally abnormal connection connected. The connection cable is...
- Page 22 If the above method doesn’t solve your problem, or there are any other problems, please contact the local dealer or our company for more technical support.
-
Page 23: Maintenance And Cleaning
6. Maintenance and Cleaning In order to ensure the good performance of the product and prolong its service life, please familiarize with the following contents for better daily maintenance and cleaning of this product. Maintenance Please do not use hard object puncture or scraping the product ... -
Page 24: Accessories Purchase
7. Accessories Purchase If you want to purchase the main accessories of the product, please contact the dealer or call our service hotline at 400-830-7020. Caution Please use the accessories specified by our company. The consequences due to any use of unauthorized accessories shall be the responsibility of the user himself. -
Page 25: Scope And Duration Of Warranty
8. Scope and Duration of Warranty We promise that the product produced by our company can enjoy the warranty service under the contract from the date of purchase if there is any occurrence of the defects in material or manufacturing process under the condition of normal use, operation and maintenance.
