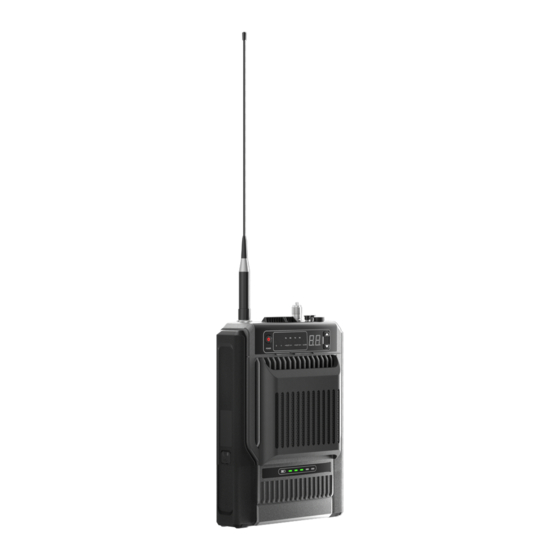

Hytera HR65X User Manual

Digital repeater
Hide thumbs Also See for HR65X:
Table of Contents

Advertisement

Quick Links

HR65X Digital Repeater
User Manual
Hytera Communications Corporation Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR65X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hytera HR65X

Summary of Contents for Hytera HR65X

  • Page 1 HR65X Digital Repeater User Manual Hytera Communications Corporation Limited...
  • Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
  • Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in the People's Republic of China (PRC) and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 4  This device may not cause harmful interference.  This device must accept any interference received, including interference that may cause undesired operation. Note: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 5 Specifications Parameter Description  Digital Repeater: 400–470 MHz Frequency  GPS L1 C/A, BDS B1I: 1559–1610 MHz  High: 44 dBm  Middle: 40 dBm Output Power  Low: 30 dBm...

  • Page 6: Table Of Contents

    User Guide Contents Contents 1. Packing List .............................. 3 2. Product Layout ............................4 3. Precaution ..............................6 4. Installation ..............................7 4.1 Tools ..............................7 4.2 Procedure ............................. 7 5. Basic Operation ............................9 5.1 Turning On or Off the Repeater ......................9 5.2 Switching the Channel ..........................
  • Page 7 Contents User Guide 7.8 Low Forward Power Alarm ......................... 16 7.8.1 Description ..........................16 7.8.2 Solution ............................ 16 7.9 Network IP Conflict Alarm ........................16 7.9.1 Description ..........................16 7.9.2 Solution ............................ 16 7.10 Invalid Network IP Alarm ........................17 7.10.1 Description ..........................
  • Page 8 User Guide Documentation Information Documentation Information Documentation Conventions Instruction Conventions Icon Description Indicates information that can help you make better use of your product. Indicates references that can further describe the related topics. Indicates situations that could cause data loss or equipment damage. Indicates situations that could cause minor personal injury.
  • Page 9 Documentation Information User Guide Revision History Document Product Release Date Description Version Version July 2022 Initial release.

  • Page 10: Packing List

    User Guide Packing List 1. Packing List Unpack carefully and check that you have received the following items. If any item is missing or damaged, contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Repeater Documentation Kit Power Cord Figures in this document are for reference only.

  • Page 11: Product Layout

    Product Layout User Guide 2. Product Layout Part Name Part Name Bottom cover Analog mode indicator USB port Timeslot A TX indicator TX/Duplexer antenna connector (UHF female) Timeslot A RX indicator Accessory connector Timeslot B TX indicator Ethernet port Timeslot B RX indicator Power inlet Alarm indicator RX antenna connector (SMA female)
  • Page 12 User Guide Product Layout Except that the low-power HR65X features no fan but the high-power HR65X features one, the other hardware of the two types is the same.

  • Page 13: Precaution

    Precaution User Guide 3. Precaution Before installation and use, read the following instructions carefully.  Install the repeater in a dry and well-ventilated place.  Use the repeater in an environment where the temperature is between –30°C and +60°C and the relative humidity is equal to or lower than 95%.

  • Page 14: Installation

    User Guide Installation 4. Installation You can place the repeater on the desk, or install the repeater on the wall. 4.1 Tools  Electric drill  Screwdriver  Wrench  Anti-static gloves 4.2 Procedure Install the three pegs onto the fixing plate with three M3 screws at holes marked with "B". Fix the fixing plate to the back of the repeater with four M4 screws.
  • Page 15 Installation User Guide Drill three holes at the anchor points with an electric drill. Fix the bracket onto the wall with three M6 expansion bolts. Dock the three holes on the bracket with the three pegs on the back of the repeater.

  • Page 16: Basic Operation

    5 错误!书签自引用无效。  The RSM is optional.  Use the RSM specified by Hytera.  PTT TX Channel Type and TX Contact Name are configured by the dealer.  The repeater gives no indication or response if it detects no TX contact name on the current channel (digital...

  • Page 17: Status Indication

    Status Indication User Guide 6. Status Indication 6.1 LED Indicator Indicator Status Description Digital mode indicator Glows blue The repeater is in the digital mode. Analog mode indicator Glows orange The repeater is in the analog mode. An exception occurs (The seven-segment LED Alarm indicator Glows red displays the corresponding alarm code).
  • Page 18 User Guide Status Indication Channel Code Channel Code Description Indicates the current channel number, for example, 1, 2, 3, or more.

  • Page 19: Alarm Information

    Alarm Information User Guide 7. Alarm Information With the Alarm feature enabled by your dealer, the repeater automatically triggers an alarm if any exception occurs. When the alarm is active, the LED displays the corresponding alarm code and the alarm indicator glows red. The following table describes alarms in detail.

  • Page 20: External Power Under-Voltage Or Over-Voltage Alarm

    User Guide Alarm Information Alarm Alarm Name Description Code Backup alarm The repeater works as a standby repeater. 7.1 External Power Under-voltage or Over-voltage Alarm 7.1.1 Description When the repeater detects that the voltage of the external power supply is out of range, the alarm indicator glows red and the LED displays "E3"...

  • Page 21: Solution

    Check whether the ambient temperature and ventilation conditions of the repeater meet the installation requirements. For the high-power HR65X, besides the temperature and ventilation conditions, check whether the fan works and the heat exhaust duct is clean. If yes, go to step 3.

  • Page 22: Solution

    User Guide Alarm Information In this case, the repeater automatically works at lower TX power. 7.4.2 Solution Check whether the TX frequency is within the frequency range of the antenna. If yes, go to step 2.  If no, contact your dealer to replace the antenna. ...

  • Page 23: Solution

    Alarm Information User Guide In this case, the repeater fails to work.  When the repeater detects the invalid level, the repeater restarts and returns to the normal state.  The repeater restarts every time the level changes. 7.7.2 Solution Contact your dealer for technical support.

  • Page 24: Invalid Network Ip Alarm

    User Guide Alarm Information 7.10 Invalid Network IP Alarm 7.10.1 Description When the repeater fails to acquire valid IP address with DHCP, the alarm indicator glows red and the LED displays "H5". In this case, network services of the repeater are unavailable. 7.10.2 Solution Check whether the network cable is properly connected.

  • Page 25: Troubleshooting

    Troubleshooting User Guide 8. Troubleshooting Phenomena Analysis Solution The power cord may be disconnected or get repeater Re-connect the power cord. loose. cannot be turned The fuse in the DC power cord may be damaged. Replace the fuse. The TX/RX frequencies or the color code of the repeater may be inconsistent with that of the Reset the frequencies or color code.

  • Page 26: Care And Cleaning

    User Guide Care and Cleaning 9. Care and Cleaning To guarantee optimum performance as well as a long service life of the product, follow the tips below. 9.1 Product Care  Do not pierce or scrape the product.  Keep the product away from substances that can corrode the circuitry. 9.2 Product Cleaning Turn off the product before cleaning.

  • Page 27: Optional Accessories

    Optional Accessories User Guide 10. Optional Accessories Use the accessories specified by the Company only. Otherwise, we will not be liable for any loss or damage arising out of use of unauthorized accessories. Contact your dealer for the optional accessories used with the product.

  • Page 28: Abbreviations

    User Guide Abbreviations 11. Abbreviations Abbreviation Full Name CDCSS Continuous Digital Controlled Squelch System CTCSS Continuous Tone Controlled Squelch System DHCP Dynamic Host Configuration Protocol GPIO General Purpose Input/Output Light-Emitting Diode Power Amplifier VSWR Voltage Standing Wave Ratio...
  • Page 29 Hytera Communications Corporation Limited. © 2022 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057 https://www.hytera.com...
