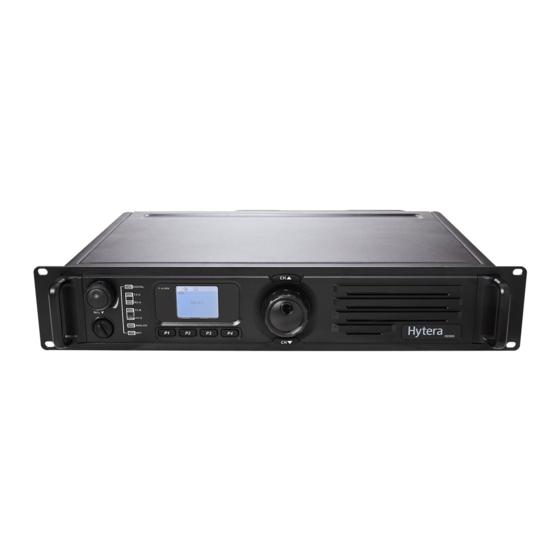

Hytera RD98 Series Service Manual

Hytera RD98 Series Service Manual

Hide thumbs Also See for RD98 Series:

Advertisement

Service Manual
Preface
This manual describes information related with product repair. To repair the product properly, please
read this manual carefully.
This manual is applicable to the following model:
RD98X (X may indicate 2, 5, 6 or 8.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD98 Series and is the answer not in the manual?

Questions and answers

Jane Willmott
July 22, 2025

please advise what clone NG indicates on RD985

Subscribe to Our Youtube Channel

Summary of Contents for Hytera RD98 Series

  • Page 1 Service Manual Preface This manual describes information related with product repair. To repair the product properly, please read this manual carefully. This manual is applicable to the following model: RD98X (X may indicate 2, 5, 6 or 8.)
  • Page 2: Table Of Contents

    Service Manual Contents 1. Revision History ...........................1 2. Copyright Information ...........................2 3. Disclaimer.............................3 4. Introduction............................4 5. Product Controls...........................5 Front Panel............................5 Rear Panel ............................5 6. Baseband Section ..........................6 6.1 Front Panel..........................6 6.2 Main Board..........................10 6.3 PCB View ..........................23 6.4 Block Diagram ...........................27 6.5 Schematic Diagram ........................29 6.6 Parts List ...........................43 6.7 Troubleshooting Flow Chart ......................77...
  • Page 3 Service Manual 10.2 RX Circuit ..........................146 10.3 Frequency Generation Unit (FGU) ..................147 10.4 PCB View ..........................150 10.5 Block Diagram ........................156 10.6 Schematic Diagram .......................159 10.7 Parts List ..........................168 10.8 Troubleshooting Flow Chart ....................198 11.UHF3 (350-400MHz) Information.....................203 11.1 TX Circuit..........................203 11.2 RX Circuit ..........................205 11.3 Frequency Generation Unit (FGU)..................206 11.4 PCB View ..........................209 11.5 Block Diagram ........................215...
  • Page 4: Revision History

    Service Manual 1. Revision History Version Date Description R2.0 09-2010 Initial Release R3.5 06-2011 VHF, UHF2 and UHF3 service information is included.
  • Page 5: Copyright Information

    Service Manual 2. Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 6: Disclaimer

    No part of this manual may be copied, modified, translated, or distributed in any manner without the express written permission of us. If you have any suggestions or would like to learn more details, please visit our website at: http://www.hytera.com.
  • Page 7: Introduction

    Service Manual 4. Introduction Intended User This manual is intended for use by qualified technicians only.
  • Page 8: Product Controls

    Service Manual 5. Product Controls Front Panel Part Name Part Name Accessory Jack Slot 1 RX Indicator Volume Control Knob / Power Indicator Alarm Indicator Repeater Mode Indicator Programmable Key Analog Mode Indicator LCD Display Slot 2 RX Indicator Channel Up (CH+) Slot 2 TX Indicator Navigation Knob Digital Mode Indicator...
  • Page 9: Baseband Section

    Service Manual 6. Baseband Section 6.1 Front Panel 6.1.1 Overview The front panel is the control panel, where you can see keys, Volume Control knob, Navigation knob, LED indicator, LCD display and 10-Pin interface. The front panel is connected to the baseband board via 40-Pin FFC.
  • Page 10 Service Manual 6.1.3 LCD Display To enhance LCD refreshing rate, parallel data interface is used. It connects to EMIFS data bus of TX OMAP5912 (U102) and the chip select is subject to the control of FLASH.CS2 . See the following figure: D0 −...
  • Page 11 Service Manual matrix with Pin 10. PTT input 3.3V CMOS, valid for low level This pin can output received audio, Handset output when Handset is checked in the CPS. When this pin is used for USB, USB of USB0_D- DB26 will be disabled For grounding USB_VBUS 5V/500mA...
  • Page 12 Service Manual VOL_GPIO1 Volume control knob input VOL_GPIO2 Volume control knob input KNOB_C Navigation knob input BACKLED_CTRL Backlight control signal output LCD reset signal OUT_TX KB_C0 Keypad matrix signal output KB_C1 KB_C2 KB_R0 Keypad matrix signal input KB_R1 DC_PWR_LED_CTRL DC power LED control LED_S/P_EN IO chip select signal S/P_CLK...
  • Page 13: Main Board

    Service Manual 6.2 Main Board 6.2.1 Overview Baseband board consists of main chip (TX OMAP and RX OMAP), audio processing chip (CODEC) and peripheral equipment. See the following figure: Figure 6-5 Baseband Block Diagram As a highly integrated hardware platform, OMAP5912 incorporates 2 processors: ARM+DSP. The function of RX OMAP and TX OMAP is described below: RX OMAP5912 (1) ARM: Reserved.
  • Page 14 Service Manual 6.2.2 Power Supply Description Both PA circuit and baseband circuit are powered by the external power supply directly. The power supply circuit for the baseband board supplies power for the baseband circuit and its auxiliary modules, and provides 9.3V voltage for the exciter board and RX board. After the DC power supply is connected, the baseband board is powered up, and provides 13.6V voltage for the external development interface via OMPA control.
  • Page 15 Service Manual After going through the filter and protection circuit, the 13.6V power supply will power external devices via the expansion interface. The current may be up to 1A. For the 9V3A power supply, it is supplied by U821, and output by ADJ with current up to 1A. It is used to power part of the exciter, RX and baseband circuit.
  • Page 16 Service Manual After making response to power-up reset, OMAP5912 will output RST_OUT signal, and maintain low level for some time to reset the peripheral equipment (NOR Flash) of OMAP. For CODEC chip (U501), its resetting is subject to MPUIO6 of TX OMAP. The reset sequence of OMAP5912 is shown below: Figure 6-8 Reset Sequence 6.2.4 Clock OMAP5912 requires two clocks: system clock and 32K clock.
  • Page 17 Service Manual For the built-in and external clock of OMAP2912, there are two reset modes: Reset Mode0 and Reset Mode1. Reset Mode0 is adopted for this system. As for this product, system clock uses external clock, while 32K clock uses built-in clock. See the following figure: Figure 6-10 Clock Connection Block Diagram 6.2.5 Memory OMAP5912 provides two types of external memory interfaces: external memory interface slow (EMIFS)
  • Page 18 Service Manual AD9864 to receive demodulation signal from AD9864, and TX OMAP McBSP2 is reserved for SPI interface of RX DAC TLV5614. McBSP2 of TX OMAP is used to connect SSI interface of TX DAC TLV5614. TLV5614 works in Slave mode and is managed by DSP. McBSP3 is used to connect RX OMAP and TX OMAP for data transmission.
  • Page 19 Service Manual 3V3D SPIF.CS2(T19) SPIF.SCK(U19) SKY72310 SPIF.DOUT(R18) Data RX OMAP5912 3V3D U202 SPIF.CS1 (N15) AD9864 Figure 6-13 RX OMAP SPI Connection Block Diagram (2) TX OPMAP5912 SPI Interface TX OMAP SPI is used to configure RX DAC TLV5614 (U303) and TX PLL chip (SKY72310). This chip is controlled by CS2 and managed by DSP.
  • Page 20 Service Manual MCSI1.SYNC(W8) MCSI1.CLK(M15) TX/RX SKY72310 MCSI1.DOUT(Y8) Data TX/RX OMAP5912 Figure 6-15 Diagram of MCSI Interface 6.2.9 I OMAP5912 provides one I C interface, and supports communication rate up to 400Kbps. TX OMAP I interface connects with PMU to dynamically adjust PMU voltage output. It works in Master mode. See the following figure: TX OMAP5912 U102...
  • Page 21 Service Manual TLV320AIC29 U501 UWIRE.SDO(H19) MOSI UWIRE.SCLK(J15) SCLK UWIRE.SDI(J14) MISO UWIRE.CS0 (J18) TX OMAP5912 U102 DATA IN DATA OUT I/O CLK TLV1548 U301 UWIRE.CS3 (J19) GPIO37(M19) CSTART GPIO2(D15) Figure 6-17 Diagram of MICROWIRE Connection 6.2.11 USB OMAP processor provides 3 USB interfaces with rate of 1.5Mbps or 12Mbps. Available modes include Host and Device.
  • Page 22 Service Manual DB9(J601) USB_D- USB_D+ DB26(J701) OMAP5912 U102 USB0_DM(R8) USB_D- USB0_DP(P9) USB_D+ 10pin Jack USB_D- USB_D+ Figure 6-18 Diagram of USB Interface 6.2.12 UART OMAP5912 has 3 UART interfaces: UART1, UART2 and UART3. It supports hardware flow control. The communication rate can be up to 1.5Mbps. See the following figure: TX OMAP5912 (TX) MAX3232...
  • Page 23 Service Manual 6.2.13 GPS (Reserved) The system can obtain precise clock signal and related GPS data from the GPS module. The baseband board connects with the GPS module via J108 and J109. J109 provides GPS module with 5V power supply. The GPS module provides precise 19.2MHz clock source to exciter board through XS2. See the following figure: 19.2MHz J109...
  • Page 24 Service Manual 6.2.14 Audio Path The audio path is used to relay audio, output RX audio and input TX audio. 6.2.14.1 Relay Audio Path After demodulated by AD9864, RX audio in digital/analog mode goes to RX OMAP. Then the audio is sent to TX OMAP via McBSP3, and finally is subject to DA conversion to modulate VCO.See the following figure: McBSP2...
  • Page 25 Service Manual 6.2.14.3 TX Audio Path sy em ha ds of sign ls: MM P10_Mic_IN and DB26 _Ext_Mic _IN. The former is from the accesso ry c onnected to 10-Pin interface on the front panel, while the latter is from Pin 2 of the further development port DB26 (J701).
  • Page 30: Block Diagram

    EMIFS EMIFF Program_ I/O RX Flat Filtered Audio/SlotA SlotB Audio Filted/Flat Audio EMIFS EMIFF...
  • Page 32: Schematic Diagram

    BLM18PG300SN1 BLM18PG300SN1 KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC KPT-1608SGC...
  • Page 46: Parts List

    Service Manual .6 Parts List aseband Ref. No. Part No. Description C179 3101061040030 0.1UF C183 3101061040030 0.1UF C185 3101061040030 0.1UF C188 3101061040030 0.1UF C190 3101061040030 0.1UF C191 3101061040030 0.1UF C195 3101061040030 0.1UF C198 3101061040030 0.1UF C203 3101061040030 0.1UF C207 3101061040030 0.1UF C209 3101061040030...
  • Page 47 Service Manual Ref. No. Part No. Description C264 3101061040030 0.1UF C265 3101061040030 0.1UF C276 10610400 0.1UF C277 3101061040030 0.1UF C278 3101061040030 0.1UF C279 3101061040030 0.1UF C280 3101061040030 0.1UF C281 3101061040030 0.1UF C282 3101061040030 0.1UF C283 3101061040030 0.1UF C284 3101061040030 0.1UF C285 3101061040030 0.1UF...
  • Page 48 Service Manual Ref. No. Part No. Description C346 3101061040030 0.1UF C347 3101061040030 0.1UF C348 3101061040030 0.1UF C349 3101061040030 0.1UF C350 3101061040030 0.1UF C351 3101061040030 0.1UF C352 3101061040030 0.1UF C353 3101061040030 0.1UF C354 3101061040030 0.1UF C355 3101061040030 0.1UF C356 3101061040030 0.1UF C357 3101061040030 0.1UF...
  • Page 49 Service Manual Ref. No. Part No. Description C844 3101061040030 0.1UF C864 3101061040030 0.1UF C878 3101061040030 0.1UF C898 3101061040030 0.1UF C907 3101061040030 0.1UF C908 3101061040030 0.1UF C909 3101061040030 0.1UF C910 3101061040030 0.1UF C911 3101061040030 0.1UF C912 3101061040030 0.1UF C913 3101061040030 0.1UF C919 3101061040030 0.1UF...
  • Page 50 Service Manual Ref. No. Part No. Description C128 3101071040000 0.1UF C149 3101071040000 0.1UF C110 3101061020000 1000PF C111 3101061020000 1000PF C322 3101061020000 1000PF C324 3101061020000 1000PF C327 3101061020000 1000PF C361 3101061020000 1000PF C363 3101061020000 1000PF C366 3101061020000 1000PF C385 3101061020000 1000PF C518 3101061020000 1000PF...
  • Page 51 Service Manual Ref. No. Part No. Description C145 3101061010010 100PF C146 3101061010010 100PF C147 3101061010010 100PF C148 3101061010010 100PF C151 3101061010010 100PF C152 3101061010010 100PF C153 3101061010010 100PF C154 3101061010010 100PF C155 3101061010010 100PF C157 3101061010010 100PF C158 3101061010010 100PF C159 3101061010010 100PF...
  • Page 52 Service Manual Ref. No. Part No. Description C402 3101061010010 100PF C403 3101061010010 100PF C519 3101061010010 100PF C529 3101061010010 100PF C536 3101061010010 100PF C551 3101061010010 100PF C601 3101061010010 100PF C602 3101061010010 100PF C603 3101061010010 100PF C604 3101061010010 100PF C605 3101061010010 100PF C606 3101061010010 100PF...
  • Page 53 Service Manual Ref. No. Part No. Description C647 3101061010010 100PF C648 3101061010010 100PF C649 3101061010010 100PF C650 3101061010010 100PF C656 3101061010010 100PF C657 3101061010010 100PF C659 3101061010010 100PF C660 3101061010010 100PF C725 3101061010010 100PF C726 3101061010010 100PF C727 3101061010010 100PF C734 3101061010010 100PF...
  • Page 54 Service Manual Ref. No. Part No. Description C219 3101061030010 0.01UF C329 3101061030010 0.01UF C339 3101061030010 0.01UF C342 3101061030010 0.01UF C370 3101061030010 0.01UF C384 3101061030010 0.01UF C507 3101061030010 0.01UF C530 3101061030010 0.01UF C531 3101061030010 0.01UF C801 3101061030010 0.01UF C803 3101061030010 0.01UF C808 3101061030010 0.01UF...
  • Page 55 Service Manual Ref. No. Part No. Description C338 3101061050000 C374 3101061050000 C513 3101061050000 C514 3101061050000 C515 3101061050000 C516 3101061050000 C524 3101061050000 C525 3101061050000 C526 3101061050000 C537 3101061050000 C538 3101061050000 C545 3101061050000 C546 3101061050000 C557 3101061050000 C559 3101061050000 C691 3101061050000 C805 3101061050000 C820 3101061050000...
  • Page 56 Service Manual Ref. No. Part No. Description C510 3104081060120 10UF C541 3104081060120 10UF C556 3104081060120 10UF C836 3104081060120 10UF C899 3104081060120 10UF C914 3104081060120 10UF C915 3104081060120 10UF C916 3104081060120 10UF C917 3104081060120 10UF C918 3104081060120 10UF C931 3104081060120 10UF C949 3104081060120 10UF...
  • Page 57 Service Manual Ref. No. Part No. Description C639 3101064710000 2700PF C810 3101064710000 2700PF C834 3101064710000 2700PF C817 3101062250000 2.2UF C838 3101062250000 2.2UF C842 3101062250000 2.2UF C901 3101061500010 15PF C902 3101061500010 15PF C903 3101061500010 15PF C904 3101061500010 15PF C905 3101072230000 0.022UF C920 3101063000010 30PF...
  • Page 58 Service Manual Ref. No. Part No. Description R903 3001061020010 R906 3001061020010 R911 3001061020010 R915 3001061020010 R921 3001061020010 R922 3001061020010 R3047 3001061020000 R3048 3001061020000 R3049 3001061020000 R3050 3001061020000 R135 3001063300000 R136 3001063300000 R137 3001063300000 R138 3001063300000 R139 3001063300000 R140 3001063300000 R141 3001063300000 R142 3001063300000...
  • Page 59 Service Manual Ref. No. Part No. Description R170 3001063300000 R171 3001063300000 R172 3001063300000 R174 3001063300000 R175 3001063300000 R176 3001063300000 R179 3001063300000 R180 3001063300000 R181 3001063300000 R182 3001063300000 R184 3001063300000 R185 3001063300000 R187 3001063300000 R190 3001063300000 R202 3001063300000 R203 3001063300000 R204 3001063300000 R205 3001063300000...
  • Page 60 Service Manual Ref. No. Part No. Description R276 3001063300000 R277 3001063300000 R278 3001063300000 R279 3001063300000 R291 3001063300000 R293 3001063300000 R294 3001063300000 R295 3001063300000 R296 3001063300000 R297 3001063300000 R298 3001063300000 R299 3001063300000 R300 3001063300000 R301 3001063300000 R3030 3001063300000 R3039 3001063300000 R304 3001063300000 R3040 3001063300000...
  • Page 61 Service Manual Ref. No. Part No. Description R366 3001063300000 R367 3001063300000 R368 3001063300000 R371 3001063300000 R372 3001063300000 R386 3001063300000 R387 3001063300000 R390 3001063300000 R391 3001063300000 R397 3001063300000 R401 3001063300000 R487 3001063300000 R489 3001063300000 R490 3001063300000 R492 3001063300000 R507 3001063300000 R508 3001063300000 R509 3001063300000...
  • Page 62 Service Manual Ref. No. Part No. Description R660 3001063300000 R733 3001063300000 R735 3001063300000 R736 3001063300000 R739 3001063300000 R740 3001063300000 R741 3001063300000 R742 3001063300000 R743 3001063300000 R744 3001063300000 R745 3001063300000 R746 3001063300000 R747 3001063300000 R748 3001063300000 R749 3001063300000 R750 3001063300000 R751 3001063300000 R754 3001063300000...
  • Page 63 Service Manual Ref. No. Part No. Description R3011 3001060000000 R3012 3001060000000 R3017 3001060000000 R3019 3001060000000 R302 3001060000000 R3021 3001060000000 R3022 3001060000000 R3023 3001060000000 R3026 3001060000000 R3034 3001060000000 R3052 3001060000000 R3054 3001060000000 R3057 3001060000000 R3059 3001060000000 R3060 3001060000000 R3061 3001060000000 R310 3001060000000 R313 3001060000000...
  • Page 64 Service Manual Ref. No. Part No. Description R408 3001060000000 R416 3001060000000 R423 3001060000000 R426 3001060000000 R428 3001060000000 R430 3001060000000 R439 3001060000000 R440 3001060000000 R444 3001060000000 R447 3001060000000 R449 3001060000000 R484 3001060000000 R491 3001060000000 R501 3001060000000 R516 3001060000000 R519 3001060000000 R520 3001060000000 R523 3001060000000...
  • Page 65 Service Manual Ref. No. Part No. Description R677 3001060000000 R737 3001060000000 R738 3001060000000 R756 3001060000000 R814 3001060000000 R823 3001060000000 R833 3001060000000 R848 3001060000000 R904 3001060000000 R905 3001060000000 R907 3001060000000 R910 3001060000000 R913 3001060000000 R914 3001060000000 R916 3001060000000 R917 3001060000000 R918 3001060000000 R919 3001060000000...
  • Page 66 Service Manual Ref. No. Part No. Description R186 3001061000000 R189 3001061000000 R224 3001061000000 R226 3001061000000 R268 3001061000000 R269 3001061000000 R3036 3001061000000 R3038 3001061000000 R319 3001061000000 R320 3001061000000 R815 3001061000000 R177 3001061030010 R216 3001061030010 R217 3001061030010 R218 3001061030010 R219 3001061030010 R223 3001061030010 R228 3001061030010...
  • Page 67 Service Manual Ref. No. Part No. Description R373 3001061030010 R379 3001061030010 R380 3001061030010 R381 3001061030010 R382 3001061030010 R383 3001061030010 R388 3001061030010 R392 3001061030010 R393 3001061030010 R394 3001061030010 R402 3001061030010 R403 3001061030010 R404 3001061030010 R409 3001061030010 R410 3001061030010 R413 3001061030010 R429 3001061030010 R437 3001061030010...
  • Page 68 Service Manual Ref. No. Part No. Description R633 3001061030010 R702 3001061030010 R703 3001061030010 R704 3001061030010 R705 3001061030010 R706 3001061030010 R708 3001061030010 R709 3001061030010 R710 3001061030010 R711 3001061030010 R712 3001061030010 R713 3001061030010 R714 3001061030010 R715 3001061030010 R716 3001061030010 R718 3001061030010 R719 3001061030010 R720 3001061030010...
  • Page 69 Service Manual Ref. No. Part No. Description R3015 3001061040010 100K R517 3001061040010 100K R518 3001061040010 100K R526 3001061040010 100K R535 3001061040010 100K R568 3001061040010 100K R573 3001061040010 100K R594 3001061040010 100K R801 3001061040010 100K R808 3001061040010 100K R817 3001061040010 100K R818 3001061040010 100K...
  • Page 70 Service Manual Ref. No. Part No. Description 1006 R547 3001063030020 1007 R548 3001063030020 1008 R564 3001063030020 1009 R570 3001063030020 1010 R542 3001061540000 150K 1011 R550 3001061530010 1012 R559 3001061530010 1013 R560 3001064710000 1014 R790 3001064710000 1015 R792 3001064710000 1016 R794 3001064710000 1017 R796...
  • Page 71 Service Manual Ref. No. Part No. Description 1048 L502 3221513600000 Ferrite bead 1049 L503 3221513600000 Ferrite bead 1050 L615 3221513600000 Ferrite bead 1051 L802 3221513600000 Ferrite bead 1052 L807 3221513600000 Ferrite bead 1053 L814 3221513600000 Ferrite bead 1054 L815 3221513600000 Ferrite bead 1055 L816...
  • Page 72 Service Manual Ref. No. Part No. Description 1090 Q706 3414999000000 Bias resistor transistor 1091 Q707 3414999000000 Bias resistor transistor 1092 Q708 3414999000000 Bias resistor transistor 1093 Q709 3414999000000 Bias resistor transistor 1094 Q710 3414999000000 Bias resistor transistor 1095 Q506 3403008000010 Bias resistor transistor 1096 Q603...
  • Page 73 Service Manual Ref. No. Part No. Description 1132 D906 3307110100080 Light emitting diode 1133 D907 3307110100080 Light emitting diode 1134 D908 3307110100080 Light emitting diode 1135 D201 3307110200000 Light emitting diode 1136 D502 3302031100010 Zener diode 1137 D503 3302031100010 Zener diode 1138 D601 3303100500000...
  • Page 74 Service Manual Ref. No. Part No. Description ESD protection diode 1174 D505 3310240000000 1175 D607 3310240000000 ESD protection diode ESD protection diode 1176 D703 3310240000000 ESD protection diode 1177 D704 3310240000000 ESD protection diode 1178 D705 3310240000000 1179 D706 3310240000000 ESD protection diode 1180 D707...
  • Page 75 Service Manual Ref. No. Part No. Description 1216 R717 3001063920010 3.9K 1217 R798 3001063920010 3.9K 1218 U401 3607023000150 Logic IC 1219 R696 3001065610000 1220 C382 3101063320000 3300PF...
  • Page 76 Service Manual ront anel Ref. No. Part No. Description 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF 3101061010010 100PF...
  • Page 77 Service Manual Ref. No. Part No. Description 10610500 3101061050000 3101061050000 3101061050000 3104082260060 22UF 3001060000000 3001060000000 3001060000000 3001063300000 3001065100030 3001065100030 3001065100030 3001065610000 3001061020010 3001061020010 3001061020010 3001061020010 3001061020010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061030010 3001061040010...
  • Page 78 Service Manual Ref. No. Part No. Description 3001063010010 3001063010010 3001063010010 Light emitting diode 3307110300000 Light emitting diode 3307110300000 3307110300000 Light emitting diode 3307110300000 Light emitting diode Light emitting diode 3307110100080 Light emitting diode 3307110100080 Light emitting diode 3307110100080 3307110100080 Light emitting diode Light emitting diode 3307110100080 Light emitting diode...
  • Page 79 Service Manual Ref. No. Part No. Description Tact switch 4301050000000 4301050000000 Tact switch Tact switch 4301050000000 Tact switch 4301050000000 Tact switch 4301050000000 4301050000000 Tact switch 3607010000400 Logic IC 3805000000030 EMI filter 3805000000030 EMI filter 3805000000030 EMI filter 3608015000210 Power management IC 3699037000010 USB protection IC 5206040200010...
  • Page 80: Troubleshooting Flow Chart

    Service Manual 6.7 Troubleshoot ing Fl ow Chart Control circuit check Normal power-on and The control circuit Is RF circuit driven indication?[1] normally ?[2] works normally. Check whether RF Power supply circuit (U603, U604 and U 605) and control circuit work normally? LCD and LED work Replace LCD and...
  • Page 81: Tuning Description

    Service Manual 7. Tuning Description For details about tuning, please refer to the help file for appropriate tuner software supplied by us.
  • Page 82: Interface Definition

    Service Manual 8. Interface Definition PA-Baseband (J105) Pin No. Name Description Pf_DET Forward power detection, ADC input Temp_Protect_Volt Alarm voltage for temperature protection circuit Output power setting, DAC output VSWR_Protect_Volt Alarm voltage for the VSWR protection circuit Final_Bias Bias voltage of final-stage PA, DAC output For grounding Pr_DET Reverse power detection, ADC input...
  • Page 83 Service Manual _PLL_Data PLL data pin TX_Control_ PLL lock detection enabl e (0: On; 1: Off) TX_PLL_LD PLL lock detect (1: locke d; 0: unlocke GPS_LP Loop filter switch (1: On; 0: Off) For grounding Modulation signal of VCO, AC analog signal, MOD_H from DAC TX_PLL_Po...
  • Page 84 Service Manual 98_SYNCB Reset SS I/10-bi t counter RX_CV RX CV vo ltage d etect 98_FS AD9864 RX_PLL_Power_E N Power supply (5 V/3.3V) enable for PLL 98_DOUTA 864 SSI 98_PE AD9864 SPI enable 98_DOUTB AD9864 SSI For groundin 98_CLKOUT AD9864 SSI For grounding For grounding 98_PC...
  • Page 85 Service Manual will be dis abled General I/O interface with function defined DB26_GPIO through the CPS ACC_IO2 Accessory identification pin (not defined) PROM Not defined ACC_ Acce ssory identification pin (not defined) Programmable input pin (PTT by default) valid for DB26_PTT_I low level;...
  • Page 86 Service Manual USB0_D- USB data cable-, USB port USB0_D+ USB dat a cable+, USB port Ground Table 8-5 De finition of DB9 RJ45 (J901) is a TCP /IP port. It c an be used to re alize many fu nctions such as remote monitoring. Its definition is shown bel Pin No.
  • Page 87: Uhf1 (400-470Mhz) Information

    Service Manual 9.UHF1 (400-470MHz) Information 9.1 TX Circuit The TX circuit consists of power amplifier (PA) circuit, power control circuit, diagnosis and detection circuit and protection circuit. It is to amplify the RF signal from exciter module to 50W, which then will be output via the antenna.
  • Page 88 Service Manual 30dBm, which then will be sent to driver-stage PA via L-C network. 9.1.3 Driver Stage PA This PA unit is a LDM OS power tube (Q402). It can further amplify the RF signals from Q401 to 38dBm, which is then sent to final-stage PA. 9.1.4 Final-stage PA This PA unit consists of two LDMOS power tubes (Q403 and Q404).
  • Page 89: Rx Circuit

    Service Manual 9.1.8 Temperature Protection The thermistor is close to the heat sink pad of the final-stage amplifier, and is used to detect the current temperature of the heat sink. When the temperature of heat sink rises to the default value, the fan will run;...
  • Page 90 Service Manual 9.2.1 Front-end Circuit The HF signal from the low-pass filter passes through the electrically tunable band-pass filter controlled via TV level, to remove out-of-band interference signal and to send wanted band-pass signal to the low-noise amplifier (U402). The amplified signal goes to a band-pass filter controlled via TV level, to remove out-of-band interference signal generated during amplification, and to send wanted HF signal to the mixer.
  • Page 91: Frequency Generation Unit (Fgu)

    Service Manual The 18MHz clock frequen cy is generated by the LC resonance loop. 9.3 Frequency Generation Unit (FGU) The repeater has two FGUs. One is RX FGU providing the first LO frequency for the RX system; the other is TX FGU providing carrier and exciter signal for the TX system. They work simultaneously, but are locked at different frequencies.
  • Page 92 Service Manual converter, so as to ensure frequency accuracy. 9.3.2 PLL IC PLL IC consists of the pre-divider, programmable divider, phase detector, charge pump and etc. The voltage of analog circuit and digital circuit of PLL IC is 3.3V voltage, while the voltage of charge pump is 5V.
  • Page 99: Block Diagram

    RD980 9.3V,3A 13.6V,12A B+ Voltage Regulator PA_Enable IL:<1.0dB Po=47.5dBm Wideband 50ohm Matching/ LDMOS Matching PD85035S-1 Matching Matching Attenuation Network Network Harmonics Filters Power sensor MOSFET MOSFET RD01 RD07 48.5dBm LDMOS RF In RF Out Pre-driver Driver 13dBm PD85035S-2 28.5dBm 35.5dBm Final_Bias(5V) Bias_Setting Pad Attenuator...
  • Page 111: Parts List

    Service Manual .7 Parts List ower Amplifier Ref. No. Part No. Description C401 3101071010000 100PF C414 3101071010000 100PF C417 3101071010000 100PF C492 3101071010000 100PF C497 3101071010000 100PF C500 3101071010000 100PF C517 3101071010000 100PF C540 3101071010000 100PF C545 3101071010000 100PF C402 3101060500010 C403 3101070800010...
  • Page 112 Service Manual Ref. No. Part No. Description C430 3101371010000 100pF C431 3101371010000 100pF C432 10812000 12pF C433 3101081200010 12pF C434 3101080600010 C435 3101080600010 C440 3101372200000 22pF C450 3101372200000 22pF C445 3101371200000 12pF C449 3101371200000 12pF C447 3101372400000 24pF C451 3101372400000 24pF C442 3101370200000...
  • Page 113 Service Manual Ref. No. Part No. Description C560 3101061040010 0.1UF R536 3101061040010 0.1UF C485 3101061010010 100PF C519 3101061010010 100PF C538 3101061010010 100PF C539 3101061010010 100PF C476 3101062220010 2200PF C408 3101061020000 1000PF C471 3101061020000 1000PF C502 3101061020000 1000PF C504 3101061020000 1000PF C529 3101061020000 1000PF...
  • Page 114 Service Manual Ref. No. Part No. Description D408 3303030100010 DIODE L401 3212107689000 6.8nH L415 3210108330000 33nH L432 3210108330000 33nH L403 3221513600000 Ferrite bead L419 3221513600000 Ferrite bead L422 3221513600000 Ferrite bead L423 3221513600000 Ferrite bead L424 3221513600000 Ferrite bead L426 3221513600000 Ferrite bead L427...
  • Page 115 Service Manual Ref. No. Part No. Description R410 3001075120000 5.1K R434 3001071220000 1.2K R457 3001071220000 1.2K R411 3001074700000 R408 3001065120000 5.1K R417 3001084790000 R418 3001084790000 R419 3001084790000 R421 3001084790000 R422 3001084790000 R423 3001084790000 R463 3001084790000 R424 3001082700000 R425 3001088200010 R426 3001088200010 R429 3001088200010...
  • Page 116 Service Manual Ref. No. Part No. Description L430 3210306560000 56nH L431 3210306560000 56nH L438 3210306560000 56nH R404 3001070000000 R414 3001070000001 R415 3001070000002 R441 3001070000003 R462 3001070000004 R464 3001070000005 R466 3001070000006 R477 3001070000007 R482 3001070000008 R492 3001070000009 R505 3001070000010 R540 3001070000011 R541 3001070000012 R448...
  • Page 117 Service Manual Ref. No. Part No. Description U403 3623025000000 Wave detector U404 3608002005490 Zener diode U405 3608015000060 Zener diode U406 3605008001690 Operational amplifier U407 3605010000020 Operational amplifier 6201868000000 Heat sink C426 3101073300000 33PF C429 3101073300000 33PF R520 3001061010040 R521 3001061220000 1.2K R449 3001065620000...
  • Page 118 Service Manual Ref. No. Part No. Description C543 3101076810000 680pF C479 3101081020010 1000pF C480 3101081020010 1000pF R543 3001111510000 R544 3001111510000 R 435 3001071520000 1.5K R409 3001078220010 8.2K R458 3001078220010 8.2K Q407 3404999000020 NPN transistor 6202416000000 Heat sink Q403 3601017000000 Transistor Q404 3601017000000 Transistor...
  • Page 119 Service Manual xcite Board Ref. No. Part No. Description R220 3001050000000 R224 3001050000000 R228 3001050000000 L114 3001060000000 R108 3001060000000 R121 3001060000000 R124 3001060000000 R141 3001060000000 01060000000 R146 3001060000000 R218 3001060000000 R221 3001060000000 R225 3001060000000 R227 3001060000000 R230 3001060000000 R237 3001060000000 R239 3001060000000 R202...
  • Page 120 Service Manual Ref. No. Part No. Description R249 10610100 R250 3001061010000 R251 3001061010000 R252 3001061010000 R253 3001061010000 R254 3001061010000 R256 3001061010000 R258 3001061010000 R259 3001061010000 R107 3001061510000 R110 3001061510000 R135 3001061510000 R219 3001061810000 R128 3001062210000 R129 3001062210000 R201 3001051020000 R210 3001051020000 R213 3001051020000...
  • Page 121 Service Manual Ref. No. Part No. Description R233 3001054730010 R115 3001064730000 R247 3001064730000 R255 3001064730000 R138 3001066830000 R102 3001051040000 100K R103 3001051040000 100K R116 3001061040010 100K R243 3001061040000 100K C115 3101060590010 0.5p C154 3101060590010 0.5p C208 3101060100010 C125 3101060200010 C169 3101060200010 C159 3101062490000...
  • Page 122 Service Manual Ref. No. Part No. Description C141 3101062200010 C120 3101062400010 C156 3101062400010 C113 3101063900000 C157 3101064700000 C116 3101065600000 C254 3101068200000 C212 3101051010030 100p C213 3101051010030 100p C216 3101051010030 100p C221 3101051010030 100p C222 3101051010030 100p C225 3101051010030 100p C228 3101051010030 100p C281...
  • Page 123 Service Manual Ref. No. Part No. Description C171 3101064710000 470p C217 3101064710000 470p C262 3101064710000 470p C201 3101051020010 1000p C203 3101051020010 1000p C219 3101051020010 1000p C232 3101051020010 1000p C236 3101051020010 1000p C241 3101051020010 1000p C245 3101051020010 1000p C246 3101051020010 1000p C250 3101051020010 1000p...
  • Page 124 Service Manual Ref. No. Part No. Description C214 3101051040010 0.1u C220 3101051040010 0.1u C231 3101051040010 0.1u C234 3101051040010 0.1u C242 3101051040010 0.1u C243 3101051040010 0.1u C247 3101051040010 0.1u C248 3101051040010 0.1u C267 3101051040010 0.1u C284 3101051040010 0.1u C106 3101061040020 0.1u C109 3101061040020 0.1u...
  • Page 125 Service Manual Ref. No. Part No. Description R111 3210306150000 15nH R134 3210306150000 15nH L113 3210306180000 18nH L204 3210306180000 18nH L108 3214307270010 27nH L120 3214307270010 27nH L123 3210306330000 33nH L111 3217106560000 56nH L112 3217106560000 56nH L210 3217607391000 390nH L101 3217107471010 470nH L104 3217107471010 470nH...
  • Page 126 Service Manual Ref. No. Part No. Description D105 3304060300050 Varactor D107 3304060300050 Varactor D108 3304060300050 Varactor D109 3304060300050 Varactor D110 3304060300050 Varactor D112 3304010100890 Varactor D102 3303240000000 Switching diode D202 3303240000000 Switching diode Q101 3408002000080 NPN transistor Q107 3408002000080 NPN transistor Q105 3404006000000 NPN transistor...
  • Page 127 Service Manual Receiv er Board Ref. No. Part No. Description R141 3001050000000 R160 3001050000000 R166 3001050000000 R167 3001050000000 R168 3001050000000 R510 3001050000000 R513 3001050000000 R515 3001050000000 R516 3001050000000 L116 3001060000000 L423 3001060000000 L433 3001060000000 L519 3001060000000 L612 3001060000000 R119 3001060000000 R121 3001060000000 R139...
  • Page 128 Service Manual Ref. No. Part No. Description R438 10610100 R454 3001061010000 R608 3001061010000 R610 3001061010000 R614 3001061010000 R618 3001061010000 R626 3001061010000 R627 3001061010000 R632 3001061010000 R633 3001061010000 R136 3001051020000 R145 3001051020000 R150 3001051020000 R154 3001051020000 R158 3001051020000 R161 3001051020000 R607 3001061020010 R613 3001061020010...
  • Page 129 Service Manual Ref. No. Part No. Description R412 3001061040010 100K R413 3001061040010 100K R414 3001061040010 100K R416 3001061040010 100K R417 3001061040010 100K R418 3001061040010 100K R142 3001061210000 R509 3001051220000 1.2K R425 3001061220000 1.2K R430 3001061220000 1.2K R125 3001061500000 R127 3001061500000 R143 3001061500000 R506...
  • Page 130 Service Manual Ref. No. Part No. Description R149 3001054730000 R153 3001054730000 R606 3001064730000 R611 3001064730000 R621 3001064730000 R629 3001064730000 R630 3001064730000 R631 3001064730000 R635 3001064730000 R135 3001055100020 R137 3001055100020 R140 3001055100020 R503 3001055100020 R524 3001055100020 R446 3001065100000 R449 3001065100000 R520 3001055110000 R444 3001065120000...
  • Page 131 Service Manual Ref. No. Part No. Description C183 3101051000020 10PF C419 3101060100010 C140 3101061000000 10PF C420 3101061000000 10PF C427 3101061000000 10PF C432 3101061000000 10PF C438 3101061000000 10PF L412 3101061000000 10PF C157 3101051010030 100PF C159 3101051010030 100PF C164 3101051010030 100PF C171 3101051010030 100PF C172...
  • Page 132 Service Manual Ref. No. Part No. Description C162 3101051020010 1000PF C168 3101051020010 1000PF C185 3101051020010 1000PF C195 3101051020010 1000PF C196 3101051020010 1000PF C509 3101051020010 1000PF C515 3101051020010 1000PF C525 3101051020010 1000PF C531 3101051020010 1000PF C407 3101061020000 1000PF C408 3101061020000 1000PF C485 3101061020000 1000PF...
  • Page 133 Service Manual Ref. No. Part No. Description C677 3101061020000 1000PF C678 3101061020000 1000PF C683 3101061020000 1000PF C684 3101061020000 1000PF C685 3101061020000 1000PF C155 3101051030020 0.01UF C504 3101051030020 0.01UF C512 3101051030020 0.01UF C519 3101051030020 0.01UF C535 3101051030020 0.01UF C405 3101061030010 0.01UF C457 3101061030010 0.01UF...
  • Page 134 Service Manual Ref. No. Part No. Description C129 3101061040010 0.1UF C165 3101061040010 0.1UF C401 3101061040010 0.1UF C409 3101061040010 0.1UF C411 3101061040010 0.1UF C467 3101061040010 0.1UF C468 3101061040010 0.1UF C473 3101061040010 0.1UF C474 3101061040010 0.1UF C475 3101061040010 0.1UF C482 3101061040010 0.1UF C483 3101061040010 0.1UF...
  • Page 135 Service Manual Ref. No. Part No. Description C470 3101061200000 12PF C471 3101061200000 12PF C481 3101061200000 12PF C523 3101051500020 15PF C417 3101061590010 1.5PF C545 3101055600000 56PF C524 3101051800010 18PF R157 3101051800010 18PF C150 3101061800000 18PF C487 3101061800000 18PF C518 3101051810020 180PF C527 3101052200010 22PF...
  • Page 136 Service Manual Ref. No. Part No. Description C428 3101063690000 3.6PF C429 3101063690000 3.6PF C127 3101063300000 33PF C137 3101063300000 33PF C144 3101063300000 33PF C114 3101063900000 39PF C147 3101063900000 39PF C517 3101053920000 3900PF C115 3101060400010 C133 3101060400010 C415 3101060400010 C441 3101060400010 C501 3101054700010 47PF C556...
  • Page 137 Service Manual Ref. No. Part No. Description C444 3101060600010 C445 3101060600010 C446 3101060600010 C447 3101060600010 C448 3101060600010 C449 3101060600010 C472 3101060600010 C170 3101066830000 0.068UF C190 3101066830000 0.068UF C418 3101060200010 C462 3101060200010 C522 3101072240000 0.22UF C176 3101071050160 C548 3104071050070 C189 3101074740000 0.47UF C110 3104074750070...
  • Page 138 Service Manual Ref. No. Part No. Description L516 3213212332000 3.3uH L418 3210306270000 27nH L107 3217607330000 33nH L119 3217607330000 33nH C479 3210406331000 330nH L425 3210406331000 330nH L517 3210406331000 330nH L518 3213306332000 3.3uH L427 3210306470000 47nH C435 3217106470000 47nH L511 3210406471000 470nH L101 3217107471010 470nH...
  • Page 139 Service Manual Ref. No. Part No. Description L512 3221506601000 Ferrite bead L513 3221506601000 Ferrite bead L514 3221506601000 Ferrite bead L515 3221506601000 Ferrite bead L601 3221506601000 Ferrite bead L602 3221506601000 Ferrite bead L603 3221506601000 Ferrite bead L604 3221506601000 Ferrite bead L605 3221506601000 Ferrite bead L606...
  • Page 140 Service Manual Ref. No. Part No. Description D418 3304010100890 Varactor D419 3304010100890 Varactor D420 3304010100890 Varactor D421 3304010100890 Varactor D422 3304010100890 Varactor D423 3304010100890 Varactor D424 3304010100890 Varactor D425 3304010100890 Varactor D426 3304010100890 Varactor D101 3304060300050 Varactor D103 3304060300050 Varactor D104 3304060300050 Varactor...
  • Page 141 Service Manual Ref. No. Part No. Description U605 3608006000000 Power management IC U105 3616010000000 Switch IC U101 3604019000000 PLL IC U103 3616059000000 Switch IC U106 3605002057090 Operational amplifier U403 3609014000010 Mixer U501 3603999000000 IF processor IC U401 3605008001690 Operational amplifier Q103 3499000000150 Composite transistor...
  • Page 142: Troubleshooting Flow Chart

    Service Manual 9.8 Tr oubleshooting Fl ow Chart ece er Ci...
  • Page 143 Service Manual Description of Normal Situations: [1] About 9.3V for receiver board. [2] About 9.1V for pin 2 of Q601 and Q604. [3] About 5V for pin 5 of U603. [4] About 3.3V for pin 5 of U604 and U605. [5] Normal CV voltage is 0.7-1.5V.
  • Page 144 Service Manual Transmitter Circuit No power output Any APC output? Check the baseband board Check the exciter Transient Exciter output? board current >2A Replace PD85035 9.3V power supply Check voltage >9V transistor RD01 and RD07’s Replace RD01 and RD07 Vgg>0.5V Check the control circuit...
  • Page 145 Service Manual FGU Circuit...
  • Page 146 Service Manual Description of N ormal Situations: [1] VCO: 5V; PLL: 3.3V; [2] Frequency output for low VCO is 380 450MHz, and 420 490MHz for high VCO. The power output amplitude for both is -8 18dBm; [3] CV voltage of Q101 and Q107: about 4V; the voltage difference between base voltage and emitter voltage is about 0.6V;...
  • Page 147: Uhf2 (450-520Mhz) Information

    Service Manual 10. UHF2 (450-520MHz) Information 10.1 TX Circuit The TX circuit consists of power amplifier (P A) circuit, power control circuit, diagnosis and detection circuit and protection circuit. It is to amplify the RF signal from exciter module to 50W, which then will be output via the antenna.
  • Page 148 Service Manual Pre-driver Stage PA This PA unit is a LDMOS power tube (Q401). It can amplify the 13dBm RF signals from exciter unit to 30dBm, which then wil l be sent to driver-stage PA via L-C network. Driver Stage PA This PA unit is a LDMOS power tube (Q402).
  • Page 149: Rx Circuit

    Service Manual power. Temperature Protection The thermistor RT402 is close to the heat sink pad of the final-stage amplifier, and is used to detect the current temperatu re of the heat sink. When the temperature of heat sink rises to the default value, the fan will run;...
  • Page 150: Frequency Generation Unit (Fgu)

    Service Manual remove o ut-of-band interference signal generated during amplification, and to send wanted HF signal to the mixer. The wanted signal passes through the RF band-pass filter and low-noise amplifier and goes to the mixer (U403). Meanwhile, the first local oscillator (LO) signal generated by VCO passes through the low-pass filter and also goes to the mixer.
  • Page 151 Service Manual other is TX FGU providing carrier and exciter signal for the TX system. They work simultaneously, but are locked a t different frequencies. Both RX FGU and TX FGU mainly consist of a reference crystal oscillator, a PLL, a VCO and a buffer amplifier.
  • Page 152 Service Manual divider, phase detector, charge pump and etc. The voltage of analog circuit and digital circuit of PLL IC is 3.3V voltage, while the voltage of cha rge pump is 5V. See the following figure: Figure 10-6 Block Diagram of PLL IC SKY72310’s role is to generate appropriate frequency based on the data transmitted by OMAP of baseband board.
  • Page 159: Block Diagram

    10.5 Block Diagram RD98X Block Diagram (PA Section) RD980 9.3V,3A 13.6V,12A B+ Voltage Regulator PA_Enable IL:<1.0dB Po=47.5dBm Wideband 50ohm Matching/ LDMOS Matching PD85035S-1 Matching Matching Attenuation Network Network Harmonics Filters Power sensor MOSFET MOSFET RD01 RD07 48.5dBm LDMOS RF In RF Out Pre-driver 13dBm...
  • Page 171: Parts List

    Service Manual 0.7 Parts List Power Amplifier Ref. No. Part No. Description C401 3101071010000 100PF C410 3101071010000 100PF C414 3101071010000 100PF C417 3101071010000 100PF C419 3101071010000 100PF C492 3101071010000 100PF C497 3101071010000 100PF C500 3101071010000 100PF C517 3101071010000 100PF C540 3101071010000 100PF C545...
  • Page 172 Service Manual Ref. No. Part No. Description C430 3101371010000 100PF C431 3101371010000 100PF C432 3101081200010 12PF C433 10812000 12PF C434 3101080600010 C435 3101080600010 C440 3101372200000 22PF C450 3101372200000 22PF C444 3101371200000 12PF C448 3101371200000 12PF C442 3101370200000 C452 3101370200000 C456 3101370200000 C466 3101370200000...
  • Page 173 Service Manual Ref. No. Part No. Description C476 3101062220010 2200PF C408 3101061020000 1000PF C502 3101061020000 1000PF C504 3101061020000 1000PF C529 3101061020000 1000PF C552 3101061020000 1000PF C557 3101061020000 1000PF C566 3101061020000 1000PF C567 3101061020000 1000PF C569 3101061020000 1000PF C491 3101084710010 470PF C505 3101061030010 0.01UF...
  • Page 174 Service Manual Ref. No. Part No. Description L428 3221513600000 Ferrite bead L433 3221513600000 Ferrite bead L404 3231351680000 Ferrite bead L408 3231803050000 Ferrite bead L410 3233099160000 Ferrite bead L412 3233099160000 Ferrite bead L413 3233099160000 Ferrite bead L414 3233099160000 Ferrite bead L417 3213306102000 L418 3213306102000...
  • Page 175 Service Manual Ref. No. Part No. Description R432 3001075100000 R444 3001075100000 R446 3001075100000 R447 3001075100000 R443 3001071000000 R472 3001071000000 R473 3001071000000 R503 3001071000000 R504 3001071000000 R436 3001060000000 R438 3001060000000 R440 3001060000000 R452 3001060000000 R459 3001060000000 R461 3001060000000 R478 3001060000000 R480 3001060000000 R486 3001060000000...
  • Page 176 Service Manual Ref. No. Part No. Description R454 3001063930000 R465 3001061020000 R467 3001080190000 R468 3001080190000 R469 3001080190000 R470 3001080190000 R471 3001076810000 R475 3001161510010 R479 3001062220000 2.2K R481 3001062720030 2.7K R483 3001071040010 100K R501 3001071040010 100K C571 3001062020030 R484 3001062020030 R489 3001074720010 4.7K R490...
  • Page 177 Service Manual Ref. No. Part No. Description C467 3001080000000 D404 3302060000000 Diode R500 3001071230010 R412 3001074710000 R445 3001074710000 R456 3101071000020 10PF C472 3101071810000 180PF C486 3101071810000 180PF C411 3101071290000 1.2P C549 3101074720030 4700PF C550 3101075610010 560P C543 3101076810000 680P R434 3001071520000 1.5K R409...
  • Page 178 Service Manual xcite oard Ref. No. Part No. Description 01050000000 R224 300 1050000000 R228 300 1050000000 01060000000 R108 300 1060000000 R121 300 1060000000 01060000000 R134 300 1060000000 R141 300 1060000000 01060000000 01060000000 R221 300 1060000000 R227 300 1060000000 01060000000 R237 300 1060000000 R239 300 1060000000...
  • Page 179 Service Manual Ref. No. Part No. Description R249 106101000 R250 3001061010000 R25 1 3001061010000 R25 2 3001061010000 R253 3001061010000 R25 4 3001061010000 R25 6 3001061010000 R258 3001061010000 R25 9 3001061010000 R1 12 3001061210000 R128 3001061210000 R129 3001061210000 R135 3001061210000 R107 3001061510000 R110 3001061510000...
  • Page 180 Service Manual Ref. No. Part No. Description R138 3001063330000 R119 3001063930010 R229 3001054730010 R233 3001054730010 R247 3001064730000 R255 3001064730000 R102 3001051040000 100K R103 3001051040000 100K R116 3001061040000 100K R260 3001061040000 100K R271 3001061040000 100K R243 3001061540010 150K R236 3001056840000 680K C115 3101060590010 0.5PF...
  • Page 181 Service Manual Ref. No. Part No. Description C309 3101060900010 C166 3101061000000 10PF C229 3101061000000 10PF C160 3101061500010 15PF C128 3101061800000 18PF C129 3101061800000 18PF C130 3101062200010 22PF C156 3101062200010 22PF C120 3101062400010 24PF C113 3101063300000 33PF C141 3101063300000 33PF C307 3101063300000 33PF C116...
  • Page 182 Service Manual Ref. No. Part No. Description C278 3101054710010 470PF C283 3101054710010 470PF C105 3101064710000 470PF C110 3101064710000 470PF C117 3101064710000 470PF C121 3101064710000 470PF C123 3101064710000 470PF C138 3101064710000 470PF C148 3101064710000 470PF C158 3101064710000 470PF C161 3101064710000 470PF C171 3101064710000 470PF...
  • Page 183 Service Manual Ref. No. Part No. Description C303 3101061020000 1000PF C304 3101061020000 1000PF C305 3101061020000 1000PF C209 3101051030020 0.01UF C223 3101061030010 0.01UF C224 3101062730000 0.027UF C207 3101051040010 0.1UF C211 3101051040010 0.1UF C214 3101051040010 0.1UF C220 3101051040010 0.1UF C231 3101051040010 0.1UF C234 3101051040010 0.1UF...
  • Page 184 Service Manual Ref. No. Part No. Description C107 3104074750070 4.7UF C273 3104074750070 4.7UF C259 3104086850030 6.8UF C230 3104071060070 10UF C263 3104081060120 10UF C277 3104081060120 10UF L220 3210306229000 2.2nH L221 3210306229000 2.2nH L219 3217106829010 8.2nH L222 3217106829010 8.2nH L106 3217112100000 10nH L119 3217112100000 10nH...
  • Page 185 Service Manual Ref. No. Part No. Description L203 3221506601000 Ferrite bead L205 3221506601000 Ferrite bead L206 3221506601000 Ferrite bead L208 3221506601000 Ferrite bead L209 3221506601000 Ferrite bead L211 3221506601000 Ferrite bead L212 3221506601000 Ferrite bead L213 3221506601000 Ferrite bead L214 3221506601000 Ferrite bead L215...
  • Page 186 Service Manual Receiver Board Ref. No. Part No. Description R141 001050000000 R160 1050000000 R166 1050000000 R167 001050000000 R168 1050000000 R510 1050000000 R513 001050000000 R515 1050000000 R516 1050000000 L116 001060000000 L423 001060000000 L433 1060000000 L519 1060000000 L612 001060000000 R119 1060000000 R121 1060000000 R139 001060000000...
  • Page 187 Service Manual Ref. No. Part No. Description R438 106101000 R454 3001061010000 R60 8 3001061010000 R61 0 3001061010000 R614 3001061010000 R61 8 3001061010000 R62 6 3001061010000 R627 3001061010000 R63 2 3001061010000 R63 3 3001061010000 R136 3001051020000 R145 3001051020000 R150 3001051020000 R154 3001051020000 R158 3001051020000...
  • Page 188 Service Manual Ref. No. Part No. Description R412 3001061040010 100K R413 3001061040010 100K R414 3001061040010 100K R416 3001061040010 100K R417 3001061040010 100K R418 3001061040010 100K R509 3001051220000 1.2K R425 3001061220000 1.2K R430 3001061220000 1.2K R125 3001061500000 R127 3001061500000 R143 3001061500000 R506 3001051510000 R612...
  • Page 189 Service Manual Ref. No. Part No. Description R447 3001064720000 4.7K R149 3001054730000 R153 3001054730000 R606 3001064730000 R611 3001064730000 R621 3001064730000 R629 3001064730000 R630 3001064730000 R631 3001064730000 R635 3001064730000 R135 3001055100020 R137 3001055100020 R140 3001055100020 R503 3001055100020 R524 3001055100020 R431 3001065100000 R446 3001065100000 R449...
  • Page 190 Service Manual Ref. No. Part No. Description C116 3101060100010 C113 3101061000000 10PF C434 3101061000000 10PF C440 3101061000000 10PF C470 3101061000000 10PF C471 3101061000000 10PF C157 3101051010030 100PF C159 3101051010030 100PF C164 3101051010030 100PF C171 3101051010030 100PF C172 3101051010030 100PF C173 3101051010030 100PF C175...
  • Page 191 Service Manual Ref. No. Part No. Description C162 3101051020010 1000PF C168 3101051020010 1000PF C185 3101051020010 1000PF C195 3101051020010 1000PF C196 3101051020010 1000PF C509 3101051020010 1000PF C515 3101051020010 1000PF C525 3101051020010 1000PF C531 3101051020010 1000PF C407 3101061020000 1000PF C408 3101061020000 1000PF C485 3101061020000 1000PF...
  • Page 192 Service Manual Ref. No. Part No. Description C677 3101061020000 1000PF C678 3101061020000 1000PF C683 3101061020000 1000PF C684 3101061020000 1000PF C685 3101061020000 1000PF C155 3101051030020 0.01UF C504 3101051030020 0.01UF C512 3101051030020 0.01UF C519 3101051030020 0.01UF C535 3101051030020 0.01UF C405 3101061030010 0.01UF C457 3101061030010 0.01UF...
  • Page 193 Service Manual Ref. No. Part No. Description C129 3101061040010 0.1UF C165 3101061040010 0.1UF C401 3101061040010 0.1UF C409 3101061040010 0.1UF C411 3101061040010 0.1UF C467 3101061040010 0.1UF C468 3101061040010 0.1UF C473 3101061040010 0.1UF C474 3101061040010 0.1UF C475 3101061040010 0.1UF C482 3101061040010 0.1UF C483 3101061040010 0.1UF...
  • Page 194 Service Manual Ref. No. Part No. Description L430 3101061500010 15PF C462 3101061590010 1.5PF C545 3101055600000 56PF C161 3101051800010 18PF C524 3101051800010 18PF R157 3101051800010 18PF C150 3101061800000 18PF C487 3101061800000 18PF C518 3101051810020 180PF C527 3101052200010 22PF C530 3101052200010 22PF C542 3101052200010 22PF...
  • Page 195 Service Manual Ref. No. Part No. Description C421 3101063690000 3.6PF C422 3101063690000 3.6PF C426 3101063690000 3.6PF C428 3101063690000 3.6PF C429 3101063690000 3.6PF C437 3101063690000 3.6PF C472 3101063690000 3.6PF C127 3101063300000 33PF C137 3101063300000 33PF C118 3101063900000 39PF C517 3101053920000 3900PF C415 3101060400010 C435...
  • Page 196 Service Manual Ref. No. Part No. Description C140 3101060900010 C433 3101060900010 C439 3101060900010 C476 3101060900010 C526 3101050600010 C436 3101060600010 R432 3101060600010 C170 3101066830000 0.068UF C190 3101066830000 0.068UF C432 3101060800010 C438 3101060800010 C431 3101060200010 C461 3101060200010 C522 3101072240000 0.22UF C189 3101074740000 0.47UF C548 3104071050070...
  • Page 197 Service Manual Ref. No. Part No. Description L403 3213209151000 150nH L113 3210306180000 18nH L429 3212206181000 180nH L507 3217607221000 220nH L516 3213212332000 3.3uH L418 3210306220000 22nH L119 3214307270010 27nH L107 3217607330000 33nH C479 3210406331000 330nH L425 3210406331000 330nH L517 3210406331000 330nH L518 3213306332000 3.3uH...
  • Page 198 Service Manual Ref. No. Part No. Description L504 3221506601000 Ferrite bead L508 3221506601000 Ferrite bead L509 3221506601000 Ferrite bead L510 3221506601000 Ferrite bead L512 3221506601000 Ferrite bead L513 3221506601000 Ferrite bead L514 3221506601000 Ferrite bead L515 3221506601000 Ferrite bead L601 3221506601000 Ferrite bead L602...
  • Page 199 Service Manual Ref. No. Part No. Description D423 3304010100890 Varactor D424 3304010100890 Varactor D425 3304010100890 Varactor D426 3304010100890 Varactor D101 3304060300050 Varactor D103 3304060300050 Varactor D104 3304060300050 Varactor D105 3304060300050 Varactor D106 3304060300050 Varactor D107 3304060300050 Varactor D108 3304060300050 Varactor D109 3304060300050 Varactor...
  • Page 200 Service Manual Ref. No. Part No. Description U403 3609014000010 Mixer U501 3603999000000 IF processor IC U401 3605008001690 Operational amplifier Q103 3499000000150 Composite transistor X101 3701019250030 Temperature compensated crystal oscillator Z401 3802733540030 Crystal filter...
  • Page 201: Troubleshooting Flow Chart

    Service Manual 10.8 T roubleshooting Fl ow Chart ece er Cir...
  • Page 202 Service Manual Description of Normal Situations: [1] About 9.3V for receiver board. [2] About 9.1V for pin 2 of Q601 and Q604. [3] About 5V for pin 5 of U603. [4] About 3.3V for pin 5 of U604 and U605. [5] Normal CV voltage is 0.7-1.5V.
  • Page 203 Service Manual Transmitter Circuit No power output Any APC output? Check the baseband board Check the exciter Transient Exciter output? board current >2A Replace PD85035 9.3V power supply Check voltage >9V transistor RD01 and RD07’s Replace RD01 and RD07 Vgg>0.5V Check the control circuit...
  • Page 204 Service Manual FGU Circuit...
  • Page 205 Service Manual Description of N ormal Situations: [1] VCO: 5V; PLL: 3.3V; [2] Frequency output for low VCO is 435 500MHz, and 470 535MHz for high VCO. The power output amplitude for both is -8 18dBm; [3] CV voltage of Q101 and Q107: about 4V; the voltage difference between base voltage and emitter voltage is about 0.6V;...
  • Page 206: Uhf3 (350-400Mhz) Information

    Service Manual 11.UHF3 (350-400MHz) Information 11.1 TX Circuit The TX circuit consists of power amplifier (P A) circuit, power control circuit, diagnosis and detection circuit and protection circuit. It is to amplify the RF signal from exciter module to 50W, which then will be output via the antenna.
  • Page 207 Service Manual Pre-driver Stage PA This PA unit is a LDMOS power tube (Q401). It can amplify the 13dBm RF signals from exciter unit to 30dBm, which then wil l be sent to driver-stage PA via L-C network. Driver Stage PA This PA unit is a LDMOS power tube (Q402).
  • Page 208: Rx Circuit

    Service Manual power. Temperature Protection The thermistor RT402 is close to the heat sink pad of the final-stage amplifier, and is used to detect the current temperatu re of the heat sink. When the temperature of heat sink rises to the default value, the fan will run;...
  • Page 209: Frequency Generation Unit (Fgu)

    Service Manual remove o ut-of-band interference signal generated during amplification, and to send wanted HF signal to the mixer. The wanted signal passes through the RF band-pass filter and low-noise amplifier and goes to the mixer (U403). Meanwhile, the first local oscillator (LO) signal generated by VCO passes through the low-pass filter and also goes to the mixer.
  • Page 210 Service Manual other is TX FGU providing carrier and exciter signal for the TX system. They work simultaneously, but are locked a t different frequencies. Both RX FGU and TX FGU mainly consist of a reference crystal oscillator, a PLL, a VCO and a buffer amplifier.
  • Page 211 Service Manual divider, phase detector, charge pump and etc. The voltage of analog circuit and digital circuit of PLL IC is 3.3V voltage, while the voltage of cha rge pump is 5V. See the following figure: Figure 11-6 Block Diagram of PLL IC SKY72310’s role is to generate appropriate frequency based on the data transmitted by OMAP of baseband board.
  • Page 218: Block Diagram

    11.5 Block Diagram RD98X Block Diagram (PA Section) RD980 9.3V,3A 13.6V,12A B+ Voltage Regulator PA_Enable IL:<1.0dB Po=47.5dBm Wideband 50ohm Matching/ LDMOS Matching PD85035S-1 Matching Matching Attenuation Network Network Harmonics Filters Power sensor MOSFET MOSFET RD01 RD07 48.5dBm LDMOS RF In RF Out Pre-driver Driver...
  • Page 230: Parts List

    Service Manual 1.7 Parts List ower Amplifier Ref. No. Part No. Description C401 3101071010000 100PF C414 3101071010000 100PF C417 3101071010000 100PF C492 3101071010000 100PF C497 3101071010000 100PF C500 3101071010000 100PF C517 3101071010000 100PF C540 3101071010000 100PF C545 3101071010000 100PF C403 3212106180000 18nH C422...
  • Page 231 Service Manual Ref. No. Part No. Description C424 3101073300000 33PF C410 3101071500000 15PF C421 10715000 15PF C426 3101071500000 15PF C429 3101071500000 15PF C438 3101071500000 15PF C439 3101071500000 15PF C427 3101072400000 24PF C430 3101371010000 100pF C431 3101371010000 100pF C432 3101081800010 18pF C433 3101081800010 18pF...
  • Page 232 Service Manual Ref. No. Part No. Description C496 3101071040000 0.3UF C516 3101071040000 0.4UF C522 3101071040000 0.5UF C524 3101071040000 0.6UF C544 3101071040000 0.7UF C474 3101061040010 0.1UF C484 3101061040010 0.1UF C488 3101061040010 0.1UF C503 3101061040010 0.1UF C514 3101061040010 0.1UF C518 3101061040010 0.1UF C526 3101061040010 0.1UF...
  • Page 233 Service Manual Ref. No. Part No. Description C515 3104994750020 4.7uF C536 3104994750020 4.7uF C521 3104086850030 6.8UF C551 3104086850030 6.8UF C528 3104086840020 0.68UF C531 3101061050000 C533 3101071050160 C534 3101072220010 2200PF C535 3101064740000 0.47UF C537 3101064740000 0.47UF C546 3104993360000 33uF C482 3101064720000 4700PF D401 3609030000000...
  • Page 234 Service Manual Ref. No. Part No. Description Q402 3504990000020 PA MOSFET Q408 3403008000010 Bias resistor transistor Q409 3403008000010 Bias resistor transistor R455 3001064730000 R485 3001064730000 RT401 3001064730000 R535 3001063320000 3.3K R538 3001063320000 3.3K R401 3001072200000 R402 3001072210000 R403 3001072210000 R513 3001061010000 R519 3001061010000...
  • Page 235 Service Manual Ref. No. Part No. Description R446 3001075100000 C471 3001071000000 R443 3001071000000 R472 3001071000000 R473 3001071000000 R503 3001071000000 R504 3001071000000 R437 3001063310010 R460 3001063310010 R436 3001060000000 R438 3001060000000 R440 3001060000000 R452 3001060000000 R459 3001060000000 R461 3001060000000 R478 3001060000000 R480 3001060000000 R486 3001060000000...
  • Page 236 Service Manual Ref. No. Part No. Description R492 3001070000000 R505 3001070000000 R448 3001063620000 3.6K R454 3001063930000 C470 3001078200000 R465 3001061020000 R520 3001061020000 R521 3001061020000 R467 3001080190000 R468 3001080190000 R469 3001080190000 R470 3001080190000 R471 3001076810000 R475 3001161510010 R476 3001083310010 R479 3001062220000 2.2K R481 3001062720030...
  • Page 237 Service Manual Ref. No. Part No. Description R434 3001075120000 5.1K L401 3101070900010 C404 3101071000020 10pF C423 3101071000020 10pF C428 3101071000020 10pF R457 3001066820000 6.8K C549 3101074720030 4700pF C550 3101075610010 560pF C543 3101076810000 680pF R509 3001061240000 120K Q407 3404999000020 NPN transistor R411 3001074700000 R498...
  • Page 238 Service Manual xcite Board No. Ref. No. Part No. Description 1050000000 1050000000 1050000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1060000000 1051000000 1051000000 1051000000 1062200000 R123 3001062700000 R127 3001062700000 R222 3001063300000 R132 3001063900000 R214 3001055100020 R215 3001055100020 R216...
  • Page 239 Service Manual No. Ref. No. Part No. Description R251 10610100 R252 3001061010000 R253 3001061010000 R254 3001061010000 R256 3001061010000 R258 3001061010000 R259 3001061010000 R112 3001061210000 R135 3001061210000 R107 3001061510000 R110 3001061510000 R219 3001061510000 R128 3001062210000 R129 3001062210000 R201 3001051020000 R210 3001051020000 R213 3001051020000 R223...
  • Page 240 Service Manual No. Ref. No. Part No. Description R233 3001054730010 R115 3001064730000 R247 3001064730000 R255 3001064730000 R102 3001051040000 100K R103 3001051040000 100K R116 3001061040010 100K R243 3001061040010 100K R138 3001063030000 C115 3101060590010 0.5PF C154 3101060590010 0.5PF C208 3101060100010 C167 3101060200010 C169 3101060200010 C159...
  • Page 241 Service Manual No. Ref. No. Part No. Description C130 3101062400010 24PF C120 3101062700010 27PF C156 3101063300000 33PF C113 3101063900000 39PF C141 3101063900000 39PF C116 3101065600000 56PF C157 3101065600000 56PF C254 3101068200000 82PF C212 3101051010030 100PF C213 3101051010030 100PF C216 3101051010030 100PF C221 3101051010030...
  • Page 242 Service Manual No. Ref. No. Part No. Description C217 3101064710000 470PF C262 3101064710000 470PF C201 3101051020010 1000PF C203 3101051020010 1000PF C219 3101051020010 1000PF C232 3101051020010 1000PF C236 3101051020010 1000PF C241 3101051020010 1000PF C245 3101051020010 1000PF C246 3101051020010 1000PF C250 3101051020010 1000PF C127 3101061020000...
  • Page 243 Service Manual No. Ref. No. Part No. Description C211 3101051040010 0.1UF C214 3101051040010 0.1UF C220 3101051040010 0.1UF C231 3101051040010 0.1UF C234 3101051040010 0.1UF C242 3101051040010 0.1UF C243 3101051040010 0.1UF C247 3101051040010 0.1UF C248 3101051040010 0.1UF C267 3101051040010 0.1UF C284 3101051040010 0.1UF C106 3101061040020...
  • Page 244 Service Manual No. Ref. No. Part No. Description L124 3210306180000 18nH L125 3210306180000 18nH L204 3210306180000 18nH R208 3210306180000 18nH R212 3210306180000 18nH R111 3210306220000 22nH R134 3210306220000 22nH L108 3217607330000 33nH L120 3214307390000 39nH L123 3210306560000 56nH L111 3210106101000 100nH L112 3210106101000...
  • Page 245 Service Manual No. Ref. No. Part No. Description D101 3304060300050 Varactor D103 3304060300050 Varactor D104 3304060300050 Varactor D105 3304060300050 Varactor D107 3304060300050 Varactor D108 3304060300050 Varactor D109 3304060300050 Varactor D110 3304060300050 Varactor D112 3304010100890 Varactor D102 3303240000000 Switching diode D202 3303240000000 Switching diode Q101...
  • Page 246 Service Manual eceiver Boa Ref. No. Part No. Description R141 300105000000 R160 300105000000 R166 300105000000 R167 300105000000 R168 300105000000 R510 300105000000 R513 300105000000 R515 300105000000 R516 300105000000 L116 300106000000 L423 300106000000 L433 300106000000 L519 300106000000 L612 300106000000 R119 300106000000 R121 300106000000 R139 300106000000...
  • Page 247 Service Manual Ref. No. Part No. Description R608 10610100 R610 3001061010000 R614 3001061010000 R618 3001061010000 R626 3001061010000 R627 3001061010000 R632 3001061010000 R633 3001061010000 R136 3001051020000 R145 3001051020000 R150 3001051020000 R154 3001051020000 R158 3001051020000 R161 3001051020000 R607 3001061020010 R613 3001061020010 R616 3001061020010 R620 3001061020010...
  • Page 248 Service Manual Ref. No. Part No. Description R414 3001061040010 100K R416 3001061040010 100K R417 3001061040010 100K R418 3001061040010 100K R411 3001071810000 R142 3001065600000 R509 3001051220000 1.2K R425 3001061220000 1.2K R430 3001061220000 1.2K R125 3001061500000 R127 3001061500000 R143 3001061500000 R506 3001051510000 R612 3001061520000 1.5K...
  • Page 249 Service Manual Ref. No. Part No. Description R153 3001054730000 R606 3001064730000 R611 3001064730000 R621 3001064730000 R629 3001064730000 R630 3001064730000 R631 3001064730000 R635 3001064730000 R135 3001055100020 R137 3001055100020 R140 3001055100020 R503 3001055100020 R524 3001055100020 R431 3001065100000 R446 3001065100000 R449 3001065100000 R520 3001055110000 R444 3001065120000...
  • Page 250 Service Manual Ref. No. Part No. Description C183 3101051000020 10PF C434 3101061300000 13PF C440 3101061300000 13PF C140 3101061000000 10PF C426 3101061000000 10PF C432 3101061000000 10PF C438 3101061000000 10PF C444 3101061000000 10PF C445 3101061000000 10PF C446 3101061000000 10PF C447 3101061000000 10PF C448 3101061000000 10PF...
  • Page 251 Service Manual Ref. No. Part No. Description C638 3101061010010 100PF C639 3101061010010 100PF C640 3101061010010 100PF C651 3101061010010 100PF C652 3101061010010 100PF C653 3101061010010 100PF C654 3101061010010 100PF C679 3101061010010 100PF C680 3101061010010 100PF C681 3101061010010 100PF C682 3101061010010 100PF C151 3101051020010 1000PF...
  • Page 252 Service Manual Ref. No. Part No. Description C650 3101061020000 1000PF C655 3101061020000 1000PF C656 3101061020000 1000PF C660 3101061020000 1000PF C661 3101061020000 1000PF C663 3101061020000 1000PF C666 3101061020000 1000PF C668 3101061020000 1000PF C669 3101061020000 1000PF C671 3101061020000 1000PF C672 3101061020000 1000PF C674 3101061020000 1000PF...
  • Page 253 Service Manual Ref. No. Part No. Description C516 3101051040060 0.1UF C533 3101051040060 0.1UF C534 3101051040060 0.1UF C536 3101051040060 0.1UF C537 3101051040060 0.1UF C540 3101051040060 0.1UF C541 3101051040060 0.1UF C546 3101051040060 0.1UF C547 3101051040060 0.1UF C102 3101061040010 0.1UF C104 3101061040010 0.1UF C107 3101061040010 0.1UF...
  • Page 254 Service Manual Ref. No. Part No. Description C657 3101061050020 C662 3101061050020 C670 3101061050020 C676 3101061050020 C664 3101081060010 10UF C665 3101081060010 10UF C113 3101061200000 12PF C433 3101061200000 12PF C439 3101061200000 12PF C481 3101061200000 12PF C523 3101051500020 15PF C420 3101061500010 15PF C427 3101061500010 15PF L430...
  • Page 255 Service Manual Ref. No. Part No. Description C135 3101060300010 C136 3101060300010 C143 3101060300010 C418 3101060300010 C431 3101060300010 C441 3101060300010 C508 3101050300000 C532 3101053000010 30PF C421 3101063690000 3.6PF C422 3101063690000 3.6PF C428 3101063690000 3.6PF C429 3101063690000 3.6PF C119 3101063300000 33PF C127 3101063300000 33PF C137...
  • Page 256 Service Manual Ref. No. Part No. Description C469 3101060500010 C472 3101060500010 C132 3101060900010 C476 3101060900010 C118 3101066800000 68PF C154 3101050600010 C186 3101050600010 C526 3101050600010 C416 3101060600010 C436 3101060600010 C442 3101060600010 C443 3101060600010 C460 3101060600010 C461 3101060600010 C415 3101060800010 C121 3101051040010 0.1UF C146 3101061590010...
  • Page 257 Service Manual Ref. No. Part No. Description L112 3210306820000 82nH L412 3210306180000 18nH L429 3212206181000 180nH L507 3217607221000 220nH L516 3213212332000 3.3uH L418 3210306330000 33nH L113 3210306270000 27nH L107 3217607330000 33nH L119 3217607330000 33nH C479 3210406331000 330nH L425 3210406331000 330nH L517 3210406331000 330nH...
  • Page 258 Service Manual Ref. No. Part No. Description L503 3221506601000 Ferrite bead L504 3221506601000 Ferrite bead L508 3221506601000 Ferrite bead L509 3221506601000 Ferrite bead L510 3221506601000 Ferrite bead L512 3221506601000 Ferrite bead L513 3221506601000 Ferrite bead L514 3221506601000 Ferrite bead L515 3221506601000 Ferrite bead L601...
  • Page 259 Service Manual Ref. No. Part No. Description D413 3304010100890 Varactor D414 3304010100890 Varactor D415 3304010100890 Varactor D416 3304010100890 Varactor D417 3304010100890 Varactor D418 3304010100890 Varactor D419 3304010100890 Varactor D420 3304010100890 Varactor D421 3304010100890 Varactor D422 3304010100890 Varactor D423 3304010100890 Varactor D424 3304010100890 Varactor...
  • Page 260 Service Manual Ref. No. Part No. Description U602 3608020000000 Power management IC U603 3608020000000 Power management IC U606 3608020000000 Power management IC U601 3608006000000 Power management IC U604 3608006000000 Power management IC U605 3608006000000 Power management IC U105 3616010000000 Switch IC U101 3604019000000 PLL IC...
  • Page 261: Troubleshooting Flow Chart

    Service Manual .8 T oubleshooting Fl ow Chart ecei r Circ t...
  • Page 262 Service Manual Description of Normal Situations: [1] About 9.3V for receiver board. [2] About 9.1V for pin 2 of Q601 and Q604. [3] About 5V for pin 5 of U603. [4] About 3.3V for pin 5 of U604 and U605. [5] Normal CV voltage is 0.7-1.5V.
  • Page 263 Service Manual Transmitter Circuit No power output Any APC output? Check the baseband board Check the exciter Transient Exciter output? board current >2A Replace PD85035 9.3V power supply Check voltage >9V transistor RD01 and RD07’s Replace RD01 and RD07 Vgg>0.5V Check the control circuit...
  • Page 264 Service Manual FGU Circuit...
  • Page 265 Service Manual Description of N ormal Situations: [1] VCO: 5V; PLL: 3.3V; [2] Frequency output for low VCO is 320 380MHz, and 350 415MHz for high VCO. The power output amplitude for both is -8 18dBm; [3] CV voltage of Q101 and Q107: about 4V; the voltage difference between base voltage and emitter voltage is about 0.6V;...
  • Page 266: Vhf (136-174Mhz) Information

    Service Manual 12.VHF (136-174MHz) In formation 12.1 TX Circuit The TX circuit consists of power amplifier (P A) circuit, power control circuit, diagnosis and detection circuit and protection circuit. It is to amplify the RF signal from exciter module to 50W, which then will be output via the antenna.
  • Page 267 Service Manual Pre-driver Stage PA This PA unit is a LDMOS power tube (Q401). It can amplify the 13dBm RF signals from exciter unit to 30dBm, which then wil l be sent to driver-stage PA via L-C network. Driver Stage PA This PA unit is a LDMOS power tube (Q402).
  • Page 268: Rx Circuit

    Service Manual power. Temperature Protection The thermistor RT402 is close to the heat sink pad of the final-stage amplifier, and is used to detect the current temperatu re of the heat sink. When the temperature of heat sink rises to the default value, the fan will run;...
  • Page 269: Frequency Generation Unit (Fgu)

    Service Manual remove o ut-of-band interference signal generated during amplification, and to send wanted HF signal to the mixer. The wanted signal passes through the RF band-pass filter and low-noise amplifier and goes to the mixer (U403). Meanwhile, the first local oscillator (LO) signal generated by VCO passes through the low-pass filter and also goes to the mixer.
  • Page 270 Service Manual other is TX FGU providing carrier and exciter signal for the TX system. They work simultaneously, but are locked a t different frequencies. Both RX FGU and TX FGU mainly consist of a reference crystal oscillator, a PLL, a VCO and a buffer amplifier.
  • Page 271 Service Manual divider, phase detector, charge pump and etc. The voltage of analog circuit and digital circuit of PLL IC is 3.3V voltage, while the voltage of cha rge pump is 5V. See the following figure: Figure 12-6 Block Diagram of PLL IC SKY72310’s role is to generate appropriate frequency based on the data transmitted by OMAP of baseband board.
  • Page 278: Block Diagram

    12.5 Block Diagram RD98X Block Diagram (PA Section) RD980 9.3V,3A 13.6V,12A B+ Voltage Regulator PA_Enable IL:<1.0dB Po=47.5dBm Wideband 50ohm Matching/ LDMOS Matching PD85035S-1 Matching Matching Attenuation Network Network Harmonics Filters Power sensor MOSFET MOSFET RD01 RD07 48.5dBm LDMOS RF In RF Out Pre-driver Driver...
  • Page 290: Parts List

    Service Manual 2.7 Parts List ower Amplifier Ref. No. Part No. Description R436 3001060000000 R438 3001060000000 R440 3001060000000 R452 3001060000000 R459 3001060000000 R461 3001060000000 R478 3001060000000 R480 3001060000000 R486 3001060000000 R487 3001060000000 R496 3001060000000 R526 3001060000000 R537 3001060000000 R406 3001061010000 R513 3001061010000 R519...
  • Page 291 Service Manual Ref. No. Part No. Description RT401 3001064730000 R450 3001064740000 470K R522 10647400 470K R523 3001064740000 470K R524 3001064740000 470K R525 3001064740000 470K R407 3001065130000 R449 3001065620000 5.6K R409 3001065620010 5.6K R439 3001066810010 R495 3001066820000 6.8K R435 3001068220000 8.2K R458 3001068220000 8.2K...
  • Page 292 Service Manual Ref. No. Part No. Description R489 3001074720010 4.7K R490 3001074720010 4.7K R446 3001075100000 R445 3001076810000 R471 3001076810000 R467 3001080190000 R468 3001080190000 R469 3001080190000 R470 3001080190000 R425 3001081010000 R429 3001081010000 R426 3001081210000 R430 3001081210000 R424 3001082700000 R428 3001082700000 R476 3001083310010 R417 3001084790000...
  • Page 293 Service Manual Ref. No. Part No. Description C488 3101061040010 0.1UF C503 3101061040010 0.1UF C514 3101061040010 0.1UF C518 3101061040010 0.1UF C526 3101061040010 0.1UF C530 3101061040010 0.1UF C555 3101061040010 0.1UF C558 3101061040010 0.1UF C560 3101061040010 0.1UF R536 3101061040010 0.1UF C531 3101061050000 C477 3101061820000 1800PF C413...
  • Page 294 Service Manual Ref. No. Part No. Description C419 3101071020010 1000PF C472 3101071020010 1000PF C486 3101071020010 1000PF C495 3101071020010 1000PF C497 3101071020010 1000PF C500 3101071020010 1000PF C525 3101071020010 1000PF C547 3101071020010 1000PF C508 3101071030010 0.01UF C553 3101071030010 0.01UF C473 3101071040000 0.1UF C494 3101071040000 0.1UF...
  • Page 295 Service Manual Ref. No. Part No. Description 3101376890000 6.8pF C542 3101378290000 8.2pF C528 3104086840020 0.68UF C521 3104086850030 6.8UF C551 3104086850030 6.8UF C546 3104993360000 33uF C515 3104994750020 4.7uF C536 3104994750020 4.7uF R493 3210306560000 56nH R494 3210306560000 56nH R497 3210306560000 56nH R528 3210306560000 56nH R529...
  • Page 296 Service Manual Ref. No. Part No. Description Q409 3403008000010 Transistor Q401 3504990000010 PA IC Q402 3504990000020 PA IC U406 3605008001690 Operational amplifier U401 3605008005070 Operational amplifier U407 3605010000020 Operational amplifier U404 3608002005490 Power management IC U405 3608015000060 Power management IC D401 3609030000000 Schottky diode...
  • Page 297 Service Manual xcite Board Ref. No. Part No. Description R224 3001050000000 R228 3001050000000 L114 3001060000000 R108 3001060000000 R121 3001060000000 R124 3001060000000 R134 3001060000000 R141 3001060000000 R146 3001060000000 R221 3001060000000 R225 3001060000000 R230 3001060000000 R237 3001060000000 R239 3001060000000 R257 3001060000000 R261 3001060000000 R202 3001051000000...
  • Page 298 Service Manual Ref. No. Part No. Description R251 10610100 R252 3001061010000 R253 3001061010000 R254 3001061010000 R256 3001061010000 R258 3001061010000 R259 3001061010000 R112 3001061210000 R135 3001061210000 R107 3001061510000 R110 3001061510000 R136 3001061510000 R219 3001061510000 R128 3001062210000 R129 3001062210000 R201 3001051020000 R210 3001051020000 R213 3001051020000...
  • Page 299 Service Manual Ref. No. Part No. Description R226 3001051030000 R235 3001051030000 R260 3001061030010 R118 3001061530010 R120 3001061530010 R139 3001061530010 R138 3001063330000 R119 3001063930010 R229 3001054730010 R233 3001054730010 R247 3001064730000 R255 3001064730000 R115 3001066830000 R243 3001068230010 R102 3001051040000 100K R103 3001051040000 100K R116 3001061040000...
  • Page 300 Service Manual Ref. No. Part No. Description C309 3101060700020 C140 3101060900010 C229 3101061000000 10PF C239 3101061000000 10PF C240 3101061000000 10PF C112 3101061200000 12PF C166 3101061200000 12PF C208 3101051500020 15PF C128 3101061800000 18PF C130 3101061800000 18PF C150 3101061800000 18PF C129 3101062200010 22PF C141 3101062200010...
  • Page 301 Service Manual Ref. No. Part No. Description C103 3101054710010 470PF C104 3101054710010 470PF C278 3101054710010 470PF C283 3101054710010 470PF C121 3101064710000 470PF C123 3101064710000 470PF C161 3101064710000 470PF C171 3101064710000 470PF C262 3101064710000 470PF C201 3101051020010 1000PF C217 3101051020010 1000PF C219 3101051020010 1000PF...
  • Page 302 Service Manual Ref. No. Part No. Description C216 3101051520000 1500PF C228 3101051520000 1500PF C105 3101061520010 1500PF C108 3101061520010 1500PF C110 3101061520010 1500PF C117 3101061520010 1500PF C138 3101061520010 1500PF C146 3101061520010 1500PF C148 3101061520010 1500PF C158 3101061520010 1500PF C274 3101061520010 1500PF C209 3101051030020 0.01UF...
  • Page 303 Service Manual Ref. No. Part No. Description C295 3101061040020 0.1UF C308 3101061040020 0.1UF C311 3101061040020 0.1UF C235 3101073340010 0.33UF C204 3101051050160 C233 3101071050020 C269 3101061050020 C287 3101061050020 C132 3101074750000 4.7UF C107 3104074750070 4.7UF C273 3104074750070 4.7UF C259 3104086850030 6.8UF C230 3104071060070 10UF C263...
  • Page 304 Service Manual Ref. No. Part No. Description L118 3217607681000 680nH L121 3217607681000 680nH L207 3213306561000 0.56uH L102 3221506601000 Ferrite bead L103 3221506601000 Ferrite bead L107 3221506601000 Ferrite bead L110 3221506601000 Ferrite bead L122 3221506601000 Ferrite bead L127 3221506601000 Ferrite bead L201 3221506601000 Ferrite bead...
  • Page 305 Service Manual Ref. No. Part No. Description Q103 3499000000150 Composite transistor Q104 3403003000060 NPN transistor Q202 3403002000000 PNP transistor Q203 3403008000010 Bias resistor transistor Q102 3503010000010 P-MOSFET U202 3604019000000 PLL IC U203 3616010000000 Switch IC U204 3616010000000 Switch IC U205 3616059000000 Switch IC U207...
  • Page 306 Service Manual Receiv er Board Ref. No. Part No. Description C501 3001050000000 R141 3001050000000 R160 3001050000000 R166 3001050000000 R167 3001050000000 R168 3001050000000 R501 3001050000000 R510 3001050000000 R513 3001050000000 R515 3001050000000 R516 3001050000000 R129 3001051000000 R133 3001051000000 R130 3001051010000 R132 3001051010000 R136 3001051020000 R145...
  • Page 307 Service Manual Ref. No. Part No. Description R511 10582200 8.2K C432 3001060000000 C445 3001060000000 C449 3001060000000 L116 3001060000000 L405 3001060000000 L412 3001060000000 L423 3001060000000 L433 3001060000000 L519 3001060000000 L612 3001060000000 R119 3001060000000 R121 3001060000000 R139 3001060000000 R409 3001060000000 R419 3001060000000 R420 3001060000000 R453...
  • Page 308 Service Manual Ref. No. Part No. Description R607 3001061020010 R613 3001061020010 R616 3001061020010 R620 3001061020010 R624 3001061020010 R625 3001061020010 R628 3001061020010 R404 3001061030010 R102 3001061040010 100K R104 3001061040010 100K R405 3001061040010 100K R406 3001061040010 100K R407 3001061040010 100K R410 3001061040010 100K R417 3001061040010...
  • Page 309 Service Manual Ref. No. Part No. Description R101 3001063320000 3.3K R110 3001063320000 3.3K R112 3001063320000 3.3K R113 3001063320000 3.3K R426 3001063620000 3.6K R103 3001064720000 4.7K R447 3001064720000 4.7K R606 3001064730000 R611 3001064730000 R621 3001064730000 R629 3001064730000 R630 3001064730000 R631 3001064730000 R635 3001064730000 R446...
  • Page 310 Service Manual Ref. No. Part No. Description C182 3101051000020 10PF C183 3101051000020 10PF C157 3101051010030 100PF C159 3101051010030 100PF C164 3101051010030 100PF C171 3101051010030 100PF C172 3101051010030 100PF C173 3101051010030 100PF C175 3101051010030 100PF C528 3101051010030 100PF C529 3101051010030 100PF C538 3101051010030 100PF...
  • Page 311 Service Manual Ref. No. Part No. Description C514 3101051040010 0.1UF C516 3101051040010 0.1UF C533 3101051040010 0.1UF C534 3101051040010 0.1UF C536 3101051040010 0.1UF C537 3101051040010 0.1UF C540 3101051040010 0.1UF C541 3101051040010 0.1UF C546 3101051040010 0.1UF C547 3101051040010 0.1UF C543 3101051050160 C550 3101051050160 C518 3101051810020...
  • Page 312 Service Manual Ref. No. Part No. Description C116 3101060600010 C120 3101060600010 C135 3101060600010 C463 3101060600010 C205 3101060700020 C132 3101060800010 C469 3101060800010 C478 3101060800010 C484 3101060800010 C495 3101060800010 C140 3101061000000 10PF C472 3101061000000 10PF C424 3101061010010 100PF C425 3101061010010 100PF C486 3101061010010 100PF C488...
  • Page 313 Service Manual Ref. No. Part No. Description C617 3101061020000 1000PF C625 3101061020000 1000PF C626 3101061020000 1000PF C633 3101061020000 1000PF C635 3101061020000 1000PF C636 3101061020000 1000PF C641 3101061020000 1000PF C642 3101061020000 1000PF C643 3101061020000 1000PF C644 3101061020000 1000PF C647 3101061020000 1000PF C650 3101061020000 1000PF...
  • Page 314 Service Manual Ref. No. Part No. Description C409 3101061040010 0.1UF C411 3101061040010 0.1UF C467 3101061040010 0.1UF C468 3101061040010 0.1UF C473 3101061040010 0.1UF C474 3101061040010 0.1UF C475 3101061040010 0.1UF C482 3101061040010 0.1UF C483 3101061040010 0.1UF C604 3101061040010 0.1UF C606 3101061040010 0.1UF C618 3101061040010 0.1UF...
  • Page 315 Service Manual Ref. No. Part No. Description C130 3101061520010 1500PF C131 3101061520010 1500PF C148 3101061520010 1500PF C154 3101061590010 1.5PF C460 3101061590010 1.5PF C431 3101061800000 18PF C441 3101061800000 18PF C471 3101061800000 18PF C476 3101061800000 18PF C487 3101061800000 18PF C160 3101062000000 20PF C161 3101062000000 20PF...
  • Page 316 Service Manual Ref. No. Part No. Description C465 3101061600000 16PF C517 3101052230000 0.022UF C147 3101068200000 82PF C176 3101071050160 C189 3101074740000 0.47UF C664 3101081060010 10UF C665 3101081060010 10UF C548 3104071050070 C178 3104071060070 10UF C520 3104071060070 10UF C110 3104074750070 4.7UF L130 3210306390000 39nH L133 3210306390000...
  • Page 317 Service Manual Ref. No. Part No. Description L420 3217106470000 47nH L421 3217106470000 47nH L107 3217607680000 68nH L119 3217607680000 68nH L101 3217607681000 680nH L104 3217607681000 680nH L105 3217607681000 680nH L109 3217607681000 680nH L111 3217607681000 680nH L114 3217607681000 680nH L118 3217607681000 680nH L120 3217607681000 680nH...
  • Page 318 Service Manual Ref. No. Part No. Description L608 3221506601000 Ferrite bead L609 3221506601000 Ferrite bead L611 3221506601000 Ferrite bead L414 3233099185900 Air-core inductor L415 3233099185900 Air-core inductor l435 3233099185900 Air-core inductor l436 3233099185900 Air-core inductor L117 3237110220000 Air-core inductor L106 3237110270000 Air-core inductor L507...
  • Page 319 Service Manual Ref. No. Part No. Description Q107 3408002000080 NPN transistor Q103 3499000000150 Composite transistor Q102 3503010000010 P-MOSFET U402 3601039000060 LNA amplifier IF processor IC U501 3603999000000 U101 3604019000000 PLL IC U106 3605002057090 Operational amplifier U401 3605008001690 Operational amplifier U601 3608006000000 Power management IC U604...
  • Page 320: Troubleshooting Flow Chart

    Service Manual 12.8 T roubleshooting Fl ow Chart ece er Cir...
  • Page 321 Service Manual Description of Normal Situations: [1] About 9.3V for receiver board. [2] About 9.1V for pin 2 of Q601 and Q604. [3] About 5V for pin 5 of U603. [4] About 3.3V for pin 5 of U604 and U605. [5] Normal CV voltage is 2.5-4.4V.
  • Page 322 Service Manual Transmitter Circuit No power output Any APC output? Check the baseband board Check the exciter Transient Exciter output? board current >2A Replace PD85035 9.3V power supply Check voltage >9V transistor RD01 and RD07’s Replace RD01 and RD07 Vgg>0.5V Check the control circuit...
  • Page 323 Service Manual FGU Circuit...
  • Page 324 Service Manual Description of N ormal Situations: [1] VCO: 5V; PLL: 3.3V; [2] Frequency output for low VCO is 120 170MHz, and 140 190MHz for high VCO. The power output amplitude for both is -8 18dBm; [3] CV voltage of Q101 and Q107: about 4V; the voltage difference between base voltage and emitter voltage is about 0.6V;...
  • Page 325: Disassembly And Assembly

    Service Manual 13. Disassembly and As sembly Disassembly 1. Turn off this product and remove the power cord, antenna as well as signal cable. 2. Loosen the screws behind the top cover, a nd then pull the cover to remove it. .
  • Page 326 Service Manual 6. Remove the seven screws locking the baseband board, and then take it out. 7. Remove the four screws locking the front panel and the screw locking the speaker, and then remove the front panel. 8. Pull out the Navigation knob, the nut locking the encoder switch, the Volume Control knob and the light guide.
  • Page 327: Exploded View

    Service Manual 14. Exploded View...
  • Page 328 Service Manual Part No. Description Qty. 7000233000000 Heat sink 6201895000000 Cover for heat sink Fan for heat sink 00 7104016020100 Self-tapping screw 6201896000000 Cover for baseband PCB 4408100002000 Adapter 4220250000500 RF cable 4210120000600 Signal cable 4210120000700 Signal cable 4200280000000 1/2 power cord 4290075000000 Adaption cable for Ethernet port 710306004000...
  • Page 329 Service Manual 40100000 Metric screw 6100553200000 Cable sleeve Logo and model label 42101 2000 0500 Signal cable Semi-finished baseband 6201873000000 Top cover of shielding box for exciter module 4210050001900 Signal ca Semi-finished exciter module 4220130000000 RF cable RX module 6201874000000 Top cover of shielding box for exciter module Bottom cover of shielding box for exciter 6201872000000...
  • Page 330: Packing Guide

    Service Manual 15. Packing Guide...
  • Page 331: Specifications

    Service Manual 16. Specifications General UHF1: 400-470MHz UHF2: 450-520MHz Frequency Range UHF3: 350-400MHz VHF: 136-174MHz Channel Capacity Channel Spacing 12.5kHz/20kHz/25kHz Operating Voltage 13.6V±15% Current Standby <0.8A Drain Transmit <11A 0.5ppm Frequency Stability ±1.5ppm Antenna Impedance Duty Cycle 100% Dimensions (H×W×D) 88 X 483 X 366 mm(3.4 X 19.0 X 14.4 inch) Weight 8.5 kg(18.7 Ibs)
  • Page 332 Service Manual igital 0.3uV/BER5% Adjacent Channel Selectivity 65dB @ 12.5 kHz 75dB @ 20/25 kHz TIA-603 65dB 2.5 kHz 75dB @ 20/25 kHz ETSI Intermodulation 75dB @ 12.5/20/25 kHz TIA-603 70dB @ 12.5/20/25 kHz ETSI Spuri ous Response Rejec tion 80dB @ 12.5/20/25 kHz TIA-603 80dB @ 12.5/20/25 kHz...
  • Page 333: Table Of Blind Spots

    Service Manual 17. Table of Blind Spots UHF1 (400-470MHz) Blind Spot (MHz) 403.2 422.4 441.6 460.8 UHF2 (450-520MHz) Blind Spot (MHz) 460.8 499.2 518.4 UHF3 (350-400MHz) Blind Spot (MHz) 364.8 VHF (136-174MHz) Blind Spot (MHz) 153.6 172.8...
