Alemite 3670 Service Manual

Description
CAUTION
Do not operate this metered valve with an antifreeze
and water mixture. Meter will not register properly.
The metered control valve models included in the 3670
series are designed to meter quantities of a variety of fluids.
These valve assemblies dispense motor oils (SAE 5-50), gear
oils (SAE 80-240), and automatic-transmission fluid. Each
control valve contains a 40-mesh strainer. The meter's unit of
measure can be programmed for pints, quarts, gallons or liters.
Operation
To begin, press the button in the center of the lever. This
releases the safety. With the button held, squeeze the lever
to open the valve.
To latch the valve in the full open position, release the
lever (while pressing the button), then release the button.
To shut the valve off, press the lever and release.
NOTE: The latch feature can be disabled with the
removal of a roll pin. See Figure 4.
Refer to Service Guide SER 3679 for meter description
and operation.
Model
3670
3670-A (obsolete, use 3670)
3670-B
3670-BL (obsolete, use 3670-B)
3671
3671-A (obsolete, use 3671)
3671-B
3671-BL (obsolete, use 3671-B)
3672 (obsolete, use 3671)
3672-A (obsolete, use 3671)
3672-B (obsolete, use 3671-B)
3672-BL (obsolete, use 3671-B)
3673
3673-L (obsolete, use 3673)
3674-C
3674-CL (obsolete, use 3674-C)
Note: All meters are programable for Pints, Quarts, Gallons and Liters (see SER 3679)
This document contains confidential information that is the property of Alemite, LLC
670889
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Electronic Metered Control Valve
Fluid Metered Extension
Oil Rigid
Oil Rigid
Oil Rigid
Oil Rigid
Oil Flexible
Oil Flexible
Oil Flexible
Oil Flexible
Transmission Fluid Flexible
Transmission Fluid Flexible
Transmission Fluid Flexible
Transmission Fluid Flexible
Gear Oil Rigid
Gear Oil Rigid
Oil Rigid
Oil Rigid
Alemite, LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright

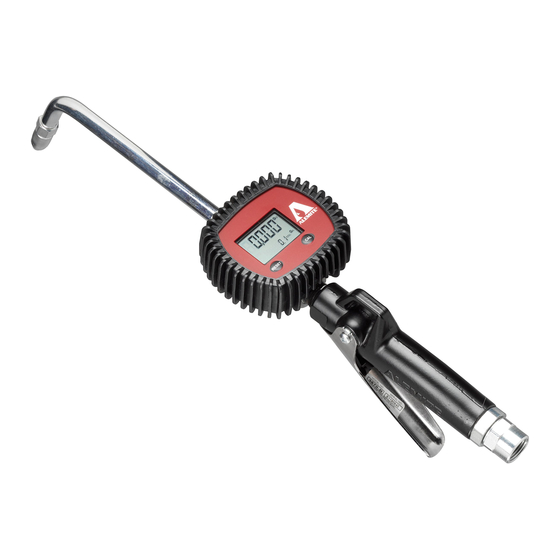

Figure 1 Electronic Metered Control Valve Model 3670 Series -
Model 3671-B Shown
Fluid Inlet (Swivel)
Maximum Operating Pressure
Nozzle Type
Non-Drip Auto
Non-Drip Auto
Non-Drip Manual
Non-Drip Manual
Non-Drip Auto
Non-Drip Auto
Non-Drip Manual
Non-Drip Manual
Non-Drip Auto
Non-Drip Auto
Non-Drip Manual
Non-Drip Manual
Non-Drip Auto. w/ Manual Lock
Non-Drip Auto. w/ Manual Lock
Non-Drip High-Voulme Manual
Non-Drip High-Voulme Manual
©
2011 by Alemite, LLC
3670 3670-A 3670-B
3670-BL 3671 3671-A
3671-B 3671-BL 3672
3672-A 3672-B 3672-BL
3673 3673-L 3674-B
3674-BL 3674-C 3674-CL
1/2" NPTF (f)
1000 psi (70 bar)
Units of Measure
(preprogrammed)
Quart
Liter
Quart
Liter
Quart
Liter
Quart
Liter
Quart
Liter
Quart
Liter
Pint
Liter
Gallon
Liter
SER 3670
Revision (06-11)
