Alemite 3572-A Service Manual

High volume control valve

Advertisement

Quick Links

Description
CAUTION
Do not operate this valve with an antifreeze and water
mixture.
The control valve models included in the 3572 series are
designed to dispense a variety of fluids. These include engine
oils, diesel oils and hydraulic oils.
WARNING
Release all pressure within the system prior to
performing any overhaul procedure.
• Disconnect the air supply line from the pump
motor.
• Into an appropriate container, operate the control
valve to discharge remaining pressure within the
system.
Never point a control valve at any portion of your body
or another person. Accidental discharge of pressure
and/or material can result in personal injury.
Read each step of the instructions carefully. Make sure
a proper understanding is achieved before proceeding.
Assembly
Apply thread Sealant to the male threads on the extension
(1 or 2).
NOTE: Do not apply thread sealant to the first two
(2) threads. Contamination can occur.
Install the Extension into the Handle. Tighten securely.
Prime and Test
NOTE: Perform the following procedures at an air
pressure that allows the pump to begin to cycle.
Regulate the amount of air to the pump with a
pressure regulator.
671059
Service Guide
High Volume Control Valve
Alemite, LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright
2014 by Alemite, LLC

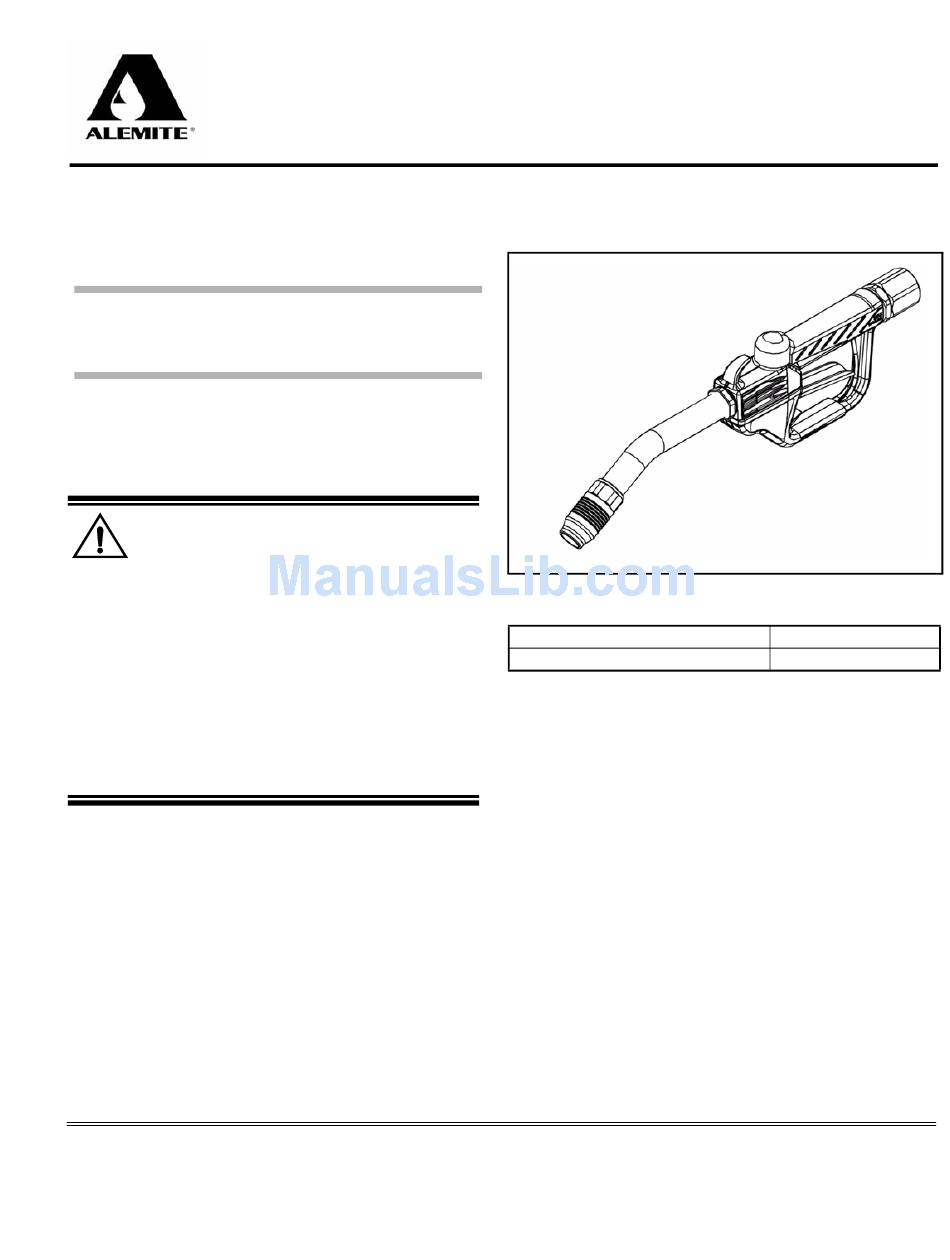

Figure 1 High Volume Control Valve Model 3572-A
Fluid Inlet (Swivel)
Maximum Operating Pressure
Should valve leakage occur at anytime, refer to the
Troubleshooting Chart.
1. Point the control valve into an appropriate collection
container.
2. Allow the pump to deliver fluid to the control valve.
• The control valve should show no leakage nor dispense the
fluid.
3. Cycle the control valve Lever Assembly several times.
• Fluid should flow once air is eliminated from the control
valve (and system).
With the Lever in the released position, no fluid should
appear at the Nozzle.
If product does appear, refer to the Troubleshooting Chart.
The non-drip nozzle opens automatically when fluid is
dispensed.
After use, the nozzle should be manually pushed closed to
prevent oil drip.
3572-A
3572-B
3/4" NPTF (f)
1450 psi (100 bar)
SER 3572-A
Revision (8-14)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3572-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Alemite 3572-A

  • Page 1 Release all pressure within the system prior to performing any overhaul procedure. • Disconnect the air supply line from the pump Figure 1 High Volume Control Valve Model 3572-A motor. • Into an appropriate container, operate the control Fluid Inlet (Swivel) 3/4”...
  • Page 2 High Volume Control Valve SER 3572-A Figure 2 High Volume Control Valve Model 3572 Series - Exploded View Control Valve Model Item Part No. Description Notes 393792-1 Extension, Rigid 393792-2 Extension, Flexible 393772-14 Kit, Valve Seal 393772-13 Kit, Trigger ●...
  • Page 3 High Volume Control Valve SER 3572-A Model Fluid Extension Nozzle Type 3572-A Rigid Non-Drip Manual 3572-B Flexible Non-Drip Manual Troubleshooting Chart Control Valve Indications Possible Problems Solutions Continuous product flow 1. Foreign material on Valve Seal 1. Disassemble, clean, and inspect seat area.
  • Page 4 High Volume Control Valve SER 3572-A Alemite, LLC Revision (8-14)

This manual is also suitable for:

3572-b
