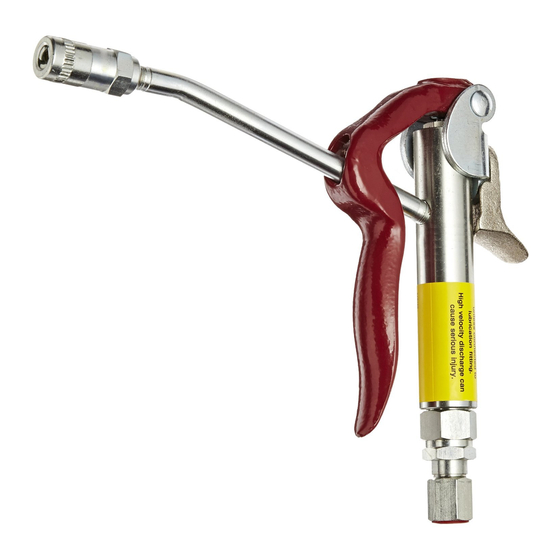

Service Guide
6320-3
High-Pressure Control Valve
Material
Outlet
7-3/4 "
(19.7 cm)
Material Inlet

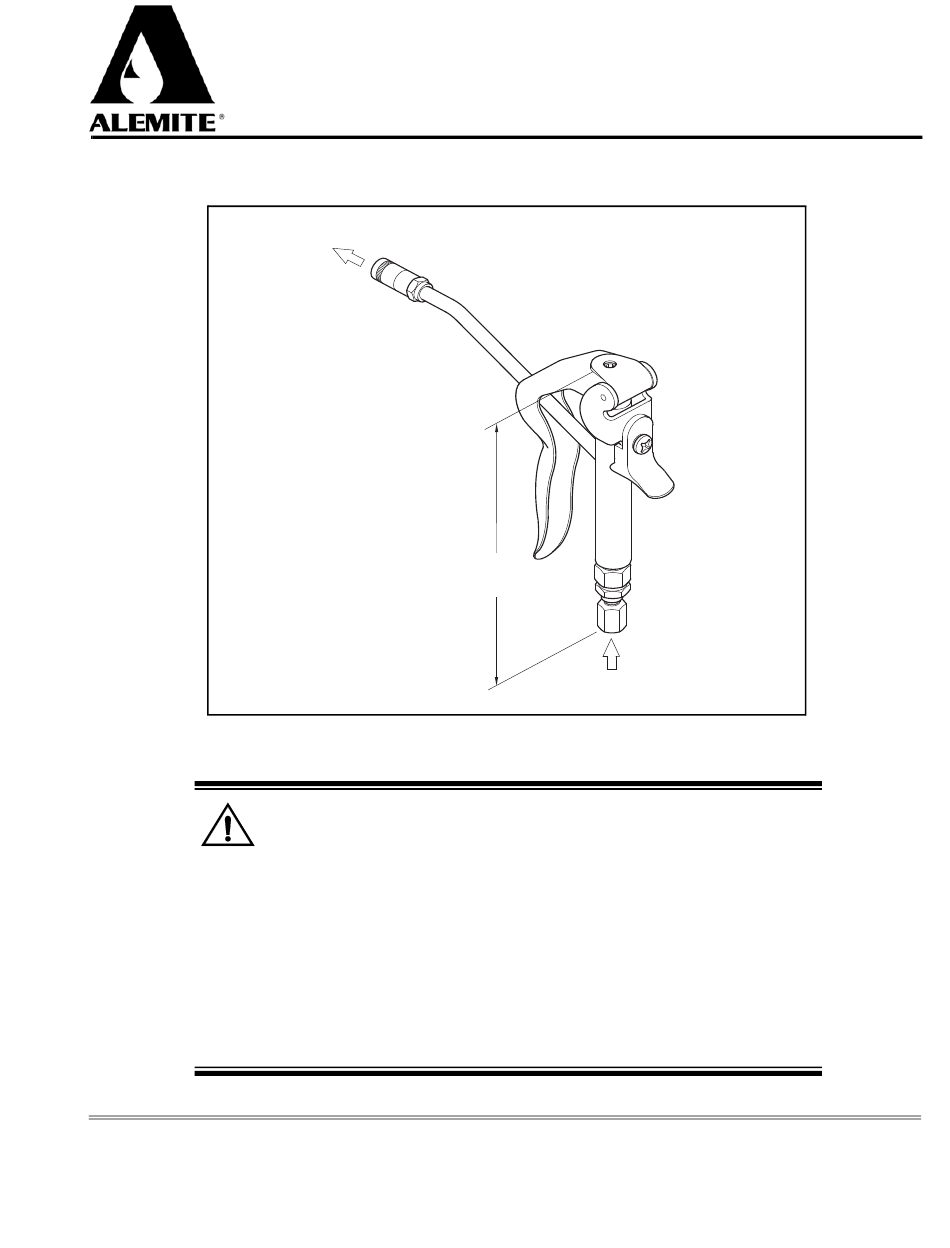

Figure 1 High-Pressure Control Valve Model 6320-3
WARNING
This control valve operates on high-pressure systems. Before
attempting any service procedure, make sure all components within the
system are at zero pressure.
Never point a control valve at any portion of your body or another person.
Accidental discharge of pressure and/or material can result in personal injury.
Do not exceed the pressure rating of any component in the system.
Read each step of the instructions carefully. Make sure a proper understanding
is achieved before proceeding.
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright
1996 by Alemite LLC
SER 6320-3
This document contains confidential information that is the property of Alemite LLC
396609
Revision (1-13)
and is not to be copied, used, or disclosed to others without express written permission.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alemite 6320-3
Summary of Contents for Alemite 6320-3
- Page 1 167 Roweland Drive, Johnson City, Tennessee 37601 www.alemite.com © Copyright 1996 by Alemite LLC SER 6320-3 This document contains confidential information that is the property of Alemite LLC 396609 Revision (1-13) and is not to be copied, used, or disclosed to others without express written permission.
- Page 2 SER 6320-3 High-Pressure Control Valve Figure 2 High-Pressure Control Valve Model 6320-3 - Exploded View Revision (1-13) Alemite LLC...
- Page 3 High-Pressure Control Valve SER 6320-3 Item Numeric Order Part No. Description Notes Part # (Item #) Setscrew, 3/8"-24 x 5/8 " 6304-B (26) Lever and Bracket Assembly 6778 (1a) Plug, Packing 47064 (14) O-Ring, 1/2 " OD (23) 47071 Washer, Back-Up, 3/16 " ID (Leather)
-
Page 4: Description And Operation
High-Pressure Control Valve Description and Operation The model 6320-3 high-pressure control valve is all steel construction. It is designed for high pressure applications up to 7500 psi (517 Bars). The valve dispenses a variety of lubricants from numerous types of power-operated equipment. - Page 5 3. Locknut (20) several turns from Single-Shot Adjuster (24). Refer to Figure 2 Parts List for Parts Identification 4. Single-Shot Adjuster from Bushing (17). 5. Locknut from Single-Shot Adjuster. Figure 3 High-Pressure Control Valve Model 6320-3 Section View Alemite LLC Revision (1-13)
-
Page 6: Clean And Inspect
SER 6320-3 High-Pressure Control Valve CAUTION WARNING Do not damage any portion of Single-Shot Do not use halogenated hydrocarbon Adjuster (24) during removal of Packing Ring (21). solvents such as methylene chloride or 1,1,1- trichlorethane in this valve. An explosion can result when aluminum and/or zinc-plated parts 6. - Page 7 High-Pressure Control Valve SER 6320-3 6. Spring (13) onto the Stem. 19. Single-Shot Valve (23) and Spring (22) into the Single-Shot Adjuster. 7. Aluminum crush Gasket (14) into the Body. • Make sure the Single-Shot Valve is centered properly. 8. Symmetrical Guide (15) and additional Gasket (14).
-
Page 8: Installation
SER 6320-3 High-Pressure Control Valve Installation If product does not begin to flow or too great (or too little) an amount is produced, adjustment is Attach the Z-Swivel to the control valve’s Inlet necessary. Adapter (18). Tighten connection securely. 2. Make sure to read the following warning. -
Page 9: Troubleshooting Chart
Coupler (26) 2. Coupler to fitting mismatch 2. Replace fitting and/or Coupler (26) 3. Replace with Alemite fitting 3. Foreign or damaged fitting * Do not apply PTFE tape to the first two (2) threads. Contamination can occur. Changes Since Last Printing... - Page 10 SER 6320-3 High-Pressure Control Valve Revision (1-13) Alemite LLC...
