Alemite 3685-A Service Manual

1-800-548-1191-http://www.partdeal.com-info@partdeal.com
Mechanical-Metered Control Valve
Description
These mechanical-metered valves are
designed to dispense and measure
quantities of fluid lubricants.
All models are equipped with a dual-
range face dial and two pointers. The outer
pointer indicates delivery up to 4 quarts
(liters). The inner pointer indicates delivery
up to 16 quarts (10 liters).
A totalizer keeps a lifetime record of
the amount dispensed.
These models are equipped with an
inlet swivel and an internal filter screen to
prevent damaging contaminants from
entering the meter.
Operation
Depress the lever to dispense fluid. For
a large quantity delivery, squeeze the lever
fully until the latch catches. Press the
knurled button to disengage the latch.
After each delivery turn the pointers
counterclockwise to reset to zero.
Valve Fluid
Model Metered
3685-A
3685-B
3685-F
3685-G Oil
3685-J
3685-K
3685-M
3686-B
ATF
3686-F
Table 1 Mechanical-Metered Control Valve Model 3685 Series and 3686 Series
This document contains confidential information that is the property of Alemite LLC
670717
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide

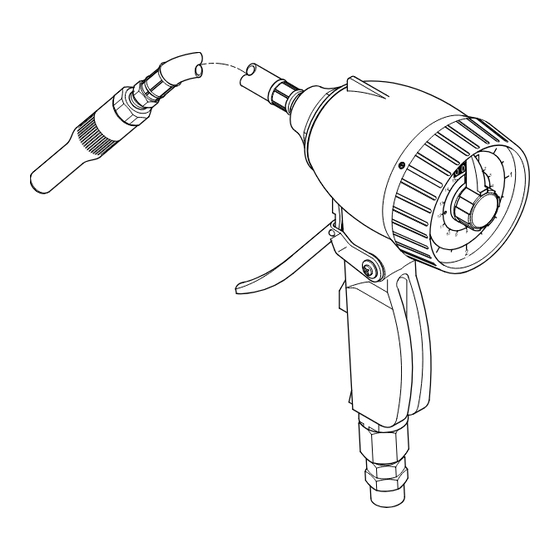

Figure 1 Mechanical-Metered Control Valve (Model 3685-A Shown)
Do not turn the pointers clockwise. Damage can occur.
Extension Nozzle Type
Flexible
Non-Drip Automatic
Rigid
Flexible
Non-Drip Manual
Rigid
Flexible
Rigid Non-Drip Automatic
Flexible
Non-Drip Manual
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
CAUTION
Register Units
Inlet
Current
Liter
Quart
1/2 " NPTF (f)
Liter
Quart
©
2003 by Alemite LLC
3685-A 3685-G
3685-B 3685-J
3685-F 3685-K
3685-M
3686-B 3686-F
Maximum
Pressure
Acurracy
Totalizer psi
Liter
Gallon
Quart
+ / - 0.65 % 1000
Gallon
Liter
Gallon
SER 3685-A
Revision (11-08)
Bar
69
