Alemite 3620 Service Manual

Electronic-Metered Control Valve
Description and Operation
The metered control valve models included in the 3620
series are designed to meter quantities of a variety of fluids.
These valve assemblies dispense motor oils (SAE 5-50),
gear oils (SAE 80-240), and automatic-transmission fluid.
Do not use a mixture of antifreeze and water in the meter.
Each control valve contains a 40-mesh strainer. The
transmission fluid control valve also contains a 40-micron
in-line filter.

Control Valve Operation

To begin, press the button in the center of the lever.
This releases the safety. With the button held, squeeze the
lever to open the valve.
Refer to Figure 2
for configuration on each model
Valve Model
3620
3620-B
3621
3621-B
3622
3623
3624 (Obsolete)
3624-C
3620-A, 3621-A, 3622-A, 3623-A

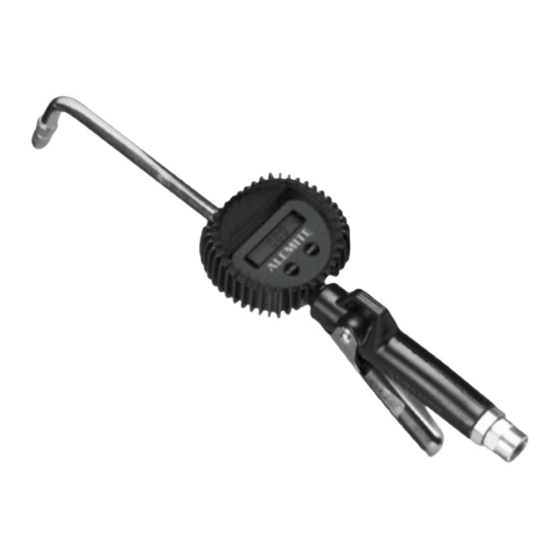

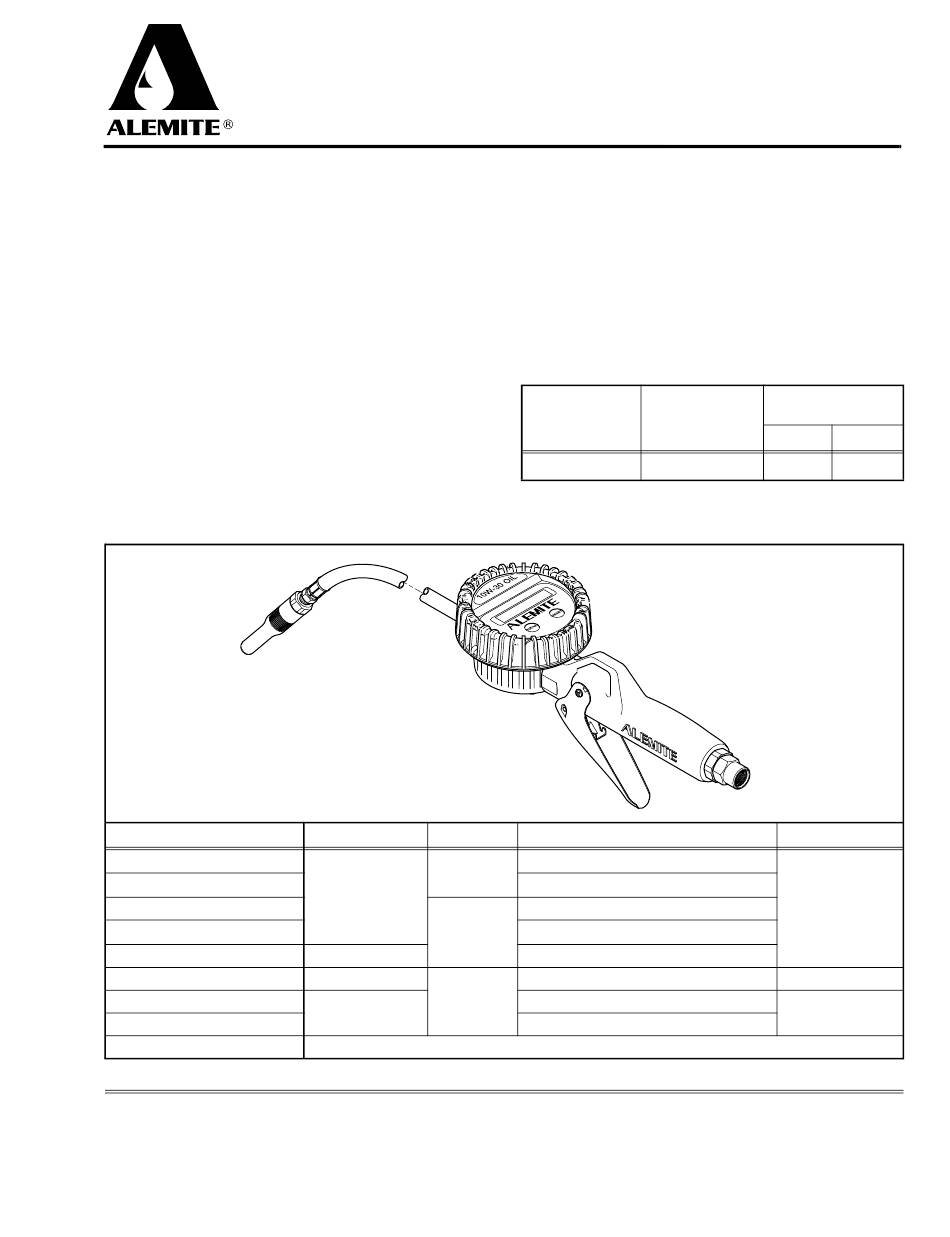

Figure 1 Electronic-Metered Control Valve Model 3620 Series - Model 3621 Shown
This document contains confidential information that is the property of Alemite Llc
670710
and is not to be copied, used, or disclosed to others without express written permission.
1-800-548-1191-http://www.partdeal.com-info@partdeal.com
Service Guide
Fluid Metered Extension
Rigid
Oil
Flexible
Transmission Fluid
Gear Oil
Rigid
Oil
Same as the corresponding valve model without the -A suffix except the Meter Register Unit is Liters
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright 2005 by Alemite LLC
3620 3620-A & -B
3621 3621-A & -B
3622 3622-A
3623 3623-A
3624 3624-C
To latch the valve in the full open position, release the
lever (while pressing the button), then release the button.
To shut the valve off, press the lever and release.
NOTE: The latch feature can be disabled
with the removal of a roll pin. See Figure 5.

Control Valve Specifications

Fluid Inlet Fluid Outlet
(Swivel) (at Valve Handle)
1/2 " NPTF (f) 1/2 " NPTF (f)
Table 1 Model 3620 Series Specifications
Nozzle Type
Non-Drip Automatic
Non-Drip Manual
Non-Drip Automatic
Non-Drip Manual
Non-Drip Automatic
Non-Drip Automatic (with Manual Lock)
Non-Drip High-Volume Automatic
Non-Drip High-Volume Manual
Max. Operating
Pressure
psi Bars
1500 103
Meter Register Units
Quart
Pint
Gallon
SER 3620
Revision (11-05)
