    DIGITAL FIBER SENSOR FX-100 SERIES Operation Guide INDEX Functional Description ......P. 1 PRO Mode ..........P.13 1-1. Functional Description .......P. 1 6-1. PRO Mode Functions and Settings ..P.13 1-2. Operating Portion ......P. 1 6-2. Shift setting ........P.18 6-3. External Input Setting ......P.18 Diagram of Functions and Settings ...P.

  • Page 2: Functional Description

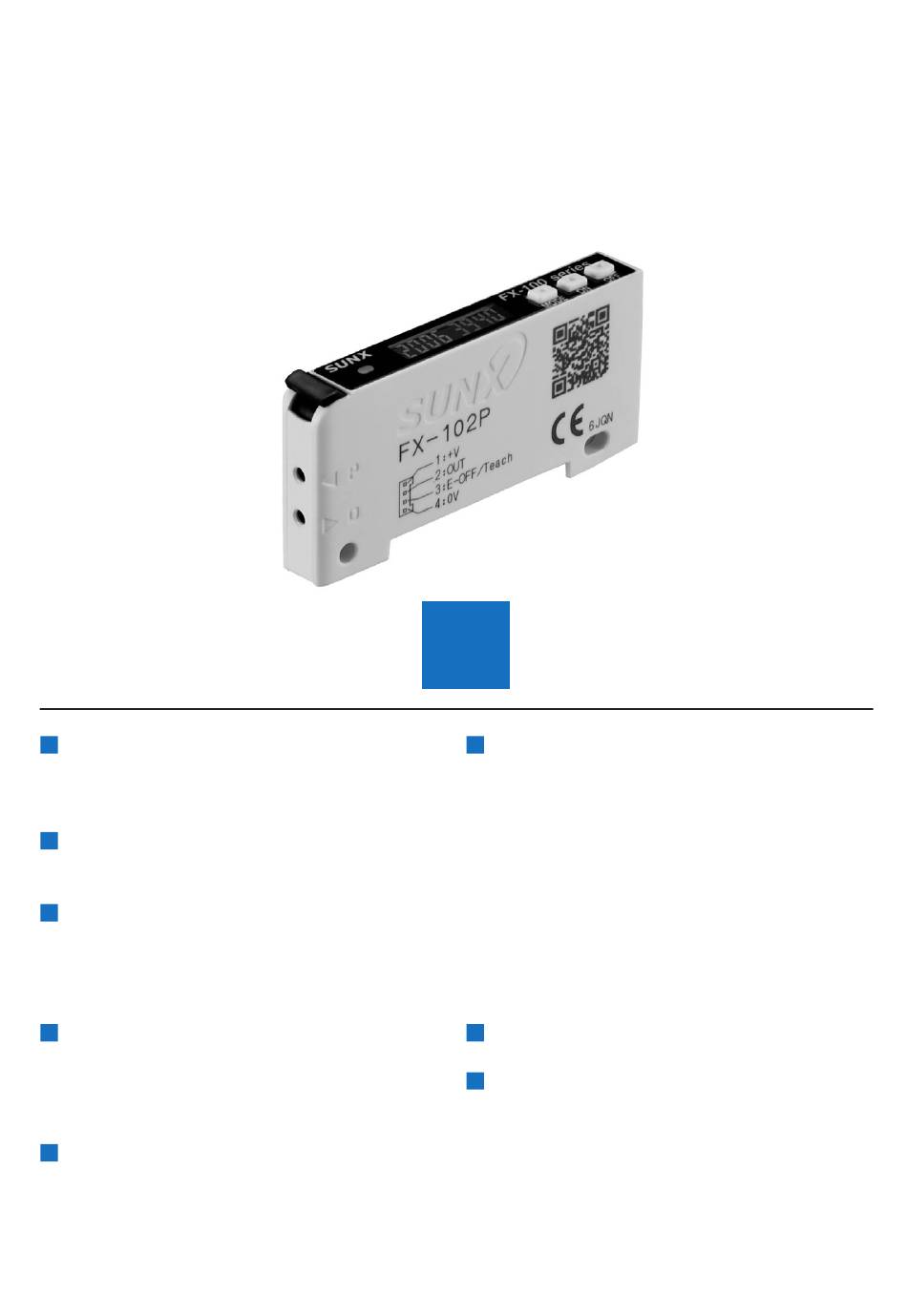

    Functional Description 1-1. Functional Description ON Key / OFF Key / Setting value UP key Setting value DOWN key Operation indicator (Orange) (Lights up when the output is ON) MODE key Digital display (Green) Digital display (Red) (Threshold value) (Incident light intensity) 1-2.

  • Page 3: Diagram Of Functions And Settings

    Diagram of Functions and Settings 2-1. Diagram of Functions and Settings The amplifier features and settings can be generally classified into three main modes: the ‘RUN mode’ for normal sensing operation, the ‘SET mode’ for basic settings, and the ‘PRO mode’ that contains more detailed settings. PRO Mode SET Mode RUN Mode...

  • Page 4: Others

    Key lock function can be used to prevent the operator from accidentally changing the sensor settings. 3-2. Factory Settings Factory settings for the FX-100 series are indicated below: If the unit is reset using the ‘Reset’ from ‘PRO Mode’ on p.24, the resulting settings will be those indicated below:...

  • Page 5: Run Mode

    RUN Mode 4-1. RUN Mode Digital display RUN mode When turn ON the power, the Model No. is displayed in the When the power is ON green digital display, and the emission frequency is displayed in Automatic the red digital display. Then switch into RUN mode [digital Model Emission Threshold...

  • Page 6: Set Mode

    SET Mode 5-1. SET Mode Functions and Settings SET mode is the mode used for making basic settings. Settings for five functions can be configured. The ‘threshold value’ can be set by utilizing three kinds of teaching, whichever : Teaching ‘2-level teaching’, ‘limit teaching [ ]’...
  • Page 7 This sets timer operation and timer period. : Timer Operation Setting Without timer, ON-delay timer, or OFF-delay timer can be set. Refer to p.10 for setting procedure In case of setting ON-delay timer or OFF-delay timer in the timer operation setting mode, timer period can be set.

  • Page 8: Teaching

    5-2. Teaching The ‘threshold value’ can be set by utilizing three kinds of teaching, whichever ‘2-level teaching’, ‘limit teaching [ , ]’ or ‘full-auto teaching’. Make sure that detection may become unstable if less margin is applied in the use environment when teaching. This is the method of setting the threshold value by teaching two levels, corresponding to 2-level Teaching object present and object absent conditions.
  • Page 9 This is the method of setting the threshold value by teaching only the object absent condition Limit Teaching [ (stable incident light condition.) This is used for detection in the presence of a background body or for detection of minute objects. When using thru-beam / retroreflective type fiber When using reflective fiber Limit teaching [ ] is carried out.
  • Page 10 In case of limit teaching [ Press MODE key Press the (MODE key) for 2 sec. to select ‘SET mode’. for 2 sec. Automatic Reflective type Press ON key Press (ON key) in object absent condition. Background Reference incident light intensity is set and indicated on the green digital display.

  • Page 11: Output Operation Setting

    5-3. Output Operation Setting Factory setting: Light-ON or Dark-ON can be set. Press MODE key 1 Press the (MODE key) for 2 sec. to select ‘SET mode’. for 2 sec. Automatic 2 Press the (MODE key) once to select ‘output operation Press MODE key once.

  • Page 12: Light-Emitting Amount Selection Setting

    5-5. Light-emitting Amount Selection Setting Factory setting: Allows light reduction to be set for the light-emitting amount. Use this setting if sensing is difficult because the incident light intensity is saturated (4,000 or higher). If the incident light intensity is still saturated (4,000 or higher) even when the light reduction setting ‘ ’...

  • Page 13: Emission Frequency Setting

    5-6. Emission Frequency Setting FX-101 , FX-102 Factory setting: When fiber heads are used side-by-side, the emission frequencies for each amplifier can be set to different frequencies in order to prevent interference. • For the FX-101 , the interference prevention function will not operate for emission frequency 0 (factory setting). •...

  • Page 14: Pro Mode

    PRO Mode 6-1. PRO Mode Functions and Settings PRO mode is the mode used for making detailed settings. There are nine items that can be set. Shift amount can be selected from 0 to 80 % (1 % intervals) in the limit teaching : Shift Setting ] and the threshold value follow-up cycle setting.
  • Page 15 Time chart If emission halt ( ) is selected High (NPN output type: Low) External input 25 ms or more Low (NPN output type: High) Emission halt Emission halt Emission 20 ms 20 ms (Note) Note: Output operation will be undetermined only during the response time. If the output signal is received by something such as a PLC, set the timer to a value of 20 ms fiber sensor response time or greater.
  • Page 16 Follow-up of the threshold value can be carried out within a set range (shift amount) : Threshold Value Follow-up in response to fluctuations in the incident light intensity. The threshold value Cycle Setting follow-up operation functions by setting the time for refreshing of the threshold value. At this time, the threshold value at the time of the refresh is indicated on the green Refer to p.19 for setting procedure digital display.
  • Page 17 The display value for the incident light intensity can be offset by the desired : GETA Function Setting value (target value). Refer to p.20 for setting procedure The target value can be set to between 0 and 2,000 (in intervals of 100). For example, if the incident light intensity is 1,500 and the target value is set to 2,000, then the value appearing in the digital display will be 2,000.
  • Page 18 The digital display can be set to turn off in order to reduce power consumption : ECO Setting (current consumption). When the ECO setting has been set to ON, ‘ ’ will Refer to p.21 for setting procedure blink if no keys have been pressed for approx. 20 sec. while in RUN mode, and then the digital display will switch off.

  • Page 19: Shift Setting

    6-2. Shift Setting Factory setting: Shift amount during limit teaching [ , ] and threshold value follow-up cycle setting can be selected from 0 to 80 % (1 % intervals). Select 0 % when it is desired to set the present incident light intensity as a threshold value. Press MODE key 1 Press the (MODE key) for 4 sec.

  • Page 20: Threshold Value Follow-Up Cycle Setting

    6-4. Threshold Value Follow-up Cycle Setting Factory setting: Follow-up of the threshold value can be carried out within a set range (shift amount) in response to fluctuations in the incident light intensity. The threshold value follow-up operation functions by setting the time for refreshing of the threshold value.

  • Page 21: Geta Function Setting

    6-5. GETA Function Setting Factory setting: The display value for the incident light intensity can be offset by the desired value (target value). The target value can be set to between 0 and 2,000 (100 intervals). For example, if the incident light intensity is 1,500 and the target value is set to 2,000, then the value appearing in the digital display will be 2,000.

  • Page 22: Eco Setting

    6-6. ECO Setting Factory setting: The digital display can be set to turn off in order to reduce power consumption (current consumption). When the ECO setting has been set to ON, ‘ ’ will blink if no keys have been pressed for approx. 20 sec. while in RUN mode, and then the digital display will turn off.

  • Page 23: Digital Display Inversion Setting

    6-7. Digital Display Inversion Setting Factory setting: The viewing orientation of the digital display can be inverted in accordance with the setting direction of the amplifier. If the digital display inversion setting has been set to ON, the display will be inverted. Press MODE key 1 Press the (MODE key) for 4 sec.

  • Page 24: Setting Copy

    6-9. Setting copy Factory setting: The settings of the master side amplifier can be copied to the slave side amplifier. Data communication will be carried out by means of connected wiring. • Be sure to use the setting copy function between the identical models (for all FX-101 units or all FX-102 units).

  • Page 25: Reset

    To cancel the setting copy of the master side amplifier 1 Disconnect the wiring for both the master side amplifier and the slave side amplifier. Make sure that the power supply is off while wiring. 4-digit code will Turn on the power of the master side amplifier.

  • Page 26: Quick Setting Function

    Quick Setting Function The quick setting function allows various settings (output operation setting, timer operation setting, light-emitting amount selection setting and emission frequency setting) to be made in SET mode simply by selecting a setting number. For the setting numbers, refer to ‘Table of quick setting numbers’. When the present setting is out of the quick setting range, ‘...

  • Page 27: Code Setting Function

    Code Setting Function Settings for ‘output operation setting’, ‘timer operation setting’, ‘light-emitting amount selection setting’, ‘emission frequency setting’, ‘ECO setting’, ‘external input setting’, and ‘shift setting’ are possible by selecting codes discretionary. For the codes, refer to ‘Code table’. Press setting value UP key 1 Press (setting value UP key) or (setting value...
  • Page 28 All information is subject to change without prior notice. SUNX Limited 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: +81-(0)568-33-7211 FAX: +81-(0)568-33-2631 Overseas Sales Dept. Phone: +81-(0)568-33-7861 http://www.sunx.jp/ FAX: +81-(0)568-33-8591 No.PCE-GUIDEFX100 June, 2007...
