Compact size digital pressure sensor

Advertisement

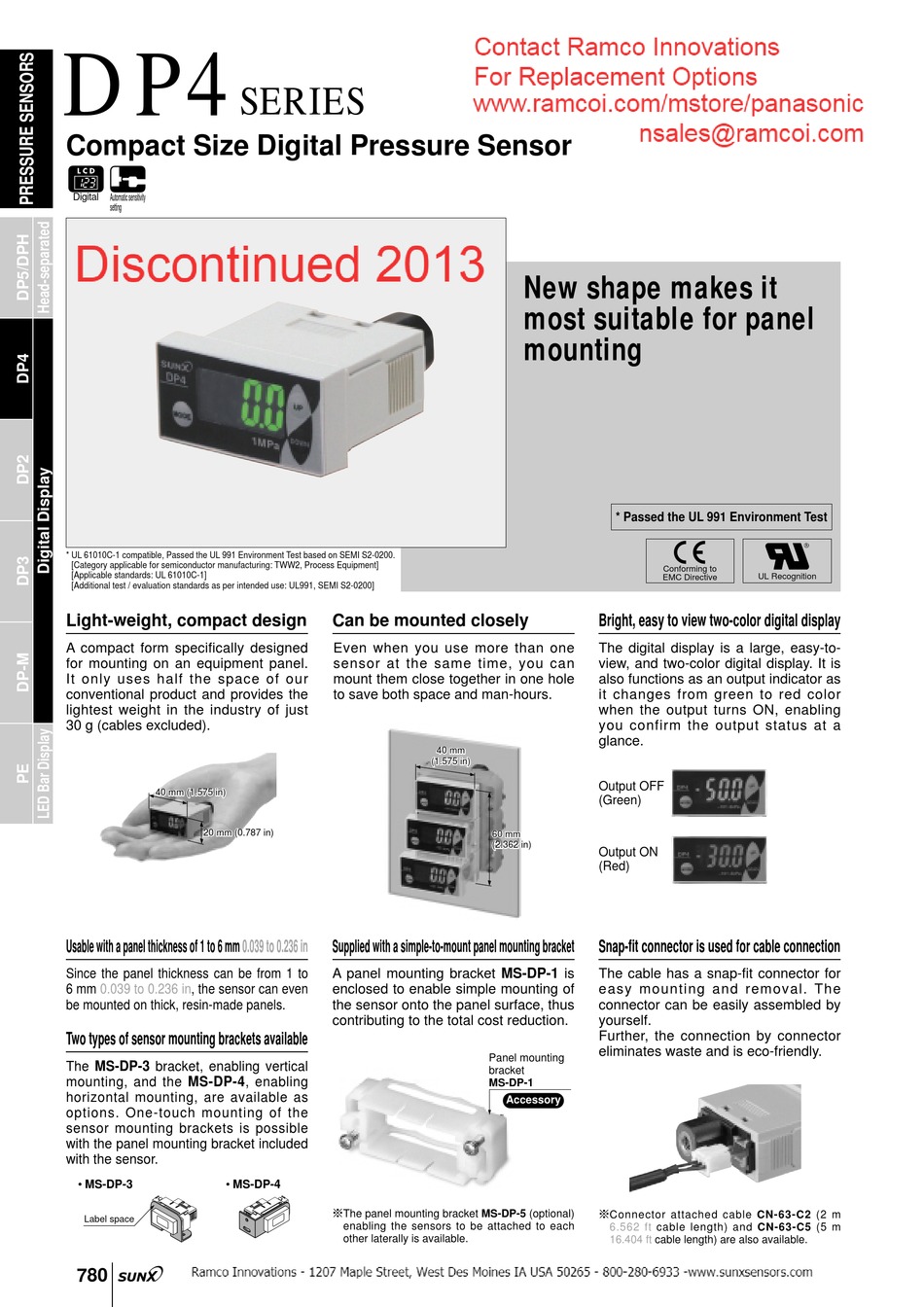

DP4

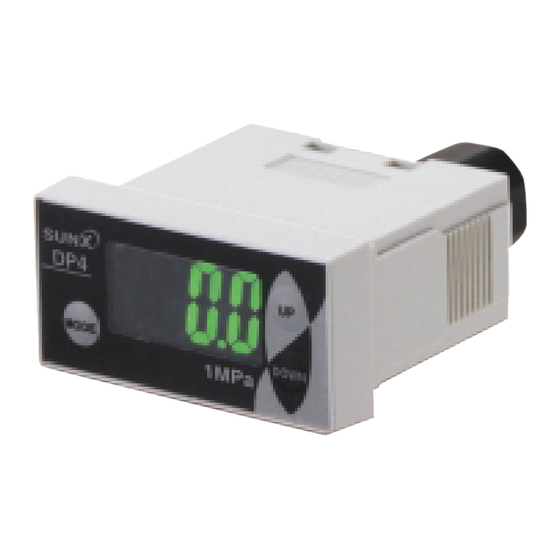

Compact Size Digital Pressure Sensor
Digital
Automati c sensi t i v i t y
setti n g
* UL 61010C-1 compatible, Passed the UL 991 Environment Test based on SEMI S2-0200.
[Category applicable for semiconductor manufacturing: TWW2, Process Equipment]
[Applicable standards: UL 61010C-1]
[Additional test / evaluation standards as per intended use: UL991, SEMI S2-0200]
Light-weight, compact design
A compact form specifically designed
for mounting on an equipment panel.
It only uses half the space of our
conventional product and provides the
lightest weight in the industry of just
30 g (cables excluded).
40 mm (1.575 in)
40 mm (1.575 in)
40 mm (1.575 in)
20 mm (
20 mm (0.787 in)
20 mm (0.787 in)
Usable with a panel thickness of 1 to 6 mm
Since the panel thickness can be from 1 to
6 mm
0.039 to 0.236
in, the sensor can even
be mounted on thick, resin-made panels.
Two types of sensor mounting brackets available
The MS-DP-3 bracket, enabling vertical
mounting, and the MS-DP-4, enabling
horizontal mounting, are available as
options. One-touch mounting of the
sensor mounting brackets is possible
with the panel mounting bracket included
with the sensor.
• MS-DP-3
• MS-DP-4
Label space
780
SERIES
Can be mounted closely
Even when you use more than one
sensor at the same time, you can
mount them close together in one hole
to save both space and man-hours.
0.039 to 0.236 in
Supplied with a simple-to-mount panel mounting bracket
A panel mounting bracket MS-DP-1 is
enclosed to enable simple mounting of
the sensor onto the panel surface, thus
contributing to the total cost reduction.
mThe panel mounting bracket MS-DP-5 (optional)
enabling the sensors to be attached to each
other laterally is available.
New shape makes it
most suitable for panel
mounting
Bright, easy to view two-color digital display
The digital display is a large, easy-to-
view, and two-color digital display. It is
also functions as an output indicator as
it changes from green to red color
when the output turns ON, enabling
you confirm the output status at a
glance.
40 mm
40 mm
(1.575 in)
(1.575 in)
Output OFF
(Green)
60 mm
60 mm
60 mm
(2.362 in)
(2.362 in)
Output ON
(Red)
Snap-fit connector is used for cable connection
The cable has a snap-fit connector for
easy mounting and removal. The
connector can be easily assembled by
yourself.
Further, the connection by connector
eliminates waste and is eco-friendly.
Panel mounting
bracket
MS-DP-1
Accessory
mConnector attached cable CN-63-C2 (2 m
* Passed the UL 991 Environment Test
Conforming to
UL Recognition
EMC Directive
6.562 ft
cable length) and CN-63-C5 (5 m
16.404 ft
cable length) are also available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP4 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunx DP4 Series

  • Page 1 SERIES Compact Size Digital Pressure Sensor Digital Automati c sensi t i v i t y setti n g New shape makes it most suitable for panel mounting * Passed the UL 991 Environment Test * UL 61010C-1 compatible, Passed the UL 991 Environment Test based on SEMI S2-0200. [Category applicable for semiconductor manufacturing: TWW2, Process Equipment] Conforming to [Applicable standards: UL 61010C-1]...
  • Page 2 APPLICATIONS Checking IC absorption Checking degree of vacuum for vacuum molding Checking reference pressure of device DP4-50 DP4-50 DP4-52 Can be mounted on a DIN rail High speed response of 2 ms or less The sensor can be mounted even on a 35 mm 1.378 in width DIN rail by using the The sensor has a high speed response of 2 ms...
  • Page 3: Order Guide

    ORDER GUIDE Type Appearance Rated pressure range (Note) Model No. Pressure port Output NPN open-collector transistor DP4-50 0 to 101.3 kPa PNP open-collector transistor DP4-50P NPN open-collector transistor DP4-52 M5 female thread 0 to 1.000 MPa DP4-52P PNP open-collector transistor DP4-57 NPN open-collector transistor 100.0 to 100.0 kPa...
  • Page 4 SPECIFICATIONS Vacuum pressure Positive pressure Compound pressure Type 101 kPa type 1 MPa type 100 kPa type NPN output PNP output NPN output PNP output NPN output PNP output Item Model No. DP4-50 DP4-50P DP4-52 DP4-52P DP4-57 DP4-57P Gauge pressure Type of pressure 0 to 101.3 kPa...
  • Page 5 I/O CIRCUIT AND WIRING DIAGRAMS NPN output type I/O circuit diagram Pin position Terminal No. Color code of connector attached cable (Brown) Load 12 to 24 V DC (Black) Output 100 mA max. (Blue) 0 V Internal circuit Users’ circuit Output Symbols ...
  • Page 6: Precautions For Proper Use

    Conditions in use for CE conformity • This product is not a safety sensor. Its use is not • The DP4 series is a CE conformity product complying with intended or designed to protect life and prevent EMC Directive. The harmonized standard with regard to...
  • Page 7 PRECAUTIONS FOR PROPER USE Setting • If key-protect has been set, make sure to release key-protect before operating the keys. (Please refer to ‘Key-protect function’ on p.787 for the procedure.) • Set Value 1 (P-1) and Set Value 2 (P-2) can be made common for all the output modes. •...
  • Page 8 PRECAUTIONS FOR PROPER USE Forced output mode Peak hold & bottom hold functions • In the initial setting mode, if the output mode is set to the • Peak hold and bottom hold functions enable the display of forced output mode ( ) , the output is forcibly maintained the peak value (maximum pressure value) and the bottom at OFF level in the sensing mode, irrespective of Set Value...
  • Page 9 0.512 in spanner M3 (length 15 mm 0.591 panel fixing screw (Accessory) Panel mounting bracket (MS-DP-1)(Accessory) DIMENSIONS (Unit: mm in) The CAD data in the dimensions can be downloaded from the SUNX website: http://www.sunx.co.jp/ DP4-5 Sensor 36.5 0.276 1.575 1.654 1.437...
  • Page 10: Assembly Dimensions

    DIMENSIONS (Unit: mm in) The CAD data in the dimensions can be downloaded from the SUNX website: http://www.sunx.co.jp/ MS-DP-1 Panel mounting bracket (Accessory) Assembly dimensions Panel cut-out dimensions 2.205 2.362 1.929 1.575 0.020 0.669 (21.55) 13.9 (0.848) 0.787 0.547 0.020 1.457...
  • Page 11 DIMENSIONS (Unit: mm in) The CAD data in the dimensions can be downloaded from the SUNX website: http://www.sunx.co.jp/ MS-DP-3 MS-DP-4 Sensor mounting bracket (Optional) Sensor mounting bracket (Optional) 2-"4.5 "0.177 mounting holes 2.244 1.575 1.181 0.945 t 0.079 2.559 0.630 "4.5...
  • Page 12: Specifications

    • Pin position Internal circuit Users’ circuit DP4 series is designed for use with non-corrosive gas. It cannot be used for liquid or corrosive gas. Symbols ... D : Reverse supply polarity protection diode Use within the rated pressure range.
  • Page 13: Functional Description

    n ASSEMBLY OF CONNECTOR m FUNCTIONAL DESCRIPTION q Using a suitable cable having the following specifications, prepare its end with a stripper, etc., as given in the figure below. Further, the cable extension can be 100m or less with 0.3mm , or more, cable.
  • Page 14: Zero Point Adjustment

    ⁄1 OUTPUT MODES & THEIR CHARACTERISTICS ⁄2 SETTING Hysteresis mode Zero-point adjustment The hysteresis of the comparative outputs can be set arbitrarily by the set The displayed pressure when the pressure port is left open is adjusted values for ON/OFF control. to zero.
  • Page 15: Forced Output Mode

    Set Value 1 is displayed. However, after entering Set Value 5 and Set Value 6 and returning the SUNX Limited http://www.sunx.co.jp/ sensor to the sensing mode, if the pressure value setting mode is selected again, Set Value 4 is displayed.
