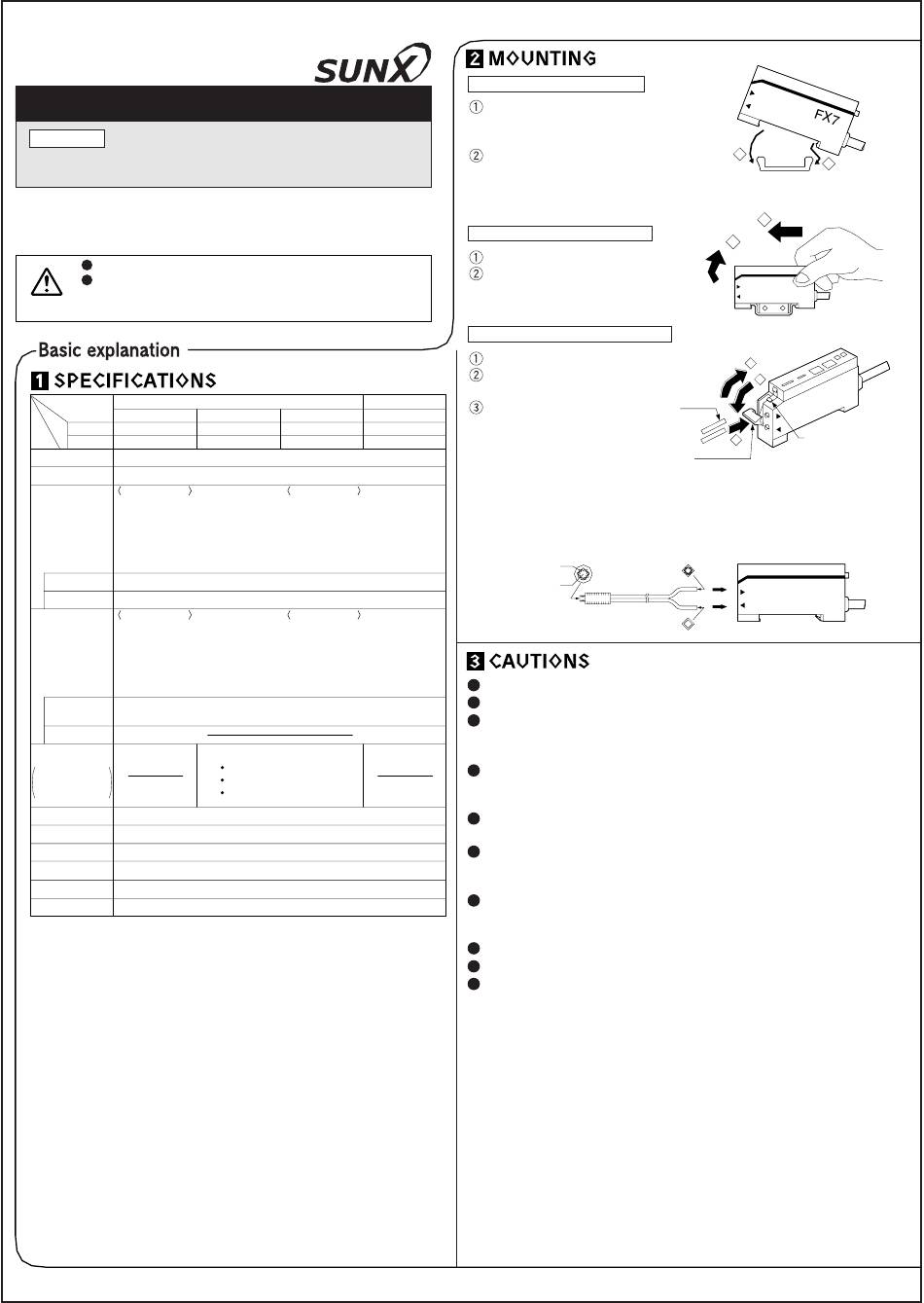

INSTRUCTION MANUAL
Slim type Automatic Sensitivity Stetting Fiber Sensor
FX-7 Series
Thank you very much for using SUNX products. Please read this Instruction
Manual carefully and thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient place for quick reference.
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use
products which meet standard, such as OSHA, ANSI or IEC etc.,
WARNING
for personnel protection applicable in each region or country.
Type
Standard type
Model Red LED FX-7
No.
Item FX-7G
Green LED
12 to 24V DC ± 10%, Ripple P-P 10% or less
Supply voltage
Current consumption
NPN output type
NPN open-collector transistor
• Maximum sink current: 100mA
Sensing output
• Applied voltage: 30V DC or less
(between sensing output and 0V)
• Residual voltage:
1.0V or less (at 100mA sink current)
0.4V or less (at 16mA sink current)
Output operation Selectable either Sensing-ON or Non-sensing-ON by the ON/OFF buttons
Short-circuit protection
NPN output type
NPN open-collector transistor
• Maximum sink current: 50mA
Self-diagnosis • Applied voltage: 30V DC or less
output (between self-diagnosis output and 0V)
• Residual voltage:
1.0V or less (at 50mA sink current)
0.4V or less (at 16mA sink current)
ON under unstable sensing (this signal lasts approx. 40ms) or
Output operation
ON when sensing output is short-circuited (signal lasts till short-circuit is rectified) ( Note 2 )
Short-circuit protection
External inputs
• External synchronization input
• Emission disable input
• Remote sensitivity setting input
Response time 0.5ms or less ( When using interference prevention function: 0.7ms or less)
Timer function Approx. 40ms fixed off-delay timer (Selectable with timer operation selection switch) (Except for FX-75, FX-75G)
Ambient temperature –10 to +50°C (No dew condensation or icing allowed), Storage: –20 to +70°C
Ambient humidity
Material
Enclosure: Heat-resistant ABS, Enclosure cover: Polycarbonate, Fiber lock lever: PPS
Accessory
MS-DIN-2 (Amplifier mounting bracket): 1 No.
Notes: 1) Plug-in connector type is specified by suffix 'J' at the end of the model number. (Standard type only)
e.g.) Plug-in connector type of FX-7 is 'FX-7J' .
2) The remote sensitivity setting type are in the ON state for approx. 40ms even after
accepting the remote sensitivity setting input.
Ramco Innovations
NPN output
External synchronization input type Remote sensitivity setting type
FX-75 FX-77
FX-75G
FX-77G
30mA or less
PNP output type
PNP open-collector transistor
• Maximum source current: 100mA
• Applied voltage: 30V DC or less
(between sensing output and +V)
• Residual voltage:
2.0V or less (at 100mA source current)
1.0V or less (at 16mA source current)
Incorporated
PNP output type
PNP open-collector transistor
• Maximum source current: 50mA
• Applied voltage: 30V DC or less
(between self-diagnosis output and +V)
• Residual voltage:
2.0V or less (at 50mA source current)
1.0V or less (at 16mA source current)
Signal condition
High ... 4.5 to 30V, or open
Low ... 0 to 1V
Input impedance: 10kΩ
35 to 85% RH, Storage: 35 to 85% RH

How to mount the amplifier

Fit the rear part on the attached
amplifier
(MS-DIN-2) or a 35mm width DIN rail.
Press down the front part of the
amplifier on the amplifier mounting
bracket (MS-DIN-2) or the DIN rail
to fit it.

How to remove the amplifier

Push the amplifier forward.
Lift up the front part of the
amplifier to remove it.

How to connect the fiber cables

Snap the fiber lock lever down.
Insert fiber cables slowly into the
inlets until they stop. (Note 1)
PNP output
Lock the fiber lock lever in the
Standard type
original position, till you feel a
FX-7P
click.
FX-7GP
Notes: 1) In case the fiber cables are not inserted to a position where they stop, the
sensing range reduces.
2) With the coaxial reflective type fiber, such as, FD-G4, FD-FM2, insert the
center fiber cable (single-core) into the beam-emitting inlet and the outer fiber
cable (multi-core) into the beam-receiving inlet. If they are inserted in reverse,
the sensing accuracy will deteriorate.
Beam-receiving part
Beam- emitting part
Make sure to carry out the wiring in the power supply off condition.
Verify that the supply voltage variation is within the rating.
If power is supplied from a commercial switching regulator, ensure
that the frame ground (F.G.) terminal of the power supply is connect-
ed to an actual ground.
In case noise generating equipment (switching regulator, inverter
motor, etc.) is used in the vicinity of this product, connect the frame
ground (F.G.) terminal of the equipment to an actual ground.
Do not use during the initial transient time (0.5 sec.) after the power
supply is switched on.
The self-diagnosis output is not incorporated with a short-circuit
protection circuit. Do not connect it directly to a power supply or a
capacitive load.
Do not run the wires together with high voltage lines or power lines
or put them in the same raceway. This can cause malfunction due to
induction.
Extension up to total 100m is possible with a 0.3mm
Avoid dust, dirt, and steam.
Take care that the product does not come in direct contact with
water, oil, grease or organic solvents, such as, thinner, etc.
Phone 800-280-6933
mounting bracket
2
Attached amplifier mounting bracket
or 35mm width DIN rail.
2
Fiber cable
2
Fiber lock lever
Beam-receiving part
(multi-core)
Coaxial fiber
cable
Beam-emitting part (single-core)
www.sunxsensors.com
1
1
3
1
7
F X
Stopper
FX7
2
, or more, cable.
