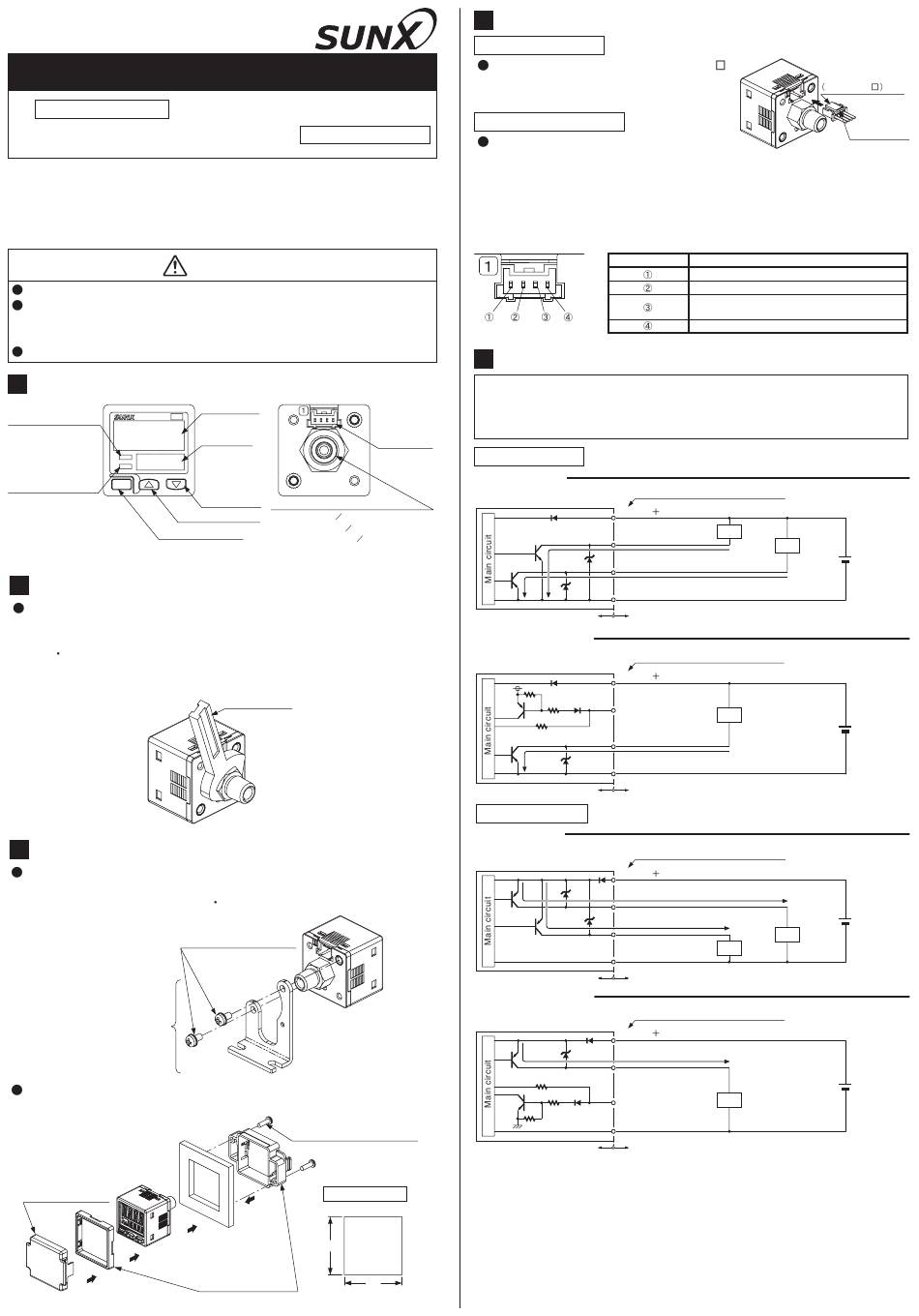

INSTRUCTION MANUAL
Pressure Sensor
High-performance Digital Display
DP-100
Thank you very much for using SUNX products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum
use of this product. Kindly keep this manual in a convenient place for quick
reference.
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products
which meet laws and standards, such as OSHA, ANSI or IEC etc., for
personnel protection applicable in each region or country.
Japanese Measurement Laws prohibit the use of this product in Japan.
1

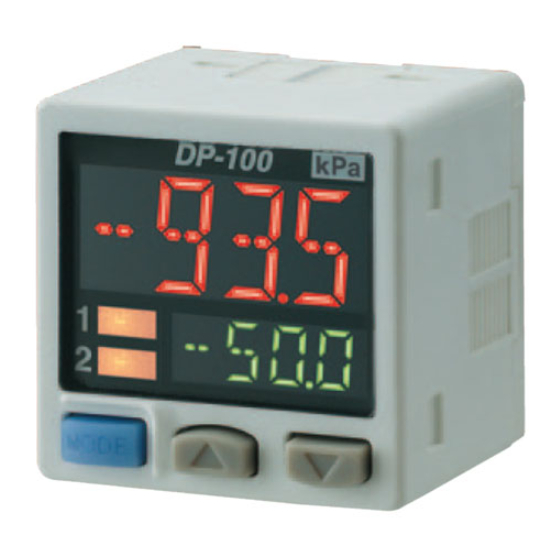

NAMES OF EACH PART

Output 1 operation
indicator
DP-100
Lights up when compa-
rative output 1 is ON
Output 2 / analog
voltage output oper-
ation indicator
Standard type:
Lights up when compa-
Setting value UP key
rative output 2 is ON
Mode selection key
High-function type:
Lights up when analog
voltage output is set
2

PIPING

When connecting a commercial coupler to the pressure port, attach a
12mm spanner (14mm for DP-100-E type) to the pressure port's hexa-
gon section to fix the port, and then tighten with a tightening torque of
9.8N m or less. The commercial coupler or pressure port section will be
damaged if the tightening torque is excessive.
Wrap sealing tape around the coupler when connecting to prevent leaks.
3

MOUNTING

The sensor mounting bracket (MS-DP1-1) is available as an option.
When mounting the sensor onto the sensor mounting bracket, etc., the
tightening torque should be 1.2N m or less.
M3 (length 6mm) screws
with washers
Sensor mounting bracket
MS-DP1-1 (Optional)
The panel mounting bracket MS-DP1-2 (optional) and front cover
MS-DP1-3 (optional) are also available as options.
Front cover
MS-DP1-3 (Optional)
Series
For use outside Japan
MJE-DP100 No.6091-00
WARNING
Main display
Sub-display
Setting value
DOWN key
Pressure port
1 8
DP-100 type: R + M5 female screw
1
DP-100-E type: G + M5 female screw
8
1
DP-100-N type: NPT
12mm spanner
(Accessory with MS-DP1-1)
M3 (length 12mm) pan head
screw
(Accessory with MS-DP1-2)
Panel cut-out size
(Unit: mm)
31
Panel mounting bracket
MS-DP1-2 (Optional)
4

WIRING

Connection method
Insert the cable with connector CN-14A-C
into this product's connection connector
section as shown in the right figure.
Disconnection method
Pressing the release lever of the cable
with connector, pull out the cable.
Note: Do not pull by holding the cable without pressing the release lever, as this can
cause cable break.
<Connection connector pin arrangement>
5

I/O CIRCUIT DIAGRAMS

When using the analog voltage output, take care to the input impedance of
the connected device.
Furthermore, note that if the cable is extended, the cable resistance will
cause the voltage to drop.
Connection
connector
NPN output type
Standard type
+ M5 female screw
8
Internal circuit
High-function type
5V
1kΩ
Internal circuit
PNP output type
Standard type
High-function type
1kΩ
Internal circuit
31
Connector pin No.
Standard type: Comparative output 2
High-function type: Analog voltage output or external input
Color code of cable with connector
(Brown) V
(Black)
Comparative output 1
100mA max.
(White) Comparative output 2
(Blue) 0V
Users' circuit
Color code of cable with connector
(Brown) V
(White)
Analog voltage output
or external input
(Black) Comparative output 1
100mA max.
(Blue) 0V
Users' circuit
Color code of cable with connector
(Brown) V
(Black) Comparative output 1
100mA max.
(White) Comparative output 2
(Blue) 0V
Internal circuit Users' circuit
Color code of cable with connector
(Brown) V
100mA max.
(Black) Comparative output 1
(White)
Analog voltage output
or external input
(Blue) 0V
Users' circuit
Cable with connector
CN-14A-C
Release lever
<Recommended product>
Contact: SPHD-001T-P0.5
Housing: PAP-04V-S
[JST Mfg. Co., Ltd.]
Terminal name
+V
Comparative output 1
0V
Load
Load
+
12 to 24V DC
_
±10%
100mA max.
Load
+
12 to 24V DC
_
±10%
100mA max.
+
12 to 24V DC
_ ±10%
Load
Load
+
12 to 24V DC
_
±10%
Load
