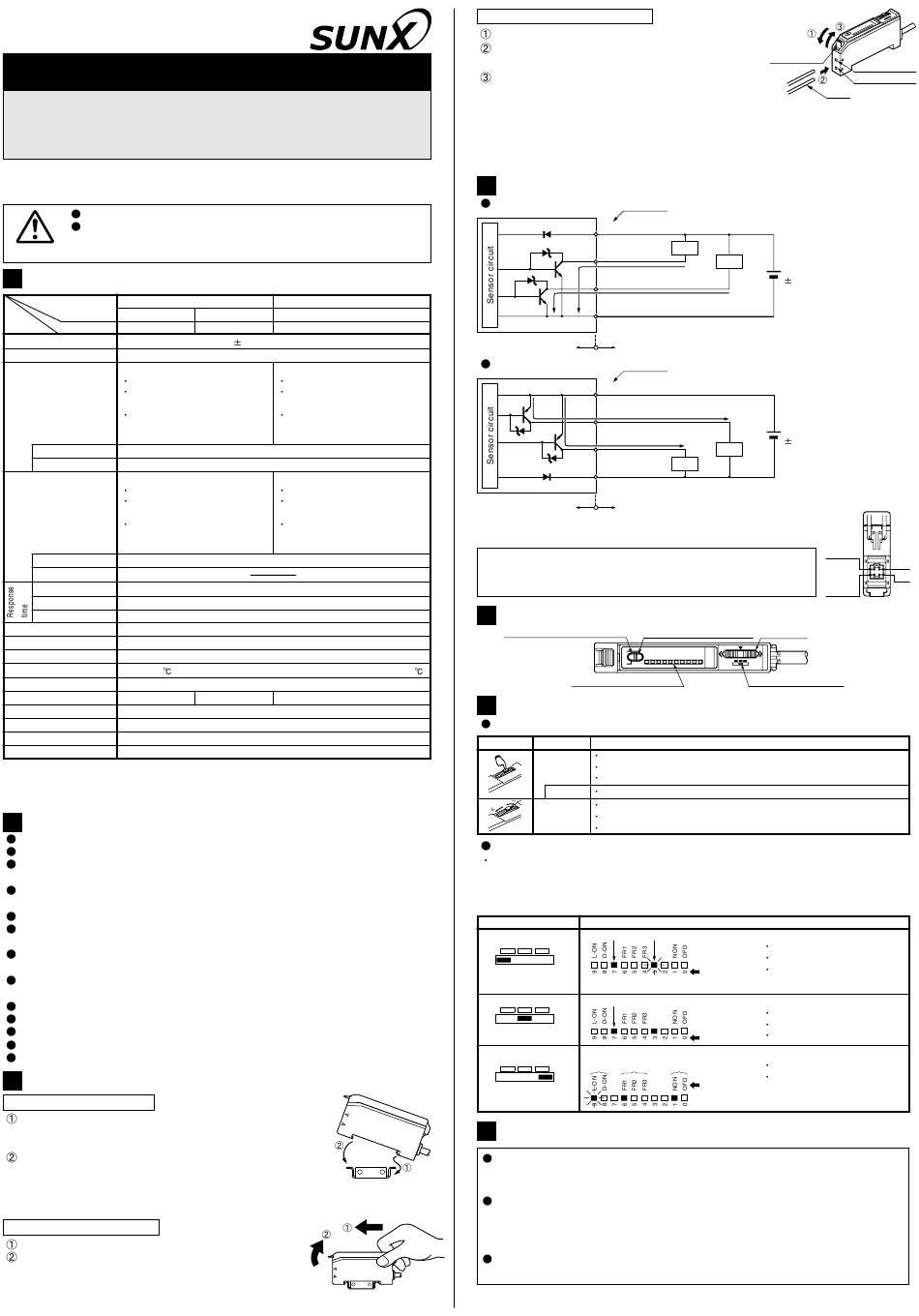

INSTRUCTION MANUAL

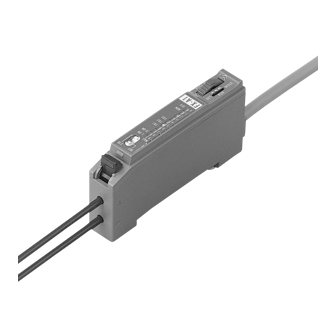

Auto-setting Fiber Sensor
FX-A1 Series
Thank you very much for using SUNX products. Please read this Instruction Manual
carefully and thoroughly for the correct and optimum use of this product. Kindly keep
this manual in a convenient place for quick reference.
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use
products which meet standards, such as OSHA, ANSI or IEC etc.,
WARNING
for personnel protection applicable in each region or country.
1

SPECIFICATIONS

Type
Red LED type
Item Model No.
FX-A1
Supply voltage 12 to 24V DC 10% Ripple P-P 10% or less
Current consumption
NPN open-collector transistor
Maximum sink current: 100mA
Applied voltage: 30V DC or less
Sensing output (between sensing output and 0V)
Residual voltage:
1V or less (at 100mA sink current)
0.4V or less (at 16mA sink current)
Output operation Selectable, either Light-ON or Dark-ON, with jog switch
Short-circuit protection
NPN open-collector transistor
Maximum sink current: 50mA
Applied voltage: 30V DC or less
Self-diagnosis output (between self-diagnosis output and 0V)
Residual voltage:
1V or less (at 50mA sink current)
0.4V or less (at 16mA sink current)
Output operation
Short-circuit protection
Emission frequency 1
Emission frequency 2
Emission frequency 3

Sensitivity setting

2-level teaching / Limit teaching / Full auto-teaching
Timer Function Approx. 40ms fixed OFF-delay timer (switchable, either effective or ineffective)
Interference Prevention Function Incorporated (up to three sets of fibers can be mounted adjacently)
Ambient temperature
-10 to +50 (No dew condensation or icing allowed), Storage: -20 to +70
Ambient humidity
Emitting element Red LED (modulated)
Material Enclosure: Heat-resistant ABS, Enclosure cover: Polycarbonate
Cable
Weight
Accessory
Note: For the plug-in connector type, add suffix 'J' at the end of the model No.
Model No.: FX-A1J, FX-A1GJ, FX-A1PJ
For the cable length 5m type, add suffix '-C5' at the end of the model No. (only NPN output type)
Model No.: FX-A1-C5, FX-A1G-C5
2

CAUTIONS

Make sure to carry out the wiring in the power supply off condition.
Verify that the supply voltage variation is within the rating.
In case noise generating equipment (switching regulator, inverter motor, etc.) is used in the vicinity
of this product, connect the frame ground (F.G.) terminal of the equipment to an actual ground.
If power is supplied from a commercial switching regulator, ensure that the frame
ground (F.G.) terminal of the power supply is connected to an actual ground.
Do not use during the initial transient time (0.5 sec.) after the power supply is switched on.
The self-diagnosis output is not incorporated with a short-circuit protection. Do not
connect it directly to a power supply or a capacitive load.
Do not run the wires together with high-voltage lines or power lines or put them in
the same raceway. This can cause malfunction due to induction.
Extension up to total 100m is possible with a 0.3mm
order to reduce noise, make the wiring as short as possible.
This sensor is suitable for indoor use only.
Avoid dust, dirt, and steam.
Take care that the product does not come in direct contact with organic solvents, such as, thinner, etc.
This sensor cannot be used in an environment containing inflammable or explosive gases.
Never disassemble or modify the sensor.
3

MOUNTING

How to mount the amplifier
Fit the rear part of the mounting section of the amplifier
on the attached amplifier mounting bracket (MS-DIN-2)
or a 35mm width DIN rail.
Press down the rear part of the mounting section of the
unit on the attached amplifier mounting bracket
(MS-DIN-2) or a 35mm width DIN rail and fit the front
part of the mounting section to the attached amplifier
mounting bracket (MS-DIN-2) or a 35mm width DIN rail.
How to remove the amplifier
Push the amplifier forward.
Lift up the front part of the amplifier to remove it.
Note: Take care that if the front part is lifted without pushing the
amplifier forward, the hook on the rear portion of the mounting
section is likely to break.
NPN output PNP output
Green LED type Red LED type
FX-A1G FX-A1P
50mA or less
PNP open-collector transistor
Maximum source current: 100mA
Applied voltage: 30V DC or less
(between sensing output and +V)
Residual voltage:
1V or less (at 100mA source current)
0.4V or less (at 16mA source current)
Incorporated
PNP open-collector transistor
Maximum source current: 50mA
Applied voltage: 30V DC or less
(between self-diagnosis output and +V)
Residual voltage:
1V or less (at 50mA source current)
0.4V or less (at 16mA source current)
ON in unstable sensing condition
0.5ms or less
0.65ms or less
0.75ms or less
35 to 85% RH, Storage: 35 to 85% RH
Green LED (modulated) Red LED (modulated)
2
0.2mm 4-core cabtyre cable, 2m long
70g approx.
MS-DIN-2 (Amplifier mounting bracket): 1 No.
2
, or more, cable. However, in
Attached amplifier mounting
bracket or 35mm width DIN rail

How to connect the fiber cables

Snap the fiber lock lever down.
Insert the fiber cables slowly into the inlets until
they stop. (Note 1)
Return the fiber lock lever to the original position,
till it stops.
Notes: 1) In case the fiber cables are not inserted to a position where they stop, the sensing range reduces.
However, in case of a flexible fiber, take care that it may bend inside the amplifier, during insertion.
2) With the coaxial reflective type fiber, such as, FD-G4 or FD-FM2, insert the single-core
fiber cable into the beam-emitting inlet and the multi-core fiber cable into the beam-receiv-
ing inlet. If they are inserted in reverse, the sensing accuracy will deteriorate.
4

I/O CIRCUIT DIAGRAMS

NPN output type
Color code
D
1
(Brown) +V
(Black)
Z
D1
Sensing output
T
r1
100mA max.
Z
D2
(Orange) Self-diagnosis output
T
r2
(Blue) 0V
Internal circuit Users' circuit
PNP output type
Color code
(Brown) +V
T
r3
(Black) Sensing output
T
Z
r4
D3
50mA max.
(Orange)
Z
D4
Self-diagnosis output
D (Blue) 0V
2
Internal circuit Users' circuit
Note: Use the optional cable with a connector for the plug-in connector type.
Model No.: CN-54-C2 (cable length 2m), CN-54-C5 (cable length 5m)
Symbols... D , D : Reverse supply polarity protection diode
1 2
Z , Z , Z , Z : Surge absorption zener diode
D1 D2 D3 D4
Tr , Tr : NPN output transistor
1 2
Tr , Tr : PNP output transistor
3 4
5

PART DESCRIPTION

Operation indicator (Orange) Stability indicator (Green)
Level indicators (Green)
6
JOG SWITCH & LEVEL INDICATOR FUNCTION
Functions of jog switch
Jog switch Operation
In 2-level teaching, it sets the sensitivity.
Press
In limit teaching, it stores the incident light intensity in the object absent condition.
Each item is selected and the item or the contents of each item to be set is decided.
3 sec. or more In full auto-teaching, it sets the sensitivity.
In limit teaching, it determines the direction of shift of the sensitivity.
Turn It does fine adjustment of the set sensitivity.
The contents of each item are selected.
Functions of level indicators
If the mode selection switch is set to 'SET' or 'RUN', the level indicators show the
position of the set sensitivity level. However, if the mode selection switch is set to
'MODE', the level indicators show the output operation/emission frequency/timer
settings.
Mode selection switch
Hundreds position
SET MODE
RUN
*: The sensitivity level is changed in the range 0 to 999 within the sensor.
Hundreds position
SET MODE
RUN
Output Emission
operation frequency
SET MODE
RUN
7 SENSITIVITY SETTING
When the mode selection switch is set to 'SET' or 'MODE', the sensor is
more susceptible to extraneous light. Hence, when sensing objects, ensure to set
the mode selection switch to 'RUN'.
When the mode selection switch is changed from 'SET' to 'RUN' or from 'MODE'
to 'RUN', the set sensitivity or the contents of each mode setting are stored in an
EEPROM. Since the EEPROM has a life time, the sensitivity setting cannot be
done for more than 100,000 times.
Do not move or bend the fiber cable after the sensitivity setting. Detection may
become unstable.
Fiber lock
lever
Load
Load
+
12 to 24V DC
10%
-
50mA max.
100mA max.
+
12 to 24V DC
10%
-
Load
Load
Jog switch
Mode selection switch
Function
Function
Tens position Sensitivity level is displayed.
Hundreds position: lights up continuously
Tens position: blinks
Units position: not shown
Set sensitivity
Sensitivity level is displayed.
Hundreds position: lights up continuously
Tens position: not shown
Units position: not shown
Set sensitivity
Timer Each mode is displayed.
operation Item being set: blinks
Remaining 2 items: light up
Each mode
continuously
Beam-emitting part
Beam-receiving part
Fiber
Connector pin
position
Sensing
output
+V
Self-
0V
diagnosis
output
