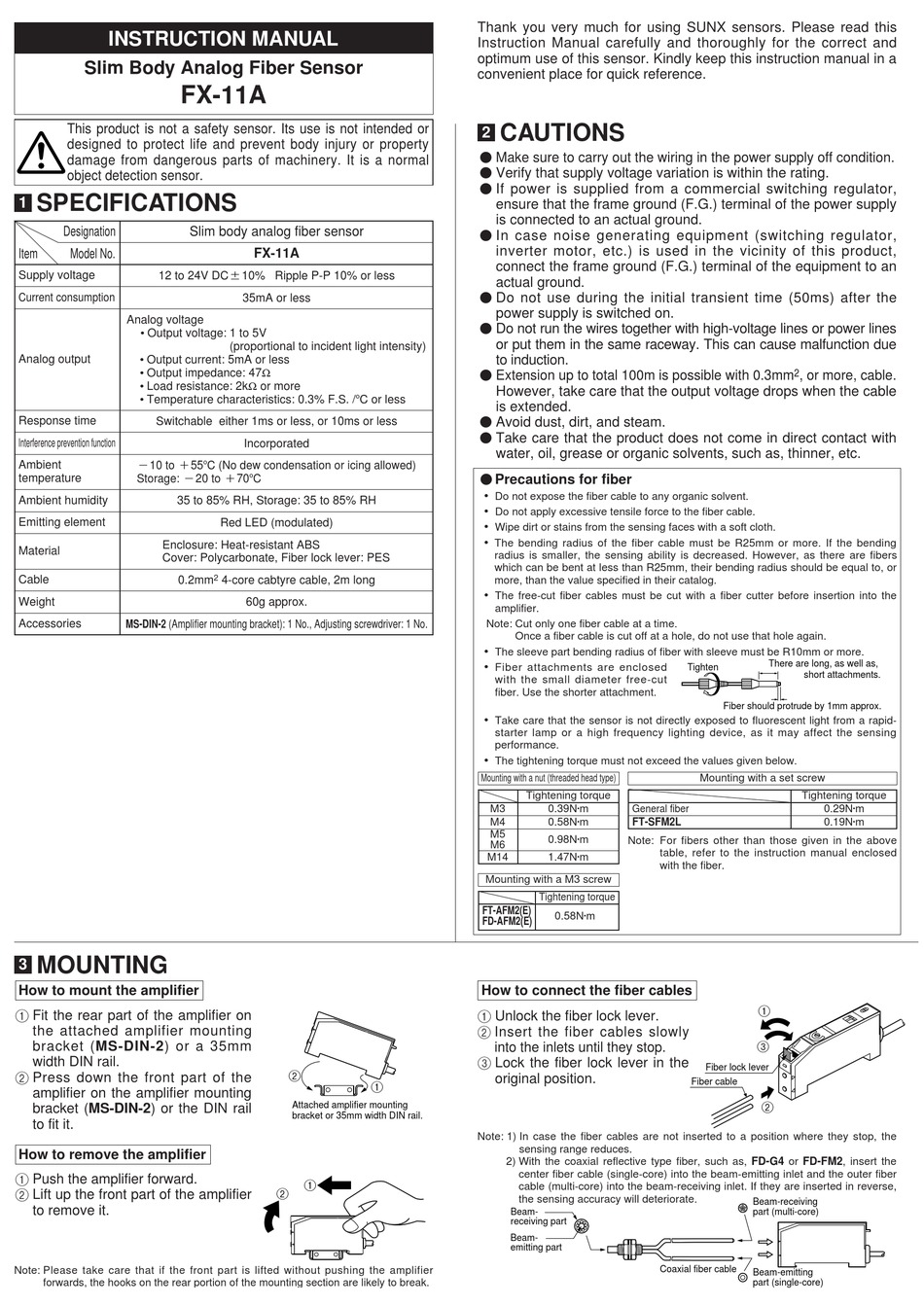

INSTRUCTION MANUAL
Slim Body Analog Fiber Sensor
This product is not a safety sensor. Its use is not intended or
designed to protect life and prevent body injury or property
damage from dangerous parts of machinery. It is a normal
object detection sensor.

SPECIFICATIONS

1
Designation
Item Model No.
Supply voltage
12 to 24V DC
Current consumption
Analog voltage
• Output voltage: 1 to 5V
• Output current: 5mA or less
Analog output
• Output impedance: 47Ω
• Load resistance: 2kΩ or more
• Temperature characteristics: 0.3% F.S. / C or less
Response time Switchable either 1ms or less, or 10ms or less
Interference prevention function
Ambient 10 to
temperature Storage:
Ambient humidity
35 to 85% RH, Storage: 35 to 85% RH
Emitting element
Enclosure: Heat-resistant ABS
Material
Cover: Polycarbonate, Fiber lock lever: PES
Cable 0.2mm
Weight
Accessories MS-DIN-2 (Amplifier mounting bracket): 1 No., Adjusting screwdriver: 1 No.
MOUNTING
3
How to mount the amplifier
1 Fit the rear part of the amplifier on
the attached amplifier mounting
bracket (MS-DIN-2) or a 35mm
width DIN rail.
2 Press down the front part of the
amplifier on the amplifier mounting
bracket (MS-DIN-2) or the DIN rail
to fit it.
How to remove the amplifier
1 Push the amplifier forward.
2 Lift up the front part of the amplifier
to remove it.
Note: Please take care that if the front part is lifted without pushing the amplifier
forwards, the hooks on the rear portion of the mounting section are likely to break.
Ramco Innovations
FX-11A
Slim body analog fiber sensor
FX-11A
10% Ripple P-P 10% or less
35mA or less
(proportional to incident light intensity)
Incorporated
55 C (No dew condensation or icing allowed)
20 to 70 C
Red LED (modulated)
2 4-core cabtyre cable, 2m long
60g approx.
2
Attached amplifier mounting
bracket or 35mm width DIN rail.
1
2
Thank you very much for using SUNX sensors. Please read this
Instruction Manual carefully and thoroughly for the correct and
optimum use of this sensor. Kindly keep this instruction manual in a
convenient place for quick reference.
CAUTIONS
2
Make sure to carry out the wiring in the power supply off condition.
Verify that supply voltage variation is within the rating.
If power is supplied from a commercial switching regulator,
ensure that the frame ground (F.G.) terminal of the power supply
is connected to an actual ground.
In case noise generating equipment (switching regulator,
inverter motor, etc.) is used in the vicinity of this product,
connect the frame ground (F.G.) terminal of the equipment to an
actual ground.
Do not use during the initial transient time (50ms) after the
power supply is switched on.
Do not run the wires together with high-voltage lines or power lines
or put them in the same raceway. This can cause malfunction due
to induction.
Extension up to total 100m is possible with 0.3mm
However, take care that the output voltage drops when the cable
is extended.
Avoid dust, dirt, and steam.
Take care that the product does not come in direct contact with
water, oil, grease or organic solvents, such as, thinner, etc.
Precautions for fiber
•
Do not expose the fiber cable to any organic solvent.
•
Do not apply excessive tensile force to the fiber cable.
•
Wipe dirt or stains from the sensing faces with a soft cloth.
•
The bending radius of the fiber cable must be R25mm or more. If the bending
radius is smaller, the sensing ability is decreased. However, as there are fibers
which can be bent at less than R25mm, their bending radius should be equal to, or
more, than the value specified in their catalog.
•
The free-cut fiber cables must be cut with a fiber cutter before insertion into the
amplifier.
Note: Cut only one fiber cable at a time.
Once a fiber cable is cut off at a hole, do not use that hole again.
•
The sleeve part bending radius of fiber with sleeve must be R10mm or more.
•
Fiber attachments are enclosed
with the small diameter free-cut
fiber. Use the shorter attachment.
•
Take care that the sensor is not directly exposed to fluorescent light from a rapid-
starter lamp or a high frequency lighting device, as it may affect the sensing
performance.
•
The tightening torque must not exceed the values given below.
Mounting with a nut (threaded head type)
Tightening torque
M3
M4
M5
M6
M14
Mounting with a M3 screw
Tightening torque
FT-AFM2(E)
FD-AFM2(E)
How to connect the fiber cables
1 Unlock the fiber lock lever.
2 Insert the fiber cables slowly
into the inlets until they stop.
3 Lock the fiber lock lever in the
original position.
1
Note: 1) In case the fiber cables are not inserted to a position where they stop, the
sensing range reduces.
2) With the coaxial reflective type fiber, such as, FD-G4 or FD-FM2, insert the
center fiber cable (single-core) into the beam-emitting inlet and the outer fiber
cable (multi-core) into the beam-receiving inlet. If they are inserted in reverse,
the sensing accuracy will deteriorate.
Beam-
receiving part
Beam-
emitting part
(800) 280-6933
Tighten
Mounting with a set screw
0.39N m General fiber
0.58N m
FT-SFM2L
0.98N m
Note: For fibers other than those given in the above
table, refer to the instruction manual enclosed
1.47N m
with the fiber.
0.58N m
Fiber lock lever
Fiber cable
Coaxial fiber cable
www.sunxsensors.com
2 , or more, cable.
There are long, as well as,
short attachments.
Fiber should protrude by 1mm approx.
Tightening torque
0.29N m
0.19N m
1
3
2
Beam-receiving
part (multi-core)
Beam-emitting
part (single-core)
