Summary of Contents for SGM I-SERIES

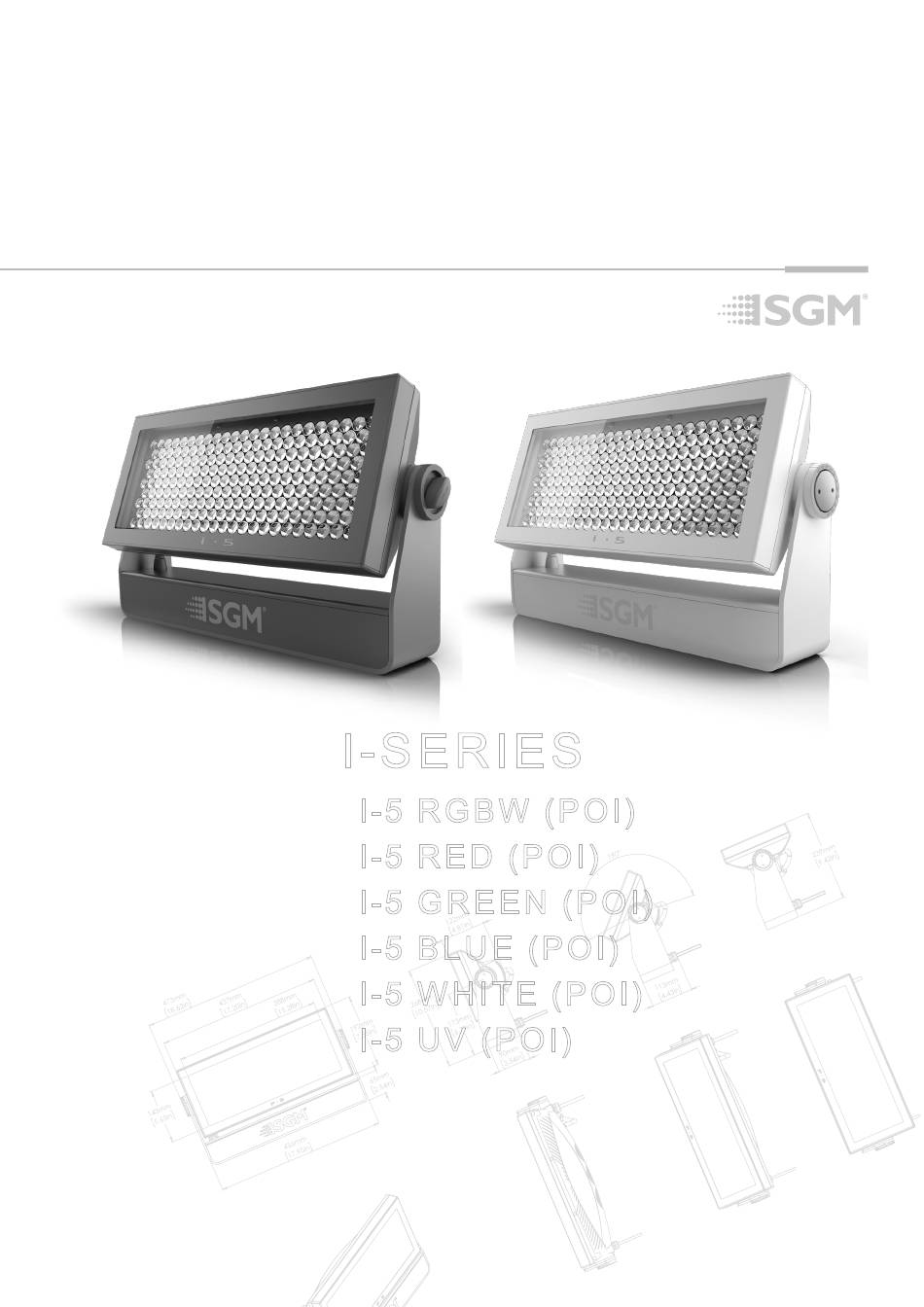

- Page 1 USER MANUAL I-S E R I E S I-5 R G B W (P O I) I-5 R E D (P O I) I-5 G R E E N (P O I) I-5 B L U E (P O I) I-5 W H I T E (P O I) I-5 U V (P O I)
- Page 2 I-5 SERIES USER MANUAL REV. B © 2018 SGM Light A/S ® . The information in this document is subject to change without notice. SGM and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss, or any other loss occasioned by the use of, inability to use, or reliance on the information contained in this manual.
-
Page 3: Table Of Contents
Contents Safety information ........................4 Overview ..........................5 Preparing for installation ......................6 Installing / rigging the i-5 Series ....................6 Tilt lock ...........................8 Connecting AC power .......................8 Configuring the device .......................9 Display ............................9 Connecting to a DMX control device ..................10 Configuring the device for DMX control ..................11 Setting a static color manually ....................12 Using standalone operation ......................12 Fixture personality settings ......................13... -
Page 4: Safety Information
Read the following safety precautions carefully before unpacking, installing, powering, or operating the device. SGM luminaries are intended for professional use only. They are not suitable for household use. Les luminaires SGM sont impropre à l’usage domestique. Uniquement à usage professionnel. -
Page 5: Overview

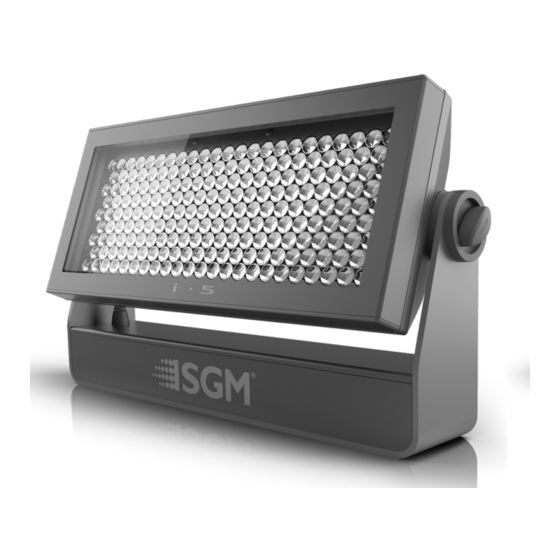

Overview The i-5 / i-5 POI is an IP65 / IP66-rated RGBW LED wash light with a small footprint and high output, designed for multiple applica- tions, including when wireless operation is essential (POI only). It can be acquired in different variants: •... -
Page 6: Preparing For Installation
[ 4,2in ] All SGM luminaries have locking points in the base for installation and rigging. In both standard and POI fixtures, the distance between the points from center to center is always 106 mm. - Page 7 Rigging process using yhe SGM Omega brackets Start the standard rigging process by blocking the lower working area, and make sure the work is performed from a stable platform. 1. Check that the clamp/bracket is undamaged and can bear at least 10 times the weight of the fixture.
-
Page 8: Tilt Lock
Exterior surface temperature after 5 min. operation = 43 °C (109 °F). Steady state = 60 °C (140 °F). NOTE: In POI versions, SGM provides a POI Spanner with a pig-nose key for tilt adjustment. Either use the large or the small pig-nose key, depending on the type of fixture. -
Page 9: Configuring The Device
Configuring the device The i-5 Series can be set up by using the control panel and OLED multi-line display at the base of the fixture or through RDM. Please note: In POI versions there is no display mounted in the fixture. The adjustments are made through RDM. See page 19 for more information. -
Page 10: Connecting To A Dmx Control Device
IP rating. NOTE: SGM fixtures provide a passive DMX Thru signal as DMX Out, instead of an active output signal. For POI versions, please refer to page 20-21 to see how to connect DMX and AC power. -
Page 11: Configuring The Device For Dmx Control
Configuring the device for DMX control About DMX The i-5 Series can be controlled using signals sent by a DMX controller on a number of DMX channels. DMX is the USITT DMX512-A standard, based on the RS-485 standard. The signal is sent as DMX data from a console (or a controller) to the fixtures via a shielded twisted pair cable designed for RS-485 devices. -
Page 12: Setting A Static Color Manually
Full Color Calibration and Color Temperature Correction (i-5 only) Most DMX channels: possibility to choose between raw or white-calibrated color (5600K default) via the Control Menu (SETTINGS → WHITE CALIBRATED). RGB DMX modes: features full color calibration (irrespective of current color setting) when 2 or 3 colors are mixed, to ensure uniform color mixing between products. -
Page 13: Fixture Personality Settings
Fixture personality settings Setting the dimming curve The setting of the dimming curve will determine the fixture’s behaviour, when changing the light intensity between 0% - 100%. Linear control provides uniform adjustment throughout the control action, whereas gamma corrected dimming provides finer control at low light levels, where the eye is more sensitive to change. -
Page 14: Fixture Properties
UV). The i-5 RGBW version contains 148 Red, 51 Green, 48 Blue and 56 White LEDs, and can be operated in RGB calibrated mode which ensures that colors are compatible across the range of SGM fixtures. However, the i-5 RGBW also offers the ability to operate in RAW mode with full control of each color. -
Page 15: Control Menu - Part I
Minimum values 0 → 8000 Adjust default minimum setting (0-8000). Service use only. RFID Write Enable Enable the RFID entry for the SGM Tool. Disable Disable the RFID entry for the SGM Tool. Refresh Rate Dimming optimized Set the LED’s to a dimmer optimized default (factory default). -
Page 16: Control Menu - Part Ii
Factory Default Reset the fixture to factory default settings. (continued) Service Pin Contact your SGM dealer or SGM support to request the service pin. Service use only. Service Menu Only accessible when service pin has been entered. Service use only. -
Page 17: Rdm
Display Level, 0=OFF, 1 and 0x8060 SGM Serial numberq above=ON ( POI n.a.) Please note: The RDM controller communicates with the fixtures to show only the available options for each RDM function. The table is subject to change without notice. -
Page 18: Troubleshooting
Confirm that the power is switched on; confirm that the cables are to be off. plugged in. Main fuse is blown. Contact a certified SGM service partner, or support@sgmlight.com. Fixture suddenly turned off. Power was turned off. Check the power supply, switches and breakers. -
Page 19: Poi Permanent Outdoor Installation
15: i-5 POI LED indicator SGM Addressing Tool SGM provides a Windows software tool designed to allow the user to address and configure the fixtures through RDM. Changing the settings is done in the exact same way as it is in the display. - Page 20 The i-5 POI has four M-10 nuts in the base that can be used for installation and rigging. The SGM Omega bracket (not included) or a customized bracket is needed to install the fixture. Consider the dimensions below of the i-5 POI base for customized mounting brackets purposes.
- Page 21 POI connection diagram i-5 POI connection diagram SGM POI DMX Cable Wire Color Conductor Shield Ground White DMX IN: Data - DMX IN: Data + Black DMX OUT: Data - Yellow DMX OUT: Data + Junction box Junction box Shield / GND...
-
Page 22: Accessories
The i-5 Series can be used with various accessories such as barndoors, color frame, and anti-glare shields. To get to know all the available i-5 Series accessories, see www.sgmlight.com, or con- tact your local SGM dealer. Accessory holder The Accessory holder is a mandatory base for holding Barndoors and Color frames to the i-5 Series fixture. - Page 23 Although is must be ordered as an accessory, the fixture can be customized with the honeycomb at request when ordering. Note: This accessory is suitable for both permanent outdoor and indoor installa- tions. Figure 12: i-5 Series Honeycomb For further information and other possibilities see www.sgmlight.com or contact your local SGM dealer.
-
Page 24: Maintenance
We recommend that the fixture’s firmware is always up-to-date. The latest firmware version is available for download under the respective product at www.sgmlight.com. To update your i-5 Series with the latest firmware, use an SGM USB 5-Pin-XLR uploader cable, and a Windows-based computer with the SGM Firmware Tool software installed (available for download at www.sgmlight.com). -
Page 25: Ordering Information
I-5 UV, POI, BL / WH............................P/N: 80031406 / 80031456 The i-5 Series can be ordered in any RAL color, and with Honey Comb at request. Contact your local SGM dealer for ordering customized color housings or for more information. -
Page 26: Support Hotline
Support hotline SGM offers 24/7 technical support hotline. Worldwide: +45 3840 3840 US: +1 877 225-3882 support@sgmlight.com Approvals and certifications Conforms to 2014/35/EU: Low Voltage Directive Conforms to 2014/30/EU: EMC Directive Conforms to 2011/65/EU: RoHS2 Directive Conforms to ANSI/UL Std. 1573 Certified to CSA Std. -
Page 27: User Notes
User Notes... - Page 28 SGM Light A/S Sommervej 23 8210 Aarhus V Denmark Tel: +45 70 20 74 00 info@sgmlight.com www.sgmlight.com...
