Invacare® Fox™

5.13 Standard 80° footrest

5.13.1 Swivel the footrests outwards and/or remove them

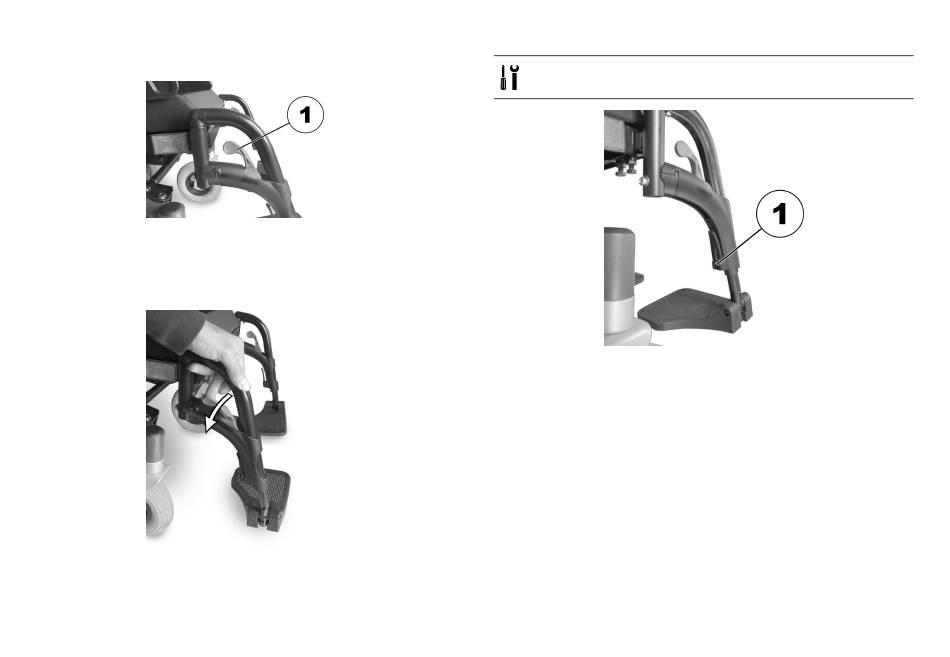

The small release lever is to be found in the upper part

of the legrest (1). When the legrest is released it can be

swivelled inward or outward to facilitate access and also be

removed completely.

1. Push the release lever inward or outward. The legrest

is released.

2. Swivel the legrest inward or outward.

3. To remove the legrest simply pull upward.

•

5 mm Allen key

1. Loosen the screw (1) using the Allen key, but do not

remove completely.

2. Set the legrest to the desired length.

3. Re-tighten the screw.

The unlocking knob is located on the top section of the

legrests. When the legrest is unlocked, it can be swivelled

to the inside or outside to facilitate getting in, or can be

completely removed.
