Setup

Mounting

Before mounting the product, read and follow the safety recommendations indicated in the

Orientation

The Intimidator Scan 110 may be mounted in any position; however, make sure adequate ventilation is
provided around the product.

Rigging

• Before deciding on a location, always make sure there is easy access to the product for
maintenance and programming.
• Make sure adequate ventilation is provided around the product.
• Make sure that the structure or surface onto which you are mounting the product can support the
product's weight. (see the
• When mounting the product overhead, always use a safety cable. Mount the product securely to a
rigging point, whether an elevated platform or a truss.
• When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity.
• When power linking multiple products, mount the products close enough for power linking cables to
reach.
• The rubber feet also serve as floor supports and allow for surface mounting. When mounting the
product on the floor, make sure that the product and cables are away from people and vehicles.

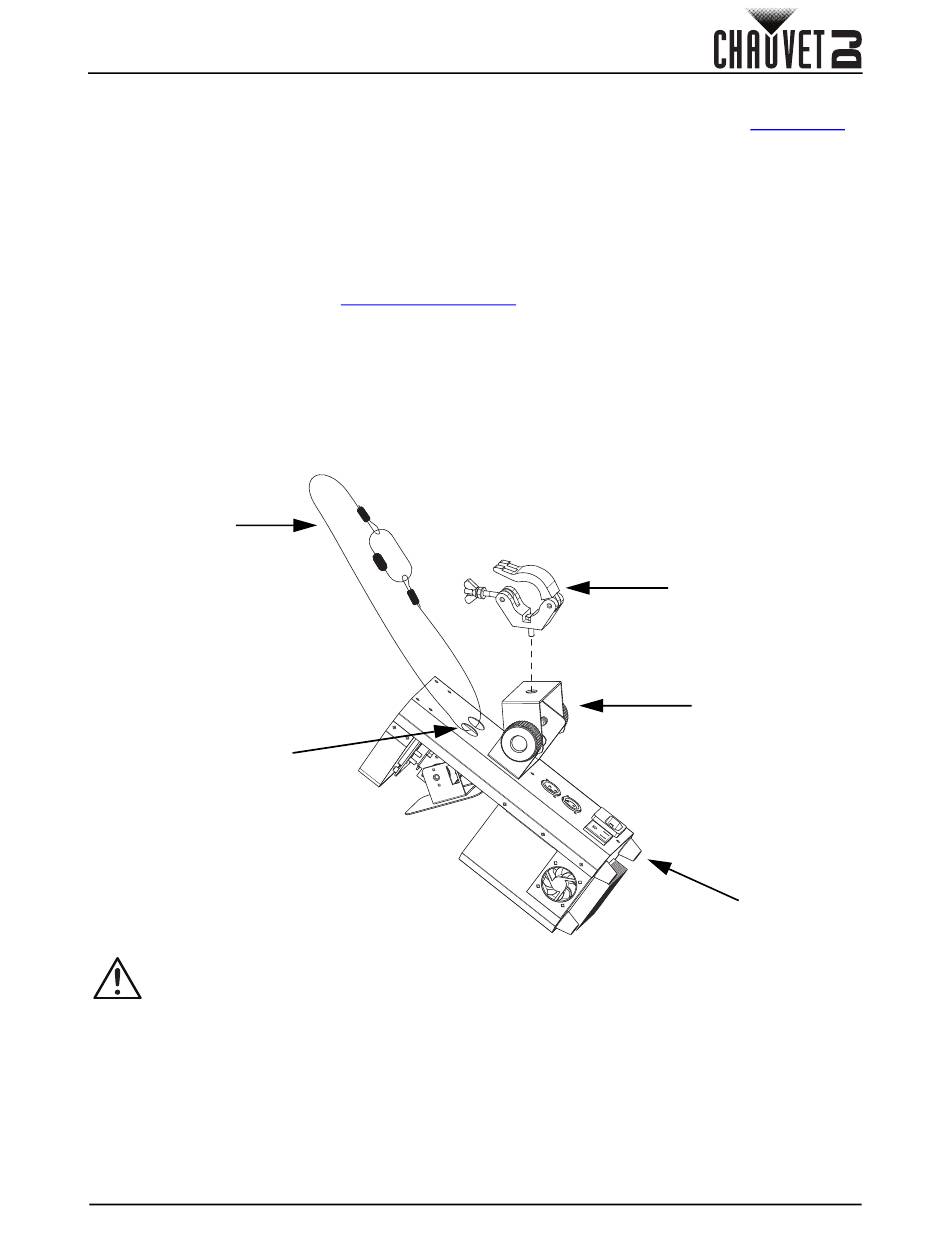

Mounting Diagram
Safety Cable
(such as CH-05
from Chauvet)
Safety Cable
Pass-through
When using only one mounting clamp with this fixture, you must use a clamp with a
captive bolt to prevent accidental loosening.
Intimidator Scan 110 User Manual Rev. 1
Technical Specifications)
Safety Notes.
Mounting Clamp
(such as CLP-10 from Chauvet)
Mounting Bracket
Feet for Floor
Mounting (x4)
