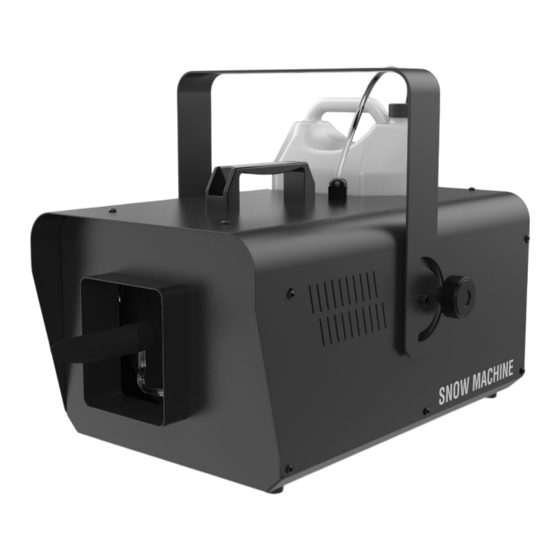

Summary of Contents for Chauvet DJ SM-250
- Page 1 User Manual...
- Page 2 SM-250 as of the release date of this edition. Trademarks Chauvet, Chauvet DJ, the Chauvet logo, and SM-250 are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
DMX Channel Assignments and Values ............Standalone Configuration................Remote Configuration ................... Wired Timer Remote Setup................Wired Timer Remote Operation................Optional Wireless Remote (FC-W)..............5. Maintenance..................Snow Machine Maintenance ................. Storage......................6. Technical Specifications..............Contact Us....................Warranty & Returns..................SM-250 User Manual Rev. 5... -
Page 4: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. SM-250 User Manual Rev. 5... -
Page 5: Safety Notes
Before You Begin Safety Notes These Safety Notes include important information about installation, use, and maintenance of the SM-250. ■ ALWAYS: ♦ Connect to a grounded circuit. ♦ Connect to operating voltages as specified on the product's spec sticker. ♦... -
Page 6: Introduction
Menu buttons Fluid level indicator Wired controller in DMX in/out Wireless receiver in Power in Blower speed switch Power switch Fuse holder Product Dimensions 13.9 in 355 mm 13.5 in 17.6 in 344 mm 449 mm SM-250 User Manual Rev. 5... -
Page 7: Setup
3. Setup AC Power The SM-250 has a fixed voltage power supply, and it can work with an input voltage range of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SM-250 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming. -
Page 9: Operation
S 0–3 Standalone snow output DMX Configuration The SM-250 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Starting Address The SM-250 uses 1 DMX channels in DMX mode, which defines the highest configurable address to 512. -
Page 10: Remote Configuration
Operation Remote Configuration The SM-250 operates with the included wired timer controller (FC-T). The product also operates with the FC-W wireless remote, available separately. Wired Timer Remote Setup The Wired Timer Remote (FC-T) allows automatic snow output triggering. LED indicators display the current state of the product and the controller. -
Page 11: Optional Wireless Remote (Fc-W)
3. Release the <MANUAL> button to stop the snow output. Optional Wireless Remote (FC-W) The optional FC-W wireless remote can trigger the SM-250 to produce snow from up to 100 ft away. 1. Plug the product in to power. 2. Plug the FC-W wireless remote receiver into the wireless receiver socket on the back of the SM- 250. -
Page 12: Maintenance
1 through 5. Do not refill the tank with snow fluid if storing the SM-250. Cleaning the system prior to storage will help prevent any particles from condensing inside the pump while not in use. -
Page 13: Technical Specifications
580 ml/min Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR Ordering Product Name Item Code UPC Number SM-250 (120 V) 09071210 781462215583 SM-250 (230 V) 09072213 781462225612 SM-250 User Manual Rev. 5... -
Page 14: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. SM-250 User Manual Rev. 5...
