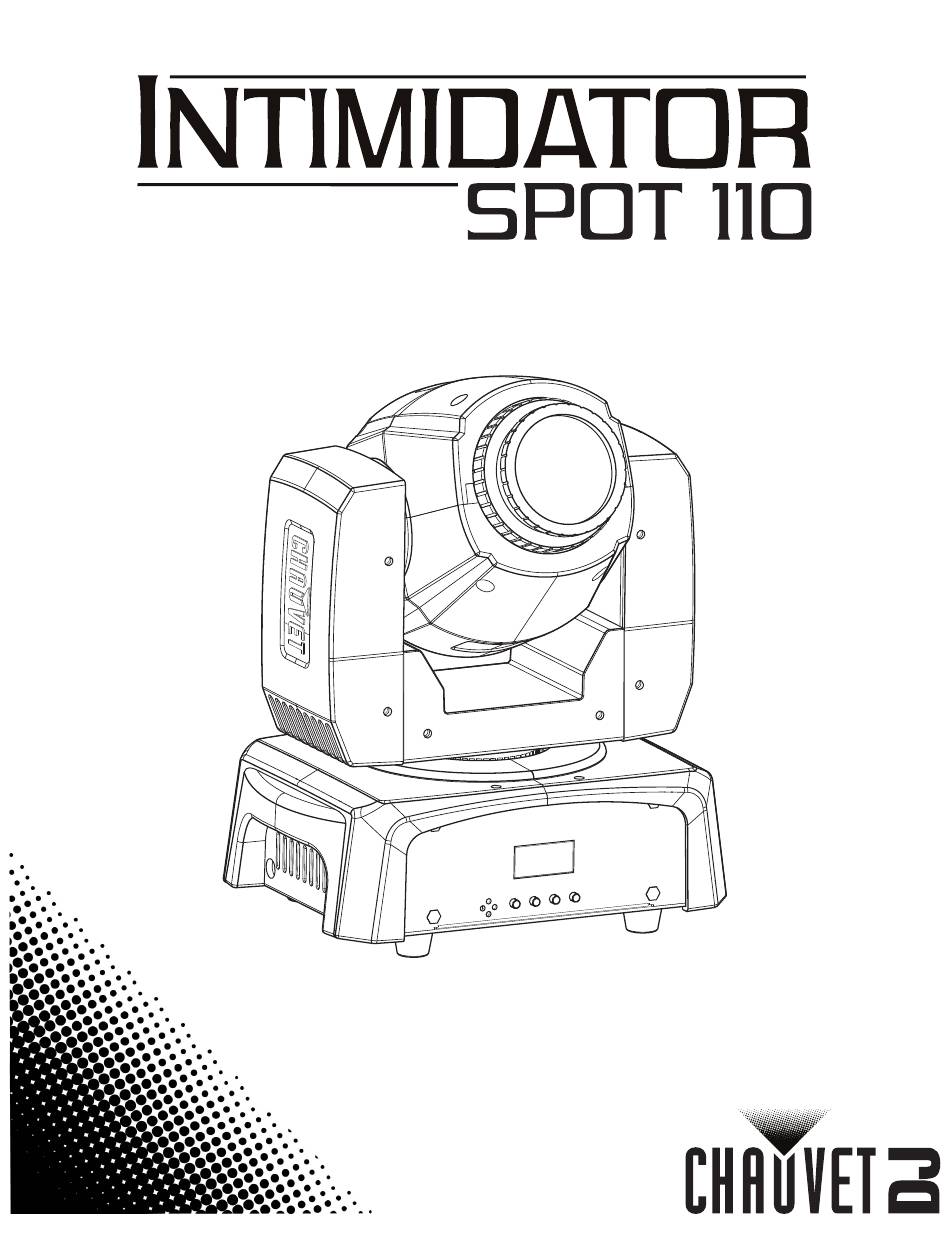

- Page 1 User Manual...
-
Page 2: Table Of Contents
Tilt Reverse ......................Firmware Version ....................Factory Reset ......................RC-6 Infrared Remote Control ..............IRC-6 Operation ...................... Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Intimidator Spot 110 User Manual Rev. 3... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and Intimidator Spot 110 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. -
Page 4: Safety Notes
Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Page 2 of 16 Intimidator Spot 110 User Manual Rev. 3... -
Page 5: Introduction
Product Overview Moving Head Yoke Carry Handles Menu Microphone Power Fuse Display Buttons In/Out Holder Product Dimensions 11 in 279 mm 7.5 in 5 in 190 mm 127 mm Intimidator Spot 110 User Manual Rev. 3 Page 3 of 16... -
Page 6: Setup
3. Setup AC Power The Intimidator Spot 110 has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 110 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 8: Operation
Factory LoAd Loads factory defaults Reset Configuration (DMX) The Intimidator Spot 110 works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: Dmx Personalities
Operation DMX Personalities The Intimidator Spot 110 has two DMX personalities, a 12-channel personality, and a 6-channel personality. To select a DMX personality, follow the instructions below. 1. Press <MENU> repeatedly until ChMd shows on the display. 2. Press <ENTER>. - Page 10 196 215 Movement macro 10 216 235 Movement macro 11 236 255 Movement macro 12 Movement Macro Speed 000 255 Movement macro speed, fast to slow Page 8 of 16 Intimidator Spot 110 User Manual Rev. 3...
-
Page 11: 6Ch
3. Use <UP> or <DOWN> to select Soud. 4. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Spot 110, follow the instructions below: 1. Press <MENU> repeatedly until SEnS shows on the display. 2. Press <ENTER>. -
Page 12: Manual Mode
7. Repeat steps 3-6 until the product is set as desired. Configuration (Settings) Pan Reverse To set the pan orientation on the Intimidator Spot 110, follow the instructions below: 1. Press <MENU> repeatedly until PAn shows on the display. 2. Press <ENTER>. -
Page 13: Infrared Remote Control
Operation RC-6 Infrared Remote Control The Intimidator Spot 110 is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 110 to IR mode, follow the instructions below: 1. Press <MENU> repeatedly until ShMd shows on the display. -
Page 14: Master/Slave Mode
The Master/Slave mode allows a single Intimidator Spot 110 product (the “master”) to control the actions of one or more Intimidator Spot 110 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 15: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Intimidator Spot 110 User Manual Rev. 3 Page 13 of 16... -
Page 16: Technical Specifications
Cooling System 104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR 6 or 12 Ordering Product Name Item Code UPC Number Intimidator Spot 110 07011494 781462218423 Page 14 of 16 Intimidator Spot 110 User Manual Rev. 3... -
Page 17: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Intimidator Spot 110 User Manual Rev. 3 Page 15 of 16... -
Page 18: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 16 of 16 Intimidator Spot 110 User Manual Rev. 3...
