- Page 1 User Manual...
-
Page 2: Table Of Contents
Flash if DMX......................Factory Reset ......................System Information ....................IRC-6 Infrared Remote Control ..............IRC-6 Operation ...................... Master/Slave Mode ..................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Intimidator Scan 360 User Manual Rev. 3... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. Chauvet, the Chauvet logo, Chauvet DJ, and Intimidator Scan 360 are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Safety Notes
• Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Intimidator Scan 360 User Manual Rev. 3... -
Page 5: Introduction

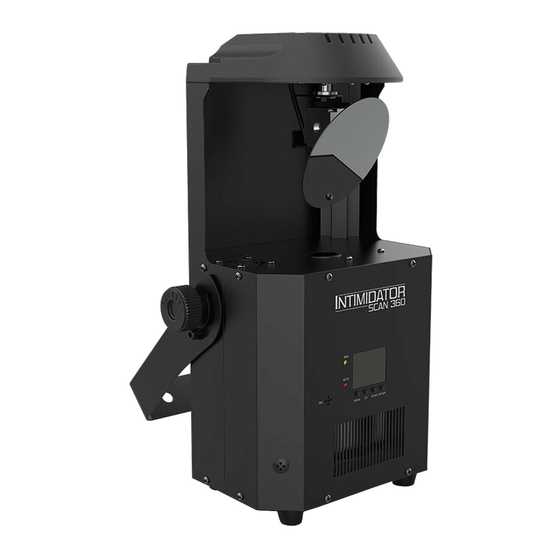

2. Introduction Product Overview Mounting bracket Mirror Lens Display Safety cable pass-through Bracket Menu adjustment knob Power buttons in/out in/out Product Dimensions 16.3 in 415 mm 6 in 155 mm 10 in 255 mm Intimidator Scan 360 User Manual Rev. 3... -
Page 6: Setup
3. Setup AC Power The Intimidator Scan 360 has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Scan 360 may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 8: Operation
Press to scroll down the list of options or to decrease the numeric value in a function <ENTER> Press to activate a menu option or set the selected value in a function Menu Map Refer for the Intimidator Scan 360 product page on www.chauvetdj.com for the latest menu map. Main Function... -
Page 9: Dmx Configuration
If the starting address is set too high, access to some of the product’s channels could be restricted. The Intimidator Scan 360 uses up to 12 DMX channels, which defines the highest configurable address to 501. For information about the DMX protocol, download the DMX Primer from www.chauvetdj.com. -
Page 10: Dmx Channel Assignments And Values
231 Counterclockwise rotation, slow to fast 255 Boomerang, short to long 015 No function Prism 127 Prism on (static) 255 Clockwise rotation, slow to fast Focus 255 0–100% Dimmer 255 0–100% Intimidator Scan 360 User Manual Rev. 3... - Page 11 183 Sound-active movement macro 3 199 Sound-active movement macro 4 215 Sound-active movement macro 5 231 Sound-active movement macro 6 247 Sound-active movement macro 7 255 Sound-active movement macro 8 Intimidator Scan 360 User Manual Rev. 3...
-
Page 12: Standalone Configuration
3. Use <UP> or <DOWN> to select Sound. 4. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Scan 360, follow the instructions below: 1. Press <MENU> repeatedly until Setup shows on the display. 2. Press <ENTER>. -
Page 13: Settings Configuration
5. Use <UP> or <DOWN> to select OFF (normal screen display) or ON (reverse screen display). 6. Press <ENTER>. Signal Loss To set the action that the Intimidator Scan 360 does once DMX signal is lost, follow the instructions below: 1. Press <MENU> repeatedly until Setup shows on the display. 2. Press <ENTER>. -
Page 14: Factory Reset
Celsius). IRC-6 Infrared Remote Control The Intimidator Scan 360 is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Scan 360 to IR mode, follow the instructions below: 1. Press <MENU> repeatedly until Run Mode shows on the display. -
Page 15: Master/Slave Mode
The Master/Slave mode allows a single Intimidator Scan 360 product (the “master”) to control the actions of one or more Intimidator Scan 360 products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, while the slave products will be set to operate in slave mode. -
Page 16: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Intimidator Scan 360 User Manual Rev. 3... -
Page 17: Technical Specifications
Thermal Maximum External Temperature Cooling System 104 °F (40 °C) Fan-assisted convection I/O Connector Channel Range 3-pin XLR 8 or 12 Ordering Product Name Item Code UPC Number Intimidator Scan 360 07021724 781462220723 Intimidator Scan 360 User Manual Rev. 3... -
Page 18: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Intimidator Scan 360 User Manual Rev. 3...
