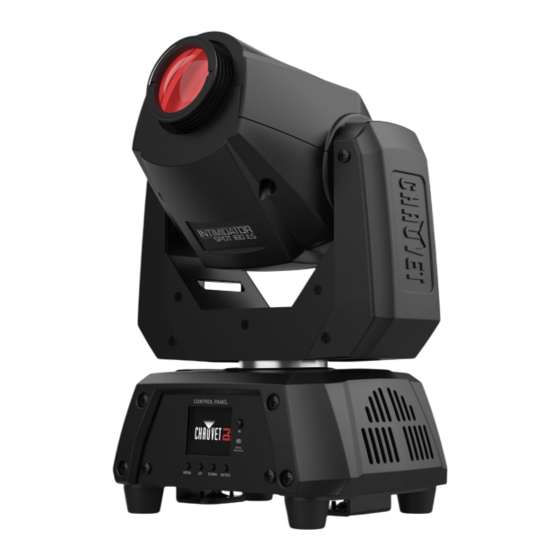

Summary of Contents for Chauvet DJ Intimidator Spot 160 ILS

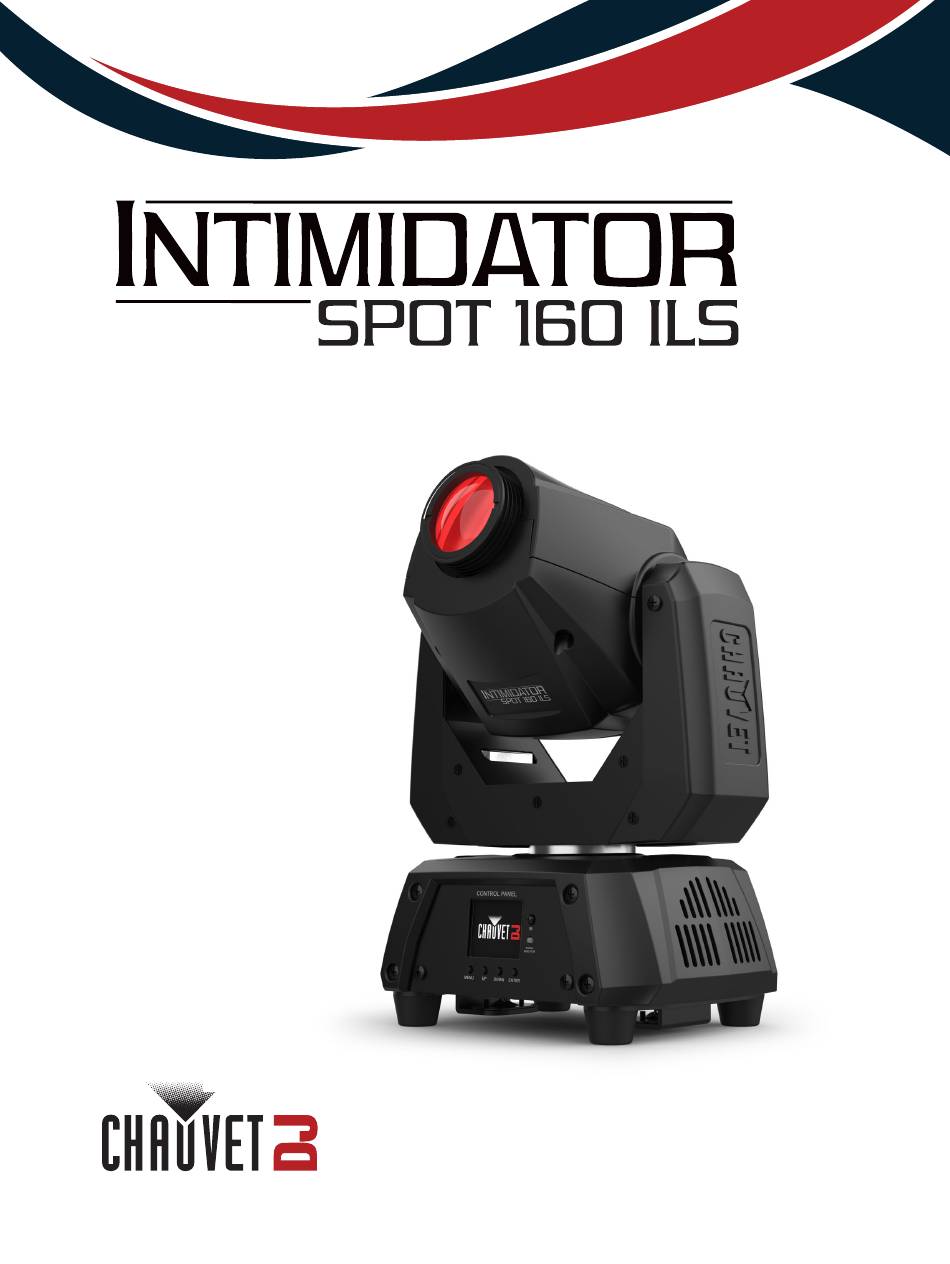

  • Page 1 User Manual...
  • Page 2: Table Of Contents

    IRC-6 Operation ......................13 Dimmer ........................... Pan/Tilt..........................Sound Mode........................Auto Mode........................Color Wheel ........................Gobo Wheel ........................Blackout .......................... Master/Slave Mode ....................5. Maintenance....................Product Maintenance ....................6. Technical Specifications................Contact Us......................Warranty & Returns....................Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 3: Before You Begin

    Electronically published by Chauvet in the United States of America. Chauvet, the Chauvet logo, Chauvet DJ, and Intimidator Spot 160 ILS are registered trademarks or trademarks of Chauvet & Sons LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
  • Page 4: Safety Notes

    ♦ Set this product on a flammable surface. Keep this User Manual for future use. If the product is sold to someone else, be sure that they also receive this document. Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 5: Introduction

    Product Overview Moving head Yoke display IR sensor Power indicator Fuse Menu holder buttons Safety Power loop in/out Product Dimensions 8.2 in (207 mm) 12 in (305 mm) 5.9 in (149 mm) Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 6: Setup

    Power-Linking Diagram Power source Additional products It is possible power link up to 7 Intimidator Spot 160 ILS products on 120 VAC or up to 12 products on 230 VAC. Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 7: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Intimidator Spot 160 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming.
  • Page 8: Operation

    Navigates downwards through the menu list or decreases a selected numeric value <ENTER> Enables the currently displayed menu or sets a selected value into the selected function Menu Map Refer to the Intimidator Spot 160 ILS product page on www.chauvetdj.com for the latest menu map. Main Level...
  • Page 9: Dmx Configuration

    DFI: _ _ _ _ _ _ _ Displays connected D-Fi (if available) DMX Configuration The Intimidator Spot 160 ILS works with a DMX controller. Information about DMX is in the Chauvet DMX Primer available from the Chauvet website: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf.
  • Page 10: Dmx Channel Assignments And Values

    004  007 Open 008  076 Strobe (slow to fast) Shutter 077  145 Pulse strobe (slow to fast) 146  215 Random strobe (slow to fast) 216  255 On Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 11: Gobos

    184  199 Sound-active movement macro 4 200  215 Sound-active movement macro 5 216  231 Sound-active movement macro 6 232  247 Sound-active movement macro 7 248  255 Sound-active movement macro 8 Gobos Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 12: Standalone Configuration

    4. Use <UP> or <DOWN> to select Sound. 5. Press <ENTER>. Sound Sensitivity To set the sound sensitivity on the Intimidator Spot 160 ILS, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>.
  • Page 13: Tilt Reverse

    DOWN (restricts the pan and tilt motion for surface/floor mounting). 7. Press <ENTER>. DMX Loss To set the action the Intimidator Spot 160 ILS will do when signal is lost, do the following: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup.
  • Page 14: Indicator

    4. Use <UP> or <DOWN> to select Reset. 5. Press <ENTER>. Factory Reset To restore the Intimidator Spot 160 ILS to factory default settings, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Setup. 3. Press <ENTER>.
  • Page 15: Irc-6 Infrared Remote Control

    Operation IRC-6 Infrared Remote Control The Intimidator Spot 160 ILS is compatible with the IRC-6 infrared remote control from Chauvet. To set the Intimidator Spot 160 ILS to IR mode, follow the instructions below: 1. Press <MENU>. 2. Use <UP> or <DOWN> to select Run Mode.
  • Page 16: Master/Slave Mode

    The Master/Slave mode allows a single Intimidator Spot 160 ILS product (the “master”) to control the actions of one or more Intimidator Spot 160 ILS products (the “slaves”) without the need of a DMX controller. The master product will be set to operate in either standalone mode or with the IRC-6, whereas the slave products will be set to operate in slave mode.
  • Page 17: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans using compressed air because they could be damaged. Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 18: Technical Specifications

    Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 5 or 11 Ordering Product Name Item Code UPC Number Intimidator Spot 160 ILS 10011850 781462221980 Intimidator Spot 160 ILS User Manual Rev. 2...
  • Page 19: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Intimidator Spot 160 ILS User Manual Rev. 2...
