Summary of Contents for START International LDX6000 Series

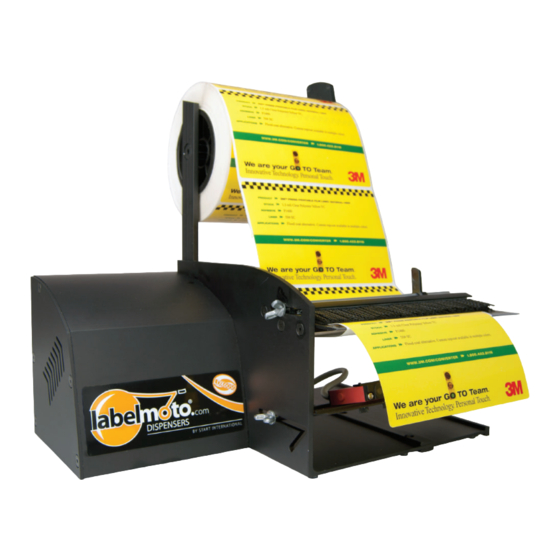

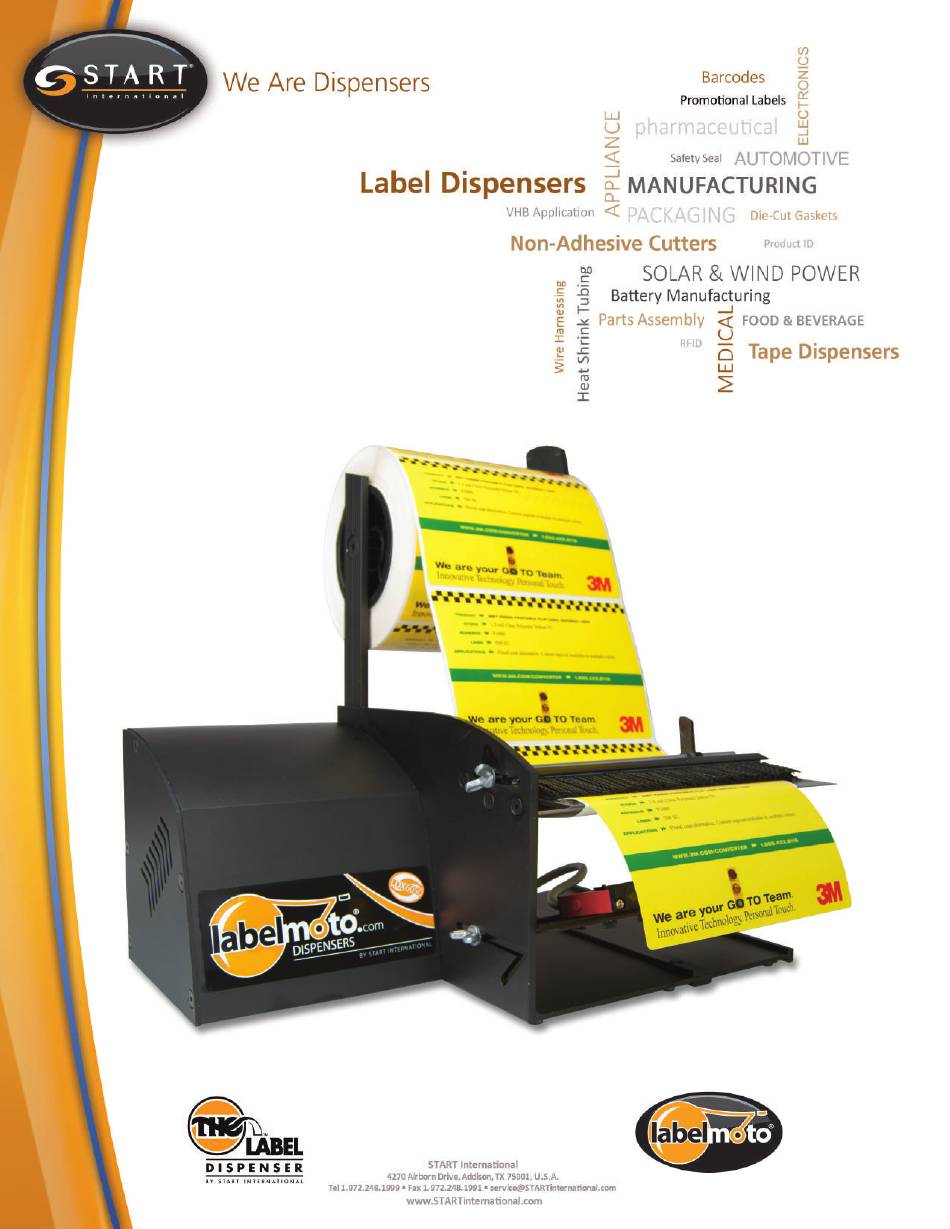

- Page 1 LDX6000 Series LDX6025 LDX6050 LDX6100...
- Page 2 Page 7 WARRANTY POLICY FOR LD SERIES LABEL DISPENSERS START International warrants all parts on LDX6000 series label dispensers against defects in design, materials and workmanship for a period of 1080 days. Labor to replace defective parts will be performed at no charge for the first 360 days after date of purchase. Warranty does not cover transportation costs.
- Page 3 MAINTENANCE Turn machine off when not in use. Remove liner material from take-up hub at approximately 3” in diameter or if motor appears to be straining. Do not operate machine without covers in place. Do not operate if inspection reveals a damaged power or sensor cord. EXPLODED VIEW...
- Page 4 • Do not drop the dispenser or subject it to heavy shock. • Turn off machine when not in use. REPAIR POLICY Contact START International to determine the nature of the problem. Supply START with the following information: 1. Who the unit was purchased from.
- Page 5 SET-UP INSTRUCTIONS SET-UP INSTRUCTIONS...
- Page 6 SET-UP INSTRUCTIONS...
- Page 7 ADJUSTMENTS Hold Down: Using the upper thumbscrew on the side of the machine, adjust the hold down for tensioning. For best results, labels should be pressed firmly against the strip plate. However, if the labels are held too tightly, they will cause excessive drag on the motor. Photosensor: The photosensor can be adjusted in any direction by using the lower thumbscrew on the side of the machine and the thumbscrew underneath the photosensor bracket.
