5

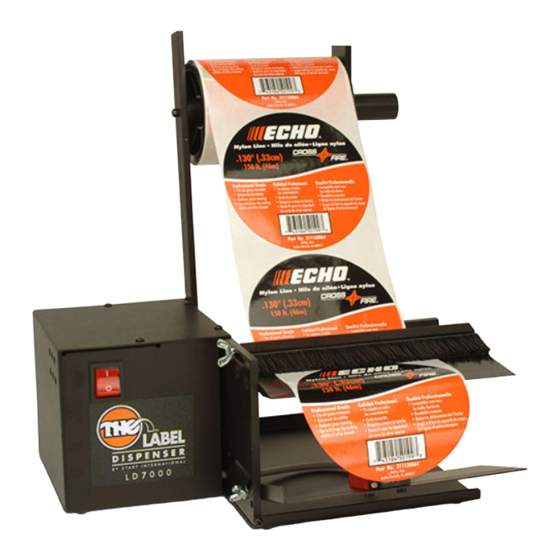

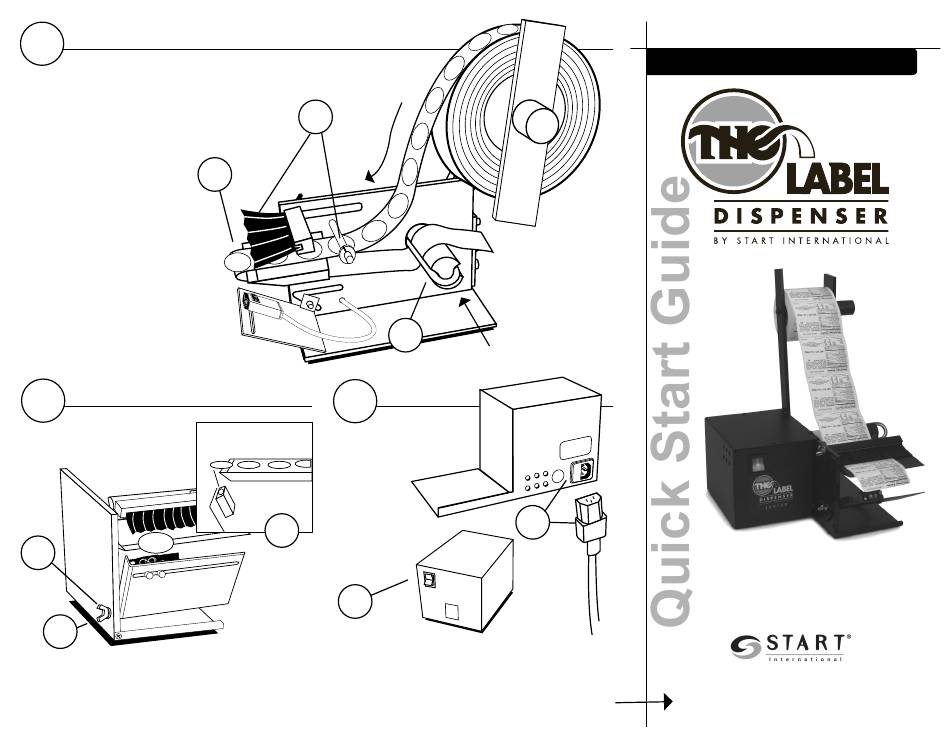

Load Dispenser
B
A: Feed label liner under
guide rod and brush
B: Bend liner around
strip plate
(label will hang
slightly over edge for lifting)
C: Slide lock rod back onto
take-up hub to secure liner
6
Point sensor toward
Adjust Sensor
edge of label.
A
C
A: Loosen wingscrew to adjust sensor plate
B: Point sensor towards edge of label
C: Tighten wingscrew to secure in place
A
C
7
Plug In - Turn On
B
B
A: Connect power cord (in back)
B: Press power switch (on front) to turn
on the machine
Need more help? Download the full manual or contact us
LD5000, LD5100, LD7000
LD5000
A
4270 Airborn Dr. Addison, TX 75001, USA
972.248.1999 | tech@startinternational.com
s t a r t i n t e r n a t i o n a l . c o m
Q9.4
®
