5
Remove Lock Rod
A: Slide lock rod off of take-up hub
6
Secure Liner
A: Slide lock rod back onto take-up
hub to secure liner
B: Adjust / lower wIngscrew to create tension
on label liner
7
Adjust Sensor
A
C
A
A: Loosen wingscrew (on side) to adjust
sensor plate
B: Point sensor towards edge of label
C: Tighten wingscrew to secure in place
8
Plug In Turn On
A
B
A: Connect power cord (in back)
B: Press power switch (on front) to turn
on the machine
Need more help? Download the full manual or contact us
B
B
A

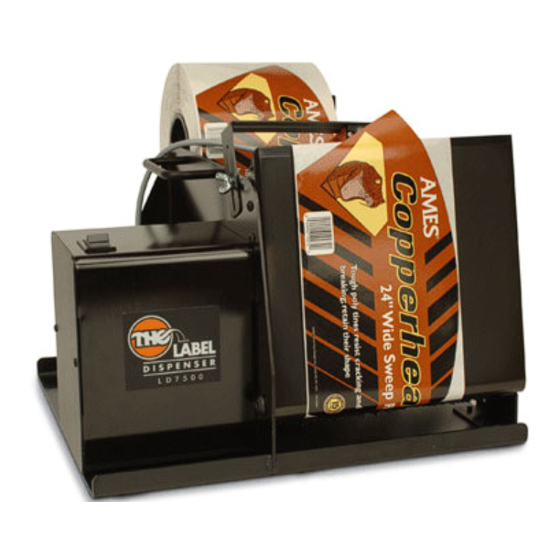

LD5500, LD7500
LD5000
®
4270 Airborn Dr. Addison, TX 75001, USA
972.248.1999 | tech@startinternational.com
s t a r t i n t e r n a t i o n a l . c o m
