MR-9600 Microplate Reader User Manual
After the self-check, the software enters into the main Protocol interface.
There are 4 tabs in the software: Protocol, Results, Settings and Help.
You can choose the tabs using the touch screen, or using a connected mouse.
You can create, save, measure, set parameters. Refer to Fig 2.

1. Keyboard function and operation

1.1 Keyboard function

① Current protocol name:
As shown in Fig 2, the current protocol is default Demo_1. The upper left box shows the current
protocol name to use.
② Click on
Input a new protocol name, click "OK" or "return". (Fig. 3)
Section 2

Protocol interface

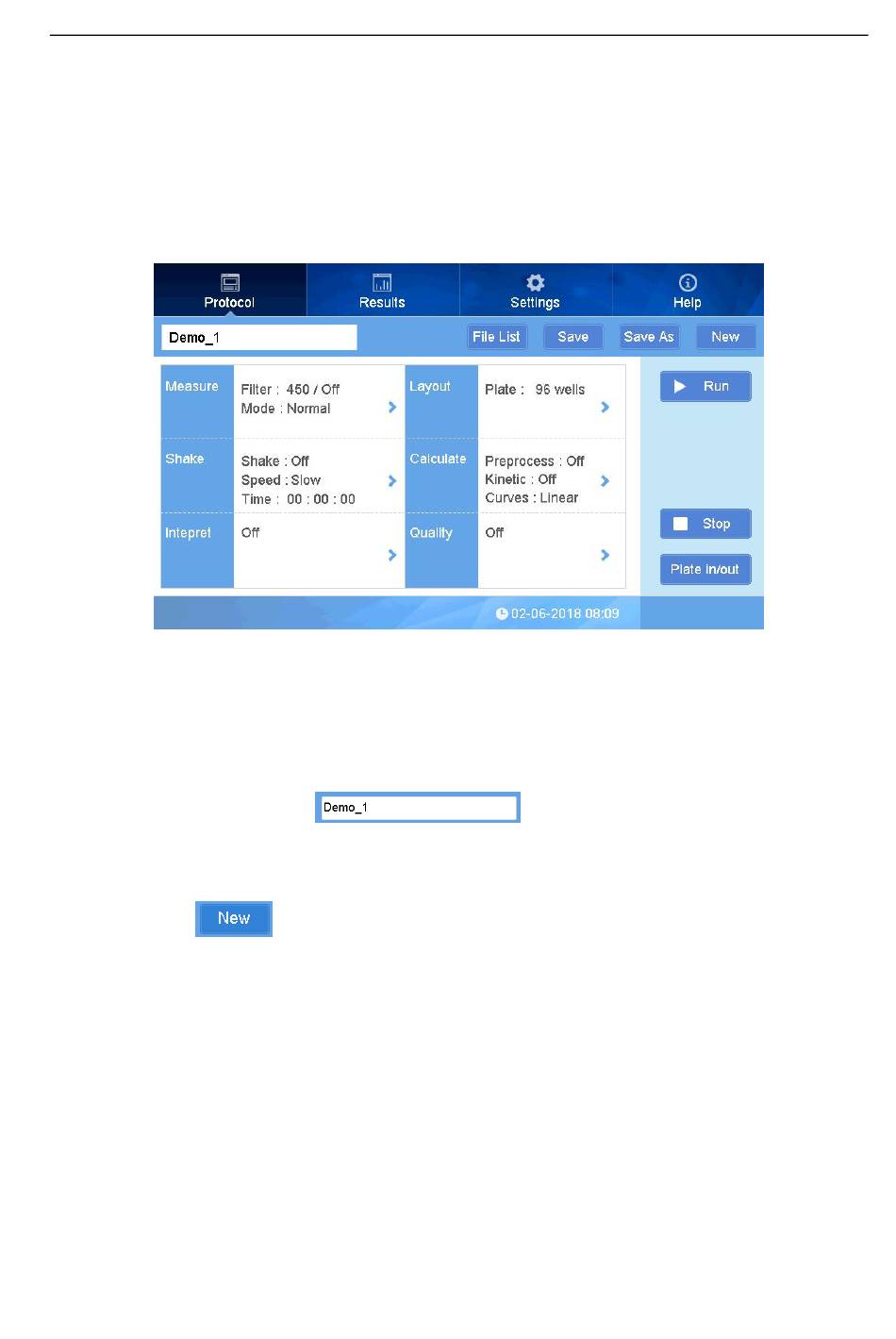

Fig 2
to create a new protocol
7
Chapter 5 Operation guide
