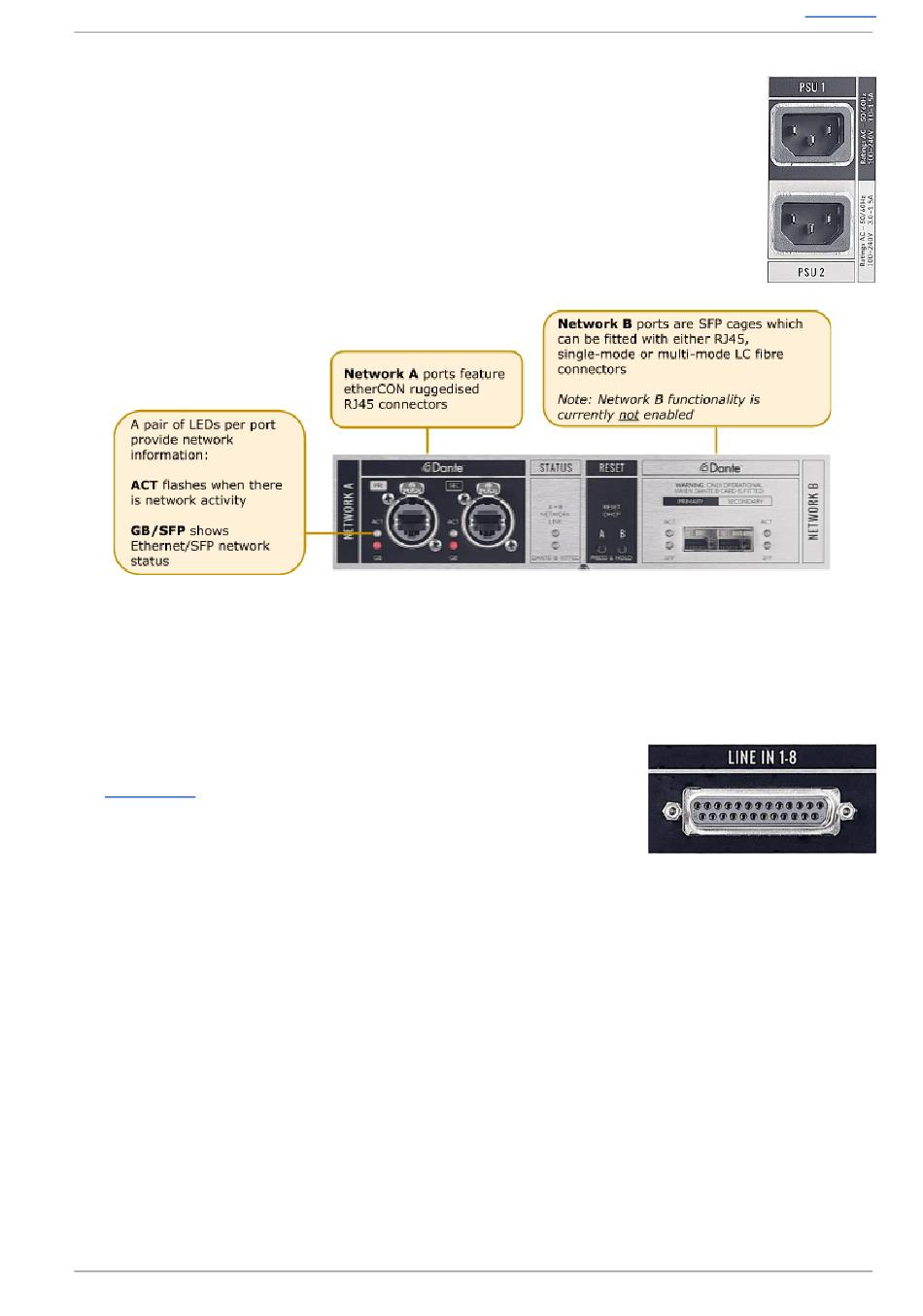

Hardware Connections
Mains Power Connections
The A16.D16, A32 and D64 include redundant PSUs with IEC C14 inlets. Either
supply can individually power the unit. Ideally these should be connected to separate
power circuits to provide redundancy of incoming AC power.
Dante Connections
The A16.D16, A32 and D64 have two redundant sets of network connections. The Network B port
connectivity is currently not enabled, this requires an additional Dante card which is currently not
available.
Audio and GPIO Connections
All audio and GPIO connections are via 25-pin D-type connectors.
See Appendix B for pinout information.
