Hardware Connections:
DANTE Connections

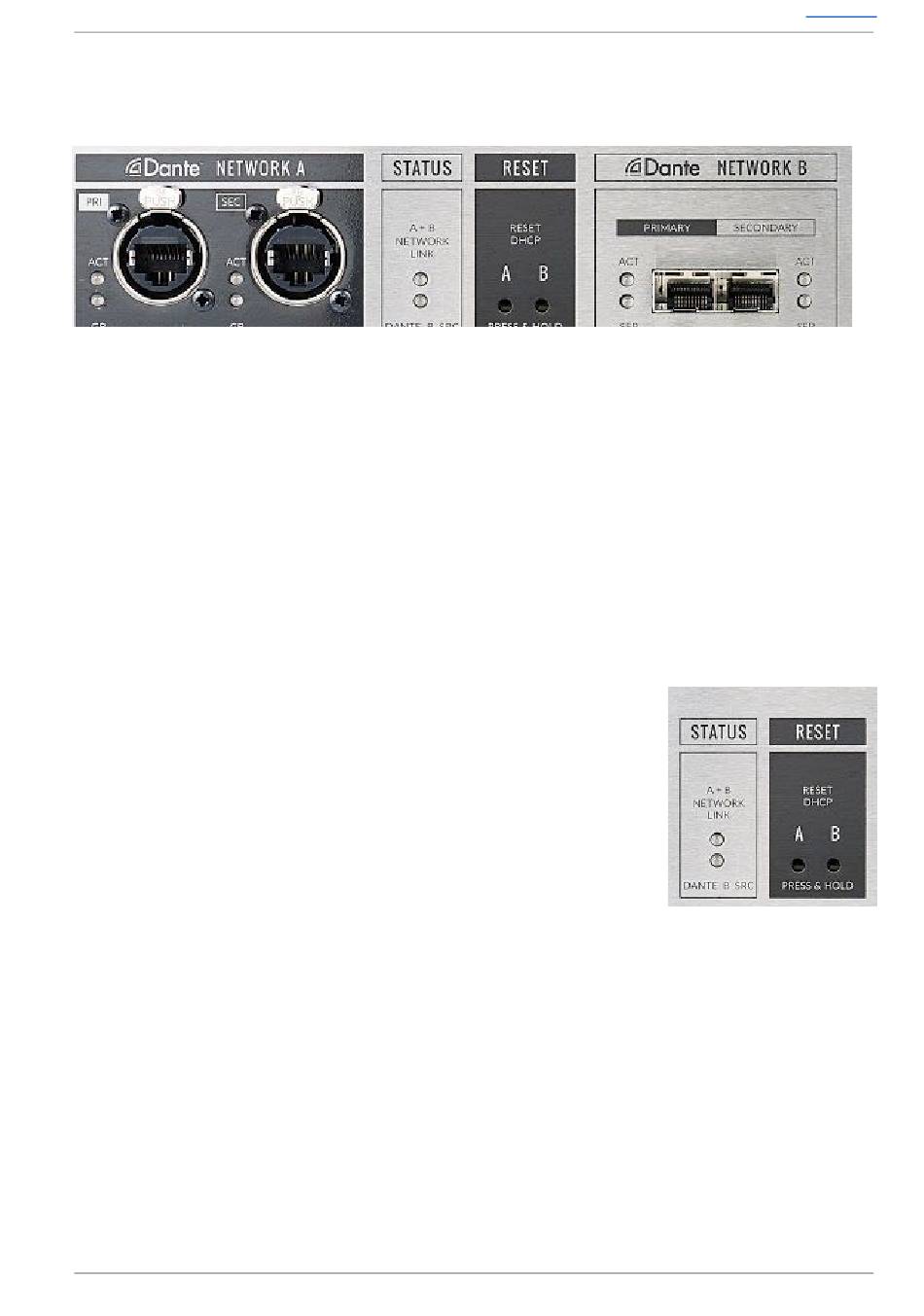

SB 32.24 has two redundant sets of network connections. The Network A ports feature etherCON
ruggedised RJ45 connectors, and the Network B ports are SFP cages, which can be fitted with either
RJ45, Single-mode or Multi-mode LC fibre connectors.
The SB 32.24 Network connections can be configured in two different modes:
In the first mode, the A and B networks are linked internally (​ A +B Network Link​ LEDs are ON). In
this mode, both Network A and Network B are identical and output both the gain-dependant and
gain-compensated audio. Dante devices can subscribe to either one.
In second mode, the A and B networks are discrete (​ A +B Network Link​ LEDs are OFF), and
isolated from each other. In this mode Network A transmits uncompensated audio (and receives
audio for the analogue and AES outputs and also control data) and Network B transmits the
compensated audio only. ​ N ote that they have to be synchronised to the same clock source.
Status & Reset (DHCP)
A+B Network Link​ LED indicates unit is configured to connect internal
A and B networks
Off​ :
Networks not linked
Green​ :
Network A and Network B Linked
Dante B SRC​ LED is reserved for future possibilities!
Reset DHCP​ independently resets the internal Networks to DHCP
supplied addresses. Insert a small 'prodder' into the relevant opening
and press and hold for approx. 3 seconds to reset to DHCP addressing. The LED on the chosen port
will briefly turn red to indicate this has happened.
Factory Reset
If BOTH ​ R eset DHCP​ buttons are held for 6 seconds, this will trigger a Factory Reset of the
stagebox.
