Introduction
Overview
A16.D16, A32 and D64 are 2U Dante I/O devices featuring high-density combinations of
SuperAnalogue™, AES3 and GPIO connections. All analogue audio, AES audio and GPIO connectors
are 25-pin D-type. These units can all be controlled remotely from SSL System T and SSL's Network
I/O Controller app for PC.
A16.D16 is a 32-input and 32-output Dante I/O device featuring 4 SuperAnalogue mic/line inputs,
12 SuperAnalogue line inputs, 8 AES3 inputs, 16 SuperAnalogue line outputs, 8 AES3 outputs and 4
GPIO connections.
A32 is a 32-input and 32-output Dante I/O device featuring 32 SuperAnalogue line inputs and 32
SuperAnalogue line outputs.
D64 is a 64-input and 64-output Dante I/O device featuring 32 AES3 inputs and 32 AES3 outputs.
These units are ideally suited for bulk analogue and AES I/O connections from control or machine
rooms, featuring a high-density combination of analogue and digital inputs and outputs, GPIO,
redundant power and network connections.
Key Features
Interface between control/machine room analogue/AES connections and IP audio networks
●
using Dante and AES67
Redundant PSUs and Dante network connections
●
SSL SuperAnalogue technology
●
Device and parameter ownership assignment to avoid control conflicts
●
Front facing Dante network connections
●
Rear facing audio and GPIO connections
●
Silent operation - no cooling fans
●

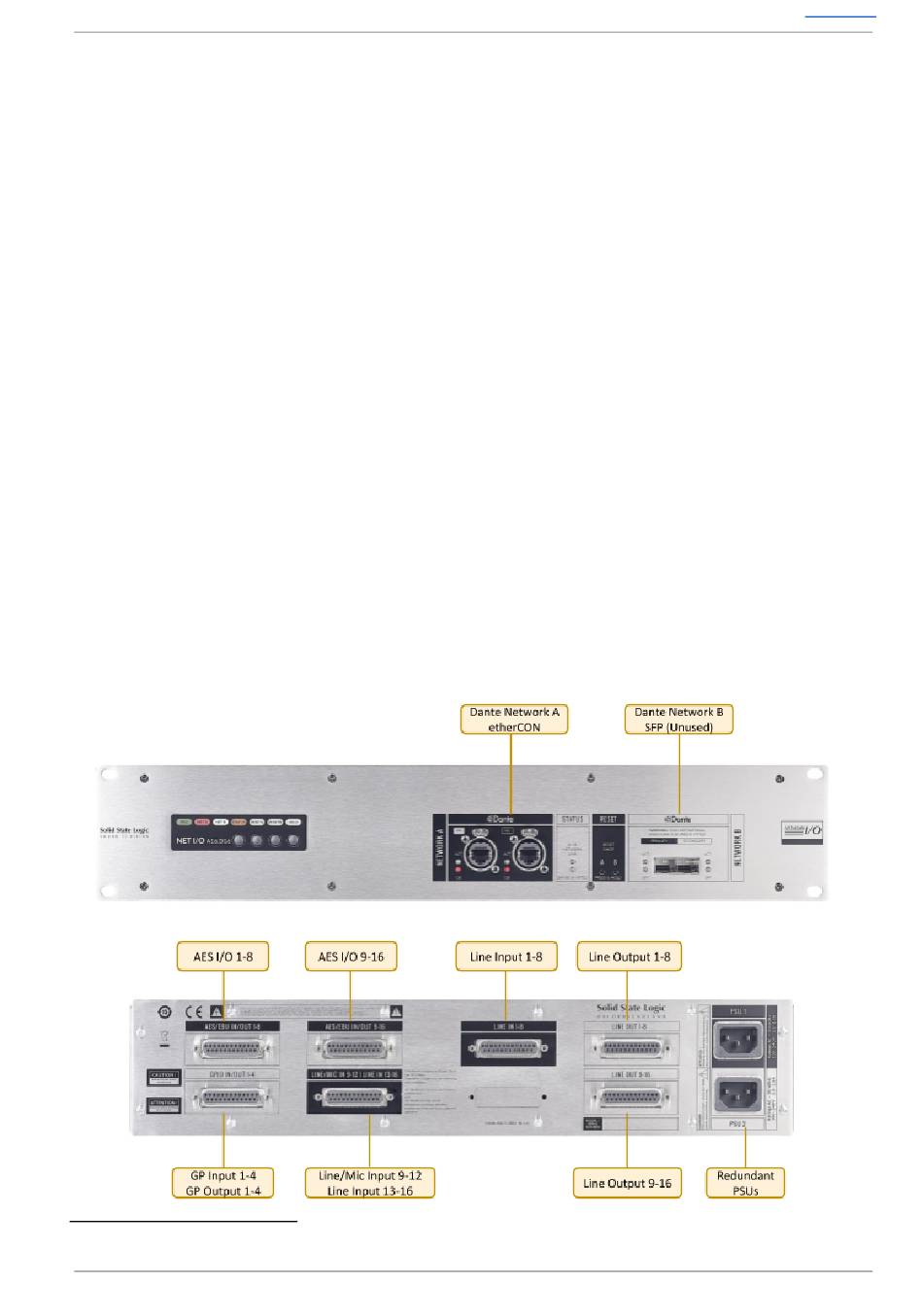

A16.D16 Front Panel
A16.D16 Rear Panel
1 A16.D16 and A32 only
1
