GPIO (A16.D16 Only)
GP Outputs
All output switch closures are via DIL relay.
DO NOT use these outputs to directly switch capacitive or reactive loads; always use a separate
external relay with suitable contact rating.
DIL Relay Ratings:
• 100V DC, 125V AC
• 100mA max.
GP Inputs

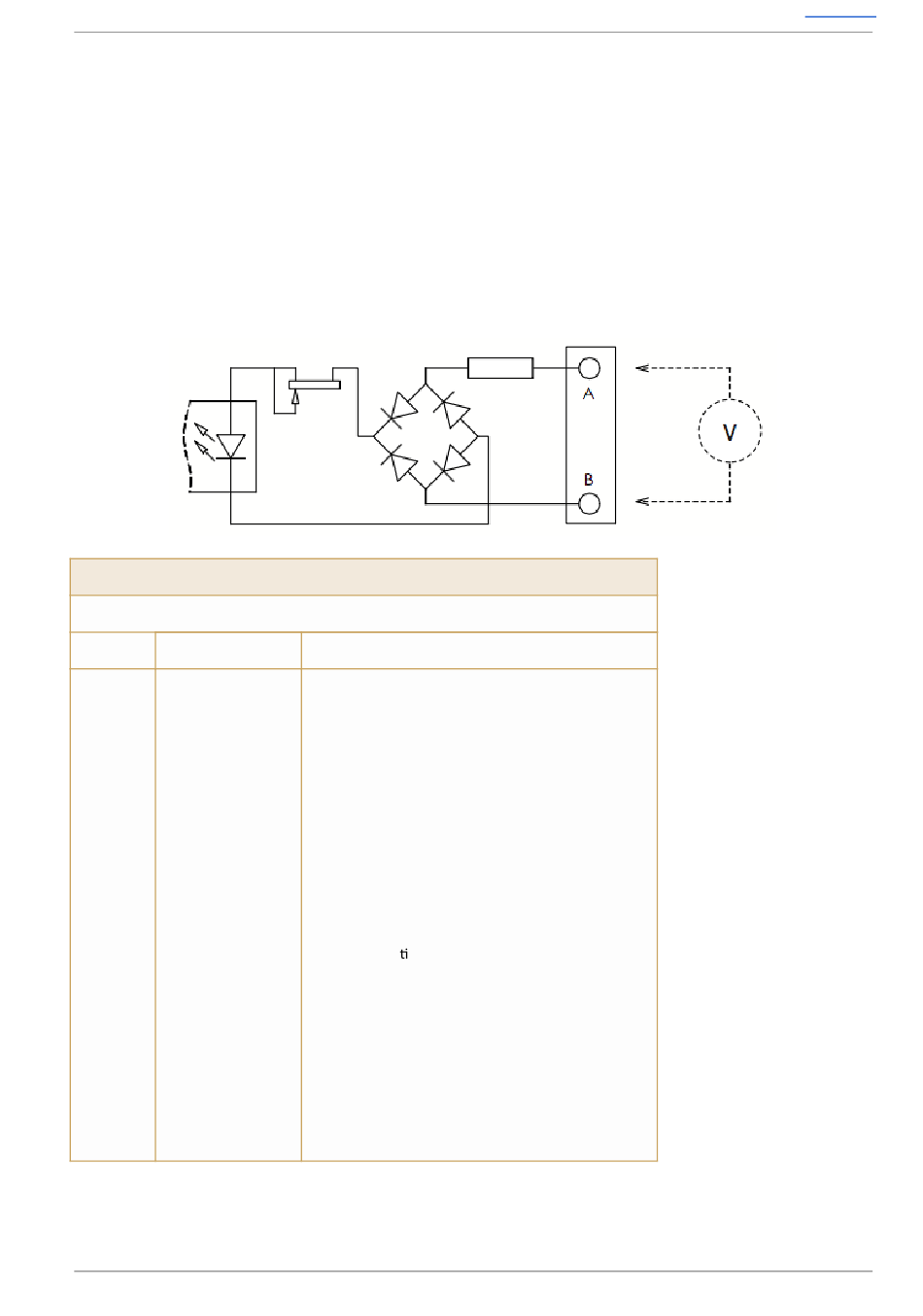

Inputs are triggered by applying an AC or DC voltage of between 4V and 24V. The current drawn is
approximately 10mA. Minimum input pulse duration 50mS.
GP Inputs / Outputs
Connector Type:
Pin Description
1 Input 1A
14 Input 1B
2 Input 2A
15 Input 2B
3 Input 3A
16 Input 3B
4 Input 4A
17 Input 4B
5
18
6
19
7 +12V Output
20 Chassis
8 Output 1A
21 Output 1B
9 Output 2A
22 Output 2B
10 Output 3A
23 Output 3B
11 Output 4A
24 Output 4B
12
25
13 +12V Output
25-way D-type male
Notes:
See input requirements above
0.5A max (both pins), Linked to pin 13
Reference for 12V output
See contact ra ngs above
As pin 7
