Network I/O Stagebox SB 32.24 User Guide
Introduction
Overview
SB 32.24 is a 5U, 40-input and 24-output Dante stagebox featuring 32 SuperAnalogue™ mic/line
inputs, 4 AES/EBU inputs, 16 analogue line outputs and 4 AES/EBU outputs. All analogue and AES
audio connectors are XLR-3 type.
SB 32.24 can be controlled remotely from SSL Live and System T consoles as well as from SSL's
Network I/O Controller app for PC.
SB 32.24 is suitable for all high-quality AoIP applications of any scale. Redundant power, redundant
ruggedized etherCON Dante connection plus two user-specifiable SFP ports which provide network
extension or support a second independent Dante network complete the professional hardware
requirement.
Key Features:
Interface between studio/stage/recording-area and IP audio networks using Dante
●
SSL SuperAnalogue​
●
Gain-compensated Dante Split available on the same or on a separate (B) network
●
Device and parameter ownership assignment to avoid control conflicts
●
Redundant PSUs and Dante ports
●
Redundant network extension ports
●
Clear front panel indication – signal present, phantom power, channel attention on analogue
●
inputs
Front facing XLR connections
●
Network B SFP ports can be configured with RJ45 or optical LC connectors
●

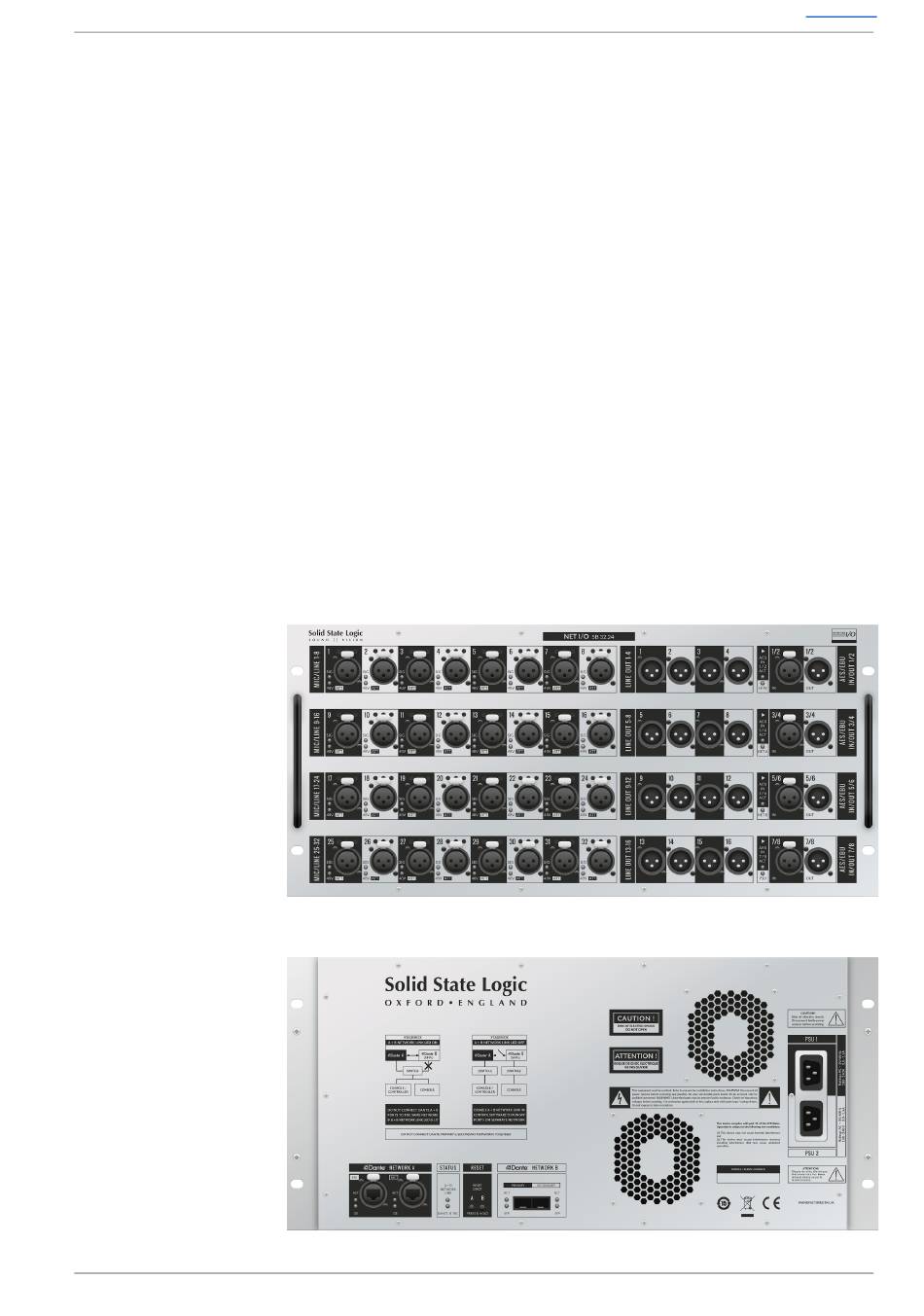

SB 32.24 Front Panel
SB 32.24 Rear Panel
TM​ Studio Grade preamps
