Summary of Contents for Wasp WWS750

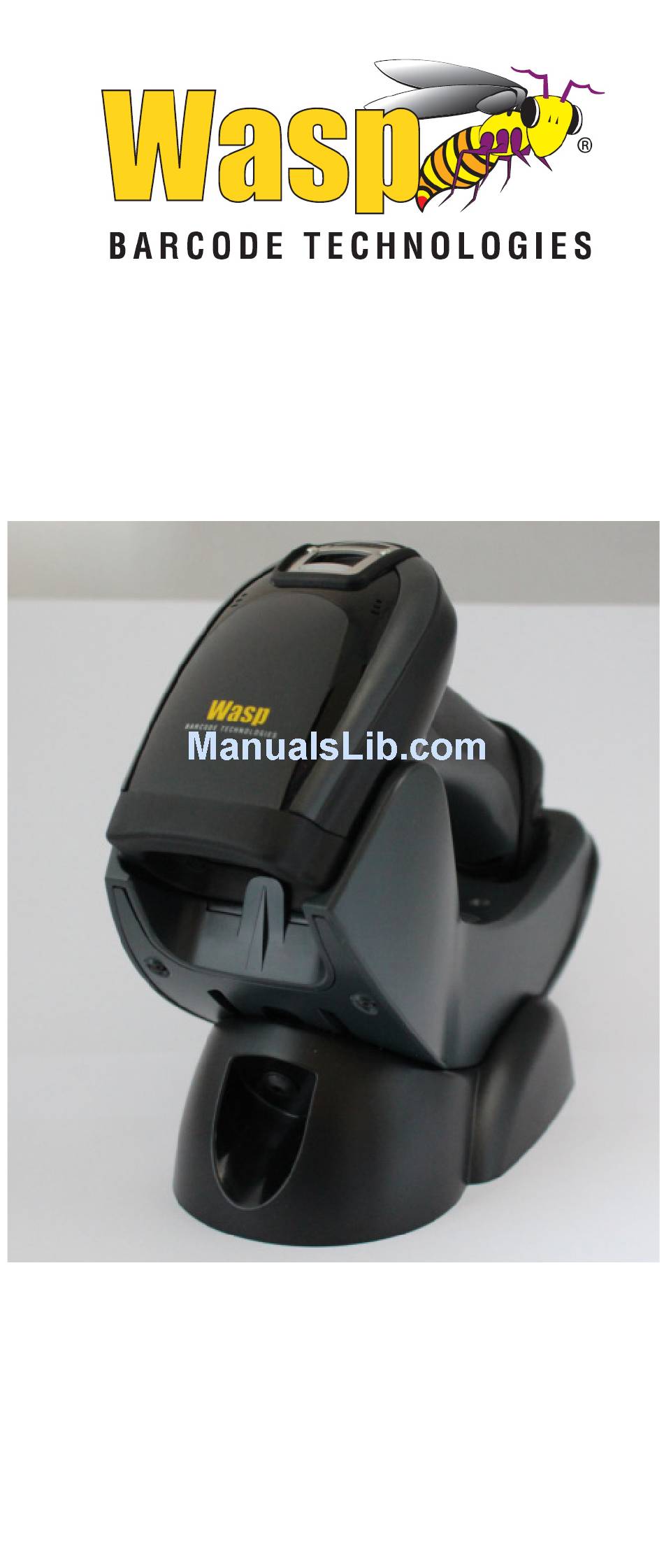

- Page 1 Wasp WWS750 2D Duraline Wireless Scanner Quick Reference Guide...
- Page 2 Wasp Technologies logo are registered trademarks of Wasp Technologies Barcode Technologies in many countries, including the U.S.A. and the E.U. Duraline is a trademark of Wasp Barcode Technologies registered in many countries, including the U.S.A. and the E.U. All other brand and product names may be trade- marks of their respective owners.
-
Page 3: Table Of Contents
Resetting Product Defaults ..........8 Set Date and Time ............... 9 Linking the Reader ..............10 Link Wasp RF Devices to Base ....... 10 Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode ............. 10 Linking to a Bluetooth Adapter in HID mode..11 Variable PIN Code ............ - Page 4 WWS650...
-
Page 5: End User Software License Agreement (Eula)
Technologies having its registered office at 1400 10th Street, Plano, TX 75074, USA ("Wasp"), and you, either an individual or a single entity, ("End User or "You"") who has purchased one or more WWS750 ("Wasp Product") subject to the terms and conditions provided in any relevant purchase or sale contract. - Page 6 End User to promptly pay all (additional) license fees due and any further damages, if any. 2. License Fee License fees shall be due by End User to Wasp according to the terms provided for in the relevant contract for the purchase of the Wasp Product.
- Page 7 Technical Data and Computer Software clause at DFARS 252.227- 7013(c)(1)(ii), whichever is applicable. 8.2 If End User is using the Wasp Product outside of the United States, End User must comply with the applicable local laws of the country in which the Wasp Product is used and with U.S. export control laws,.
- Page 8 All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Wasp shall be sent to the attention of Wasp Barcode Technologies, 1400 10th Street, Plano TX 75074 USA, or such other address as may be specified by Wasp in writing.
-
Page 9: Software Product Policy
- END - Software Product Policy Wasp reserves the right to ship its products with the latest version of software/firmware available. This provides our customers with the very latest in Wasp software technology. The only exception to this policy is when the buyer has a... - Page 10 Software Product Policy viii WASP WWS750...
-
Page 11: Description

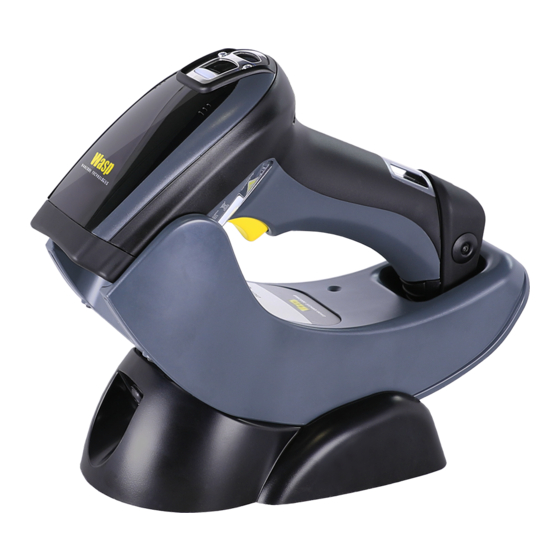

Wasp WS750 Description The WWS750 series is the first handheld scanners family on the market capable of reading digital watermarks, including Digimarc® Barcode. The Wasp WWS750 is a fea- ture-rich and rugged area imager reader. It is offered in several different models to better fit the different needs of each customer. -
Page 12: Using The Wasp Wws750
USA Driver License Parsing Quick Reference Guide (QRG), available on the Wasp website. Using the Wasp WWS750 WWS750 reader normally functions by capturing and Wasp decoding bar codes. The reader is equipped with an inter- nal Motionix™ motion-sensing function which activates the aiming system on device motion. -
Page 13: Installing The Battery Pack
To install, charge and/or do any other action on the bat- tery, follow the instructions in this manual. To charge the Battery Pack, See “Charging the Batteries” on page 6. Wasp recommends annual replacement of rechargeable battery packs to ensure maxi- NOTE mum performance. - Page 14 Use only the authorized power supplies, bat- tery pack, chargers, and docks supplied by CAUTION your Wasp reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery.
- Page 15 Installing the Battery Pack charging / recharging is adhered to rather than full / deep discharging. The typical manufacturer advertised useful life of LI bat- teries is one to three years, depending on usage and num- ber of charges, etc., after which they should be removed from service, especially in mission critical applications.
-
Page 16: Charging The Batteries
Installing the Battery Pack Charging the Batteries Once the WWS750-BS Base Station is powered, you can charge the reader's batteries. Place the WWS750 into Wasp the cradle. The Reader LED on the cradle/battery charger turns red. The battery is completely charged when the Reader LED on the cradle/battery charger turns green. - Page 17 Installing the Battery Pack Do not incinerate, disassemble, short ter- minals or expose to high temperature. Risk of fire, explosion. Use specified charger only. Risk of explosion if the battery is replaced by an incorrect type. Dispose of WARNING the batteries as required by the relevant laws in force.
-
Page 18: Programming
Customize your reader through use of the programming bar codes available in the Wasp WWS750. Check the corresponding features section for your interface, and also the Data Editing and Symbologies chapters of the PRG. Using Programming Bar Codes This manual contains bar codes which allow you to recon- figure your reader. -
Page 19: Set Date And Time
Set Date and Time Reset Default Settings Set Date and Time Scan the Enter/Exit Programming barcode below to set date and time. ENTER/EXIT PROGRAMMING MODE Scan the Set Date barcode + six digits for Year, Month and Day (YYMMDD) from the Hex- Numeric Keypad on page Set Date... -
Page 20: Linking The Reader
Use the host computer’s Bluetooth manager to “Discover new devices” and select "Wasp Scan- ner." If you receive an error message, it may be necessary to disable security on the device. -
Page 21: Linking To A Bluetooth Adapter In Hid Mode
Bluetooth manager. Link to PC in HID The WWS750-BS can be set up to require a PIN code when connecting. If you want to set up a PIN, or when adding new equipment to a sys-... -
Page 22: Variable Pin Code
BlueSoleil 8) require a Variable PIN Code. When attempting connection, the application presents a window that includes a PIN Code which is to be input using the WWS750. Please read the bar code "Variable PIN Code" and restart the sequence from step 2 above. $P,CBTHP01,P\r... -
Page 23: Hid Country Mode
HID Country Mode HID Country Mode When the Reader is connected with a Bluetooth Adapter in HID mode, you may want to set the country for which your PC is localized. In order to do that, read one of the configuration command labels below. - Page 24 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Czech Republic Country Mode = Denmark Country Mode = France Country Mode = French Canadian Country Mode = Germany Country Mode = Hungary WASP WWS750...
- Page 25 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Italy Country Mode = Japanese 106-key Country Mode = Lithuanian Country Mode = Norway Country Mode = Poland Country Mode = Portugal Quick Reference Guide...
- Page 26 HID Country Mode HID COUNTRY MODE (continued) Country Mode = Romania Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia Country Mode = Switzerland WASP WWS750...
-
Page 27: Hid Caps Lock State
HID Caps Lock State HID Caps Lock State This option specifies the format in which the reader sends character data. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable Quick Reference Guide... -
Page 28: Hid Alt Mode
Alt Mode feature. ENTER/EXIT PROGRAMMING MODE HID Alt Mode = OFF HID Alt Mode = ON Power Off Scan the bar code below to shut off power to the BT hand- held until the next trigger pull. PowerOff WASP WWS750... -
Page 29: Reading Parameters
Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See Using the Wasp WWS750 on page 2 more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition. -
Page 30: Digital Watermark Reading
Reading Parameters Digital Watermark Reading ENTER/EXIT PROGRAMMING MODE Disable Enable WASP WWS750... -
Page 31: Operating Mode
Operating Mode Operating Mode Scan Mode The imager can be set to operate in one of several scan- ning modes. See the PRG for more information and set- tings for any of the options: Trigger Single (Default) — When the trigger is pulled, scan- ning is activated until one of the following occurs: •... -
Page 32: Motion Aiming Control
Scan Mode = Flashing Trigger Hold Multiple Scan Mode = Always On Scan Mode = Stand Mode Motion Aiming Control This feature configures the ability of the scanner to Enable/Disable the Aiming system when motion is detected (Motionix™ motion-sensing technology). Scan WASP WWS750... -
Page 33: Pick Mode
Pick Mode the Enter/Exit Programming bar code above, then either of the barcodes below. Motion Aiming Control = Motion Aiming Control = Enable Disable Pick Mode Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance from the center of the aiming pattern are not acknowl- edged or transmitted to the host. -
Page 34: Multiple Label Reading
Volt 10-30 VDC; Power <8W tion and DC input Max 500mA when in host/bus powered supply range mode a. Charge Times are much lower when battery is within daily typical operating condition. b. Typical input current measured under factory default configuration. WASP WWS750... - Page 35 Technical Specifications PERFORMANCE CHARACTERISTICS Light Source Roll (Tilt) Tolerance ± 180° Pitch Tolerance ± 40° Skew (Yaw) Toler- ± 40° ance Print Contrast 15% minimum Minimum reflectance Max resolution 1D: 4 mils Resolution Max resolution 2D: 7.5 mils DEPTH OF FIELD (TYPICAL) Symbology Working Ranges 4 mils: 6-17 cm...
- Page 36 -40° to 158° F (-40° to 70° C) Humidity 0 to 95% non-condensing Scanner withstands >50 times 6.5' (2 m) Drop Specifications drops to concrete Ambient Light 100,000 Lux Immunity Contaminants: Spray/rain, IP65 Dust/particulates ESD Level 20 KV WASP WWS750...
- Page 37 Technical Specifications Beeper/Speaker >= 80 dB @ 10 cm REGULATORY UL 60950, CSA C22.2 No. 60950, IEC Electrical Safety 60950 EMI/RFI See Regulatory addendum IEC Class 2 Radiation 1 mW Avg., Emitted wave- Laser Class Safety length 650 nm, 12ms pulse, Beam Divergence 8.4 deg x 8.1 deg RADIO FEATURES Frequency working...
-
Page 38: Led And Beeper Indications
Blue light Image When ready to flashes 2 times Capture capture image when updating Except when in sleep mode or when a Good Read LED Duration other than 00 is selected WASP WWS750... -
Page 39: Programming Mode
LED and Beeper Indications Table 3. Error Indicators INDICATION DESCRIPTION BEEPER The reader is try- Slow Link Attempt ing to link to the Flashes base Reader and Base Configuration are aligning the Fast Flashes N/A Alignment parameters' con- figuration The reader has 3 beeps of Link successfully... -
Page 40: Error Codes
FRU indication code. The following table describes the LED flashes/beep codes associated with an error found. Number of LED Corrective Error Flashes/Beeps Action Configuration Contact Interface PCB Helpdesk for Digital PCB assistance Imager WASP WWS750... -
Page 41: Cleaning
Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non-aggressive cleaning solution or diluted ethyl alcohol. -
Page 42: Wasp Technologies Limited Factory Warranty
Wasp hardware products are war- ranted against defects in material and workmanship under nor- mal and proper use. The liability of Wasp under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operating condition. -
Page 43: Warranty Exclusions
Wasp Technologies Limited Factory Warranty vice center, with shipping charges prepaid. Wasp shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Wasp service center is located. -
Page 44: Ergonomic Recommendations
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Wasp. Wasp shall assume risk of loss or damage for product in Wasp’s possession. In the absence of specific written instruc- tions for the return of product to Customer, Wasp will select the carrier, but Wasp shall not thereby assume any liability in con- nection with the return shipment. - Page 45 Services and Support Quick Reference Guide...
-
Page 46: Hex-Numeric Keypad
Hex-Numeric Keypad Hex-Numeric Keypad Use the barcodes that follow to enter numbers as you would select digits/characters from a keypad. WASP WWS750... - Page 47 Hex-Numeric Keypad Hex-Numeric Keypad (continued) Quick Reference Guide...
-
Page 48: For Hid Variable Pin Code Only
If you make a mistake, scan the CANCEL barcode below to abort and not save the entry string. You can then restart. Cancel an incomplete HID Variable PIN Code Finish by scanning the Exit HID Variable PIN Code label. Exit HID Variable PIN Code WASP WWS750... - Page 49 Hex-Numeric Keypad NOTES Quick Reference Guide...
- Page 50 Hex-Numeric Keypad NOTES WASP WWS750...
- Page 52 ©2013 - 2018 Wasp and its Group companies - All right reserved. Wasp Technologies and the Wasp Technologies logo are registered trademarks of Wasp Barcode Technologies in many countries, including the U.S.A. and the E.U. Wasp Barcode Technologies 1400 10th Street Plano, Texas...
