Progressive Dynamics PD1200 Series Installation And Operation Manual

Pure sine wave inverters
Hide thumbs Also See for PD1200 Series:

Advertisement

Quick Links

Installation and Operation Guide for
PD1200 Series Pure Sine Wave Inverters
Member
The PD1200 Series Inverter is a 120 VAC, 60 Hz, pure sine wave inverter with integrated transfer switch. It has been robustly designed
with safety and protection features for installation in recreational and commercial vehicles. With a built in transfer switch this inverter can
switch seamlessly between inverter power and external shore power without any power interruptions. It has been UL certified in both the
US and Canada so you can feel comfortable knowing that your inverter is safe.
With the addition of the PD1200 Series Inverter, Progressive Dynamics, Inc. has a complete line of power products for your commercial
and recreational vehicle needs. PDI has existing product lines of Power Converters, Automatic Transfer Switches, AC Distribution Panels,
and DC Distribution Panels. These product lines, along with the newly introduced inverter, make Progressive Dynamics the only part sup-
plier you need to build a complete power system for your recreational or commercial vehicle. Our experienced sales and service department
are available to help determine which power solutions are best suited to your needs.
© 2018 Progressive Dynamics Enterprises, LLC. All rights reserved.
701559 Rev. A

Advertisement

loading

Related Manuals for Progressive Dynamics PD1200 Series

Summary of Contents for Progressive Dynamics PD1200 Series

  • Page 1 Member The PD1200 Series Inverter is a 120 VAC, 60 Hz, pure sine wave inverter with integrated transfer switch. It has been robustly designed with safety and protection features for installation in recreational and commercial vehicles. With a built in transfer switch this inverter can switch seamlessly between inverter power and external shore power without any power interruptions.

  • Page 2: Table Of Contents

    Technical Specifications ................16 LIMITED WARRANTY LIMITED WARRANTY: Progressive Dynamics Warrants its power inverters to be free from defects in material or workmanship under normal use and ser- vice; and limits the remedies to repair or replacement. DURATION: This warranty shall extend for a period of two years from the original date of purchase, and is valid only within the continental limits of the United States and Canada.

  • Page 3: Introduction

    Inverter with Optional Remote & GFCI Materials  (1) PD1200 Series Inverter  (1) Quick Reference Guide—not shown  (1) Remote Display—not shown (optional)  (1) Remote Display Connection Cable (optional) NOTE: If any of the items are missing, contact Progressive Dynamics for replacement.

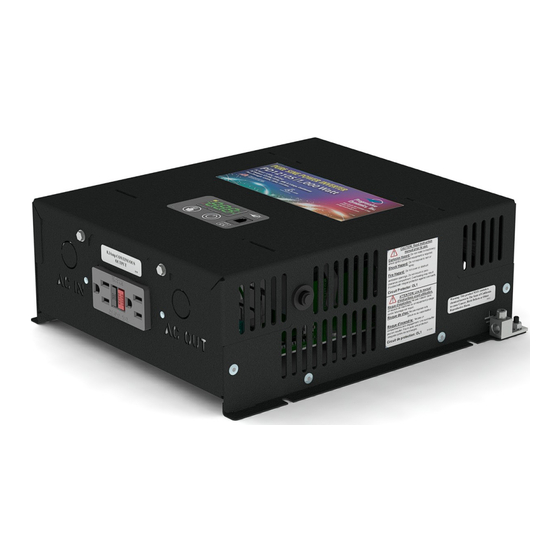

  • Page 4 DC Access Panel: Remove access panel to wire install DC wiring Equipment Ground Lug: Connect case to earth ground to ensure proper, safe operation On-Board Display: Display monitors all relevant parameters of the PD1200 Series Inverter...

  • Page 5: Key Features

    Pure Sine Wave Output Under/Over Voltage Protection The output of the PD1200 Series inverter is a 120 VAC, 60 Hz, pure To protect both the inverter and the battery bank, the PD1200 Series sine wave. Unlike a modified sine wave, a pure sine wave is ideally...

  • Page 6: Rv Power System

    The PD1200 Series Inverter in a 30A RV Power System PD60 SERIES DC GROUND TO DC LOADS DC DISTRIBUTION PANEL GROUND SHORE CONNECTION PD9200 SERIES CONVERTER 12V BATTERY BANK GENERATOR PD1200 SERIES INVERTER GENERATOR SHORE PANEL PD51 SERIES TRANSFER SWITCH...
  • Page 7 The PD1200 Series Inverter in a 50A RV Power System PD60 SERIES DC GROUND TO DC LOADS DC DISTRIBUTION PANEL GROUND GENERATOR SHORE CONNECTION PD9200 SERIES CONVERTER Battery Bank PD1200 SERIES INVERTER GROUND PD52 SERIES AC IN AC OUT TRANSFER SWITCH...
  • Page 8 It is recommended that the PD1200 series inverter is mounted horizontally (with the display facing up). The PD1200 series inverter may also be mounted vertically (with the AC access panel facing up). In vertical installation, care should be taken to avoid debris from falling into the inverter. For vertical installations it is recommended that a debris shield is installed 3 inches above the DC Access panel to block debris from falling into the inverter while allowing adequate air flow.
  • Page 9 If mounting vertically, mount the PD1200 series inverter so that the DC wiring compartment is facing up (see Figure 6). This will en- sure that the display will be oriented correctly. It is best to ensure that PD1200 series inverter is placed in an area that keeps dust & de- bris from entering the fan area.
  • Page 10 AC Connection Instructions AC Input AC Wiring Cover GFCI Output (Optional) AC Output Figure 9 AC Connections Side View Hardwired AC Connection Instructions NOTE: Hardwired AC connection is not necessary. To avoid un-necessary debris, only remove knockouts if your installation requires use of the AC hardwired connections.

  • Page 11: Installation Instructions

    Types of AC Strain Reliefs The PDI inverter includes knockouts for use with a standard 3/8” trade size strain relief. Use of a strain relief is required when hard wiring your inverter. Neglecting to use a strain relief may cause undue stress and fatigue to the wiring connections on your unit. PDI lists examples of some commonly utilized types of strain relief.
  • Page 12 DC Connection Instructions Equipment Ground Cable (not included) 3/4” 3/4” DC cable (Positive) Figure 12 Connecting the Grounding Cable Equipment Ground Lug Negative DC Lug DC Wiring Cover Positive DC Lug 3/4” DC cable (Negative) Figure 13 Figure 14 DC Connections Side View DC Connections (Wiring Cover Removed) MINIMUM RECOMMENDED DC WIRE SIZE STRIP LENGTH...

  • Page 13: Display And User Interface

    Low battery volt- Input voltage has dropped beneath 10.5V for Display Features age detected several seconds. The PD1200 Series inverter will automatically restart when the input  Power Button: Press to turn on; hold to turn off voltage reaches 12.0V.
  • Page 14 AC Output Power measurement is available only when the inverter is sup- plying power (not when the inverter is in shore power mode) Error  Error code display is only available if the PD1200 Series inverter is cur- rently in an error state.  See page 143 for error code descriptions ...

  • Page 15: Troubleshooting

    Troubleshooting Guide Symptom Corrective Actions The inverter has detected a fault condition (see Figure 21). 30 Seconds after the fault condition is detected the display enters PD1200 Series In- sleep mode. verter has a flashing  Press the select button to view the error code. Press the select button again to view the battery voltage. Proceed to the fault light correct troubleshooting action below.

  • Page 16: Technical Specifications

    Troubleshooting Troubleshooting Guide Symptom Corrective Actions During startup the inverter draws a small amount of current to charge the input capacitors. If that current exceeds a normal range the inverter shuts down and reports an internal error. This is can be indicative of bad input wiring or an internal failure. E-5 is displayed ...
