LED Diagnostics:

Red (DC) Green (AC) Power Supply Status
ON ON
ON OFF
OFF ON
OFF OFF

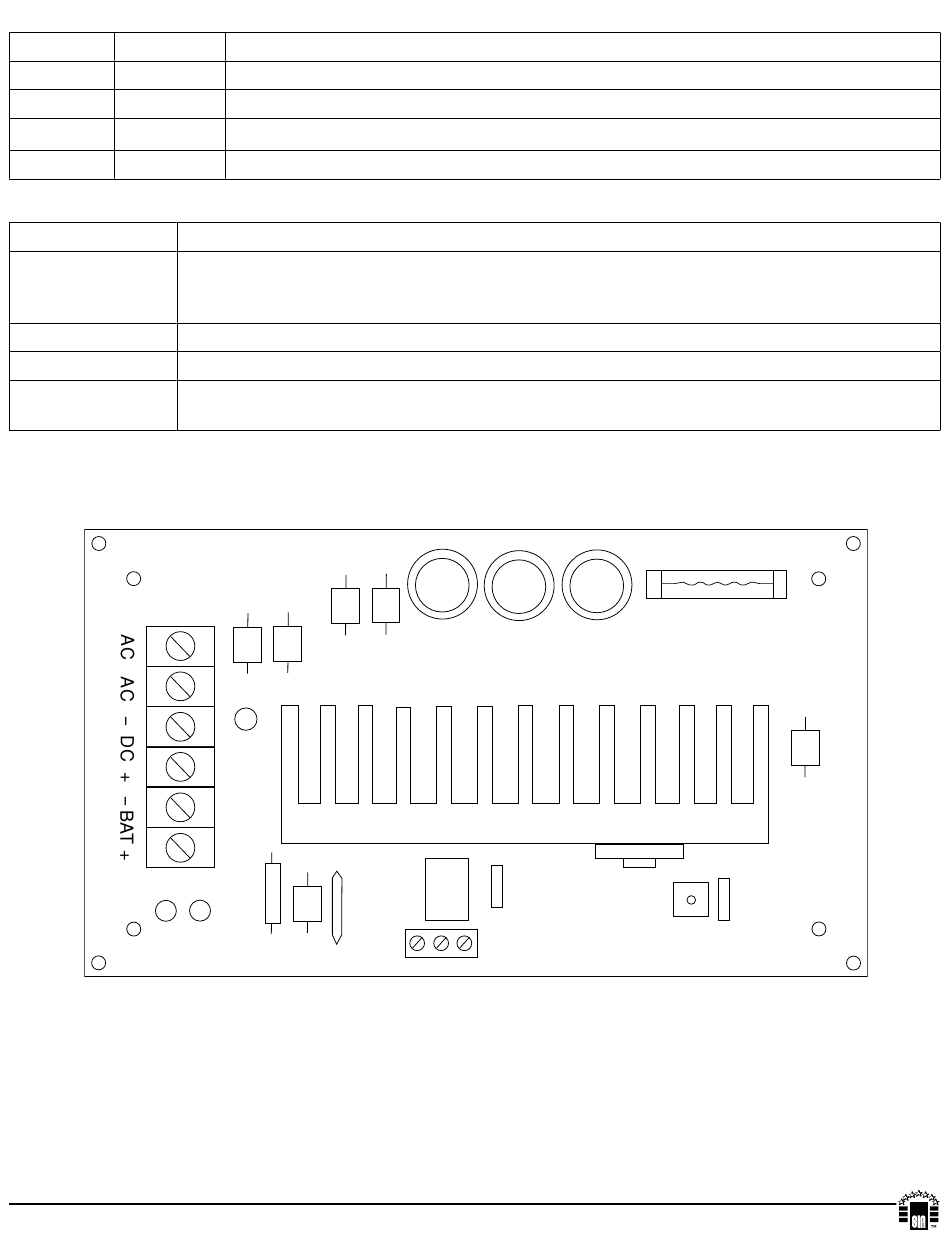

Terminal Identification:

Terminal Legend Function/Description
AC/AC Low voltage AC input (refer to Voltage Output/Transformer Selection Chart).
For 12VDC output use 16VAC with 56VA power rating or higher.
For 24VDC output use 28VAC with 85VA power rating or higher.
--- DC + 12VDC-24VDC @ 2.5 amp continuous output.
--- BAT + Stand-by battery connections. Maximum charge rate 500mA.
AC FAIL Used to report loss of AC (e.g. connect to audible device or alarm panel). Relay normally
N.C., C, N.O. energized when AC power is present. Contact rating 1 amp @ 120VAC / 28VDC.
AC
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IILPS3AC - Rev. 112204
Normal operating condition.
Loss of AC. Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition or defective unit.
No DC output. Loss of AC. Discharged or no battery present.
DC
SW2
12V-CLOSED
24V-OPEN
AC FAIL
CONTACTS
NC C NO
D24M
SW1
12V-CLOSED
24V-OPEN
MEMBER
