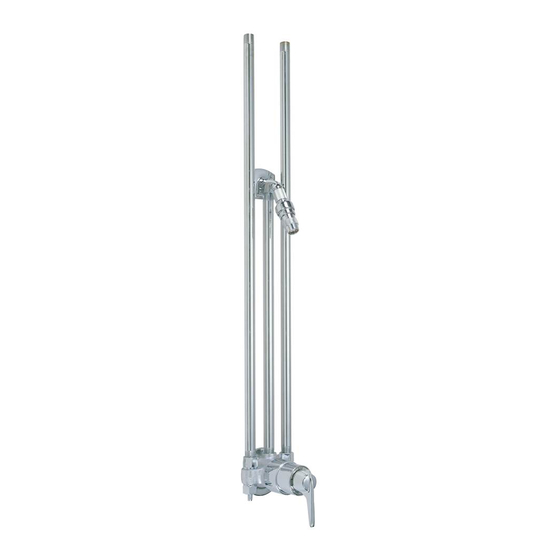

Symmons Safetymix 1-400 series Installation Instructions

1-400 Series
1-500 Series
INSTALLATION INSTRUC-
TIONS
Product meets ANSI A112.18.1M
Flow rate: 2.5 gpm (9.5 L/min)

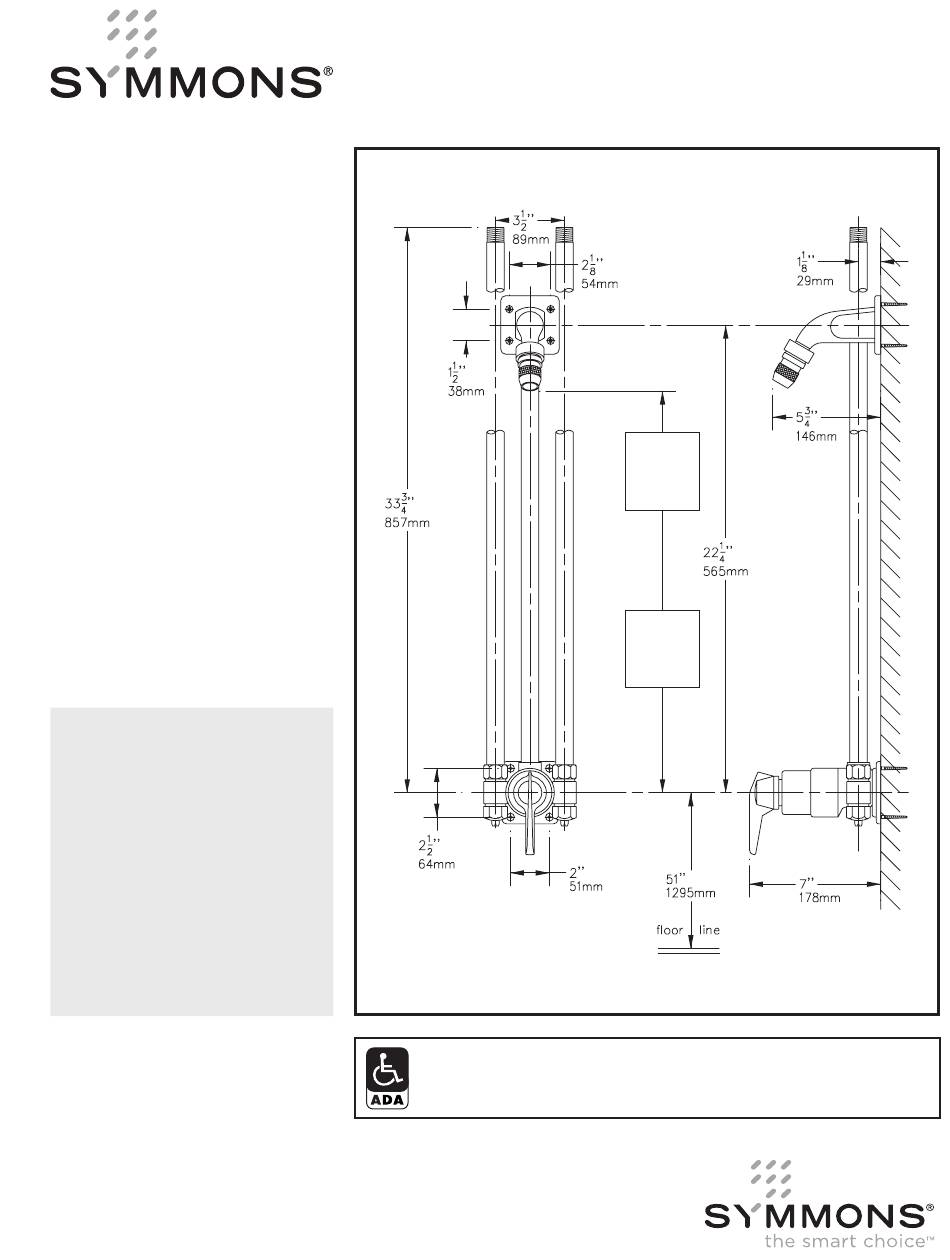

INSTALLATION:
1. Install riser into valve body and
head bracket.
2. Install 32" risers to water supply
and then attach union to risers
and valve body.
3. Mount valve body and head
bracket to the wall.
Recommended head heights
Men ____________________________ 6'0"
Boys, Senior High _________________ 5'10"
Boys, Junior High _________________ 5'7"
Boys, Elementary _________________ 5'4"
Women _________________________ 5'8"
Girls, Senior High _________________ 5'8"
Girls, Junior High _________________ 5'5"
Girls, Elementary __________________ 4'2"
Safetymix®
For ADA compliance (Americans with Disabilities Act) consult ADAAG or your state reg-
ulations for proper product choice and mounting heights. ADAAG does permit a fixed
shower head mounted 48" above the floor in unmonitored facilities where vandalism
may be a problem.
1-400
20"
508mm
1-500
18 ¾"
476mm
