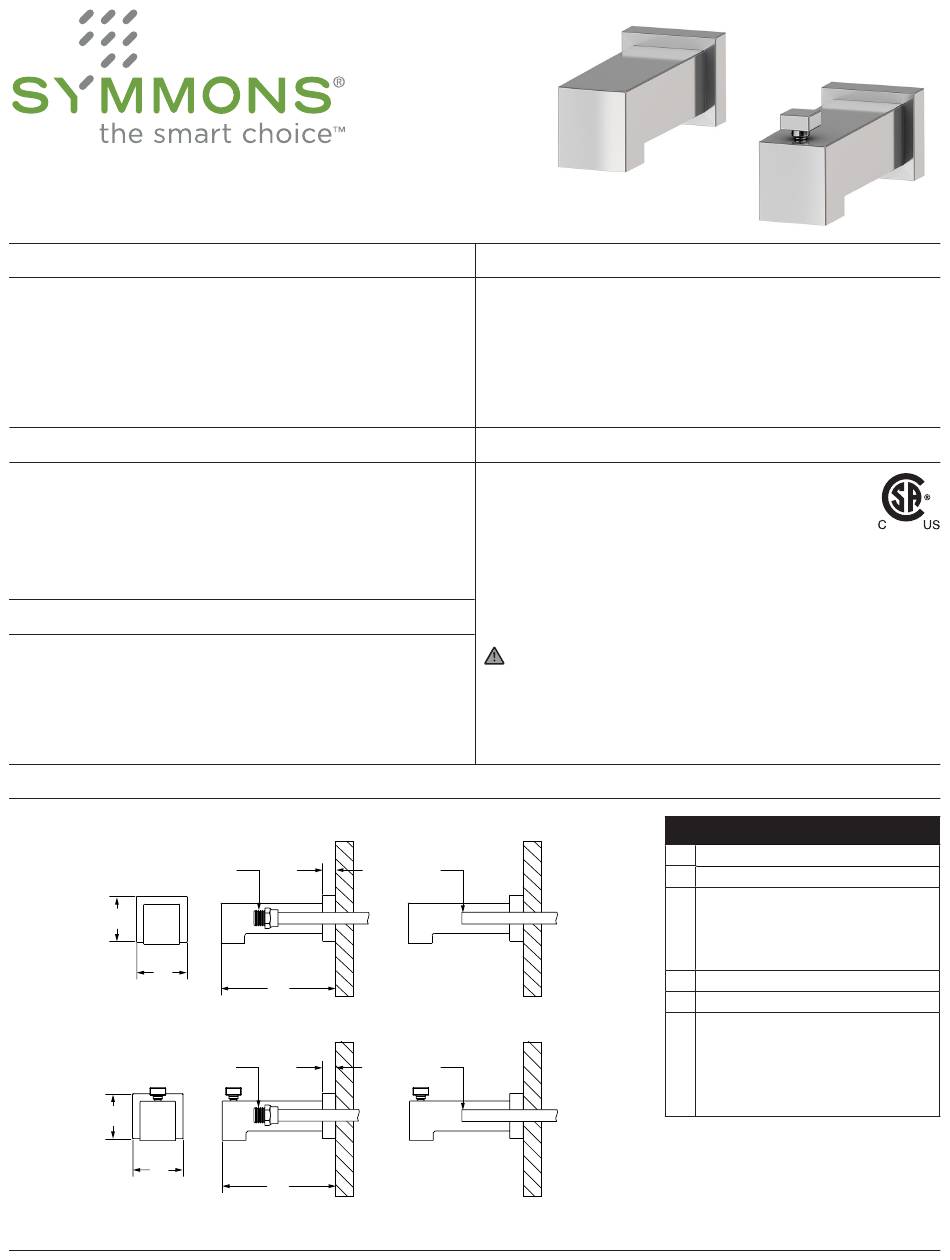

Symmons Duro 361TS Series Operation & Maintenance Manual

361TS, 361DTS
Tub Spout Series
Operation & Maintenance Manual
Model Numbers
☐
361TS Non-Diverter Tub Spout
☐
361DTS
Diverter Tub Spout
☐
361TS-SS
Non-Diverter Slip Spout
☐
361DTS-SS Diverter Slip Spout

Options/Modifications

☐
-BBZ Brushed Bronze finish
☐
-MB Matte Black finish
☐
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.

Warranty

Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.

Dimensions

361TS 361TS
A A
B B
361DTS 361DTS
A A
B B
Note: Dimensions subject to change without notice.
Duro
C C D D
E E
C C D D
E E
®
Specification
• 5-5/8" length
• Pull-up diverter (361DTS)
• Thread on installation
• Optional slip spout with 1/2" inlet
• Metal construction plated in standard polished chrome
finish

Compliance

-ASME A112.18.1/CSA B125.1
WARNING: This product can expose you to chemicals
including lead, which is known to the state of
California to cause cancer, birth defects, or other
reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
F
F
Measurements
A 2-1/4", 57 mm
B 2-1/2", 64 mm
Male 1/2-14 NPT fitting
must protrude
C
3-7/8" (98 mm)
from finished wall
D 5/8", 16 mm
E 5-5/8", 143 mm
1/2" rigid copper tubing
must protrude
F Min. 1-3/4" (44 mm)
Max. 2-3/4" (70 mm)
from finished wall
